两株溶藻弧菌噬菌体的生理特性和基因组研究
钟宛宣(1995—), 女, 广东省广州市人, 硕士研究生。email: |
Copy editor: 姚衍桃
收稿日期: 2020-06-24
修回日期: 2020-07-26
网络出版日期: 2020-07-29
基金资助
广州市科技计划项目(20190420029)
国家自然科学基金(41506095)
国家自然科学基金(41676075)
中国科学院南海生态环境工程创新研究院自主部署项目(ISEE2019ZR02)
广东省省级科技计划项目(2018B030320005)
中国博士后科学基金(2019M662237)
版权
Physiological and genomic characteristics of two lytic phages infecting Vibrio alginolyticus
Copy editor: YAO Yantao
Received date: 2020-06-24
Revised date: 2020-07-26
Online published: 2020-07-29
Supported by
Project of Program of Science and Technology of Guangzhou(20190420029)
National Natural Science Foundation of China(41506095)
National Natural Science Foundation of China(41676075)
Project of Innovation Academy of South China Sea Ecology and Environmental Engineering, Chinese Academy of Sciences(ISEE2019ZR02)
Project of Department of Science and Technology of Guangdong Province(2018B030320005)
China Postdoctoral Science Foundation(2019M662237)
Copyright
利用噬菌体治疗水产养殖细菌病害具有专一性强、自我增殖能力强等优点, 可以有效减少对环境的污染。为了获得可防治水产病原体溶藻弧菌(Vibrio alginolyticus)的生物杀菌剂, 本研究以Vibrio alginolyticus ATCC 17749T为宿主, 从福建省东山岛的对虾养殖场与水产市场污水环境中分离得到两株巨型噬菌体vB_ValM_R10Z和vB_ValM_R11Z, 并分别从噬菌体形态、宿主范围、生命周期和基因组信息等方面进行了鉴定和分析。实验结果显示, 噬菌体R10Z和R11Z具有相似的噬菌斑形态和电镜形态, 属于肌尾噬菌体; 除宿主之外, 噬菌体R10Z和R11Z均能侵染另一株欧文氏弧菌Vibrio owensii JL3186; 两株噬菌体均对氯仿不敏感, 表明其衣壳蛋白不含脂类物质; 噬菌体R10Z和R11Z的潜伏期均为20min, 但裂解量却相差一倍, 分别为45PFU·cell-1和114PFU·cell-1; 两株噬菌体的基因组大小分别为247167bp和246831bp, G+C含量分别为41.30%和41.33%, 两者基因组相似性达99.45%, 均未检测出毒力基因与抗药性基因; 系统发育分析显示两株噬菌体均属于Myoviridae(科), Tevenvirinae(亚科), Schizotequatrovirus(属), 同源基因在环境中分布广泛。两株噬菌体性状优良, 在水产病害的噬菌体治疗领域具有重要的研究价值和潜在的应用价值。
钟宛宣 , 杨芸兰 , 李祥付 , 徐杰 . 两株溶藻弧菌噬菌体的生理特性和基因组研究[J]. 热带海洋学报, 2021 , 40(4) : 22 -34 . DOI: 10.11978/2020067
Phage therapy of bacterial diseases was considered to be effective and environmentally friendly in aquaculture. To obtain the biological agents that prevent Vibro alginolyticus, two jumbo phages vB_ValM_R10Z and vB_ValM_R11Z were isolated from prawn farming waters and the sewage in fishery markets in Dongshan Island, Fujian Province, using Vibrio alginolyticus ATCC 17749 T as the host. The morphology, host range, life cycle, and genome were identified and analyzed. Phages R10Z and R11Z had similar morphology of plaques and virions, and shared the same host range of infecting other V. owensii strain JL3186. Both phages were not sensitive to chloroform, indicating that the capsid did not contain lipids. They had the same latent period of 20 min but different blast sizes of 45 PFU·cell -1 for R10Z and 114 PFU·cell-1 for R11Z. The genomic sizes of phages R10Z and R11Z were 247167 bp and 246831 bp with G+C content of 41.30% and 41.33%, respectively. Furthermore, their genomes had a similarity of 99.45%, without virulence genes and antibiotic resistance genes. Our phylogenetic analysis showed that they belonged to genus Schizotequatrovirus, subfamily Tevenvirinae, family Myovirdae. Their homologous genes were distributed in the environment widely. Phages R10Z and R11Z had good capability and great potentials for their usage as phage therapy agents of vibriosis in aquaculture.
Key words: Vibrio; phage; phage therapy; physiological properties; genome
图1 噬菌体vB_ValM_R10Z和vB_ValM_R11Z的噬菌斑形态图与电镜形态图a. vB_ValM_R10Z的噬菌斑形态图; b. vB_ValM_R11Z的噬菌斑形态图; c. vB_ValM_R10Z的电镜形态图; d. vB_ValM_R11Z的电镜形态图 Fig. 1 Phage plaques on double-layer plate and morphology in transmission electron microscopy of phages vB_ValM_R10Z and vB_ValM_R11Z a. Phage plaques of vB_ValM_R10Z; b. phage plaques of vB_ValM_R11Z; c. transmission electron microscopy images of vB_ValM_R10Z; d. transmission electron microscopy images of vB_ValM_R11Z |
表1 噬菌体vB_ValM_R10Z和vB_ValM_R11Z的裂解谱Tab. 1 The host ranges of vB_ValM_R10Z and vB_ValM_R11Z |
细菌种属 | 株系 | 致病性 | vB_ValM_R10Z | vB_ValM_R11Z |
---|---|---|---|---|
V. alginolyticus | ATCC 17749T | 可致病 | + | + |
V. alginolyticus | JL2674 | 未知 | - | - |
V. campbellii | JL2671 | 未知 | - | - |
V. campbellii | JL3506 | 未知 | - | - |
V. parahemolyticus | ATCC 17802T | 可致病 | - | - |
V. parahemolyticus | BVP2 | 未知 | - | - |
V. parahemolyticus | 20160623-13 | 可致病 | - | - |
V. parahemolyticus | 20160719-2 | 可致病 | - | - |
V. parahemolyticus | 20160615-5 | 可致病 | - | - |
V. harveyi | BVH1 | 可致病 | - | - |
V. harveyi | 20150916-2 | 可致病 | - | - |
V. owensii | JL2581 | 未知 | - | - |
V. owensii | JL3186 | 未知 | + | + |
V. owensii | JL3187 | 未知 | - | - |
V. caribbeanicus | JL3219 | 未知 | - | - |
V. fortis | JL3515 | 未知 | - | - |
V. chagasii | JL3518 | 未知 | - | - |
V. inhibens | JL3707 | 未知 | - | - |
V. cholerae | 20161020-5 | 可致病 | - | - |
V. variabilis | JL3833 | 未知 | - | - |
注: “+”表示噬菌体能够侵染该细菌; “-”表示噬菌体不可侵染该细菌 |

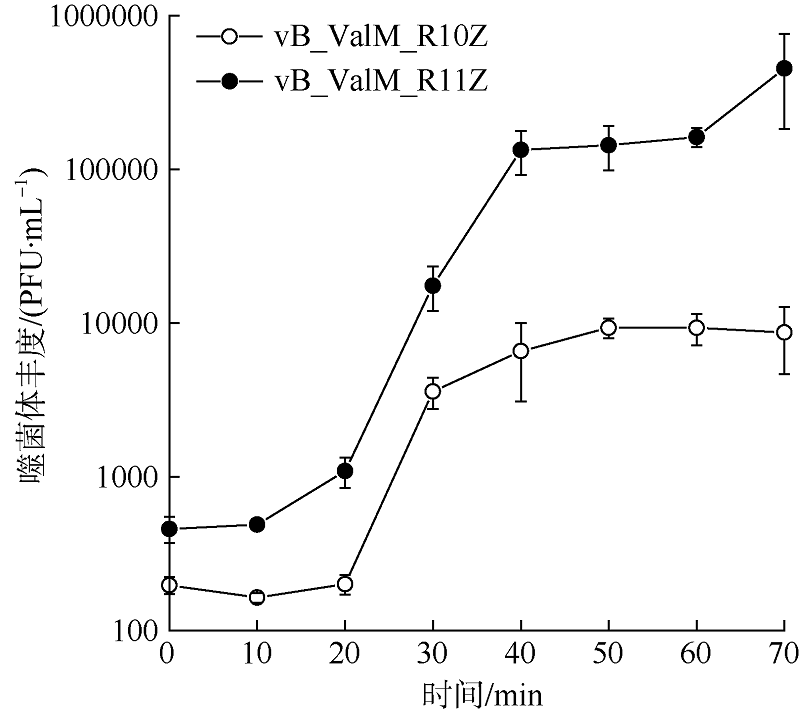

图2 噬菌体vB_ValM_R10Z和vB_ValM_R11Z的一步生长曲线图两株噬菌体分别进行生长曲线实验, 同时测试3个平行样品并取平均值, 误差线表示3个平行样品的标准差 Fig. 2 One-step growth curves of phages vB_ValM_R10Z and vB_ValM_R11Z Two phages were tested separately. Three parallel samples were tested at the same time, and the mean value was taken. The error bar represents the standard deviation of the parallel samples |

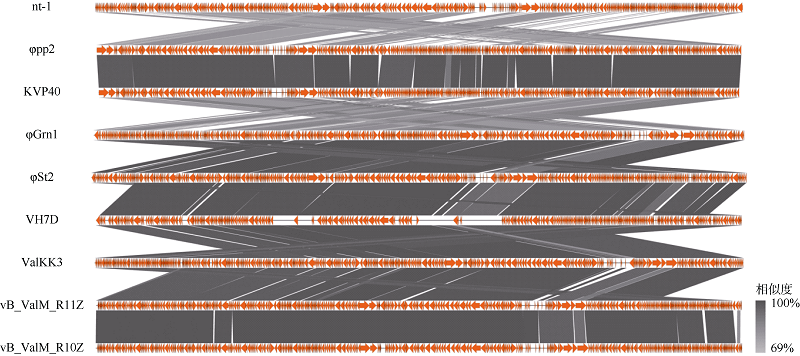

图3 Schizotequatrovirus(属)噬菌体的比较基因组分析本图采用Easyfig 2.2.3绘制; 红色箭头表示ORF, 深灰色连线表示相似度较高, 浅灰色连线表示相似度较低, 白色表示不相似 Fig. 3 Genomic comparison of genus Schizotequatrovirus Drawn with Easy |
表2 噬菌体vB_ValM_R10Z和vB_ValM_R11Z的tRNA基因Tab. 2 tRNA genes of phages vB_ValM_R10Z and vB_ValM_R11Z |
vB_ValM_R10Z | vB_ValM_R11Z | |||||||
---|---|---|---|---|---|---|---|---|
tRNA基因 序号 | 位置 | 氨基酸 | 反密码子 | tRNA基因 序号 | 位置 | 氨基酸 | 反密码子 | |
1 | 164151~164264 | Phe | AAA | 1 | 163682~163794 | Phe | AAA | |
2 | 164275~164399 | Asn | GTT | 2 | 163805~163929 | Asn | GTT | |
3 | 164784~164861 | Met | CAT | 3 | 164314~164391 | Met | CAT | |
4 | 166706~166779 | Pro | TGG | 4 | 166236~166309 | Pro | TGG | |
5 | 166789~166865 | Pro | TGG | 5 | 166319~166395 | Pro | TGG | |
6 | 166873~166948 | Arg | ACG | 6 | 166404~166479 | Arg | ACG | |
7 | 167302~167378 | Leu | TAG | 7 | 166833~166909 | Leu | TAG | |
8 | 167380~167454 | Phe | GAA | 8 | 166911~166985 | Phe | GAA | |
9 | 167544~167618 | Lys | TTT | 9 | 167075~167149 | Lys | TTT | |
10 | 167630~167706 | Lys | TTT | 10 | 167161~167237 | Lys | TTT | |
11 | 167770~167844 | Glu | TTC | 11 | 167301~167375 | Glu | TTC | |
12 | 167851~167936 | Tyr | GTA | 12 | 167382~167467 | Tyr | GTA | |
13 | 168039~168115 | Met | CAT | 13 | 167570~167646 | Met | CAT | |
14 | 168411~168509 | Ser | TGA | 14 | 167942~168040 | Ser | TGA | |
15 | 168574~168647 | Ile | GAT | 15 | 168105~168178 | Ile | GAT | |
16 | 168654~168727 | Trp | CCA | 16 | 168185~168258 | Trp | CCA | |
17 | 168803~168877 | Asn | GTT | 17 | 168334~168408 | Asn | GTT | |
18 | 168879~168954 | Asn | GTT | 18 | 168410~168485 | Asn | GTT | |
19 | 169024~169099 | Asp | GTC | 19 | 168554~168629 | Asp | GTC | |
20 | 169119~169192 | Gln | TTG | 20 | 168649~168722 | Gln | TTG | |
21 | 169322~169396 | Thr | TGT | 21 | 168850~168925 | Thr | TGT | |
22 | 169968~170042 | Ala | TGC | 22 | 169167~169241 | Ala | TGC | |
23 | 170117~170192 | Arg | TCT | 23 | 169316~169391 | Arg | TCT | |
vB_ValM_R10Z | vB_ValM_R11Z | |||||||
tRNA基因 序号 | 位置 | 氨基酸 | 反密码子 | tRNA基因 序号 | 位置 | 氨基酸 | 反密码子 | |
24 | 170717~170792 | Met | CAT | 24 | 169915~169990 | Met | CAT | |
25 | 170982~171055 | Gly | TCC | 25 | 170180~170253 | Gly | TCC | |
26 | 171062~171135 | Val | TAC | 26 | 170260~170333 | Val | TAC | |
27 | 171551~171627 | His | GTG | 27 | 170749~170825 | His | GTG | |
28 | 171640~171713 | Cys | GCA | 28 | 170838~-170911 | Cys | GCA | |
29 | 171716~171792 | Leu | TAA | 29 | 170914~170990 | Leu | TAA | |
30 | 171909~171985 | Leu | CAA | 30 | 171107~171183 | Leu | CAA | |
31 | 172154~172242 | Ser | GCT | 31 | 171352~171440 | Ser | GCT |

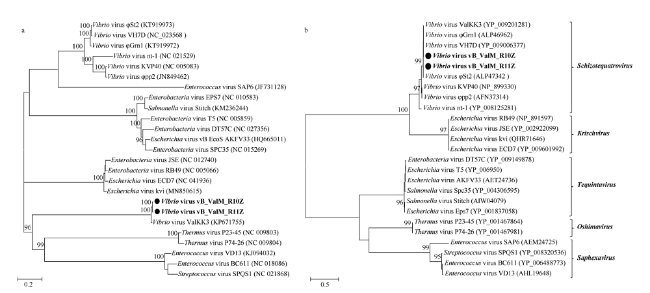

图4 噬菌体全基因组(a)和DNA聚合酶基因(b)的系统发育进化树系统发育进化树由最大似然法构建, Bootstrap 检验1000次,检验可信度低于90的值隐藏; vB_ValM_R10Z 和vB_ValM_ RI0Z 加粗显示,括号内为噬菌体的GenBank序列号。系统发育树中包括本文分离获得的噬菌体vB__ValM_R10Z、vB__ValM_R1IZ和所有前人已发表的Schizotequatrovirus类噬菌体,以及其余类群的部分代表性噬菌体 Fig. 4 Phy logenetic trees of complete genome (a) and DNA polymerase (b) of phages vB_ ValM_ R10Z, vB_ ValM_R11Z and other known phages Maximum likelihood analyses with 1000 bootstrap replicates were used to derive the trees based on amino-acid sequences. Bootstrap values are shown above the major nodes, and the values below 90 are hidden. Phages vB_ValM_R10Z and vB_ValM_R11Z are marked in bold. Numbers in brackets represent corresponding GenBank ID. The phylogenetic trees include phages vB_ValM_ R10Z and vB_ValM_ R11Z, as well as all published Schizotequatrovirus phages and some representative phages of other genera |
表3 Schizotequatrovirus噬菌体的对比Tab. 3 Comparison of Schizotequatrovirus phages |
噬菌体 | vB_ValM_R10Z | vB_ValM_R11Z | VH7D | φSt2 | φGrn1 | ValKK3 | KVP40 | φpp2 | nt-1 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
宿主菌 | V. alginolyticus | V. alginolyticus | V. sp. 7D | V. alginolyticus | V. alginolyticus | V. alginolyticus | V. parahaemolyticus | V. parahaemolyticus | V. natrigens | ||||||||||
地点 | 中国东山岛 | 中国东山岛 | 中国厦门 | 希腊克里特岛 | 希腊克里特岛 | 马来西亚 | 日本Urado湾 | 中国台湾南部 | 大西洋 | ||||||||||
分离环境 | 养殖水体 | 污水 | 养殖水体 | 海水 | 海水 | 沉积物 | 污水 | 养殖水体 | 沉积物 | ||||||||||
头长/nm | 147 | 148 | 155 | 151 | 138 | 140 | 140 | 150 | 120 | ||||||||||
头宽/nm | 78 | 81 | 75 | 81 | 74 | 79 | 70 | 90 | 70 | ||||||||||
尾长/nm | 120 | 114 | 132 | 134 | 120 | 130 | 110 | 110 | |||||||||||
潜伏期/min | 20 | 20 | 30 | 30 | |||||||||||||||
裂解量/PFU·cell-1 | 43 | 114 | 97 | 44 | |||||||||||||||
噬菌体 | vB_ValM_R10Z | vB_ValM_R11Z | VH7D | φSt2 | φGrn1 | ValKK3 | KVP40 | φpp2 | nt-1 | ||||||||||
GenBank 收录号 | MT612988 | MT612989 | KC131129.1 | KT919973.1 | KT919972 | KP671755.1 | AY283928 | JN849462 | HQ317393 | ||||||||||
基因组大小/bp | 247167 | 246831 | 246964 | 250485 | 248605 | 248088 | 244835 | 246421 | 247489 | ||||||||||
G+C值 | 41.30% | 41.33% | 41.31% | 42.60% | 38.80% | 41.20% | 42.60% | 42.55% | 41.33% | ||||||||||
ORF数量/个 | 386 | 385 | 387 | 412 | 410 | 390 | 386 | 383 | 379 | ||||||||||
tRNA数量/个 | 31 | 31 | 27 | 29 | 28 | 30 | 30 | 28 | |||||||||||
毒力基因 | 无 | 无 | 无 | 无 | 无 | 无 | 无 | 无 | 无 | ||||||||||
抗药性基因 | 无 | 无 | 无 | 无 | 无 | 无 | 无 | 无 | 无 | ||||||||||
参考文献 | 本文 | 本文 | Luo et al, 2015 | Kalatzis et al, 2016; Skliros et al, 2016 | Kalatzis et al, 2016; Skliros et al, 2016 | Lal et al, 2016 | Matsuzaki et al, 1992; Miller et al, 2003 | Lin et al, 2012 | Zachary, 1976 |
注: 表中空白表示无数据 |
