浮筏式牡蛎养殖对大型底栖动物群落功能结构的影响——以大鹏澳为例*
*本研究的样品采集工作由周贤、覃晓青、杜胜奇、许明监、谭桢、谢东海协助完成, 特此感谢。
饶义勇(1989—), 男, 福建省南平市人, 博士, 从事海洋底栖动物群落生态学研究。email: |
Copy editor: 殷波
收稿日期: 2023-10-10
修回日期: 2023-10-31
网络出版日期: 2023-11-06
基金资助
国家自然科学基金项目(42206119)
海南大学南海海洋资源利用国家重点实验室开放课题项目(MRUKF202101)
中国水产科学研究院南海水产研究所中央级公益性科研院所基本科研业务费专项(2020TS02)
福建省社会科学基金项目(FJ2021C083)
Influence of raft-string oyster culture on the functional structure of macrobenthic communities: a case study in the Dapeng Cove*
Received date: 2023-10-10
Revised date: 2023-10-31
Online published: 2023-11-06
Supported by
National Natural Science Foundation of China(42206119)
Open Project of State Key Laboratory of Marine Resource Utilization in South China Sea, Hainan University(MRUKF202101)
Central Public-interest Scientific Institution Basal Research Fund, South China Sea Fisheries Research Institute, CAFS(2020TS02)
Fujian Provincial Social Science Foundation Youth Project(FJ2021C083)
牡蛎养殖的环境生态效应存在争议, 其对大型底栖动物的影响机理缺乏清晰认识。本研究于2020年11月(秋季)和2021年1月(冬季)在大鹏澳浮筏式牡蛎养殖区及邻近海域进行了2个航次大型底栖动物和相关环境因子的调查监测。2个航次共获得大型底栖动物103种, 种类组成以多毛类、双壳类和甲壳类物种占优势。大型底栖动物群落的物种组成在季节间(秋季和冬季)和区域间(养殖区和对照区)具有显著差异。冬季大型底栖动物的种类数、栖息密度和生物量等群落参数高于秋季, 对照区高于养殖区。生物性状分析(biological traits analysis, BTA)结果显示, 大型底栖动物群落的性状组成仅在季节间具有显著差异。牡蛎养殖区和对照区大型底栖动物群落的性状组成差异不显著, 但生物扰动方式、个体大小、摄食类型等性状在区域间仍有一定的差别。牡蛎养殖区大型底栖动物群落的功能丰富度(functional richness, Fric)低于对照区, 但功能均匀度(functional evenness, Feve)和功能分散度(functional divergence, Fdiv)在区域之间的差异不大。表层水体的叶绿素a、悬浮物、营养盐以及沉积物的有机碳、硫化物和中值粒径是影响大型底栖动物物种组成和性状组成的重要环境因子。摄食类型、栖息方式以及幼体发育方式等性状与环境因子的关系比较密切, 物种丰富度(d)和功能丰富度指数具有较高的环境指示意义。
饶义勇 , 赵美榕 , 旷泽行 , 黄洪辉 , 谭萼辉 . 浮筏式牡蛎养殖对大型底栖动物群落功能结构的影响——以大鹏澳为例*[J]. 热带海洋学报, 2024 , 43(5) : 69 -83 . DOI: 10.11978/2023146
The environmental and ecological effects of oyster culture are controversial, and the mechanism of its impact on macrobenthic fauna remains unclear. In this study, two comprehensive investigations referring to macrobenthic communities and environmental variables were conducted in November 2020 (autumn) and January 2021 (winter) in a raft-string oyster culture zone and its adjacent waters in the Dapeng Cove. A total of 103 species were obtained, with polychaetes, bivalves, and crustaceans dominating the species composition. Significant seasonal variations were observed, emphasizing the influence of seasonality on macrobenthic communities. Distinct regional differences were also noted between the culture zone and control zone, highlighting the impact of oyster culture on community composition. The community parameters, including species number, density, and biomass, exhibited higher values during winter and in the control zone compared to autumn and the culture zone. The results of biological traits analysis (BTA) indicated that the trait composition of macrobenthic communities differed significantly only between seasons. There was no significant difference in the trait composition of macrobenthic communities between the culture zone and control zone. Nevertheless, regional disparities in bioturbation mode, body size, and feeding type were evident. Functional richness (Fric) displayed lower values in the culture zone compared to the control zone, whereas functional evenness (Feve) and functional divergence (Fdiv) indices remained relatively consistent across regions. This study identified several critical environmental variables shaping macrobenthic community composition, including chlorophyll a, suspended matter, nutrients, sediment organic carbon, sulfide levels, and sediment particle size. Notably, the feeding type, living habit, and larval development patterns of macrobenthic fauna closely correlated with environmental variables. Furthermore, both the species richness (d) and the functional richness (Fric) indices emerged as valuable environmental indicators.
表1 环境要素分析方法及检出限Tab. 1 Analysis methods and detection limits of environmental variables |
检测要素 | 检测标准(方法) | 检出限 | 仪器设备名称及型号 |
---|---|---|---|
悬浮物 | 海洋监测规范 第4部分: 海水分析GB 17378.4-2007 (重量法) | 0.8mg·L-1 | 分析天平XS205 |
亚硝酸盐 | 海洋监测规范 第4部分: 海水分析GB 17378.4-2007 (萘乙二胺分光光度法) | 0.0003mg·L-1 | 紫外分光光度计UV-7504 |
硝酸盐 | 海洋监测规范 第4部分: 海水分析GB 17378.4-2007 (镉柱还原法) | 0.003mg·L-1 | 紫外分光光度计UV-7504 |
铵盐 | 海洋监测规范 第4部分: 海水分析GB 17378.4-2007 (靛酚蓝分光光度法) | 0.0009mg·L-1 | 紫外分光光度计UV-7504 |
活性磷酸盐 | 海洋监测规范 第4部分: 海水分析GB 17378.4-2007 (磷钼蓝分光光度法) | 0.0005mg·L-1 | 紫外分光光度计UV-7504 |
叶绿素a | 海洋监测规范 第7部分: 近海污染生态调查和生物监测GB 17378.7-2007 (荧光分光光度法) | / | TURNER10-AU现场荧光仪 |
中值粒径 | 激光衍射法 | 0.02μm | Mastersizer 2000G 激光粒度分析仪 |
有机碳 | 海洋监测规范 第5部分: 沉积物分析GB 17378.5-2007 (重铬酸钾氧化-还原容量法) | 0.3mg·kg-1 | 紫外分光光度计UV-7504 |
硫化物 | 海洋监测规范 第5部分: 沉积物分析GB 17378.5-2007 (亚甲基蓝分光光度法) | 0.01% | 滴定管 |
表2 大型底栖动物性状及其功能属性Tab. 2 Traits and relevant functional attributes of macrobenthic fauna |
性状 | 性状类别 | 代码 | 功能属性 |
---|---|---|---|
个体大小 | 极小 (<1cm) | S1 | 个体大小对生产力、栖息地的结构和增益程度具有直接影响, 并对沉积物-水界面的氧气和养分通量产生重要影响。并与生态系统的食物网结构、营养级和能流有关(Bolam et al, 2014) |
小 (1~3cm) | S2 | ||
中 (3~10cm) | S3 | ||
大 (>10cm) | S4 | ||
个体寿命 | 短 (<1a) | A1 | 反映生物受到扰动的恢复力, 寿命长的生物需要更长的时间来恢复, 而寿命短的生物可以快速恢复, 并可能随着干扰的增加而增多(Bolam et al, 2014) |
中 (1~3a) | A2 | ||
长 (>3a) | A3 | ||
摄食类型 | 悬浮食性 | F1 | 指示水动力条件, 例如悬浮食性生物一般生活于急流中; 影响氧气的渗透、资源的利用、有机物的分解和养分的循环/再生; 对群落中其他物种的控制作用(Bremner, 2008) |
沉积食性 | F2 | ||
植食性 | F3 | ||
腐食性 | F4 | ||
捕食性 | F5 | ||
栖息习性 | 管栖 | L1 | 栖息习性对沉积物的生物地球化学循环具有直接影响, 同时, 栖息习性不同的生物对捕食和扰动具有不同的响应, 如附着生物易受捕食; 穴居和管栖的生物受缺氧环境影响较小(Bremner, 2008) |
穴居 | L2 | ||
自由生活 | L3 | ||
附着 | L4 | ||
幼体发育 | 营浮游发育 | D1 | 物种扩散、入侵或从种群减少中恢复的能力。通常营浮游发育的物种的扩散能力要高于底栖直接发育的物种(Bolam et al, 2014) |
底栖直接发育 | D2 | ||
生物扰动 | 底表沉积 | B1 | 影响沉积物的生物地球化学循环和理化性质(沉积物粒径、氧化还原电位等) (Queirós et al, 2013) |
向上传输 | B2 | ||
向下传输 | B3 | ||
扩散混合 | B4 |

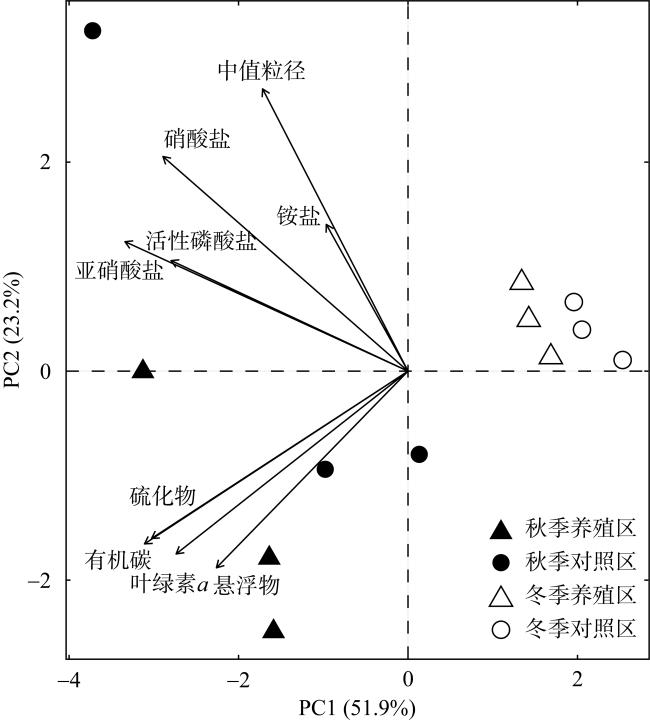

图2 大鹏澳浮筏式牡蛎养殖区及邻近海域环境因子PCA排序图Fig. 2 PCA ordination plot of environmental variables in the raft-string oyster culture zone and its adjacent waters in the Dapeng Cove |
表3 大鹏澳浮筏式牡蛎养殖区及邻近海域环境因子平均值和标准差Tab. 3 Mean values and standard deviations of the environmental variables in the raft-string oyster culture zone and its adjacent waters in the Dapeng Cove |
环境因子 | 秋季 | 冬季 | |||
---|---|---|---|---|---|
养殖区 | 对照区 | 养殖区 | 对照区 | ||
水环境 | 叶绿素a /(mg·m-3) | 2.98 (1.06) | 2.64 (0.14) | 0.88 (0.29) | 0.93 (0.15) |
悬浮物/(mg·L-1) | 16.3 (2.2) | 8.9 (2.2) | 8.7 (0.4) | 8.7 (0.5) | |
亚硝酸盐/(mg·L-1) | 0.0028 (0.0007) | 0.0027 (0.0025) | 0.0012 (0.0002) | 0.0003 (0.0004) | |
硝酸盐/(mg·L-1) | 0.097 (0.048) | 0.181 (0.192) | 0.033 (0.003) | 0.021 (0.012) | |
铵盐/(mg·L-1) | 0.020 (0.020) | 0.014 (0.009) | 0.026 (0.008) | 0.011 (0.003) | |
活性磷酸盐/(mg·L-1) | 0.0061 (0.0029) | 0.0055 (0.0013) | 0.0041 (0.0006) | 0.0039 (0.0010) | |
沉积环境 | 有机碳/% | 2.83 (0.18) | 2.19 (0.05) | 1.37 (0.11) | 0.67 (0.07) |
硫化物/(mg·kg-1) | 484.33 (73.11) | 461.67 (141.55) | 10.20 (10.53) | 7.41 (2.04) | |
中值粒径/μm | 10.44 (1.02) | 40.30 (37.75) | 11.48 (1.04) | 17.95 (2.65) |
注: 括号内数值为标准差 |

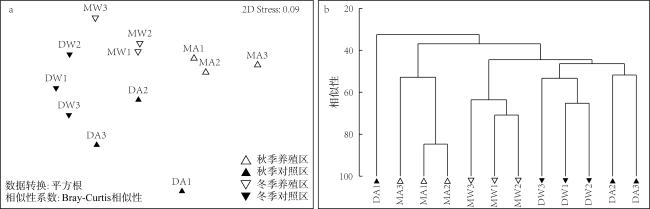

图5 大鹏澳浮筏式牡蛎养殖区及邻近海域大型底栖动物群落非参数多维标序(nMDS)(a)和聚类分析(CLUSTER)(b)Fig. 5 nMDS (a) and CLUSTER (b) plots based on the abundance data of macrobenthic communities in the raft-string oyster culture zone and its adjacent waters in the Dapeng Cove |
表4 大鹏澳浮筏式牡蛎养殖区及邻近海域大型底栖动物群落相异性的主要贡献种Tab. 4 Dominant species contributing to the dissimilarities of macrobenthic communities in the raft-string oyster culture zone and its adjacent waters in the Dapeng Cove |
类群 | 种名 | 季节间 | 区域间 | ||||
---|---|---|---|---|---|---|---|
栖息密度/(ind·m-2) | 贡献度/% | 栖息密度/(ind·m-2) | 贡献度/% | ||||
秋季 | 冬季 | 养殖区 | 对照区 | ||||
多毛类 | 背褶沙蚕 Tambalagamia fauveli | 95 | 15 | 2.4 | 102 | 8 | 3.0 |
才女虫 Polydora sp. | 5 | 42 | 1.9 | 27 | 20 | 1.3 | |
寡节甘吻沙蚕 Glycinde gurjanovae | 75 | 158 | 2.2 | 62 | 172 | 2.4 | |
寡鳃齿吻沙蚕 Nephtys oligobranchia | 23 | 98 | 2.1 | 50 | 72 | 1.7 | |
花冈钩毛虫 Sigambra hanaokai | 158 | 158 | 2.0 | 143 | 173 | 2.3 | |
滑指矶沙蚕 Eunice indica | 62 | 67 | 1.5 | 38 | 90 | 1.7 | |
角海蛹 Ophelina acuminate | 10 | 55 | 2.0 | 38 | 27 | 1.4 | |
欧努菲虫 Onuphis eremita | 42 | 47 | 2.0 | 0 | 88 | 3.5 | |
蛇杂毛虫 Poecilochaetus serpens | 35 | 25 | 1.8 | 10 | 50 | 1.8 | |
梳鳃虫 Terebellides stroemii | 50 | 73 | 2.4 | 90 | 33 | 2.4 | |
树蛰虫 Pista cristata | 7 | 117 | 2.5 | 7 | 117 | 2.5 | |
细丝鳃虫 Cirratulus filiformis | 118 | 130 | 1.9 | 95 | 153 | 1.8 | |
持真节虫 Euclymene annandalei | 42 | 15 | 4.5 | 3 | 53 | 2.1 | |
稚齿虫 Prionospi sp. | 8 | 125 | 3.2 | 98 | 35 | 2.3 | |
双壳类 | 安汶圆蛤 Cycladicama amboinensis | 123 | 22 | 1.7 | 15 | 130 | 2.1 |
波纹螂斗蛤 Myadora fluctuosa | 3 | 42 | 2.0 | 17 | 28 | 1.5 | |
粗帝汶蛤 Timoclea scabra | 22 | 603 | 5.4 | 30 | 595 | 5.2 | |
虹光亮樱蛤 Nitidotellina iridella | 150 | 33 | 2.3 | 15 | 168 | 2.7 | |
理蛤 Theora lata | 27 | 27 | 1.5 | 43 | 10 | 2.2 | |
甲壳类 | 巴西地钩虾 Podocerus brasiliensis | 0 | 292 | 4.8 | 242 | 50 | 3.2 |
蜾蠃蜚 Corophium sp. | 0 | 47 | 1.7 | 47 | 0 | 1.4 | |
宽甲古涟虫 Eucoma lata | 2 | 67 | 1.9 | 0 | 68 | 2.0 | |
六齿拟钩虾 Gammaropsis sexdentata | 37 | 197 | 3.6 | 218 | 15 | 4.0 | |
双眼钩虾 Ampelisca sp. | 2 | 133 | 2.9 | 0 | 135 | 3.0 | |
平均相异性 /% | 61.6 | 62.0 |

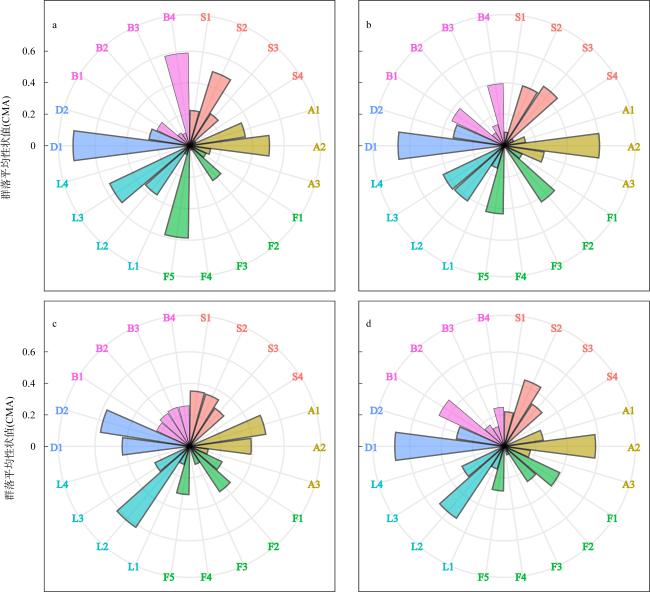

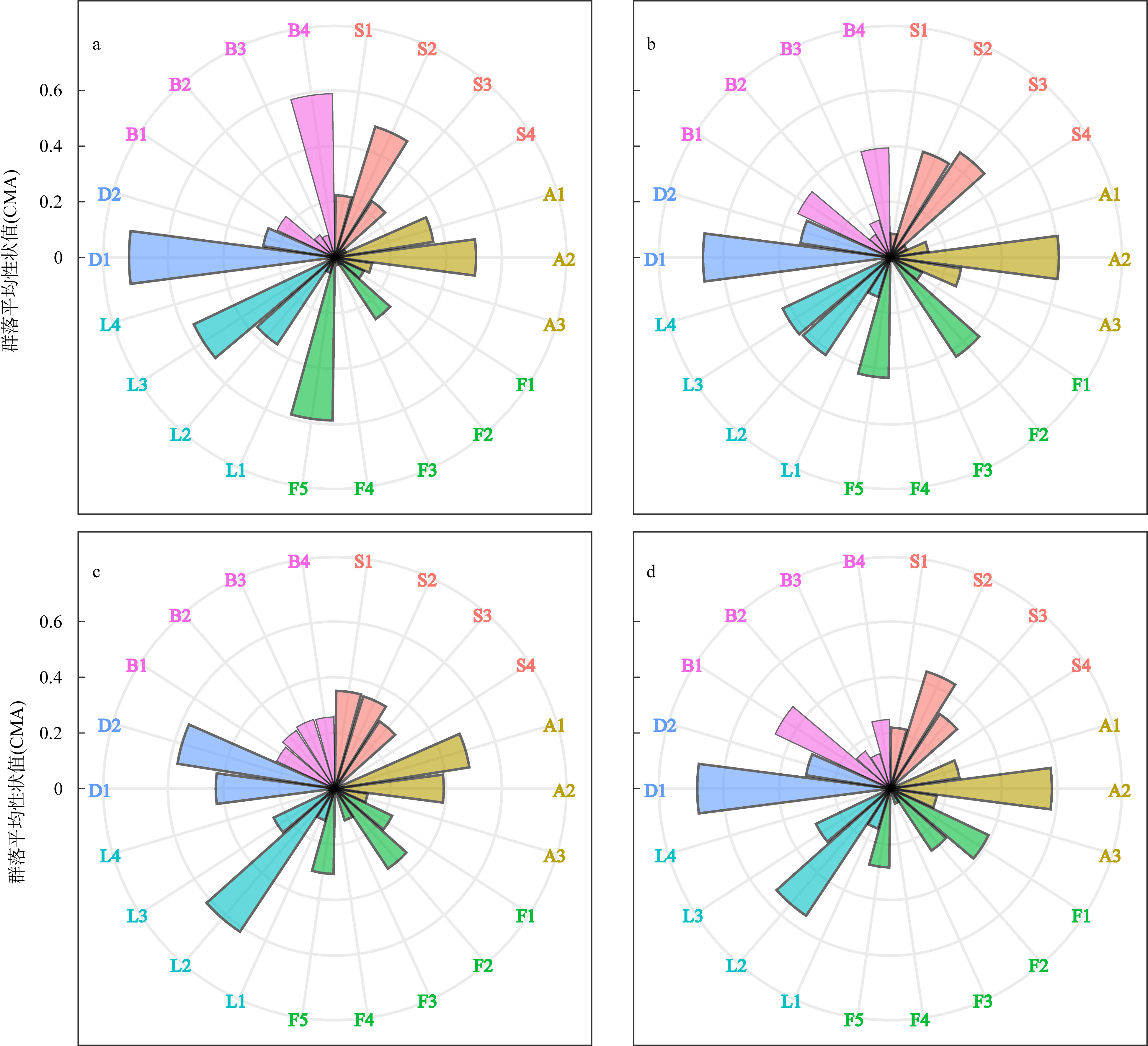

图6 大鹏澳浮筏式牡蛎养殖区及邻近海域大型底栖动物群落平均性状值(CWM)风玫瑰图a. 秋季养殖区; b. 秋季对照区; c. 冬季养殖区; d. 冬季对照区。各性状类别代码含义见 Fig. 6 Wind rose plots showing the community-weighted mean of trait value (CWM) of macrobenthic communities in the raft-string oyster culture zone and its adjacent waters in the Dapeng Cove. See |
表5 大鹏澳浮筏式牡蛎养殖区及邻近海域大型底栖动物群落性状组成相异性的主要贡献性状类别Tab. 5 Dominant trait modalities contributing to the dissimilarities of trait composition of macrobenthic communities in the raft-string oyster culture zone and its adjacent waters in the Dapeng Cove |
性状 | 性状类别 | 季节间 | 区域间 | ||||
---|---|---|---|---|---|---|---|
群落加权平均性状值 | 贡献度/% | 群落加权平均性状值 | 贡献度/% | ||||
秋季 | 冬季 | 养殖区 | 对照区 | ||||
个体大小 | S1 (极小个体) | 0.15 | 0.29 | 5.2 | 0.29 | 0.15 | 5.6 |
S2 (小个体) | 0.44 | 0.39 | 5.4 | 0.42 | 0.42 | 5.8 | |
S3 (中等个体) | 0.35 | 0.31 | 4.4 | 0.27 | 0.39 | 5.5 | |
S4 (大个体) | 0.05 | 0.02 | 1.2 | 0.03 | 0.04 | 0.9 | |
个体寿命 | A1 (短寿命) | 0.25 | 0.37 | 6.3 | 0.42 | 0.19 | 7.9 |
A2 (中等寿命) | 0.56 | 0.49 | 5.1 | 0.45 | 0.59 | 5.7 | |
A3 (长寿命) | 0.20 | 0.14 | 2.6 | 0.13 | 0.21 | 3.3 | |
摄食类型 | F1 (悬浮食性) | 0.12 | 0.31 | 6.2 | 0.17 | 0.26 | 5.7 |
F2 (沉积食性) | 0.35 | 0.31 | 3.5 | 0.31 | 0.35 | 4.0 | |
F3 (极小个体) | 0.01 | 0.09 | 2.3 | 0.07 | 0.03 | 2.0 | |
F4 (腐食性) | 0.01 | 0.00 | 0.2 | 0.00 | 0.01 | 0.2 | |
F5 (捕食性) | 0.51 | 0.29 | 7.4 | 0.45 | 0.36 | 5.9 | |
栖息习性 | L1 (管栖) | 0.10 | 0.14 | 2.2 | 0.09 | 0.15 | 2.7 |
L2 (穴居) | 0.40 | 0.58 | 6.9 | 0.50 | 0.48 | 6.6 | |
L3 (自由生活) | 0.49 | 0.27 | 8.0 | 0.40 | 0.36 | 6.6 | |
L4 (附着) | 0.01 | 0.01 | 0.4 | 0.01 | 0.00 | 0.4 | |
幼体发育 | D1 (营浮游发育) | 0.71 | 0.56 | 6.2 | 0.58 | 0.68 | 6.0 |
D2 (底栖直接发育) | 0.29 | 0.44 | 6.2 | 0.42 | 0.32 | 6.0 | |
生物扰动 | B1 (底表沉积) | 0.30 | 0.34 | 5.3 | 0.23 | 0.41 | 6.6 |
B2 (向上传输) | 0.10 | 0.21 | 3.6 | 0.17 | 0.13 | 2.8 | |
B3 (向下传输) | 0.11 | 0.20 | 3.2 | 0.17 | 0.14 | 3.1 | |
B4 (扩散混合) | 0.49 | 0.25 | 8.3 | 0.42 | 0.32 | 6.7 | |
平均相异性/% | 27.1 | 25.2 |

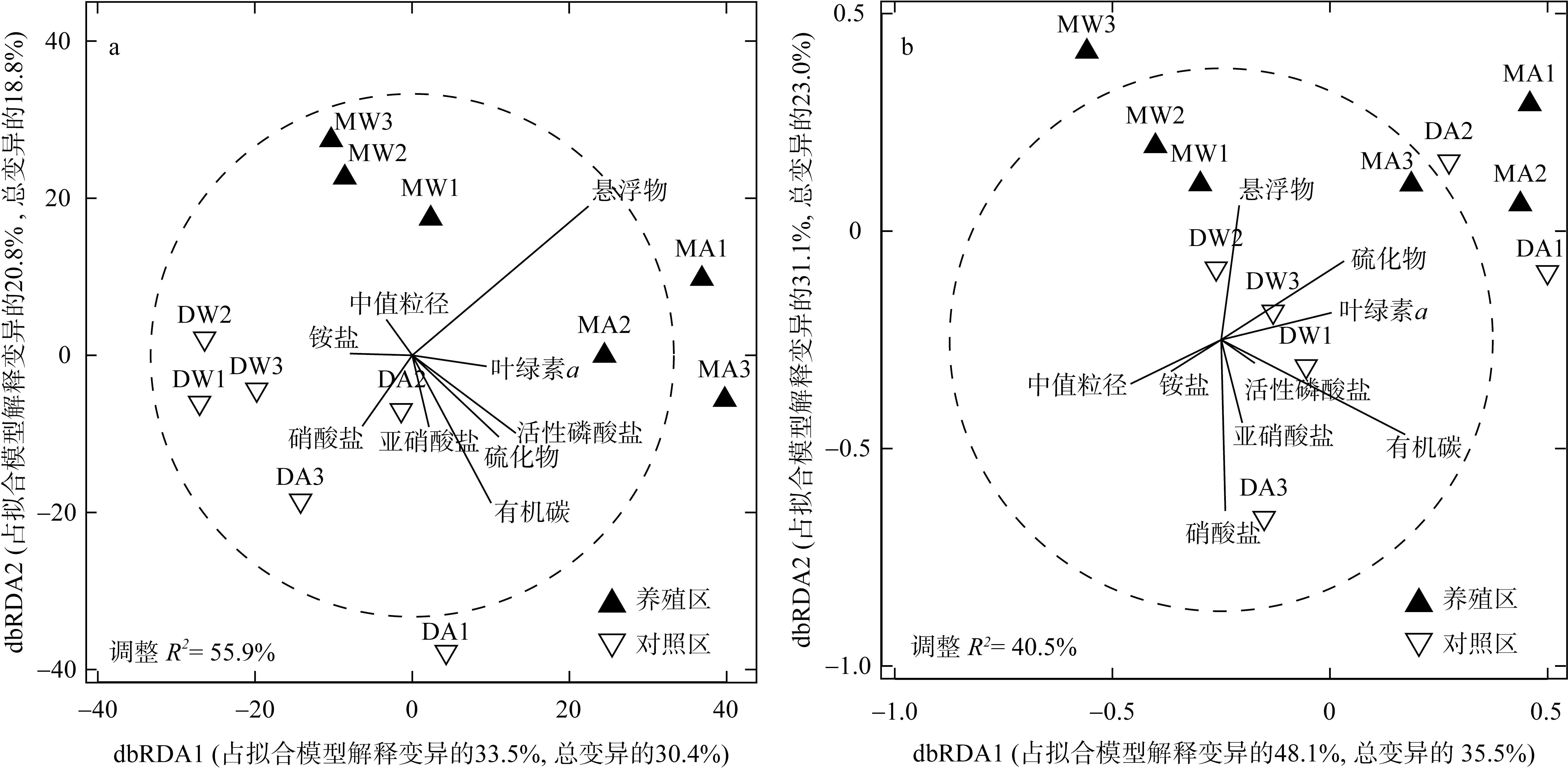

图9 大型底栖动物群落物种组成(a)和性状组成(b)与环境因子的dbRDA排序图MA和DA分别表示秋季牡蛎养殖区和对照区, MW和DW分别表示冬季牡蛎养殖区和对照区 Fig. 9 dbRDA ordination plots of the relationships between the species and trait compositions of macrobenthic communities and environmental variables. MA and DA represent oyster culture zone and control zone in autumn, MW and DW represent oyster culture zone and control zone in winter |
