干出状态下坛紫菜叶状体表面水膜与失水对光合作用光化学特性的影响

doi:10.11978/2020010

摘要/Abstract

摘要：

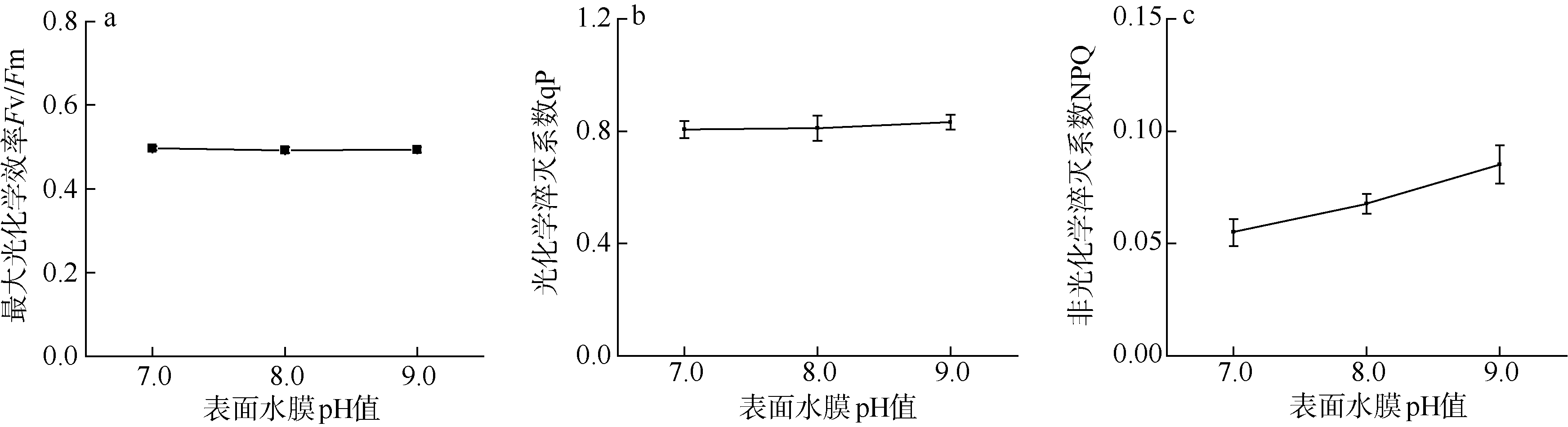

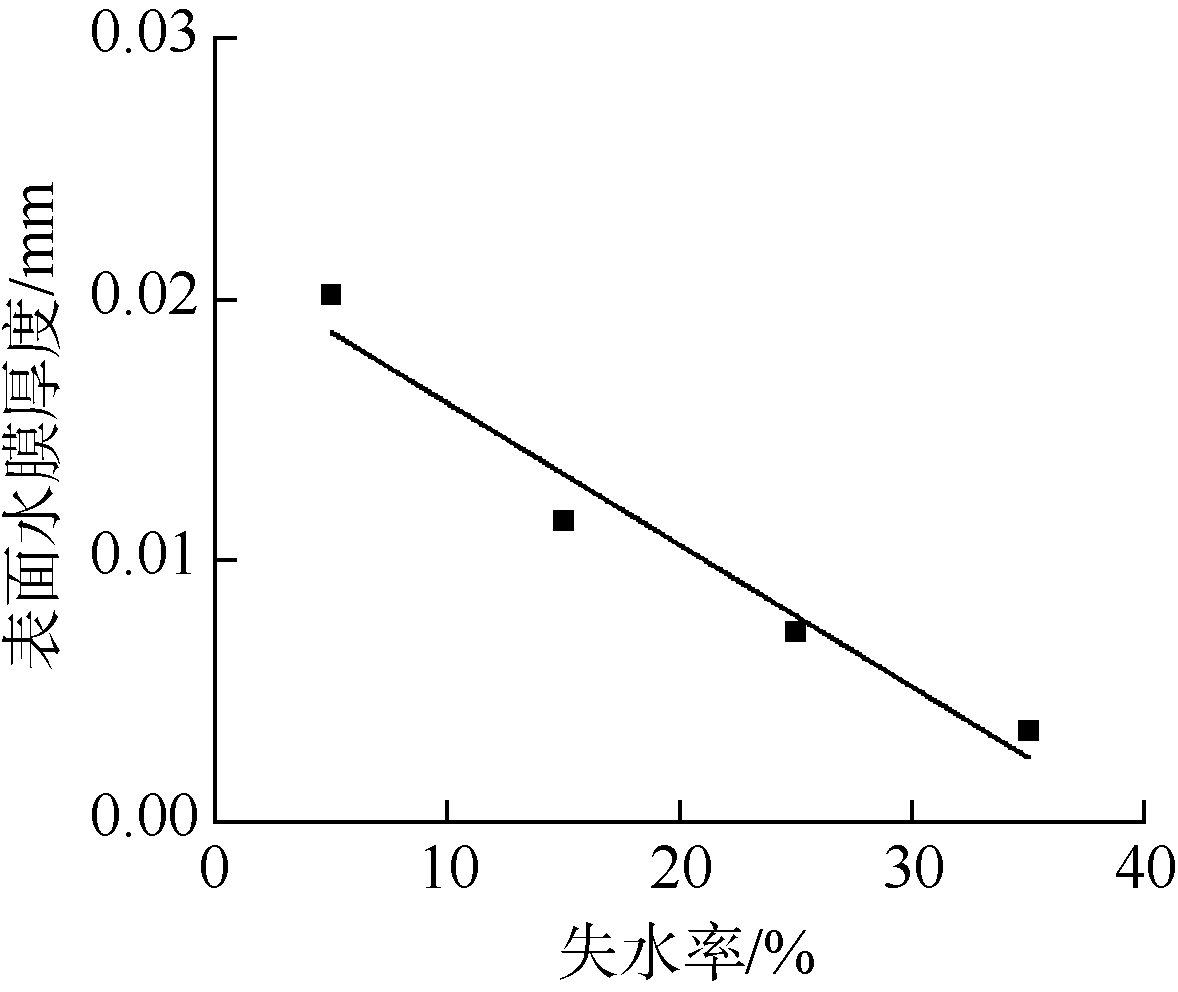

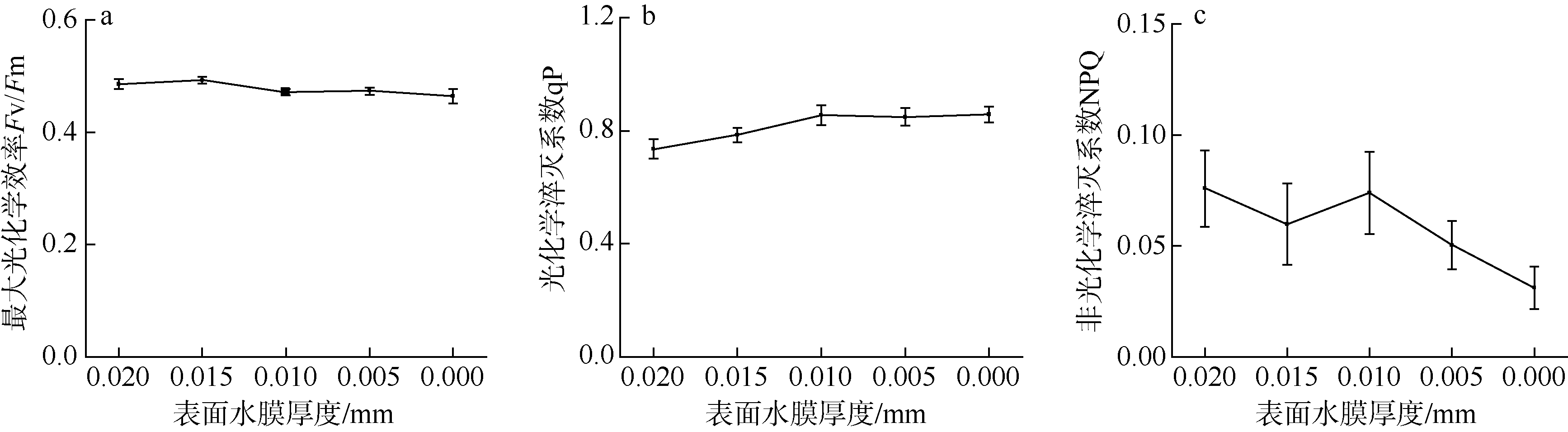

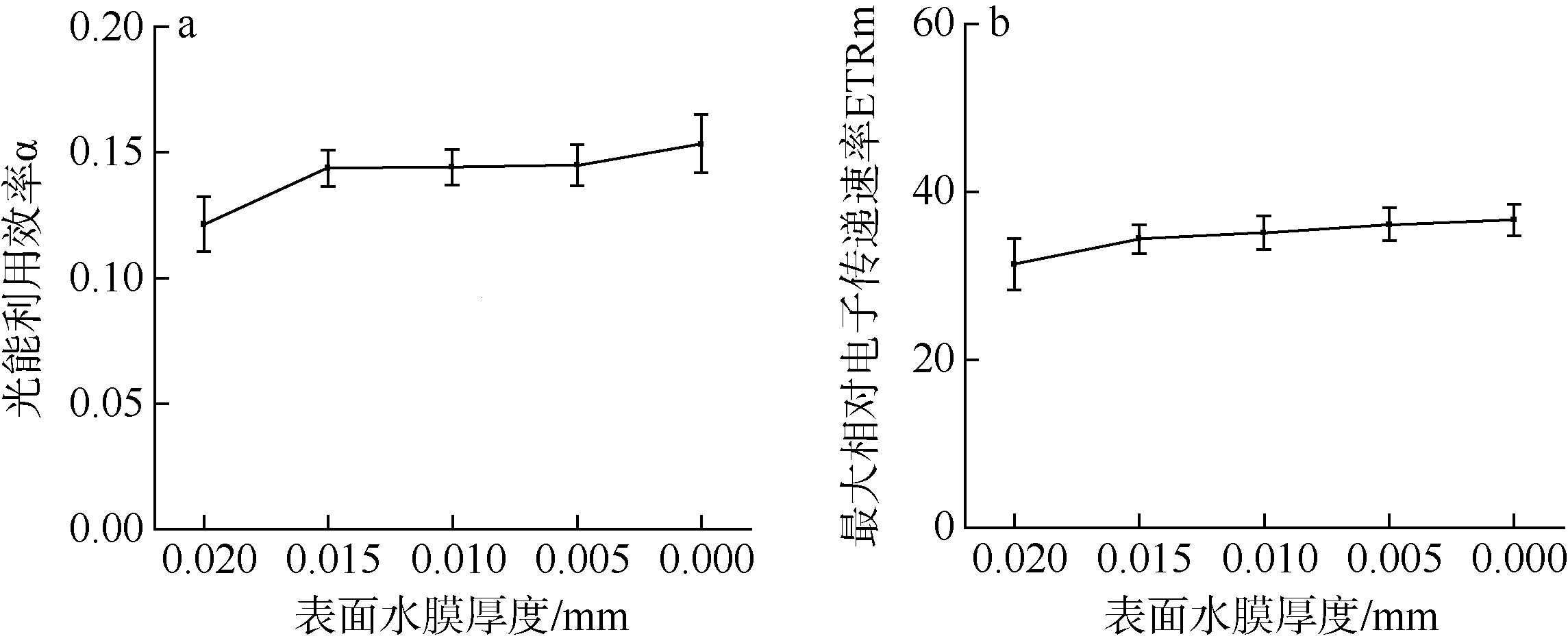

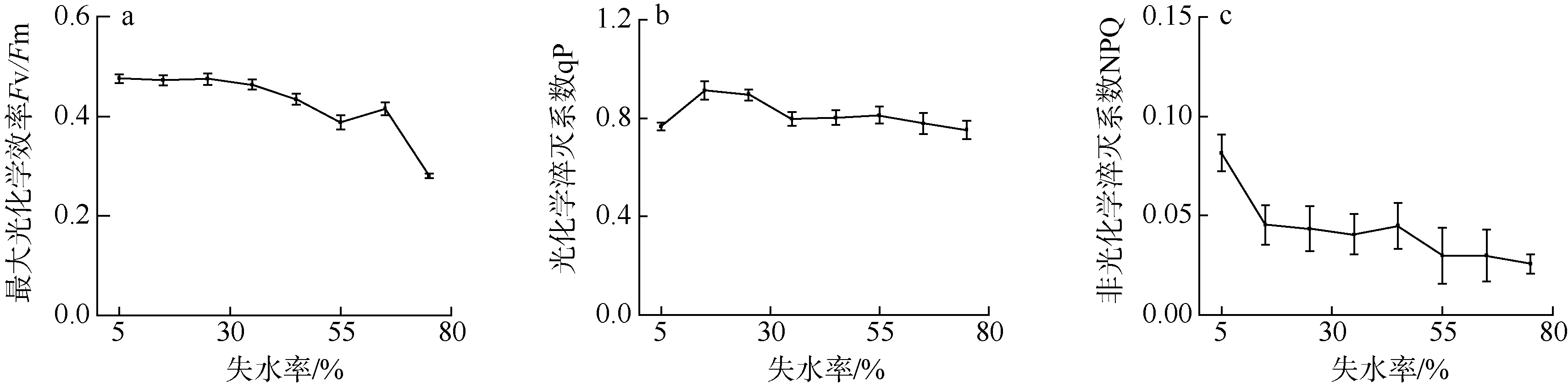

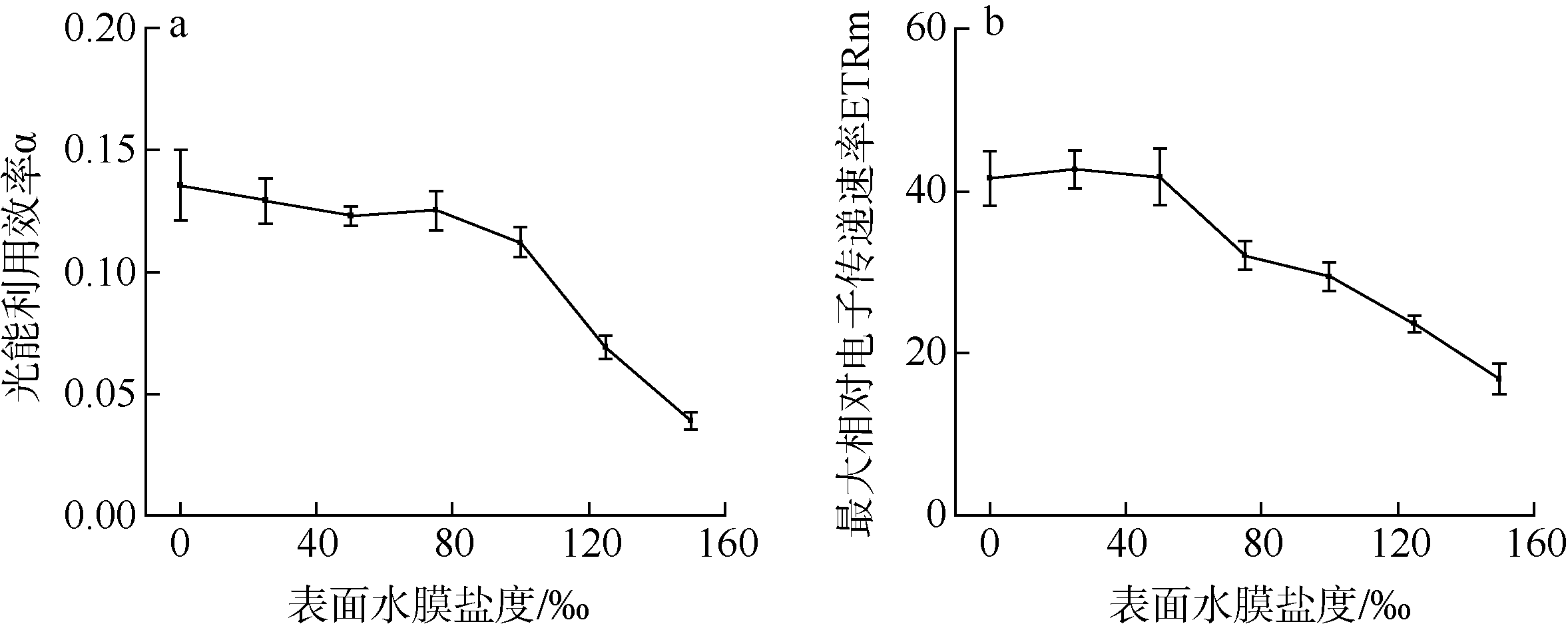

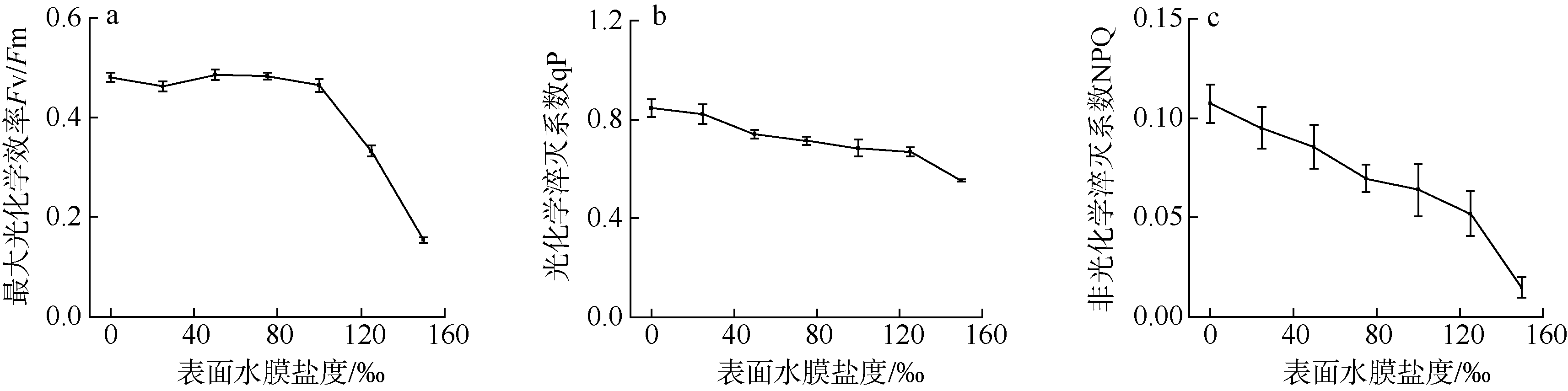

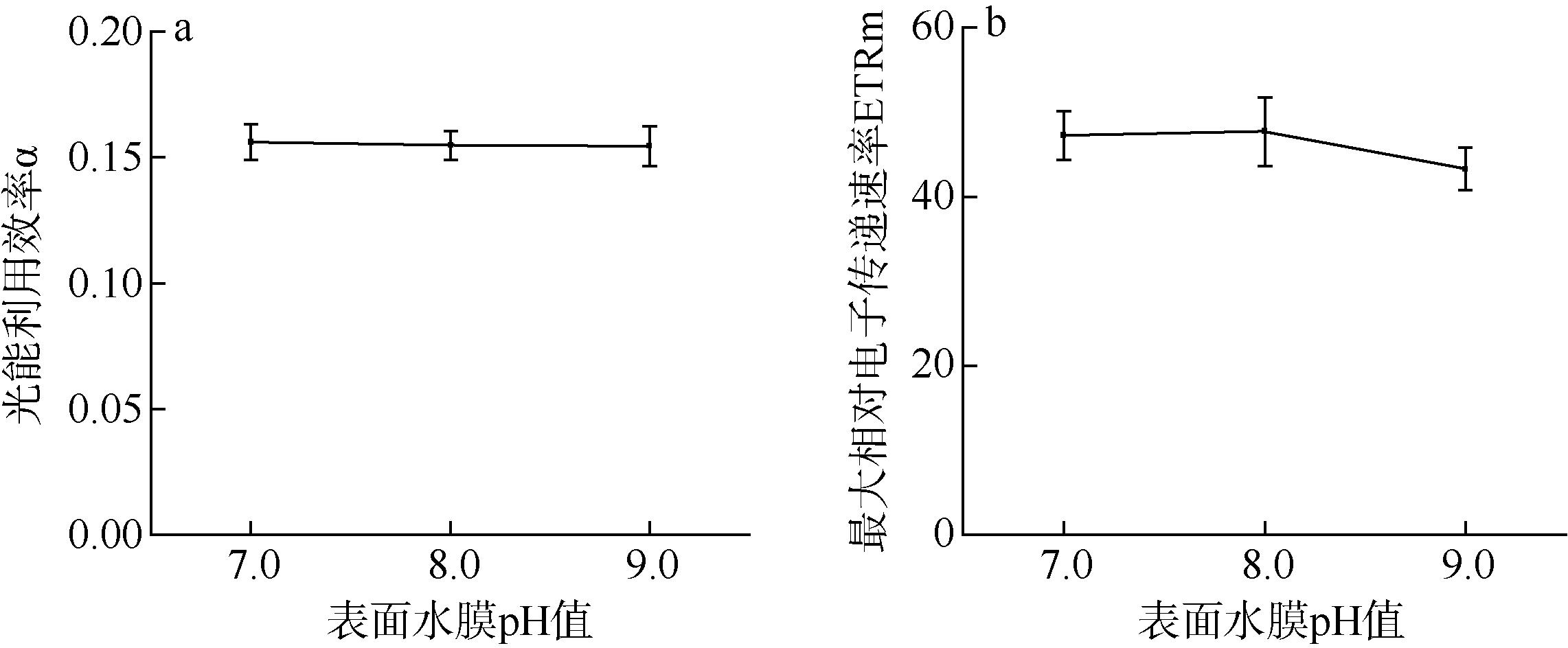

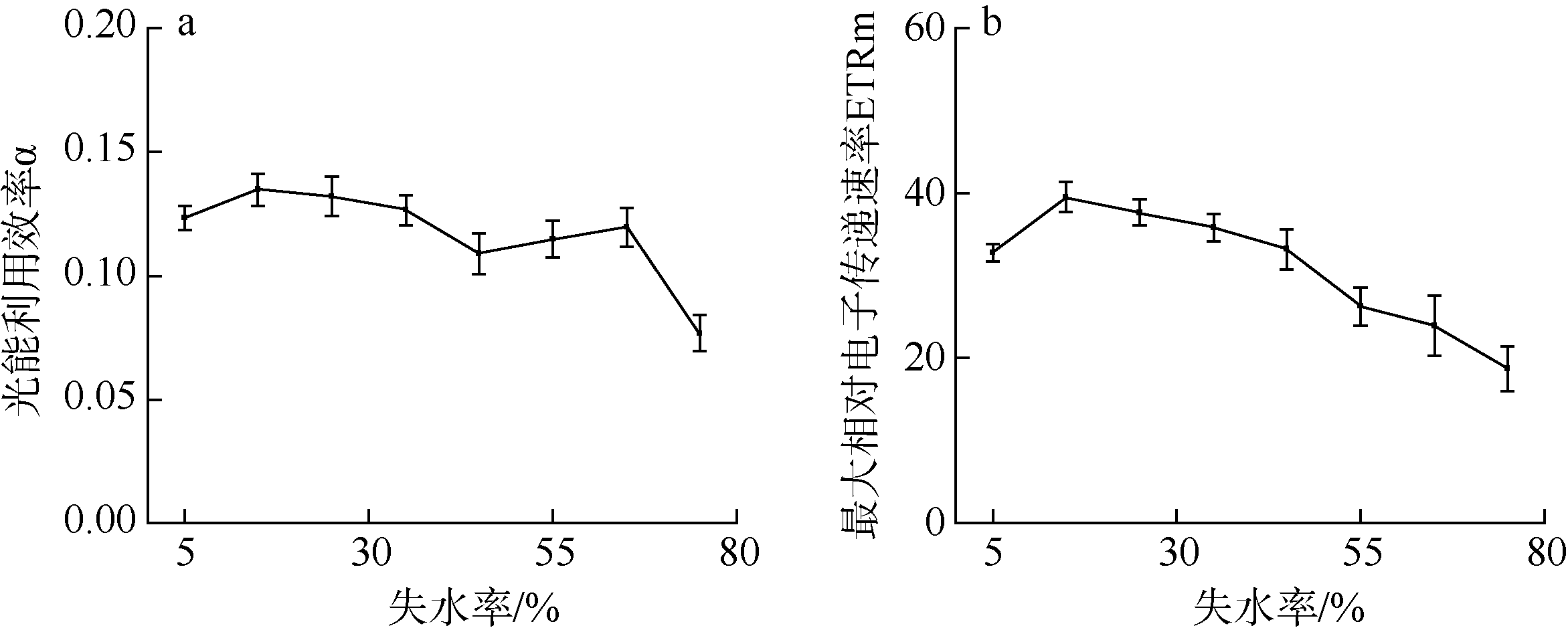

采用筏式吊养的大型经济海藻坛紫菜(Pyropia haitanensis)在栽培生长期间, 常周期性地处于干出状态。本文通过测定不同水膜状态下坛紫菜的叶绿素荧光动力学相关系数, 探讨了干出状态下坛紫菜叶状体表面水膜的理化特性与失水对其光合作用光化学特性的影响。实验数据显示, 干出初始状态下, 叶状体表面水膜pH值的升高对坛紫菜的最大光化学效率Fv/Fm、光化学淬灭系数qP、非光化学淬灭系数NPQ、最大相对电子传递速率ETRm和光能利用效率α均无显著性影响。当坛紫菜叶状体表面水膜盐度为0~75‰时, Fv/Fm、qP、NPQ、ETRm和α均保持稳定; 当叶状体表面水膜盐度增加到75‰~150‰时, Fv/Fm、NPQ、α和ETRm则显著下降, 较盐度为33‰时分别下降了66%、84%、70%和60%, 表明覆盖高盐度水膜的叶状体PSⅡ反应中心活性受到抑制。坛紫菜叶状体在失水初期的光合活性不受影响, 当叶状体表面水膜厚度降到0后, 叶状体细胞内部开始失水, 光合活性也显著下降。严重脱水状态(失水率为75%)下, Fv/Fm、NPQ、α和ETRm较失水初期分别下降了41%、69%、38%和43%。这些研究结果表明, 坛紫菜叶状体在干出失水初期, 水分损失是由于表面水膜损失引起的, 水膜厚度随着失水率的增加呈线性下降, 表面水膜厚度的下降影响了藻体的热耗散能力; 随着失水率进一步增加, 叶状体的光合活性和热耗散能力受到不利影响, 其中热耗散能力对叶状体含水量的变化更为敏感。

关键词: 坛紫菜, 表面水膜, 叶绿素荧光, 干出状态, 光化学特性

Abstract:

Pyropia haitanensis is an economically important seaweed species, usually cultured by means of raft suspension. The thallus are periodically exposed to air and face desiccation when the tide is low. In this study, we investigated the effects of physicochemical properties of surface water film and desiccation on chlorophyll fluorescence characteristics in emersed thallus of Pyropia haitanensis. The results showed that the increase of the pH value of the thallus surface water film had no significant effect on the maximum quantum yield (Fv/Fm) of Photosystem Ⅱ(PSⅡ), photochemical quenching (qP) and non-photochemical quenching (NPQ), as well as the light utilize efficiency (α) and relative maximum photosynthetic electron transport rate (ETRm). The Fv/Fm, qP, NPQ, ETRm, and α remained stable over the salinity range of 0~75‰. However, when the salinity reached 75‰~150‰, Fv/Fm, NPQ, ETRm, and α declined significantly. High salinity in the thallus surface water film reduced Fv/Fm, NPQ, α, and ETRm by 66%, 84%, 70%, and 60%, respectively. This suggests that the activity of PSII reaction center was inhibited by high salinity in the thallus surface water film. The thallus photosynthetic activity remained stable during the initial stage of water loss. When the thallus surface water film thickness dropped to 0, water was lost within the thallus cells and the photosynthetic activity decreased progressively. Severe dehydration of 75% reduced the Fv/Fm, NPQ, α and ETRm by 41%, 69%, 38% and 43%, respectively. The results showed that the thallus surface water film thickness decreased linearly with the increase of initial water loss. With further water loss, the thallus photosynthetic activity and heat dissipation capacity were negatively affected, and the heat dissipation capacity was more sensitive to the change of water content of algal bodies.

Key words: Pyropia haitanensis, surface water film, chlorophyll fluorescence, desiccation

中图分类号:

P735.52

蔡逸洵, 温嘉怡, 邹定辉. 干出状态下坛紫菜叶状体表面水膜与失水对光合作用光化学特性的影响[J]. 热带海洋学报, 2021, 40(1): 82-90.

CAI Yixun, WEN Jiayi, ZOU Dinghui. Effects of surface water film and desiccation on chlorophyll fluorescence characteristics of emersed Pyropia haitanensis thalli[J]. Journal of Tropical Oceanography, 2021, 40(1): 82-90.

图/表 9

图1

图2

图3

图4

图5

图6

图7

图8

图9

参考文献 31

[1]	姜真杰, 2017. 基于PS的植物叶片表面积的测算[J]. 农业与技术, 37(14):41-42 (in Chinese).
[2]	钱飞箭, 2014. 坛紫菜受高温和干出胁迫的机理及脂代谢关键基因的研究[D]. 宁波: 宁波大学.
	QIAN FEIJIAN, 2014. Study on the mechanism of Pyropia haitanensis induced by stressed and lipid metabolism related gene[D]. Ningbo: Ningbo University (in Chinese with English abstract).
[3]	滕飞, 陈玉婷, 徐燕, 等, 2016. 用于坛紫菜光合效率的DIVING-PAM参数优化研究[J]. 集美大学学报(自然科学版), 21(2):81-86.
	TENG FEI, CHEN YUTING, XU YAN, et al, 2016. Parameter optimization of DIVING-PAM in Porphyra haitanensis photosynjournal analysis[J]. Journal of Jimei University (Natural Science), 21(2):81-86, doi: 10.19715/j.jmuzr.2016.02.001 (in Chinese with English abstract).
[4]	张忠山, 王晓梅, 刘峰, 等, 2018. 紫菜抗逆境生理与调控机制研究进展[J]. 植物生理学报, 54(6):960-972.
	ZHANG ZHONGSHAN, WANG XIAOMEI, LIU FENG, et al, 2018. Advances in physiology and regulation mechanism of laver under stresses[J]. Plant Physiology Journal, 54(6):960-972, doi: 10.13592/j.cnki.ppj.2018.0118 (in Chinese with English abstract).
[5]	BILGER W, BJÖRKMAN O, 1990. Role of the xanthophyll cycle in photoprotection elucidated by measurements of light-induced absorbance changes, fluorescence and photosynjournal in leaves of Hedera canariensis[J]. Photosynjournal Research, 25(3):173-185, doi: 10.1007/ bf00033159.
[6]	BRÄUTIGAM K, DIETZEL L, KLEINE T, et al, 2009. Dynamic plastid redox signals integrate gene expression and metabolism to induce distinct metabolic states in photosynthetic acclimation in Arabidopsis[J]. The Plant Cell, 21(9):2715-2732, doi: 10.1105/tpc.108.062018. pmid: 19737978
[7]	BRITTON D, CORNWALL C E, REVILL A T, et al, 2016. Ocean acidification reverses the positive effects of seawater pH fluctuations on growth and photosynjournal of the habitat-forming kelp, Ecklonia radiata[J]. Scientific Reports, 6(1):26036, doi: 10.1038/srep26036.
[8]	DAVISON I R, PEARSON G A, 1996. Stress tolerance in intertidal seaweeds[J]. Journal of Phycology, 32(2):197-211, doi: 10.1111/j.0022-3646.1996.00197.x.
[9]	ENDO T, SCHREIBER U, ASADA K, 1995. Suppression of quantum yield of photosystem II by hyperosmotic stress in Chlamydomonas reinhardtii[J]. Plant and Cell Physiology, 36(7):1253-1258, doi: 10.1093/oxfordjournals.pcp.a078883.
[10]	GONG HONGMEI, TANG YUNLAI, WANG JIA, et al, 2008. Characterization of photosystem II in salt-stressed cyanobacterial Spirulina platensis cells[J]. Biochimica et Biophysica Acta (BBA)-Bioenergetics, 1777(6):488-495, doi: 10.1016/j.bbabio.2008.03.018.
[11]	HAGLUND K, BJÖRK M, RAMAZANOV Z, et al, 1992. Role of carbonic anhydrase in photosynjournal and inorganic-carbon assimilation in the red alga Gracilaria tenuistipitata[J]. Planta, 187(2):275-281, doi: 10.1007/BF00201951. pmid: 24178056
[12]	HODGSON L M, 1981. Photosynjournal of the red alga Gastroclonium coulteri (Rhodophyta) in response to changes in temperature, light intensity, and desiccation[J]. Journal of Phycology, 17(1):37-42. doi: 10.1111/j.1529-8817.1981. tb00816.x.
[13]	JI YAN, XU ZHIGUANG, ZOU DINGHUI, et al, 2016. Ecophysiological responses of marine macroalgae to climate change factors[J]. Journal of Applied Phycology, 28(5):2953-2967, doi: 10.1007/s10811-016-0840-5.
[14]	JIANG HENG, ZOU DINGHUI, LOU WENYONG, et al, 2018. Effects of seawater acidification and alkalization on the farmed seaweed, Pyropia haitanensis (Bangiales, Rhodophyta), grown under different irradiance conditions[J]. Algal Research, 31:413-420, doi: 10.1016/j.algal.2018.02. 033.
[15]	JOHNSTON A M, RAVEN J A, 1986. The analysis of photosynjournal in air and water of Ascophyllum nodosum (L.) Le Jol.[J]. Oecologia, 69(2):288-295, doi: 10.1007/ BF00377636. doi: 10.1007/BF00377636 pmid: 28311373
[16]	KAWAMITSU Y, DRISCOLL T, BOYER J S, 2000. Photosynjournal during desiccation in an intertidal alga and a land plant[J]. Plant and Cell Physiology, 41(3):344-353, doi: 10.1093/pcp/41.3.344. pmid: 10805598
[17]	LÜ FANG, WANG GUANGCE, JIN HAOCHEN, 2011. Photosynthetic responses of thalli and isolated protoplasts of Bryopsis hypnoides (Bryopsidales, Chlorophyta) during dehydration[J]. Chinese Journal of Oceanology and Limnology, 29(2):334-342, doi: 10.1007/s00343-011- 0028-4.
[18]	MADSEN T V, MABERLY S C, 1990. A comparison of air and water as environments for photosynjournal by the intertidal alga Fucus spiralis (Phaeophyta)[J]. Journal of Phycology, 26(1):24-30, doi: 10.1111/j.0022-3646.1990.00024.x.
[19]	MERCADO J, NIELL F X, 2000. Carbon dioxide uptake by Bostrychia scorpioides (Rhodophyceae) under emersed conditions[J]. European Journal of Phycology, 35(1):45-51, doi: 10.1080/09670260010001735611.
[20]	MIDDELBOE A L, HANSEN P J, 2007. Direct effects of pH and inorganic carbon on macroalgal photosynjournal and growth[J]. Marine Biology Research, 3(3):134-144, doi: 10.1080/17451 000701320556.
[21]	PEÑA E J, ZINGMARK R, NIETCH C, 1999. Comparative photosynjournal of two species of intertidal epiphytic macroalgae on mangrove roots during submersion and emersion[J]. Journal of Phycology, 35(6):1206-1214, doi: 10.1046/j.1529-8817.1999.3561206.x.
[22]	PFANNSCHMIDT T, 2003. Chloroplast redox signals: how photosynjournal controls its own genes[J]. Trends in Plant Science, 8(1):33-41, doi: 10.1016/s1360-1385(02)00005-5. pmid: 12523998
[23]	RALPH P J, GADEMANN R, 2005. Rapid light curves: a powerful tool to assess photosynthetic activity[J]. Aquatic Botany, 82(3):222-237, doi: 10.1016/j.aquabot.2005.02.006. doi: 10.1016/j.aquabot.2005.02.006
[24]	SAMPATH-WILEY P, NEEFUS C D, JAHNKE L S, 2008. Seasonal effects of sun exposure and emersion on intertidal seaweed physiology: fluctuations in antioxidant contents, photosynthetic pigments and photosynthetic efficiency in the red alga Porphyra umbilicalis Kützing (Rhodophyta, Bangiales)[J]. Journal of Experimental Marine Biology and Ecology, 361(2):83-91, doi: 10.1016/j.jembe.2008.05.001. doi: 10.1016/j.jembe.2008.05.001
[25]	SCHREIBER U, 2004. Pulse-Amplitude-Modulation (PAM) fluorometry and saturation pulse method: an overview [PAPAGEORGIOU G C, GOVINDJEE. Chlorophyll a fluorescence: a signature of photosynthesis. Dordrecht: Springer:279-319, doi: 10.1007/978-1-4020-3218-9_11.
[26]	WANG WENJUN, SHEN ZONGGEN, SUN XIUTAO, et al, 2018. Photosynthetic response of Bangia fuscopurpurea (Bangiales, Rhodophyta) towards dehydration and hyposalinity[J]. Biologia, 73(4):333-337, doi: 10.2478/s11756-018-0040-7. doi: 10.2478/s11756-018-0040-7
[27]	WANG WENLEI, XU YAN, CHEN TIANXIANG, et al, 2019. Regulatory mechanisms underlying the maintenance of homeostasis in Pyropia haitanensis under hypersaline stress conditions[J]. Science of the Total Environment, 662:168-179, doi: 10.1016/j.scitotenv.2019.01.214. doi: 10.1016/j.scitotenv.2019.01.214
[28]	XIA JIANRONG, LI YONGJUN, ZOU DINGHUI, 2004. Effects of salinity stress on PSII in Ulva lactuca as probed by chlorophyll fluorescence measurements[J]. Aquatic Botany, 80(2):129-137, doi: 10.1016/j.aquabot.2004.07.006. doi: 10.1016/j.aquabot.2004.07.006
[29]	ZOU DINGHUI, GAO KUNSHAN, 2002. Effects of desiccation and CO₂ concentrations on emersed photosynjournal in Porphyra haitanensis (Bangiales, Rhodophyta), a species farmed in China[J]. European Journal of Phycology, 37(4):587-592, doi: 10.1017/S0967026202003876. doi: 10.1017/S0967026202003876
[30]	ZOU DINGHUI, GAO KUNSHAN, 2004a. Exogenous carbon acquisition of photosynjournal in Porphyra haitanensis (Bangiales, Rhodophyta) under emersed state[J]. Progress in Natural Science, 14(2):138-144. doi: 10.1080/10020070412331343271
[31]	ZOU DINGHUI, GAO KUNSHAN, 2004b. Comparative mechanisms of photosynthetic carbon acquisition in Hizikia fusiforme under submersed and emersed conditions[J]. Acta Botanica Sinica, 46(10):1178-1185.
