不同路径台风对中国近海海温的影响特征统计分析

doi:10.11978/2023141

摘要/Abstract

摘要：

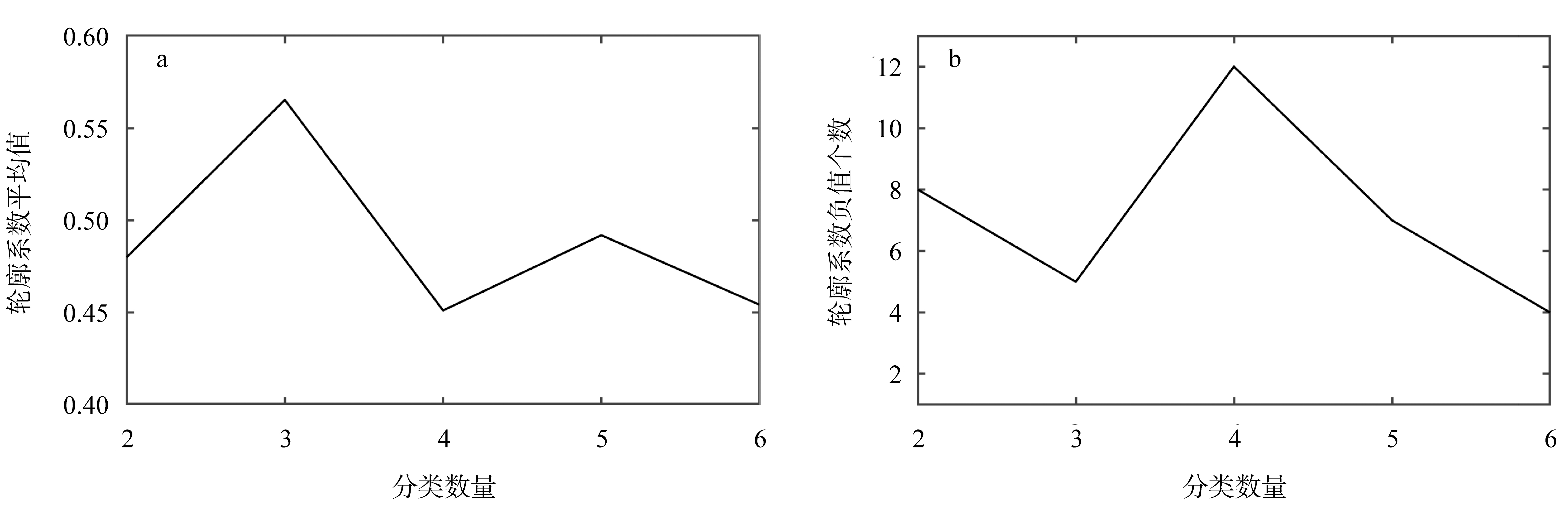

文章基于中国气象局提供的最佳台风路径资料, 基于K均值聚类分析法将2002年至2021年由西太暖池进入中国近海的台风分为3类, 并依据台风路径特征将3类台风分别命名为西行路径台风、西北路径台风和转向路径台风, 并使用遥感系统(remote sensing systems, REMSS)提供的海表面温度最优插值日产品和区域海气浪耦合模型(coupled ocean atmosphere wave sediment transport modeling system, COAWST)的模拟结果, 对这3类台风造成的上层海洋温度的变化特征进行统计研究。结果显示, 3种台风对海表面温度(sea surface temperature, SST)影响特征的不同主要体现在对SST的冷却幅度和作用时间上: 转向路径台风对SST的冷却幅度最大并且作用时间最长, 西北路径台风次之, 而西行路径台风冷却幅度最小且作用时间最短; 3种台风对混合层厚度(mixed layer thickness, MLT)与温跃层厚度(thermocline thickness, TT)影响的差异主要体现在MLT和TT的变化幅度和恢复时间上: 转向路径台风的MLT和TT变化幅度最大, 西北路径台风次之, 西行路径台风最小。对于MLT与TT的恢复速度, 西北路径台风整体上要明显快于西行路径台风和转向路径台风。

关键词: 典型台风路径, 西太暖池, 中国近海, 上层海洋, 海表面温度, 混合层厚度, 温跃层厚度

Abstract:

Based on the best typhoon track data provided by the China Meteorological Administration, according to K-means clustering analysis, typhoons entering the coastal waters of China from the West Pacific Warm Pool from 2002 to 2021 are divided into three types, and the three types are named as westward path typhoon, northwestward path typhoon and turning path typhoon according to typhoon path characteristics. In addition, the optimal daily product of sea surface temperature interpolation provided by remote sensing systems (REMSS) and simulation results of coupled ocean atmosphere wave sediment transport modeling system (COAWST) are used to study the changes of upper ocean temperature caused by these three typhoons with different path. The results show that the influence characteristics of three different typhoon paths on sea surface temperature (SST) are mainly reflected in the cooling amplitude and recover time: the turning typhoon exhibits the largest cooling amplitude and the longest-lasting effect on sea surface temperature, followed by the northwestward typhoon, the westward typhoon has the smallest cooling amplitude and the shortest duration of impact. The difference of three different typhoon paths on the mixed layer thickness (MLT) and thermocline thickness (TT) are mainly reflected in the rangeability of thickness and recovery time: for the rangeability of MLT and TT, the turning typhoon is the largest, followed by the northwestward typhoon, and the westward typhoon is the least. For the recovery speed of MLT and TT, the northwestward typhoon is obviously faster than the westward typhoon and the turning typhoon.

Key words: typical typhoon path, west Pacific warm pool, coastal waters of China, upper ocean, sea surface temperature, mixed layer thickness, thermocline thickness

孙泽铭, 韩树宗, 王明杰, 苏翰祥. 不同路径台风对中国近海海温的影响特征统计分析[J]. 热带海洋学报, 2024, 43(5): 17-31.

SUN Zeming, HAN Shuzong, WANG Mingjie, SU Hanxiang. Statistical study on the influence of typhoon with different path on the temperature of coastal waters of China[J]. Journal of Tropical Oceanography, 2024, 43(5): 17-31.

图/表 19

表1

图1

图2

表2

图3

图4

图5

表3

表4

表5

表6

图6

表7

图7

表8

图8

图9

表9

图10

参考文献 45

[1]	顾润源, 朱官忠, 李振海, 等, 1993. 影响我国的不同路径台风的对比分析[J]. 山东气象, 13(2): 1-5, 15 (in Chinese).
[2]	韩玉康, 龚立新, 2017. 南海温跃层对台风过程响应的数值模拟研究[J]. 海洋信息, (4): 12-21 (in Chinese).
[3]	刘增宏, 许建平, 朱伯康, 等, 2006. 利用Argo资料研究2001—2004年期间西北太平洋海洋上层对热带气旋的响应[J]. 热带海洋学报, 25(1): 1-8.
	LIU ZENGHONG, XU JIANPING, ZHU BOKANG, et al, 2006. Upper ocean response to tropical cyclones in northwestern Pacific during 2001-2004 by Argo data[J]. Journal of Tropical Oceanography, 25(1): 1-8 (in Chinese with English abstract).
[4]	孙凡, 于非, 司广成, 等, 2021. 台风过境对黄海冷水团及其环流结构的影响[J]. 海洋与湖沼, 52(5): 1125-1136.
	SUN FAN, YU FEI, SI GUANGCHENG, et al, 2021. Influence of typhoon on temperature and current structure of the Yellow Sea[J]. Oceanologia et Limnologia Sinica, 52(5): 1125-1136 (in Chinese with English abstract).
[5]	徐文玲, 苏洁, 2007. 台风对西北太平洋海表温度的影响[J]. 中国海洋大学学报, 37(S2): 17-22.
	XU WENLING, SU JIE, 2007. The impact of typhoons on sea surface temperature in the western North Pacific Ocean[J]. Periodical of Ocean University of China, 37(S2): 17-22 (in Chinese with English abstract).
[6]	杨晓霞, 唐丹玲, 2010. 台风引起南海海表面降温的位置变化特征[J]. 热带海洋学报, 29(4): 26-31.
	YANG XIAOXIA, TANG DANLING, 2010. Location of sea surface temperature cooling induced by typhoon in the South China Sea[J]. Journal of Tropical Oceanography, 29(4): 26-31 (in Chinese with English abstract). doi: 10.11978/j.issn.1009-5470.2010.04.026
[7]	叶家成, 杜新观, 余锦华, 2019. 影响中国大陆热带气旋路径分类及其特征研究[J]. 气象科学, 39(3): 304-311.
	YE JIACHENG, DU XINGUAN, YU JINHUA, 2019. Study on the classification and characteristics of tropical cyclone tracks in mainland China[J]. Journal of the Meteorological Sciences, 39(3): 304-311 (in Chinese with English abstract).
[8]	郑颖青, 余锦华, 吴启树, 等, 2013. K-均值聚类法用于西北太平洋热带气旋路径分类[J]. 热带气象学报, 29(4): 607-615.
	ZHENG YINGQING, YU JINHUA, WU QISHU, et al, 2013. K-means clustering method for classification of the northwestern pacific tropical cyclone tracks[J]. Journal of Tropical Meteorology, 29(4): 607-615 (in Chinese with English abstract).
[9]	中华人民共和国国家质量监督检验检疫总局, 国家标准化管理委员会, 2006. GB/T 19201-2006 热带气旋等级[S]. 北京: 中国标准出版社.
	GENERAL ADMINISTRATION OF QUALITY SUPERVISION, INSPECTION AND QUARANTINE OF THE PEOPLE’S REPUBLIC OF CHINA, NATIONAL STANDARDIZATION ADMINISTRATION, 2006. GB/T 19201-2006 Grade of tropical cyclones[S]. Beijing: Standards Press of China (in Chinese with English abstract).
[10]	周磊, 陈大可, 雷小途, 等, 2019. 海洋与台风相互作用研究进展[J]. 科学通报, 64(1): 60-72.
	ZHOU LEI, CHEN DAKE, LEI XIAOTU, et al, 2019. Progress and perspective on interactions between ocean and typhoon[J]. Chinese Science Bulletin, 64(1): 60-72 (in Chinese with English abstract).
[11]	BENDER M A, GINIS I, KURIHARA Y, 1993. Numerical simulations of tropical cyclone‐ocean interaction with a high‐resolution coupled model[J]. Journal of Geophysical Research: Atmospheres, 98(D12): 23245-23263.
[12]	BLACK W J, DICKEY T D, 2008. Observations and analyses of upper ocean responses to tropical storms and hurricanes in the vicinity of Bermuda[J]. Journal of Geophysical Research: Oceans, 113(C8): C08009.
[13]	BRAND S, 1971. The effects on a tropical cyclone of cooler surface waters due to upwelling and mixing produced by a prior tropical cyclone[J]. Journal of Applied Meteorology and Climatology, 10(5): 865-874.
[14]	CHEN S S, PRICE J F, ZHAO WEI, et al, 2007. The CBLAST-Hurricane program and the next-generation fully coupled atmosphere-wave-ocean models for hurricane research and prediction[J]. Bulletin of the American Meteorological Society, 88(3): 311-318.
[15]	DAVIS C, WANG WEI, CHEN S S, et al, 2008. Prediction of landfalling hurricanes with the advanced hurricane WRF model[J]. Monthly Weather Review, 136(6): 1990-2005.
[16]	FISHER E L, 1958. Hurricanes and the sea-surface temperature field[J]. Journal of the Atmospheric Sciences, 15(3): 328-333.
[17]	HALPERN D, 1974. Observations of the deepening of the wind-mixed layer in the northeast Pacific Ocean[J]. Journal of Physical Oceanography, 4(3): 454-466.
[18]	HART R E, 2011. An inverse relationship between aggregate northern hemisphere tropical cyclone activity and subsequent winter climate[J]. Geophysical Research Letters, 38(1): L01705.
[19]	HART R E, MAUE R N, WATSON M C, 2007. Estimating local memory of tropical cyclones through MPI anomaly evolution[J]. Monthly Weather Review, 135(12): 3990-4005.
[20]	HAZELWORTH J B, 1968. Water temperature variations resulting from hurricanes[J]. Journal of Geophysical Research, 73(16): 5105-5123.
[21]	JANSEN M F, FERRARI R, MOORING T A, 2010. Seasonal versus permanent thermocline warming by tropical cyclones[J]. Geophysical Research Letters, 37(3): L03602.
[22]	LEIPPER D F, 1967. Observed ocean conditions and Hurricane Hilda, 1964[J]. Journal of the Atmospheric Sciences, 24(2): 182-186.
[23]	LI JIAGEN, SUN LIANG, YANG YUANJIAN, et al, 2020. Accurate evaluation of sea surface temperature cooling induced by typhoons based on satellite remote sensing observations[J]. Water, 12(5): 1413.
[24]	LIN I I, LIU W T, WU C C, et al, 2003a. Satellite observations of modulation of surface winds by typhoon-induced upper ocean cooling[J]. Geophysical Research Letters, 30(3): 1131.
[25]	LIN I I, LIU W T, WU C C, et al, 2003b. New evidence for enhanced ocean primary production triggered by tropical cyclone[J]. Geophysical Research Letters, 30(13): 1718.
[26]	LIN I I, WU C C, PUN I F, et al, 2008. Upper-ocean thermal structure and the Western North Pacific Category 5 Typhoons. Part Ⅰ: Ocean features and the category 5 Typhoons’ intensification[J]. Monthly Weather Review, 136(9): 3288-3306.
[27]	LIU NA, LING TIEJUN, WANG HUI, et al, 2015. Numerical simulation of Typhoon Muifa (2011) using a coupled ocean-atmosphere-wave-sediment transport (COAWST) modeling system[J]. Journal of Ocean University of China, 14(2): 199-209.
[28]	LIU ZENGHONG, XU JIANPING, ZHU BOKANG, et al, 2007. The upper ocean response to tropical cyclones in the northwestern Pacific analyzed with Argo data[J]. Chinese Journal of Oceanology and Limnology, 25(2): 123-131.
[29]	MA ZHAOYUE, ZHANG YUANZHI, WU RENHAO, et al, 2021. Statistical characteristics of the response of sea surface temperatures to westward typhoons in the South China Sea[J]. Remote Sensing, 13(5): 916.
[30]	MAHAPATRA D K, RAO A D, BABU S V, et al, 2007. Influence of coast line on upper ocean’s response to the tropical cyclone[J]. Geophysical Research Letters, 34(17): L17603.
[31]	MEI WEI, XIE SHANGPING, PRIMEAU F, et al, 2015. Northwestern Pacific typhoon intensity controlled by changes in ocean temperatures[J]. Science Advances, 1(4): e1500014.
[32]	NAKAMURA J, LALL U, KUSHNIR Y, et al, 2009. Classifying North Atlantic tropical cyclone tracks by mass moments[J]. Journal of Climate, 22(20): 5481-5494.
[33]	NELSON N B, 1996. Cover the wake of hurricane Felix[J]. International Journal of Remote Sensing, 17(15): 2893-2895.
[34]	PAN JIAYI, SUN YUJUAN, 2013. Estimate of ocean mixed layer deepening after a typhoon passage over the South China sea by using satellite data[J]. Journal of Physical Oceanography, 43(3): 498-506.
[35]	PRICE J F, 1981. Upper ocean response to a hurricane[J]. Journal of Physical Oceanography, 11(2): 153-175.
[36]	PRICE J F, MORZEL J, NIILER P P, 2008. Warming of SST in the cool wake of a moving hurricane[J]. Journal of Geophysical Research: Oceans, 113(C7): C07010.
[37]	SANFORD T B, BLACK P G, HAUSTEIN J R, et al, 1987. Ocean response to a hurricane. Part Ⅰ: Observations[J]. Journal of Physical Oceanography, 17(11): 2065-2083.
[38]	SHAY L K, BLACK P G, MARIANO A J, et al, 1992. Upper ocean response to Hurricane Gilbert[J]. Journal of Geophysical Research: Oceans, 97(C12): 20227-20248.
[39]	UHLHORN E W, SHAY L K, 2013. Loop current mixed layer energy response to Hurricane Lili (2002). Part Ⅱ: Idealized numerical simulations[J]. Journal of Physical Oceanography, 43(6): 1173-1192.
[40]	WALKER N D, LEBEN R R, BALASUBRAMANIAN S, 2005. Hurricane - forced upwelling and chlorophyll a enhancement within cold‐core cyclones in the Gulf of Mexico[J]. Geophysical Research Letters, 32(18): L18610.
[41]	WENTZ F J, GENTEMANN C, SMITH D, et al, 2000. Satellite measurements of sea surface temperature through clouds[J]. Science, 288(5467): 847-850. pmid: 10797004
[42]	YU CHENGCHENG, YANG YONGZENG, YIN XUNQIANG, et al, 2020. Impact of enhanced wave-induced mixing on the ocean upper mixed layer during typhoon Nepartak in a regional model of the northwest Pacific Ocean[J]. Remote Sensing, 12(7): 2808.
[43]	YU JINHUA, ZHENG YINGQING, WU QISHU, et al, 2016. K-means clustering for classification of the northwestern Pacific tropical cyclone tracks[J]. Journal of Tropical Meteorology, 22(2): 127-135.
[44]	ZEDLER S E, DICKEY T D, DONEY S C, et al, 2002. Analyses and simulations of the upper ocean’s response to Hurricane Felix at the Bermuda Testbed Mooring site: 13-23 August 1995[J]. Journal of Geophysical Research: Oceans, 107(C12): 25-1-25-29.
[45]	ZHANG WEI, LEUNG Y, FRAEDRICH K, 2015. Different El Niño types and intense typhoons in the Western North Pacific[J]. Climate Dynamics, 44(11-12): 2965-2977.

	传感器	空间范围	时间范围
MW	TMI, AMSR-E, AMSR2, WindSat, GMI	在2002-06-01之前: 40°S—40°N 在2002-06-01之后: 全球	1998-01-01 至今
MW_IR	MW: TMI, AMSR-E, AMSR2,WindSat, GMI IR: MODIS-Terra, MODIS-Aqua, VIIRS-NPP, VIIRS-N20	全球	2002-06-01 至今

	SST冷却幅度	MLT增大幅度	TT减小幅度
西行路径台风与西北路径台风之间各统计量的差异显著性	0.3226	0.0249	0.0071
西北路径台风与转向路径台风之间各统计量的差异显著性	0.00004250	0.0052	0.00008879
转向路径台风与西行路径台风之间各统计量的差异显著性	0.000002065	0.00001813	0.0000001063

	台风数量/个	海表面的主要降温区间/℃	SST降低幅度/℃		SST平均降低幅度/℃	SST 7d内恢复占比/%	SST变化偏右性异常占比/%
	台风数量/个	海表面的主要降温区间/℃	最大降温幅度	最小降温幅度	SST平均降低幅度/℃	SST 7d内恢复占比/%	SST变化偏右性异常占比/%
西行台风	31	2~5	5.13	1.49	3.2	83.87	29.03
西北台风	25	2~5	5.89	1.79	3.5	56.00	8.00
转向台风	27	3~6	8.95	2.76	4.9	18.52	14.81

	台风数量/个	MLT的主要增加区间/m	MLT增加幅度/m		MLT平均增大幅度/m	MLT 7d内恢复占比/%	MLT变化偏右性异常占比/%
	台风数量/个	MLT的主要增加区间/m	最大加深幅度	最小加深幅度	MLT平均增大幅度/m	MLT 7d内恢复占比/%	MLT变化偏右性异常占比/%
西行台风	31	30~70	87.10	28.05	53.78	58.06	41.94
西北台风	25	50~90	92.03	36.17	65.04	84.00	40.00
转向台风	27	70~100	133.73	34.64	84.74	62.96	37.04

	台风数量/个	TT的主要减少区间/m	TT减少幅度/m		TT平均减小幅度/m	TT 7d内恢复占比/%	TT变化偏右性异常占比/%
	台风数量/个	TT的主要减少区间/m	最大减少幅度	最小减少幅度	TT平均减小幅度/m	TT 7d内恢复占比/%	TT变化偏右性异常占比/%
西行台风	31	50~90	118.50	40.84	74.63	38.71	67.74
西北台风	25	70~120	127.48	60.57	90.36	60.00	64.00
转向台风	27	90~150	180.62	58.42	125.02	37.04	59.26
