Journal of Tropical Oceanography >
Disaster loss assessment of storm surge based on Dempster-Shafer theory of evidence
Copy editor: YAO Yantao
Received date: 2021-03-29
Revised date: 2021-05-13
Online published: 2021-05-24

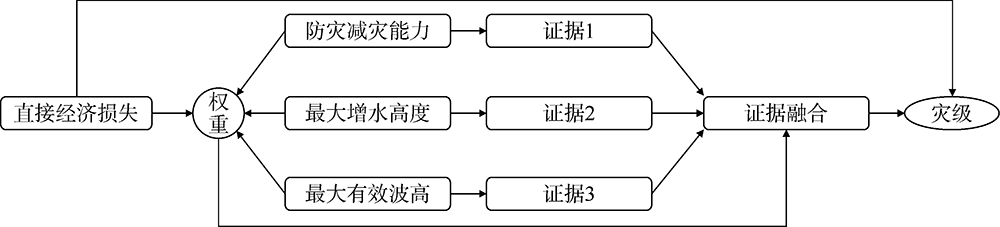

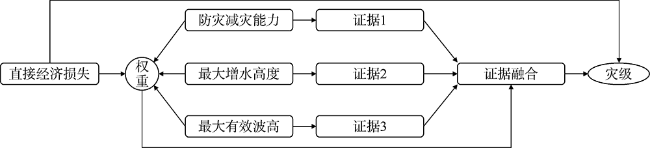

A disaster loss assessment method based on the Dempster-Shafer theory of evidence for storm surge is proposed in this paper. Because of uncertainty of storm surge in the disaster process, we select representative indicators (maximum height of storm surge, significant wave height, disaster prevention and reduction ability) to produce several pieces of evidence. The weight of evidence is calculated by using correlation between indicator and direct economic loss of storm surge disaster. A modified Murphy method is used to fuse evidence from different sources to judge the disaster loss level. An example is used to show that the classification accuracy of the method used in this paper can reach 93.1%, which is better than some existing methods, such as the Naive Bayes, Support Vector Machine, Neural Network, and Decision Tree methods. In addition, the method is simple in computation, and the results of disaster loss assessment can be more detailed with increasing training samples.
SUN Fenglin . Disaster loss assessment of storm surge based on Dempster-Shafer theory of evidence[J]. Journal of Tropical Oceanography, 2022 , 41(1) : 75 -81 . DOI: 10.11978/2021037
表1 样本数据及留一法样本测试结果Tab. 1 Sample data and results of the leave-one-out method |
风暴潮编号 | 防灾减灾能力 | 最大增水高度/m | 最大有效波高/m | 实际灾级 | 证据1 | 证据2 | 证据3 | 本文方法预测灾级 |
---|---|---|---|---|---|---|---|---|
201909 | 1.00 | 0.63 | 0.81 | 1 | 1 | 2 | 1 | 1 |
201822 | 0.97 | 0.44 | 0.55 | 1 | 1 | 2 | 1 | 1 |
201911 | 1.00 | 0.89 | 0.80 | 1 | 1 | 2 | 1 | 1 |
201509 | 0.85 | 0.63 | 0.57 | 1 | 1 | 2 | 1 | 1 |
201205 | 0.72 | 1.69 | 0.62 | 1 | 1 | 3 | 1 | 1 |
201601 | 0.88 | 1.50 | 0.89 | 1 | 1 | 3 | 1 | 1 |
201407 | 0.80 | 1.89 | 1.06 | 1 | 1 | 3 | 2 | 1 |
201006 | 0.60 | 0.91 | 0.69 | 1 | 2 | 2 | 1 | 1 |
201011 | 0.60 | 1.84 | 0.94 | 1 | 2 | 3 | 1 | 1 |
201111 | 0.66 | 0.56 | 0.76 | 1 | 1 | 2 | 1 | 1 |
200108 | 0.37 | 1.96 | 1.00 | 1 | 3 | 3 | 2 | 3 |
201617 | 0.88 | 1.59 | 0.99 | 1 | 1 | 3 | 2 | 1 |
201308 | 0.77 | 0.58 | 0.63 | 1 | 1 | 2 | 1 | 1 |
201323 | 0.77 | 0.76 | 1.23 | 2 | 1 | 2 | 2 | 2 |
201312 | 0.77 | 1.64 | 1.41 | 2 | 1 | 3 | 2 | 2 |
199504 | 0.30 | 0.69 | 1.00 | 2 | 3 | 2 | 2 | 2 |
200808 | 0.52 | 1.34 | 1.05 | 2 | 2 | 2 | 2 | 2 |
200010 | 0.35 | 1.82 | 0.90 | 2 | 3 | 3 | 1 | 3 |
199417 | 0.29 | 0.42 | 1.05 | 2 | 3 | 2 | 2 | 2 |
200908 | 0.55 | 0.90 | 1.32 | 2 | 2 | 2 | 2 | 2 |
201013 | 0.60 | 1.33 | 1.02 | 2 | 2 | 2 | 2 | 2 |
200216 | 0.38 | 1.30 | 1.20 | 3 | 3 | 2 | 2 | 3 |
199012 | 0.26 | 2.92 | 0.18 | 3 | 3 | 3 | 1 | 3 |
200513 | 0.43 | 1.74 | 0.83 | 3 | 3 | 3 | 1 | 3 |
199914 | 0.34 | 1.40 | 0.97 | 3 | 3 | 2 | 2 | 3 |
200102 | 0.37 | 2.76 | 1.22 | 3 | 3 | 3 | 2 | 3 |
199607 | 0.31 | 1.49 | 0.89 | 3 | 3 | 3 | 1 | 3 |
200604 | 0.45 | 1.78 | 1.14 | 3 | 3 | 3 | 2 | 3 |
200608 | 0.45 | 2.36 | 1.26 | 3 | 3 | 3 | 2 | 3 |
注: 阴影代表实际灾级与本文方法预测灾级不符的样本 |
表2 风暴潮灾害灾级识别结果Tab. 2 Results of disaster loss level for storm surge |
灾级 | 本文方法 | DS融合 | Murphy方法 | |||
---|---|---|---|---|---|---|
正确数 | 错误数 | 总数 | 正确率 | |||
一级 | 12 | 1 | 13 | 92.3% | 77% | 77% |
二级 | 7 | 1 | 8 | 87.5% | 88% | 88% |
三级 | 8 | 0 | 8 | 100.0% | 88% | 88% |
总体 | 27 | 2 | 29 | 93.1% | 83% | 83% |
表3 多种方法的结果比较Tab. 3 Comparison of results of five methods |
灾级 | 本文方法 | 朴素贝叶斯 | 支持向量机 | 神经网络 | 决策树 |
---|---|---|---|---|---|
一级 | 92.3% | 92.3% | 92.3% | 84.6% | 92.3% |
二级 | 87.5% | 87.5% | 50.0% | 62.5% | 0.0% |
三级 | 100.0% | 62.5% | 75.0% | 62.5% | 100.0% |
总体 | 93.1% | 82.8% | 75.9% | 72.4% | 69.0% |
[1] |
纪燕新, 熊艺媛, 麻荣永, 2007. 风暴潮灾害损失评估的模糊综合方法[J]. 广西水利水电, (2): 16-19, 28.
|
[2] |
江斯琦, 刘强, 2020. 基于改进神经网络及地理信息系统空间分析的风暴潮经济损失评估[J]. 科学技术与工程, 20(22): 9243-9247.
|
[3] |
康兵义, 李娅, 邓勇, 等, 2012. 基于区间数的基本概率指派生成方法及应用[J]. 电子学报, 40(6): 1092-1096.
|
[4] |
李超, 2006. 基于物元分析的我国洪灾损失综合评估[J]. 统计教育, (3): 44-46. (in Chinese)
|
[5] |
罗金炎, 徐飞, 李燕, 等, 2020. 福建省台风灾害损失分布分析[J]. 沈阳师范大学学报(自然科学版), 38(5): 417-421.
|
[6] |
石先武, 刘钦政, 王宇星, 2015. 风暴潮灾害等级划分标准及适用性分析[J]. 自然灾害学报, 24(3): 161-168.
|
[7] |
隋意, 石洪源, 钟超, 等, 2020. 我国台风风暴潮灾害研究[J]. 海洋湖沼通报, (3): 39-44.
|
[8] |
王志强, 陈思宇, 吕雪锋, 等, 2015. 风暴潮灾害受灾人口与直接经济损失评估方法研究进展[J]. 北京师范大学学报(自然科学版), 51(3): 274-279.
|
[9] |
谢丽, 张振克, 2010. 近20年中国沿海风暴潮强度、时空分布与灾害损失[J]. 海洋通报, 29(6): 690-696.
|
[10] |
许启望, 谭树东, 1998. 风暴潮灾害经济损失评估方法研究[J]. 海洋通报, 17(1): 1-12.
|
[11] |
叶雯, 刘美南, 陈晓宏, 2004. 感知器算法在台风风暴潮灾情等级评估中的应用[J]. 中山大学学报(自然科学版), 43(2): 117-120.
|
[12] |
赵领娣, 边春鹏, 2012. 风暴潮灾害综合损失等级划分标准的研究[J]. 中国渔业经济, 30(3): 42-49.
|
