用于天然气水合物勘探的大能量等离子体震源

doi:10.11978/2016041

Abstract

Abstract:

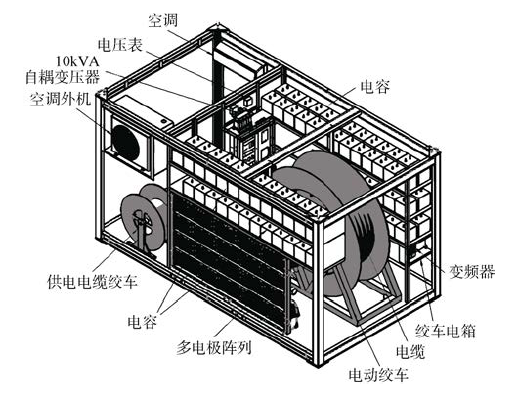

The development of plasma seismic source with large energy output of 50 kJ for gas hydrate exploration in China was introduced in this paper. The structure of the source was compactly designed, and devices were integrated in a mobile laboratory in containers for convenient transport and operation. The field test results showed that the maximum penetration depth of strata of the source was over 1000 m. Compared with the traditional source, the plasma seismic source had higher stratigraphic resolution and improved the reliability of geophysical recognition of gas hydrate. The successful development of the 50 kJ plasma seismic source system broke the international monopoly by whom, and has great significance for China's marine engineering, marine science research and national defense.

Key words: gas hydrate, large energy, plasma seismic source

Xiaozhu HAO, Qingxian ZHAO, Yanliang PEI. Large-energy plasma seismic source for gas hydrate exploration[J].Journal of Tropical Oceanography, 2017, 36(1): 35-40.

Figures/Tables 10

Tab. 1

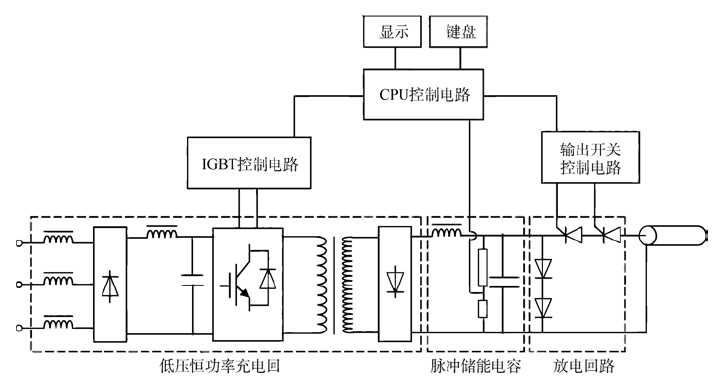

Fig. 1

Fig. 2

Fig. 3

Tab. 2

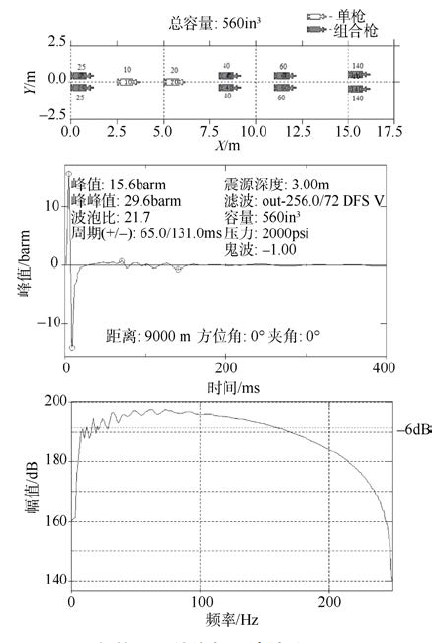

Fig. 4

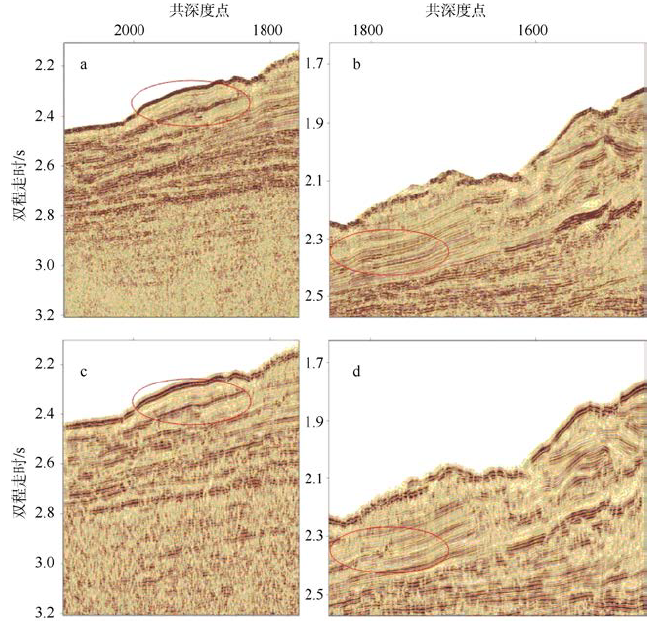

Fig. 5

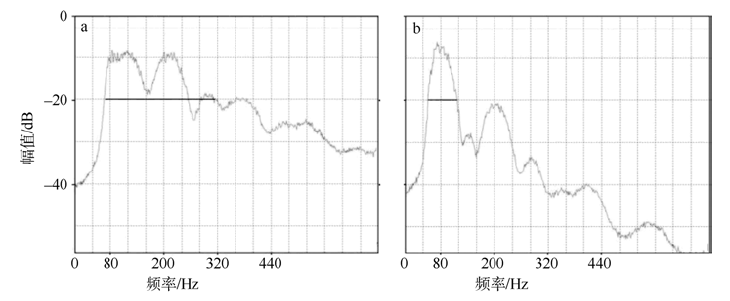

Fig. 6

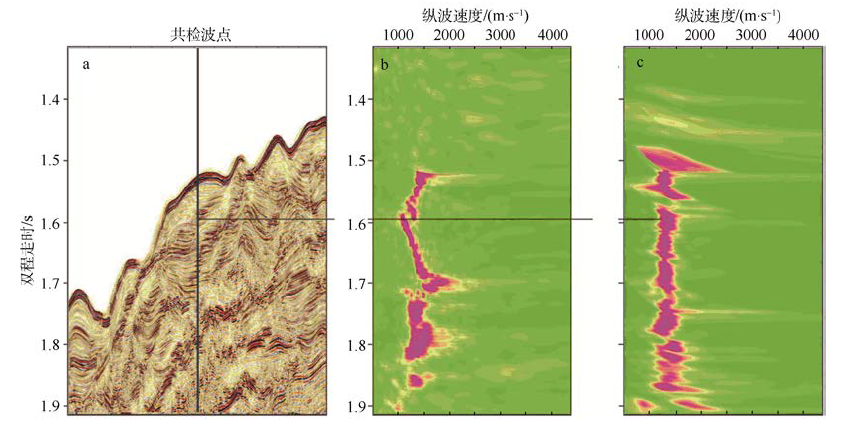

Fig. 7

Fig. 8

References 7

[1]	褚宏宪, 杨源, 张晓波, 等, 2012. 高分辨率单道地震调查数据采集技术方法[J]. 海洋地质前沿, 28(12): 70-74.
	CHU HONGXIAN, YANG YUAN, ZHANG XIAOBO, et al, 2012. Data acquisition technique for high resolution single-channel seismic survey[J]. Marine Geology Frontiers, 28(12): 70-74 (in Chinese with English abstract).
[2]	裴彦良, 刘保华, 赵月霞, 等, 2007a. 脉冲等离子体震源及其在海洋地震勘探方面的应用[J]. 科技导报, 25(19): 48-52.
	PEI YANLIANG, LIU BAOHUA, ZAO YUEXIA, et al, 2007a. Research on pulsed plasma source and its application in the marine seismic prospecting[J]. Science & Technology Review, 25(19): 48-52 (in Chinese with English abstract).
[3]	裴彦良, 王揆洋, 刘晨光, 等, 2007b. 电火花震源系统充电技术研究[J]. 海洋技术, 26(3): 73-76.
	PEI YANLIANG, WANG KUIYANG, LIU CHENGUANG, et al, 2007b. The Sparker source charging technique[J]. Ocean Technology, 26(3): 73-76 (in Chinese with English abstract).
[4]	秦曾衍, 左公宁, 王永荣, 等, 2000. 高压强脉冲放电及其应用[M]. 北京: 北京工业大学出版社: 1-382.
[5]	史孝侠, 高迎慧, 孙鹞鸿, 等, 2013. 重频脉冲下海洋电火花震源的研制[J]. 电源技术, 37(4): 646-649.
	SHI XIAOXIA, GAO YINGHUI, SUN YAOHONG, et al, 2013. Development of an underwater sparker with repetitive pulse[J]. Chinese Journal of Power Sources, 37(4): 646-649 (in Chinese with English abstract).
[6]	伍忠良, 2011. 海洋天然气水合物三维地震与海底地震勘探中的震源技术研究[J]. 热带海洋学报, 30(1): 49-60.
	WU ZHONGLIANG.2011. Study of source in 3-D seismic and OBS exploration for marine gas hydrate[J]. Journal of Tropical Oceanography, 30(1): 49-60 (in Chinese with English abstract).
[7]	严辉, 黄逸凡, 裴彦良, 等, 2012. 等离子体震源及在海洋勘探中的应用[J]. 高电压技术, 38(7): 1711-1718.
	YAN HUI, HUANG YIFAN, PEI YANLIANG, et al, 2012. Plasma Seismic Source and its application in oceanic seismic exploration[J]. High Voltage Engineering, 38(7): 1711-1718 (in Chinese with English abstract).

指标	参数
储能电容	3000μF
充电电压	-2.0 ~ -6.0kV
脉冲能量等级	5000J至50kJ可调; 步长: 1000J
脉冲发射频率	0.25~1Hz

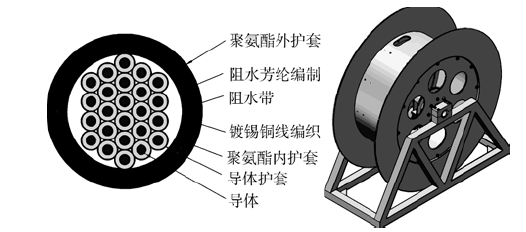

脉冲传输线	24芯/Φ65mm/110m
电极阵列	方阵/3600电极/Φ1.4mm
触发方式	自动/手动/被动
尺寸	4.00m×2.20m×2.33m
重量	5000kg

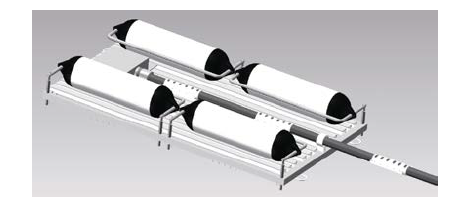

指标	参数
阵尺寸	2.10m×1.15m×0.38m
阵重量	280kg
电极数	3600
电极排列	18×200
电极横向间距	51mm
电极纵向间距	12mm
