南海北缘白云凹陷北坡裂后断裂活动特征及构造沉积响应*

doi:10.11978/2017007

Abstract

Abstract:

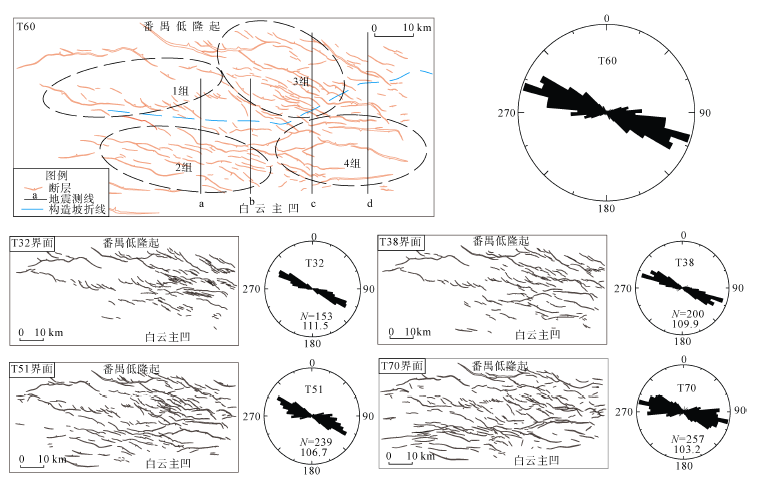

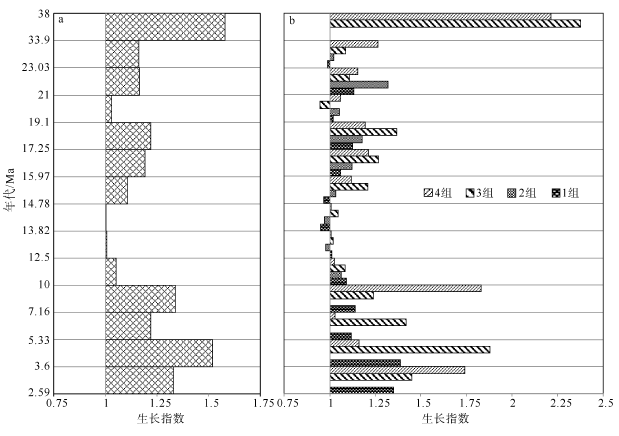

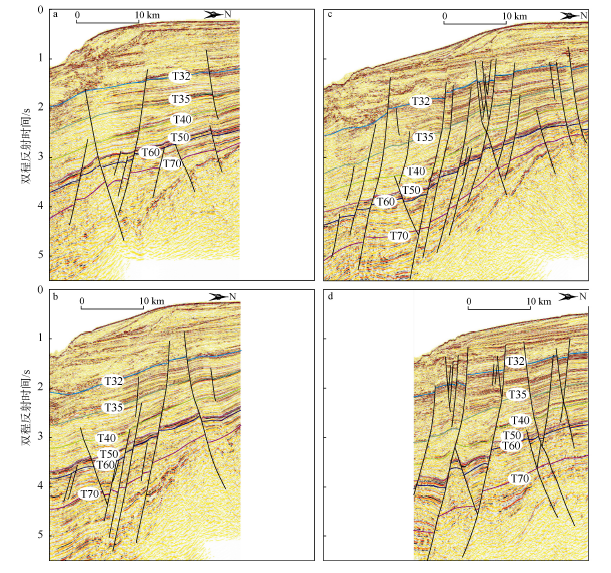

For deep understanding of the evolution of a fault in the passive continental margin slope, we analyzed the characteristics of fault activities and sedimentary response on the northern slope of the Baiyun Sag in this paper. Based on geological structural interpretation of 3D seismic profiles, fault activities were studied by using growth index. The results showed that the fault strike mainly is NWW-trending, while the rest are NEE- to EW-trending of small faults in the eastern and northern slope zones of the Baiyun Sag. In the vertical sections, these faults exhibited ladder and conjugated shaped combinations, while a single fault may be of planar shape. There were three episodes of post-rift fault activities, namely, 23.03-21 Ma, 19.1-15.97 Ma and 10-2.59 Ma. There has been a significant increasing activity since 10 Ma. The study of faults’ orientation indicates that Cenozoic stress field rotated clockwise from NS to NNE and the deflection angle is about 8 degrees. The main controlling factor of fault activities on the northern slope zone of the Baiyun Sag was the continuing strong abnormal subsidence and rapid sedimentation, while the rifting of the South China Sea was also an important factor that formed weak compressive stress on the northern margin; and the convergence between South China Sea plate and Philippine Sea plate played a key role in faults’ reactivation. Sedimentary units responded to tectonic movements directly in a series of deformation. The Dongsha Event was most obvious by canyon incisions, strata truncation and fault reactivation. We suggest the driving force came from the east.

Key words: Baiyun Sag, post-rift fault activities, tectonic reactivation, sedimentary response

Zhiyuan XIE, Jianmin YANG, Longtao SUN, Jinyun ZHENG, Zhen SUN, Ning QIU. The characteristics of post-rift fault activities and sedimentary response on the northern slope of the Baiyun Sag in the northern margin of the South China Sea[J].Journal of Tropical Oceanography, 2017, 36(5): 59-71.

Figures/Tables 10

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Tab 1

Fig. 7

Fig. 8

Fig. 9

References 36

[1]	包项, 季建清, 陶涛, 等, 2010. 渤海湾盆地沉积层中X型共轭断裂的发育特征与油气意义[J]. 地质科学, 45(2): 395-410.
	BAO XIANG, JI JIANQING, TAO TAO, et al, 2010. The structural features of X shaped conjugate normal fault in seismic data and its significance in oil exploration[J]. Chinese Journal of Geology, 45(2): 395-410 (in Chinese).
[2]	陈长民, 施和生, 许仕策, 等, 2003. 珠江口盆地(东部)第三系油气藏形成条件[M]. 北京: 科学出版社: 5-8.
[3]	杜德莉, 1991. 台西南盆地地质构造特征及油气远景[J]. 海洋地质与第四纪地质, 11(3): 21-33.
	DU DELI, 1991. Characteristics of geologic structure and hydrocarbon potential of the Southwest Taiwan Basin[J]. Marine Geology & Quaternary Geology, 11(3): 21-33 (in Chinese).
[4]	黄春菊, 周蒂, 陈长民, 等, 2005. 深反射地震剖面所揭示的白云凹陷的深部地壳结构[J]. 科学通报, 50(10): 1024-1031.
	HUANG CHUNJU, ZHOU DI, CHEN CHANGMIN, et al, 2005. Deep crustal structure of Baiyun Sag, northern South China Sea revealed from deep seismic reflection profile[J]. Chinese Science Bulletin, 50(10): 1131-1138.
[5]	李飞, 程日辉, 王共生, 等, 2011. 应用地震属性分析研究十屋油田下白垩统营城组沉积体系分布[J]. 吉林大学学报(地球科学版), 41(S1): 54-60.
	LI FEI, CHENG RIHUI, WANG GONGSHENG, et al, 2011. Application of seismic attribute analysis to study sedimentary systems of the Yingcheng Formation, lower cretaceous, Shiwu Oilfield[J]. Journal of Jilin University (Earth Science Edition), 41(S1): 54-60 (in Chinese).
[6]	柳保军, 庞雄, 颜承志, 等, 2011. 珠江口盆地白云深水区沉积充填演化及控制因素分析[J]. 中国海上油气, 23(1): 19-25.
	LIU BAOJUN, PANG XIONG, YAN CHENGZHI, et al, 2011. An analysis of depositional evolution and its controls in Baiyun deep-water area, Pearl River Mouth basin[J]. China Offshore Oil and Gas, 23(1): 19-25 (in Chinese).
[7]	庞雄, 申俊, 袁立忠, 等, 2006 南海珠江深水扇系统及其油气勘探前景[J]. 石油学报, 27(3): 11-21.
	PANG XIONG, SHEN JUN, YUAN LIZHONG, et al, 2006. Petroleum prospect in deep water fan system of the Pearl River in the South China Sea[J]. Acta Petrolei Sinica, 27(3): 11-21 (in Chinese).
[8]	庞雄, 陈长民, 邵磊, 等, 2007. 白云运动: 南海北部渐新统-中新统重大地质事件及其意义[J]. 地质论评, 53(2): 145-151.
	PANG XIONG, CHEN CHANGMIN, SHAO LEI, et al, 2007. Baiyun movement, a great tectonic event on the Oligocene-Miocene boundary in the northern south China Sea and its implications[J]. Geological Review, 53(2): 145-151 (in Chinese).
[9]	彭大钧, 陈长民, 庞雄, 等, 2004. 南海珠江口盆地深水扇系统的发现[J]. 石油学报, 25(5): 17-23.
	PENG DAJUN, CHEN CHANGMIN, PANG XIONG, et al, 2004. Discovery of deep-water fan system in South China Sea[J]. Acta Petrolei Sinica, 25(5): 17-23 (in Chinese).
[10]	任建业, 庞雄, 雷超, 等, 2015. 被动陆缘洋陆转换带和岩石圈伸展破裂过程分析及其对南海陆缘深水盆地研究的启示[J]. 地学前缘, 22(1): 102-114.
	REN JIANYE, PANG XIONG, LEI CHAO, et al, 2015. Ocean and continent transition in passive continental margins and analysis of lithospheric extension and breakup process: Implication for research of the deepwater basins in the continental margins of South China Sea[J]. Earth Science Frontiers, 22(1): 102-114 (in Chinese).
[11]	孙龙涛, 周蒂, 陈长民, 等, 2008. 珠江口盆地白云凹陷断裂构造特征及其活动期次[J]. 热带海洋学报, 27(2): 25-31.
	SUN LONGTAO, ZHOU DI, CHEN CHANGMIN, et al, 2008. Fault structure and evolution of Baiyun Sag in Zhujiang River Mouth Basin[J]. Journal of Tropical Oceanography, 27(2): 25-31 (in Chinese).
[12]	孙珍, 庞雄, 钟志洪, 等, 2005. 珠江口盆地白云凹陷新生代构造演化动力学[J]. 地学前缘, 12(4): 489-498.
	SUN ZHEN, PANG XIONG, ZHONG ZHIHONG, et al, 2005. Dynamics of tertiary tectonic evolution of the Baiyun Sag in the Pearl River Mouth Basin[J]. Earth Science Frontiers, 12(4): 489-498 (in Chinese).
[13]	赵淑娟, 吴时国, 施和生, 等, 2012. 南海北部东沙运动的构造特征及动力学机制探讨[J]. 地球物理学进展, 27(3): 1008-1019.
	ZHAO SHUJUAN, WU SSHIGUO, SHI HESHENG, et al, 2012. Structures and dynamic mechanism related to the Dongsha movement at the Northern margin of the South China Sea[J]. Progress in Geophysics, 27(3): 1008-1019 (in Chinese).
[14]	赵密福, 刘泽容, 信荃麟, 等, 2000. 惠民凹陷临南地区断层活动特征及控油作用[J]. 石油勘探与开发, 27(6): 9-11.
	ZHAO MIFU, LIU ZERONG, XIN QUANLIN, et al, 2000. Fault activity features and its control over oil of Linnan area in Huimin depression[J]. Petroleum Exploration and Development, 27(6): 9-11 (in Chinese).
[15]	赵勇, 戴俊生, 2003. 应用落差分析研究生长断层[J]. 石油勘探与开发, 30(3): 13-15.
	ZHAO YONG, DAI JUNSHENG, 2003. Identification of growth fault by fault fall analysis[J]. Petroleum Exploration and Development, 30(3): 13-15 (in Chinese).
[16]	CLIFT P D, HODGES K V, HESLOP D, et al, 2008. Correlation of Himalayan exhumation rates and Asian monsoon intensity[J]. Nature Geoscience, 1(12): 875-880.
[17]	COWIE P A, GUPTA S, DAWERS N H, 2000. Implications of fault array evolution for synrift depocentre development: insights from a numerical fault growth model[J]. Basin Research, 12(3-4): 241-261.
[18]	FRANKE D, 2013. Rifting, lithosphere breakup and volcanism: Comparison of magma-poor and volcanic rifted margins[J]. Marine and Petroleum Geology, 43: 63-87.
[19]	HALL R, 2002. Cenozoic geological and plate tectonic evolution of SE Asia and the SW Pacific: computer-based reconstructions, model and animations[J]. Journal of Asian Earth Sciences, 20(4): 353-431.
[20]	HSU S K, YEH Y C, DOO W B, et al, 2004. New bathymetry and magnetic lineations identifications in the northernmost South China Sea and their tectonic implications[J]. Marine Geophysical Researches, 25(1-2): 29-44.
[21]	HUANG C Y, YUAN P B, LIN C W, et al, 2000. Geodynamic processes of Taiwan arc-continent collision and comparison with analogs in Timor, Papua New Guinea, Urals and Corsica[J]. Tectonophysics, 325(1-2): 1-21.
[22]	HUANG CHIYUE, XIA KANYUAN, YUAN P B, et al, 2001. Structural evolution from Paleogene extension to Latest Miocene-Recent arc-continent collision offshore Taiwan: comparison with on land geology[J]. Journal of Asian Earth Sciences, 19(5): 619-638.
[23]	LIN A T, WATTS A B, 2002. Origin of the West Taiwan basin by orogenic loading and flexure of a rifted continental margin[J]. Journal of Geophysical Research, 107(B9): ETG 2-1-ETG 2-19.
[24]	LÜDMANN T, WONG H K, 1999. Neotectonic regime on the passive continental margin of the northern South China Sea[J]. Tectonophysics, 311(1-4): 113-138.
[25]	NALIBOFF J B, BILLEN M I, GERYA T, et al, 2013. Dynamics of outer-rise faulting in oceanic-continental subduction systems[J]. Geochemistry, Geophysics, Geosystems, 14(7): 2310-2327.
[26]	POREBSKI S J, STEEL R J, 2006. Deltas and sea-level change[J]. Journal of Sedimentary Research, 76(3): 390-403.
[27]	PRAEG D, STOKER M S, SHANNON P M, et al, 2005. Episodic Cenozoic tectonism and the development of the NW European ‘passive’ continental margin[J]. Marine and Petroleum Geology, 22(9-10): 1007-1030.
[28]	SHANMUGAM G, 2000. 50 years of the turbidite paradigm (1950s—1990s): deep-water processes and facies models—a critical perspective[J]. Marine and Petroleum Geology, 17(2): 285-342.
[29]	SUN ZHEN, XU ZIYING, SUN LONGTAO, et al, 2014. The mechanism of post-rift fault activities in Baiyun Sag, Pearl River Mouth basin[J]. Journal of Asian Earth Sciences, 89: 76-87.
[30]	SUN ZHEN,STOCK J, JIAN ZHIMIN, et al, 2016. Expedition 367/368 scientific prospectus: South China sea rifted margin[J/OL]. International Ocean Discovery Program. .
[31]	WU SHIGUO, GAO JINWEI, ZHAO SHUJUAN, et al, 2014. Post-rift uplift and focused fluid flow in the passive margin of northern South China Sea[J]. Tectonophysics, 615-616: 27-39.
[32]	THORSEN C E, 1963. Age of growth faulting in southeast Louisiana[J]. Transactions, Gulf Coast Association of Geological Societies, 13: 103-110.
[33]	XIE HUI, ZHOU DI, LI YUANPING, et al, 2014. Cenozoic tectonic subsidence in deepwater sags in the Pearl River Mouth Basin, northern South China Sea[J]. Tectonophysics, 615-616: 182-198.
[34]	YAN PIN, DENG HUI, LIU HAILING, et al, 2006. The temporal and spatial distribution of volcanism in the South China Sea region[J]. Journal of Asian Earth Sciences, 27(5): 647-659.
[35]	YU H S, 2004. Nature and distribution of the deformation front in the Luzon arc-chinese continental margin collision zone at Taiwan[J]. Marine Geophysical Researches, 25(1-2): 109-122.
[36]	ZHOU DI, SUN ZHEN, LIAO JIE, et al, 2009. Filling History and Post-Breakup Acceleration of Sedimentation in Baiyun Sag, Deepwater Northern South China Sea[J]. Journal of Earth Science, 20(1): 160-171.

	1组	2组	3组	4组	西区	东区	全区
裂后一期	1.13	1.32	1.11	1.15	1.23	1.13	1.18
裂后二期	1.1	1.15	1.32	1.2	1.12	1.26	1.19
裂后三期	1.25	无	1.5	1.44	1.25	1.47	1.36
