应用压力-状态-响应模型评价象山港富营养化水平

doi:10.11978/2017078

Abstract

Abstract:

Due to its unique geographical position and marine functional zoning, Xiangshan Bay (XSB) has suffered severe eutrophication for many years. Nutrients-based indices have been widely used to assess eutrophication status; however, they cannot comprehensively reflect the true state, and the actual eutrophication status of the bay remains unclear. According to the assessment of eutrophication framework and with the consideration of practical situation in XSB, we modified the assessment framework and optimized partial indices to make the assessment method more suitable for XSB. Using this new assessment framework and field monitoring data from 2001 to 2015, we analyzed the eutrophication pressure and the grade of overall eutrophic conditions, including using chlorophyll as primary symptom and using dissolved oxygen in the bottom layer and red-tide occurrence as secondary symptoms, and predicted the eutrophication trend by taking into consideration of the coastal zone management policy for comprehensive water cleaning activities, and drainage control of total amount of pollutants. The results showed that the integrated eutrophic grade, the eutrophication pressure and the degree of eutrophication status and its response were all at moderate level, based on a scheme of five categories: Superior, Superior-Moderate, Moderate, Moderate-Poor, and Poor. Our results showed that the comprehensive assessment of eutrophication status would remain at the moderate level in next several years. The results reflect the overall degree of eutrophication in the Bay, which is more in accordance with reality. Thus, these results will be helpful for making better new regulations and management plans of eutrophication in XSB.

Key words: Xiangshan Bay, Pressure-Status-Response, eutrophication, forecast

CLC Number:

P735.12

Guofeng XU, Yongping CUI, Lian LIU. Assessment of eutrophication status by using the Pressure-Status-Response Model in Xiangshan Bay, China[J].Journal of Tropical Oceanography, 2018, 37(4): 52-60.

Figures/Tables 12

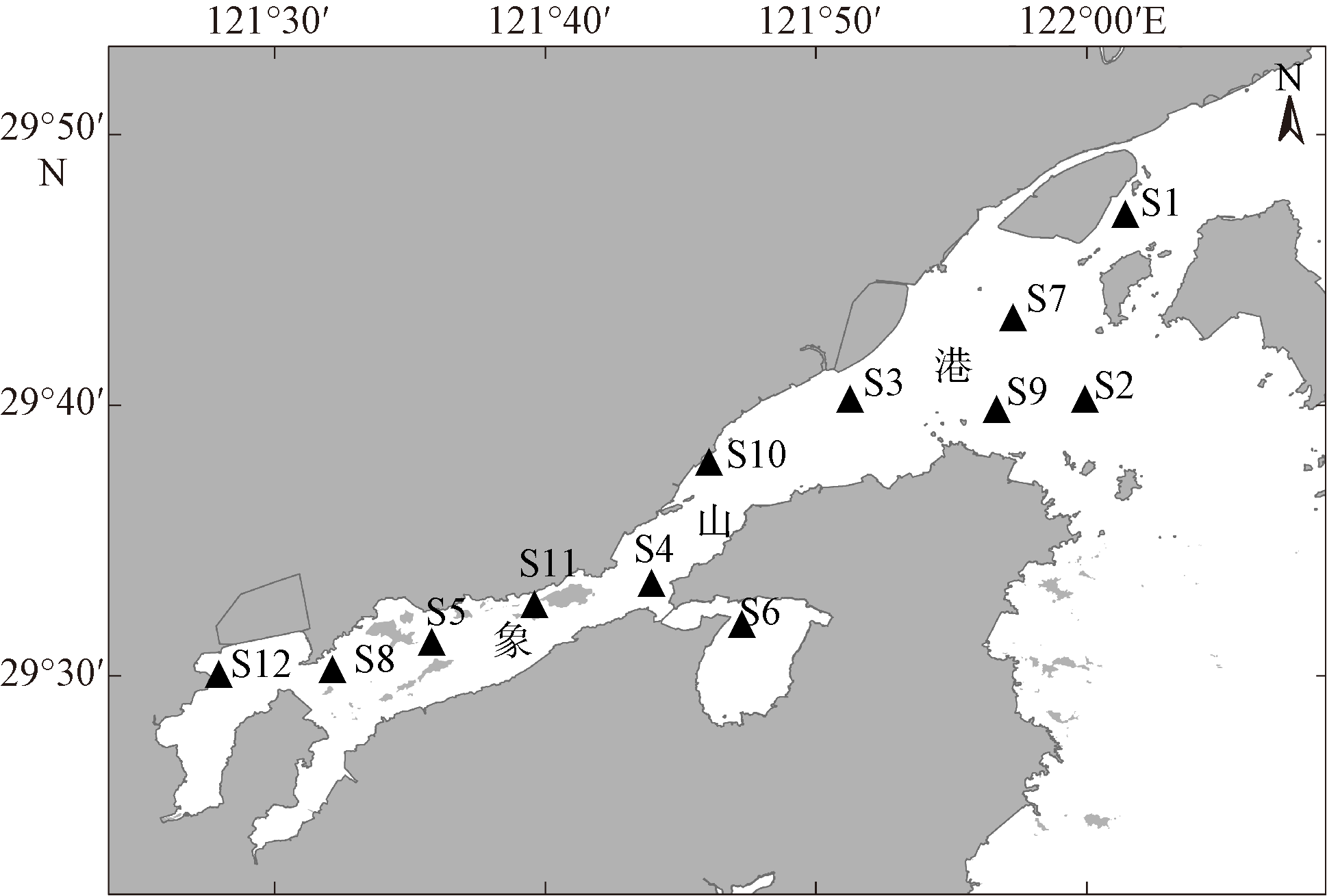

Fig. 1

Tab. 1

Tab. 2

Tab. 3

Tab. 4

Tab. 5

Tab. 6

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

References 42

1	蔡励勋, 2008. 厦门同安湾海域赤潮期间叶绿素变化的若干典型特征[J]. 海洋环境科学, 27(4): 331-334.
	CAI LIXUN, 2008. Chlorophyll characteristics during red tides in Tong’an Bay of Xiamen[J]. Marine Environmental Science, 27(4): 331-334 (in Chinese with English abstract).
2	陈彬, 王金坑, 汤军健, 等, 2002. 福建湄洲湾海域营养状态趋势预测[J]. 台湾海峡, 21(3): 322-327.
	CHEN BIN, WANG JINKENG, TANG JUNJIAN, et al, 2002. Prediction to trend of nutrient status in Meizhou Bay, Fujian[J]. Journal of Oceanography in Taiwan Strait, 21(3): 322-327 (in Chinese with English abstract).
3	陈鸣渊, 俞志明, 宋秀贤, 等, 2007. 利用模糊综合方法评价长江口海水富营养化水平[J]. 海洋科学, 31(11): 47-54.
	CHEN MINGYUAN, YU ZHIMING, SONG XIUXIAN, et al, 2007. Evaluation of fuzzy synthesis to assess the seawater eutrophication in the Changjiang estuary[J]. Marine Sciences, 31(11): 47-54 (in Chinese with English abstract).
4	国家环境保护局, 2004. GB 3097-1997 海水水质标准[S]. 北京: 环境科学出版社: 15-16 (in Chinese).
5	何东海, 徐国锋, 王晓波, 等, 2009. 宁海国华浙能发电有限公司厂址前沿海域海洋环境跟踪监测报告[R]. 101-102 (in Chinese).
6	黄秀清, 王金辉, 将晓山, 2008. 象山港海洋环境容量及污染物总量控制研究[M]. 北京: 海洋大学出版社: 356-368 (in Chinese).
7	黄秀清, 叶属峰, 2014. 象山港电厂温排水温升的监测及影响评估[M]. 北京: 海洋出版社: 134-135 (in Chinese).
8	黄秀清, 齐平, 秦渭华, 等, 2015. 象山港海洋生态环境评价方法研究[J]. 海洋学报, 37(8): 63-75.
	HUANG XIUQING, QI PING, QIN WEIHUA, et al, 2015. Research on the evaluation method of marine ecological environment in Xiangshan Bay[J]. Acta Oceanologica Sinica, 37(8): 63-75 (in Chinese with English abstract).
9	蒋荣根, 贺青, 邝伟明, 等, 2014. 厦门海域水体富营养化状况综合评价[J]. 海洋与湖沼, 45(4): 710-718.
	JIANG RONGGEN, HE QING, KUNAG WEIMING, et al, 2014. Assessment of eutrophication status in Xiamen coastal waters[J]. Oceanologia et Limnologia Sinica, 45(4): 710-718 (in Chinese with English abstract).
10	雷坤, 郑丙辉, 孟伟, 等, 2007. 大辽河口N、P营养盐的分布特征及其影响因素[J]. 海洋环境科学, 26(1): 19-22, 27.
	LEI KUN, ZHENG BINGHUI, MENG WEI, et al, 2007. Distributions and the factors influenced of nitrogen and phosphorus nutrients in the Daliaohe Estuary[J]. Marine Environmental Science, 26(1): 19-22, 27 (in Chinese with English abstract).
11	李乃芳, 李英保, 1986. 试论象山港的资源特征和开发方式[J]. 宁波大学学报(教育科学版), 6(4): 101-104 (in Chinese).
12	刘俊峰, 潘建明, 薛斌, 等, 2012a. 象山港水体富营养化的评价与分析[J]. 环境研究与监测, 25(1): 15-18 (in Chinese).
13	刘俊峰, 潘建明, 薛斌, 等, 2012b. 象山港海域营养状况分析与富营养化水平评价[J]. 福建水产, 34(1): 36-42.
	LIU JUNFENG, PAN JIANMING, XUE BIN, et al, 2012b. Status analysis of nutrients and eutrophication assessment in seawater of the Xiangshan Harbor[J]. Journal of Fujian Fisheries, 34(1): 36-42 (in Chinese with English abstract).
14	刘子琳, 蔡昱明, 宁修仁, 1998. 象山港中、西部秋季浮游植物粒径分级、叶绿素a和初级生产力[J]. 东海海洋, 16(3): 18-24.
	LIU ZILIN, CAI YUMING, NING XIUREN, 1998. The distribution of Chlorophyll a and primary productivity in the middle and west of Xiangshan bay[J]. Donghai Marine Science, 16(3): 18-24 (in Chinese with English abstract).
15	宁波海洋环境监测中心站, 2009. 浙江大唐乌沙山发电厂厂址前沿海域海洋环境影响跟踪监测报告[R]. 85-86 (in Chinese).
16	宁波市海洋与渔业局, 2016. 2015. 2015年宁波市海洋环境公报[R]. 5-16. (in Chinese).
17	宁波市人民政府, 2013. 象山港区域保护和利用规划纲要(2012—2030)[R]. 19-26. .html (in Chinese).
18	钱宏林, 梁松, 1999. 珠江口及其邻近海域赤潮的研究[J]. 海洋环境科学, 18(3): 69-74.
	QIAN HONGLIN, LIANG SONG, 1999. Study on the red tide in the pearl river estuary and its near waters[J]. Marine Environmental Science, 18(3): 69-74 (in Chinese with English abstract).
19	任敏, 刘莲, 何东海, 等, 2012. 试论滨海发电厂温排水对象山港赤潮的影响[J]. 海洋开发与管理,(3): 87-89, 94 (in Chinese).
20	石晓勇, 陆茸, 张传松, 等, 2006. 长江口邻近海域溶解氧分布特征及主要影响因素[J]. 中国海洋大学学报, 36(2): 287-290, 294.
	SHI XIAOYONG, LU RONG, ZHANG CHUANSONG, et al, 2006. Distribution and main influence factors process of dissolved oxygen in the adjacent area of the Changjiang estuary in autumn[J]. Periodical of Ocean University of China, 36(2): 287-290, 294 (in Chinese with English abstract).
21	汤荣坤, 贺青, 暨卫东, 等, 2010. 2005—2007年厦门岛周边海域水体叶绿素含量的时空变化特征[J]. 台湾海峡, 29(3): 342-351.
	TANG RONGKUN, HE QING, JI WEIDONG, et al, 2010. Characteristics of temporal and spatial variations in chlorophyll contents of waters around Xiamen island in 2005-2007[J]. Journal of Oceanography in Taiwan Strait, 29(3): 342-351 (in Chinese with English abstract).
22	屠建波, 王保栋, 2006. 长江口及其邻近海域富营养化状况评价[J]. 海洋科学进展, 24(4): 532-538.
	TU JIANBO, WANG BAODONG, 2006. Assessment of eutrophication status in the Changjiang river estuary and adjacent sea areas[J]. Advances in Marine Science, 24(4): 532-538 (in Chinese with English abstract).
23	王保栋, 2005. 河口和沿岸海域的富营养化评价模型[J]. 海洋科学进展, 23(1): 82-86.
	WANG BAODONG, 2005. Eutrophication assessment models for estuarine and coastal waters[J]. Advances in Marine Science, 23(1): 82-86 (in Chinese with English abstract).
24	王保栋, 孙霞, 韦钦胜, 等, 2012. 我国近岸海域富营养化评价新方法及应用[J]. 海洋学报, 34(4): 61-66.
	WANG BAODONG, SUN XIA, WEI QINSHENG, et al, 2012. A new method for assessment of eutrophication status in estuarine and coastal waters off China and its application[J]. Acta Oceanologica Sinica, 34(4): 61-66 (in Chinese with English abstract).
25	王菲菲, 章守宇, 林军, 2013. 象山港海洋牧场规划区叶绿素a分布特征研究[J]. 上海海洋大学学报, 22(2): 266-273.
	WANG FEIFEI, ZHANG SHOUYU, LIN JUN, 2013. Study of chlorophyll a distribution in marine ranching planning area of Xiangshan Bay[J]. Journal of Shanghai Ocean University, 22(2): 266-273 (in Chinese with English abstract).
26	王玉衡, 蒋国昌, 董恒霖, 1988. 浙江沿海港湾的水化学研究[J]. 海洋学报, 10(3): 302-307 (in Chinese).
27	吴迪, 王菊英, 马德毅, 等, 2010. 基于PSR框架的典型河口富营养化综合评价方法研究[J]. 海洋技术, 29(3): 29-32.
	WU DI, WANG JUYING, MA DEYI, et al, 2010. Comprehensive eutrophication assessment for representative estuaries based on the PSR framework[J]. Ocean Technology, 29(3): 29-32 (in Chinese with English abstract).
28	吴在兴, 俞志明, 宋秀贤, 等, 2014. 基于水质状态和生态响应的综合富营养化评价模型——以山东半岛典型海域富营养化评价为例[J]. 海洋与湖沼, 45(1): 20-31.
	WU ZAIXING, YU ZHIMING, SONG XIUXIAN, et al, 2014. A new system of eutrophication assessment for both water quality and ecological response: A case study in typical areas off Shandong peninsula[J]. Oceanologia et Limnologia Sinica, 45(1): 20-31 (in Chinese with English abstract).
29	徐兆礼, 叶属峰, 徐韧, 2009. 2008年中国浒苔灾害成因条件和过程推测[J]. 水产学报, 33(3): 430-437.
	XU ZHAOLI, YE SHUFENG, XU REN, 2009. Possible conditions and process of the massive blooms of Enteromorpha prolifera in China during 2008[J]. Journal of Fisheries of China, 33(3): 430-437 (in Chinese with English abstract).
30	张景平, 黄小平, 江志坚, 等, 2009. 2006—2007年珠江口富营养化水平的季节性变化及其与环境因子的关系[J]. 海洋学报, 31(3): 113-120.
	ZHANG JINGPING, HUANG XIAOPING, JIANG ZHIJIAN, et al, 2009. Seasonal variations of eutrophication and the relationship with environmental factors in the Zhujiang Estuary in 2006-2007[J]. Acta Oceanologica Sinica, 31(3): 113-120 (in Chinese with English abstract).
31	张丽旭, 蒋晓山, 蔡燕红, 2008. 象山港海水中营养盐分布与富营养化特征分析[J]. 海洋环境科学, 27(5): 488-491.
	ZHANG LIXU, JIANG XIAOSHAN, CAI YANHONG, 2008. Characteristics of nutrient distributions and eutrophication in seawater of the Xiangshan Harbor[J]. Marine Environmental Science, 27(5): 488-491 (in Chinese with English abstract).
32	张丽旭, 赵敏, 蔡燕红, 2011. 象山港海域N、P和CODMn的变化趋势及其与富营养化的关系[J]. 海洋环境科学, 30(1): 81-85.
	ZHANG LIXU, ZHAO MIN, CAI YANHONG, 2011. Variation trends of N, P and CODMn in Xiangshan Harbor and the relationship between them with eutrophication[J]. Marine Environmental Science, 30(1): 81-85 (in Chinese with English abstract).
33	张树洪, 1993. 临洪河口区域富营养化的初步探讨[J]. 海洋环境科学, 12(2): 48-51.
	ZHANG SHUHONG, 1993. The preliminary discussion of eutrophication in Linhong Estuary[J]. Marine Environmental Science, 12(2): 48-51 (in Chinese with English abstract).
34	郑云龙, 朱红文, 罗益华, 2000. 象山港海域水质状况评价[J]. 海洋环境科学, 19(1): 56-59.
	ZHENG YUNLONG, ZHU HONGWEN, LUO YIHUA, 2000. Assessment on the situation of water quality at Xiangshan Port[J]. Marine Environmental Science, 19(1): 56-59 (in Chinese with English abstract).
35	中华人民共和国国家质量监督检验检疫总局, 中国国家标准化管理委员会, 2008. GB/T 12763.4-2007 海洋调查规范第4部分: 海水化学要素调查[S]. 北京: 中国标准出版社: 16-23 (in Chinese).
36	中华人民共和国国家质量监督检验检疫总局, 中国国家标准化管理委员会, 2008. GB 17378.4-2007 海洋监测规范第4部分: 海水分析[S]. 北京: 中国标准出版社: 99-101 (in Chinese).
37	邹景忠, 董丽萍, 秦保平, 1983. 渤海湾富营养化和赤潮问题的初步探讨[J]. 海洋环境科学, 2(2): 41-54 (in Chinese).
38	BRICKER S B, FERREIRA J G, SIMAS T, et al, 2003. An integrated methodology for assessment of estuarine trophic status[J]. Ecological Modeling, 169(1): 39-60.
39	FERREIRA J G, BRICKER S B, SIMAS T C, 2007. Application and sensitivity testing of a eutrophication assessment method on coastal systems in the United States and European Union[J]. Journal of Environment Management, 82(4): 433-445.
40	GARMENDIA M, BRICKER S B, REVILLA M, et al, 2012. Eutrophication assessment in Basque estuaries: comparing a North American and a European method[J]. Estuaries and Coasts, 35(4): 991-1006.
41	OSPAR COMMISSION, 2003. OSPAR integrated report 2003 on the Eutrophication Status of the OSPAR Maritime Area based upon the first application of the comprehensive procedure[Z]. London: OSPAR Commission.
42	XIAO YONGJIN, FERREIRA J G, BRICKER S B, et al, 2007. Trophic assessment in Chinese coastal systems - Review of methods and application to the Changjiang (Yangtze) Estuary and Jiaozhou Bay[J]. Estuaries and Coasts, 30(6): 901-918.

序号	等级	压力范围	赋值
1	高	P>1.0	1
2	中高	0.8<P≤1.0	2
3	中	0.6<P≤0.8	3
4	中低	0.4<P≤0.6	4
5	低	P≤0.4	5

序号	质量浓度/(μg•L^-1)	出现频率/%	等级	赋值
1	>20	f>80	高	1
2		60<f≤80	中高	2
3		40<f≤60	中	3
4		20<f≤40	中低	4
5		f≤20	低	5
6	5<chl a≤20	f>80	中高	2
7		40<f≤80	中	3
8		f≤40	中低	4
9	≤5	f>60	中低	4
10	≤5	f≤60	低	5

序号	质量浓度/(mg•L^-1)	出现频率/%	等级	赋值
1	≤2	f>80	高	1
2		60<f≤80	中高	2
3		40<f≤60	中	3
4		20<f≤40	中低	4
5		f≤20	低	5
6	2<DO≤5	f>80	中高	2
7		40<f≤80	中	3
8		f≤40	中低	4
9	>5	—	低	5

序号	持续时间	出现频率	等级	赋值
1	持续1月以上	周期性	高	1
2	持续2月以上	偶发性	高	1
3	持续1月之内	周期性	中高	2
4	持续2月之内	偶发性	中高	2
5	持续2周之内	周期性	中	3
6	累计1月之内	偶发性	中	3
7	持续1周之内	周期性	中低	4
8	累计2周之内	偶发性	中低	4
9	持续3天之内	周期性	低	5
10	累计1周之内	偶发性	低	5

序号	等级	变化趋势	赋值
1	高	高度恶化	1
2	中高	略有恶化	2
3	中	维持不变	3
4	中低	略有改善	4
5	低	显著改善	5

Assessment of eutrophication status by using the Pressure-Status-Response Model in Xiangshan Bay, China

RichHTML

PDF (PC)

Like

Knowledge

Cited

Abstract

Cite this article

share this article

Figures/Tables 12

References 42

Related Articles 5

Metrics

Comments

Recommended 0

指标						最终等级
P					555444	优5%
S					555555
R					543543
P			555555544444333333			良19%
S			554444455444555444
R			215432121543543543
P	555554444444333333322222222211					中32%
S	333334433333554433344444333233
R	215432154321212154354321543554
P		44444333333322222211111				差24%
S		22222332222233222233322
R		54321215432121432132154
P				333332222211111111		劣19%
S				111111111122211111
R				543215432132154321
