线纹海马Hippocampus erectus的tlr21基因结构及其对CpG-ODN的应答特征

doi:10.11978/2018034

Abstract

Abstract:

Toll-like receptors (TLRs) are the major pattern recognition receptors (PRR) of the innate immune system in vertebrates, which can initiate host immune responses by recognizing potential pathogens. The present study focused on the role of Tlr21 involved in immune responses in lined seahorse (Hippocampus erectus). The full-length sequence of the lined seahorse tlr21 gene was cloned. The open reading frame (ORF) of seahorse tlr21 gene includes 2964 base pairs, which is predicted to encode 981 amino acids. The encoding protein had a predicted molecular mass of 246.98 kDa and an estimated isoelectric point of 4.78. Homology comparison and phylogenetic analysis showed that lined seahorse tlr21 shared high sequence identity with its homologs from other species, especially those species in Syngnathidae. Quantitative real-time PCR analysis showed that tlr21 mRNA was widely expressed in various tissues and expressed highest in the kidney. We conducted intraperitoneal CpG-ODNs injections to the lined seahorses. Both CpG-2007 and CpG-HC4040 increased expression levels of tlr21 mRNA in seahorse kidney significantly. In conclusion, these findings indicated that tlr21 initiated the innate immunity in lined seahorse by recognizing CpG DNA.

Key words: tlr21, gene structure, CpG-ODN, immunity, Lined seahorse, tissue expression difference

Yuan ZHANG, Geng QIN, Bo ZHANG, Qiang LIN. The gene structure of tlr21 in lined seahorse, Hippocampus erectus, and its responses to CpG-ODN treatment[J].Journal of Tropical Oceanography, 2019, 38(1): 67-75.

Figures/Tables 6

Tab. 1

Tab. 2

Fig. 1

Fig. 2

Fig. 3

Fig. 4

References 50

[1]	李春艳, 黄贝, 熊静, 等, 2017. 日本鳗鲡TLR21基因的鉴定、免疫应答与启动子分析[J]. 水生生物学报, 41(2): 296-305.
	LI CHUNYAN, HUANG BEI, XIONG JING, et al, 2017. Molecular cloning and characterization of TLR21 gene from Japanese eel, Anguilla japonica[J]. Acta Hydrobiologica Sinica, 41(2): 296-305 (in Chinese with English abstract).
[2]	王凯伦, 2017. 黄颡鱼TLR18、TLR19和TLR21基因的克隆及表达分析[D]. 武汉: 华中农业大学: 31-35.
	WANG KAILUN, 2017. Molecular cloning and expression analysis of the TLR18, TLR19 and TLR21 genes in yellow catfish (Pelteobagrus fulvidraco)[D]. Wuhan: Huazhong Agricultural University: 31-35 (in Chinese with English abstract).
[3]	张洁, 郑津辉, 李庆亚, 等, 2015. 牙鲆(Paralichthys olivaceus)TLR21基因在迟缓爱德华氏菌(Edwardsiella tarda)感染后的表达特征[J]. 海洋与湖沼, 46(6): 1502-1508.
	ZHANG JIE, ZHENG JINHUI, LI QINGYA, et al, 2015. Expression of TLR21 gene in Paralichthys olivaceus challenged by Edwardsiella tarda[J]. Oceanologia et Limnologia Sinica, 46(6): 1502-1508 (in Chinese with English abstract).
[4]	BALLAS Z K, RASMUSSEN W L, KRIEG A M, 1996. Induction of NK activity in murine and human cells by CpG motifs in oligodeoxynucleotides and bacterial DNA[J]. The Journal of Immunology, 157(5): 1840-1845.
[5]	BERNASCONI N L, ONAI N, LANZAVECCHIA A, 2003. A role for Toll-like receptors in acquired immunity: up-regulation of TLR9 by BCR triggering in naive B cells and constitutive expression in memory B cells[J]. Blood, 101(11): 4500-4504.
[6]	BROWNLIE R, ZHU JIANZHONG, ALLAN B, et al, 2009. Chicken TLR21 acts as a functional homologue to mammalian TLR9 in the recognition of CpG oligodeoxynucleotides[J]. Molecular Immunology, 46(15): 3163-3170.
[7]	CARRINGTON A C, COLLET B, HOLLAND J W, et al, 2004. CpG oligodeoxynucleotides stimulate immune cell proliferation but not specific antibody production in rainbow trout (Oncorhynchus mykiss)[J]. Veterinary Immunology and Immunopathology, 101(3-4): 211-222.
[8]	CHAUNG H C, 2006. CpG oligodeoxynucleotides as DNA adjuvants in vertebrates and their applications in immunotherapy[J]. International Immunopharmacology, 6(10): 1586-1596.
[9]	COOPER C L, AHLUWALIA N K, EFLER S M, et al, 2008. Immunostimulatory effects of three classes of CpG oligodeoxynucleotides on PBMC from HCV chronic carriers[J]. Journal of Immune Based Therapies and Vaccines, 6: 3.
[10]	GÜRSEL M, VERTHELYI D, GÜRSEL I, et al, 2002. Differential and competitive activation of human immune cells by distinct classes of CpG oligodeoxynucleotide[J]. Journal of Leukocyte Biology, 71(5): 813-820.
[11]	GAO HONG, WU LIAN, SUN JINSHENG, et al, 2013. Molecular characterization and expression analysis of Toll-like receptor 21 cDNA from Paralichthys olivaceu[J]. Fish & Shellfish Immunology, 35(4): 1138-1145.
[12]	HARTMANN G, BATTIANY J, POECK H, et al, 2003. Rational design of new CpG oligonucleotides that combine B cell activation with high IFN-α induction in plasmacytoid dendritic cells[J]. European Journal of Immunology, 33(6): 1633-1641.
[13]	HEMMI H, TAKEUCHI O, KAWAI T, et al, 2000. A Toll-like receptor recognizes bacterial DNA[J]. Nature, 408(6813): 740-745.
[14]	HWANG S D, KONDO H, HIRONO I, et al, 2011. Molecular cloning and characterization of Toll-like receptor 14 in Japanese flounder, Paralichthys olivaceus[J]. Fish & Shellfish Immunology, 30(1): 425-429.
[15]	ISHII A, KAWASAKI M, MATSUMOTO M, et al, 2007. Phylogenetic and expression analysis of amphibian Xenopus Toll-like receptors[J]. Immunogenetics, 59(4): 281-293.
[16]	JANEWAY C A JR, MEDZHITOV R, 2012. Innate immune recognition[J]. Annual Review of Immunology, 2002, 20(1): 197-216.
[17]	JØRGENSEN J B, JOHANSER L H, STEIRO K, et al, 2003. CpG-DNA induces protective antiviral immune responses in Atlantic salmon (Salmo salar L.)[J]. Journal of Virology, 77(21): 11471-11479.
[18]	KANG J Y, LEE J O, 2011. Structural biology of the Toll-like receptor family[J]. Annual Review of Biochemistry, 80: 917-941.
[19]	KAWAI T, AKIRA S, 2010. The role of pattern-recognition receptors in innate immunity: update on Toll-like receptors[J]. Nature Immunology, 11(5): 373-384.
[20]	KEESTRA A M, DE ZOETE M R, BOUWMAN L I, et al, 2010. Chicken TLR21 is an innate CpG DNA receptor distinct from mammalian TLR9[J]. Journal of Immunology, 185(1): 460-467.
[21]	KRIEG A M, 2002. CpG motifs in bacterial DNA and their immune effects[J]. Annual Review of Immunology, 20: 709-760.
[22]	KRIEG A M, YI A K, MATSON S, et al, 1995. CpG motifs in bacterial DNA trigger direct B-cell activation[J]. Nature, 374(6522): 546-549.
[23]	KRUG A, ROTHENFUSSER S, HORNUNG V, et al, 2001. Identification of CpG oligonucleotide sequences with high induction of IFN-α/β in plasmacytoid dendritic cells[J]. European Journal of Immunology, 31(7): 2154-2163.
[24]	LI SONG, WANG GUANJIE, LIU DAHAI, et al, 2017. Cloning and expression analysis of a Toll-like receptor 21 (TLR21) gene from turbot, Scophthalmus maximus[J]. Developmental & Comparative Immunology, 73: 163-168.
[25]	LI YANWEI, LUO XIAOCHUN, DAN XUEMING, et al, 2012. Molecular cloning of orange-spotted grouper (Epinephelus coioides) TLR21 and expression analysis post Cryptocaryon irritans infection[J]. Fish & Shellfish Immunology, 32(3): 476-481.
[26]	LIN QIANG, FAN SHAOHUA, ZHANG YANHONG, et al, 2016. The seahorse genome and the evolution of its specialized morphology[J]. Nature, 540(7633): 395-399.
[27]	LIVAK K J, SCHMITTGEN T D, 2001. Analysis of relative gene expression data using real-time quantitative PCR and the 2-ΔΔCT method[J]. Methods, 25(4): 402-408.
[28]	MARSHALL J D, FEARON K C, ABBATE C, et al, 2003. Identification of a novel CpG DNA class and motif that optimally stimulate B cell and plasmacytoid dendritic cell functions[J]. Journal of Leukocyte Biology, 73(6): 781-792.
[29]	MATSUNAGA T, RAHMAN A, 1998. What brought the adaptive immune system to vertebrates?--The jaw hypothesis and the seahorse[J]. Immunological Reviews, 166(1): 177-186.
[30]	MEIJER A H, KRENS S F G, RODRIGUEZ I A M, et al, 2004. Expression analysis of the Toll-like receptor and TIR domain adaptor families of zebrafish[J]. Molecular Immunology, 40(11): 773-783.
[31]	MORESCO E M Y, LAVINE D, BEUTLER B, 2011. Toll-like receptors[J]. Current Biology, 21(13): R488-R493.
[32]	O’NEILL L A, GOLENBOCK D, BOWIE A G, 2013. The history of Toll-like receptors-redefining innate immunity[J]. Nature Reviews Immunology, 13(6): 453-460.
[33]	O’NEILL L, FITZGERALD K A, BOWIE A G, 2003. The Toll-IL-1 receptor adaptor family grows to five members[J]. Trends in Immunology, 24(6): 286-289.
[34]	OSHIUMI H, TSUJITA T, SHIDA K, et al, 2003. Prediction of the prototype of the human Toll-like receptor gene family from the pufferfish, Fugu rubripes, genome[J]. Immunogenetics, 54(11): 791-800.
[35]	PALTI Y, 2011. Toll-like receptors in bony fish: from genomics to function[J]. Developmental & Comparative Immunology, 35(12): 1263-1272.
[36]	QUINIOU S M A, BOUDINOT P, BENGTÉN E, 2013. Comprehensive survey and genomic characterization of Toll-like receptors (TLRs) in channel catfish, Ictalurus punctatus: identification of novel fish TLRs[J]. Immunogenetics, 65(7): 511-530.
[37]	REYES-BECERRIL M, ASCENCIO-VALLE F, HIRONO I, et al, 2016. TLR21's agonists in combination with Aeromonas antigens synergistically up-regulate functional TLR21 and cytokine gene expression in yellowtail leucocytes[J]. Developmental & Comparative Immunology, 61: 107-115.
[38]	SATO Y, ROMAN M, TIGHE H, et al, 1996. Immunostimulatory DNA sequences necessary for effective intradermal gene immunization[J]. Science, 273(5273): 352-354.
[39]	SLACK J L, SCHOOLEY K, BONNERT T P, et al, 2000. Identification of two major sites in the type I interleukin-1 receptor cytoplasmic region responsible for coupling to pro-inflammatory signaling pathways[J]. Journal of Biological Chemistry, 275(7): 4670-4678.
[40]	SUNDARAM A Y M, KIRON V, DOPAZO J, et al, 2012. Diversification of the expanded teleost-specific toll-like receptor family in Atlantic cod, Gadus morhua[J]. BMC Evolutionary Biology, 12(1): 256.
[41]	TAKANO T, DON HWANG S, KONDO H, et al, 2010. Evidence of molecular toll-like receptor mechanisms in teleosts[J]. Fish Pathology, 45(1): 1-16.
[42]	TAKEDA K, KAISHO T, AKIRA S, 2003. Toll-like receptors[J]. Annual Review of Immunology, 21(1): 335-376.
[43]	TASSAKKA A C M A R, SAKAI M, 2003. The in vitro effect of CpG-ODNs on the innate immune response of common carp, Cyprinus carpio L.[J]. Aquaculture, 220(1-4): 27-36.
[44]	TEMPERLY N D, BERLIN S, PATON I R, et al, 2008. Evolution of the chicken Toll-like receptor gene family: A story of gene gain and gene loss[J]. BMC Genomics, 9(1): 62.
[45]	VALENZUELA C A, ZULOAGA R, POBLETEM-MOTALES M, et al, 2017. Fish skeletal muscle tissue is an important focus of immune reactions during pathogen infection[J]. Developmental & Comparative Immunology, 73: 1-9.
[46]	VOLLMER J, WEERATNA R, PAYETTE P, et al, 2004. Characterization of three CpG oligodeoxynucleotide classes with distinct immunostimulatory activities[J]. European Journal of Immunology, 34(1): 251-262.
[47]	WANG JINLAN, ZHANG ZHENG, LIU JING, et al, 2015. Structural characterization and evolutionary analysis of fish-specific TLR27[J]. Fish & Shellfish Immunology, 45(2): 940-945.
[48]	WANG WENJING, SHEN YUBANG, PANDIT N P, et al, 2013. Molecular cloning, characterization and immunological response analysis of Toll-like receptor 21 (TLR21) gene in grass carp, Ctenopharyngodon idella[J]. Developmental & Comparative Immunology, 40(3-4): 227-231.
[49]	YEH D W, LAI CHAOYANG, LIU YILING, et al, 2017. CpG-oligodeoxynucleotides developed for grouper toll-like receptor (TLR) 21s effectively activate mouse and human TLR9s mediated immune responses[J]. Scientific Reports, 7(1): 17297.
[50]	YEH DAWEI, LIU YILING, LO YINCHIU, et al, 2013. Toll-like receptor 9 and 21 have different ligand recognition profiles and cooperatively mediate activity of CpG-oligodeoxynucleotides in zebrafish[J]. Proceedings of the National Academy of Sciences of the United States of America, 110(51): 20711-20716.

名称	序列 (5′-3′)	用途
HE tlr21-1F	GCAACCAGCGAAGGGAGA	克隆全长
HE tlr21-1R	GGACACGGAACGGACGAT
HE tlr21-2F	ATCGTCCGTTCCGTGTCC
HE tlr21-2R	CGAGCGCAAGTTGAGGTAG
HE tlr21-3F	CGTCCGTTCCGTGTCCAA
HE tlr21-3R	CAGCGTCACGACGTTTGG
HE tlr21-4F	CCGTTACAACCGCATCCT
HE tlr21-4R	GTCCGTCAGCTCGTCCAA
HE tlr21-5F	CGTCCCTTTATCTCACCAAC
HE tlr21-5R	CAGCATGACCCAGTCTTCG
HE tlr21-6F	CGTCCCTTTATCTCACCAAC
HE tlr21-6R	GTGATGCAGGCACAGTTTC
HE tlr21-7F	GCGTTTCGCTCCTGGTTC
HE tlr21-7R	CCGCCCGAGTTTCTTCAT
HE tlr21-8F	AAATCAAGTACGGCTACTACGC
HE tlr21-8R	TGAGTGTCAGAATCTCCCAAA
tlr13bF	CTTCGCCTGCTTCGGTTAGACAA	荧光定量PCR
tlr13bR	GCTCAAGTTGGACACGGAACGG	荧光定量PCR
β-actinF	TGGGCGTACAACAGGTATCG	内参基因
β-actinR	AGGAGTAGCCACGTTCAGTG	内参基因

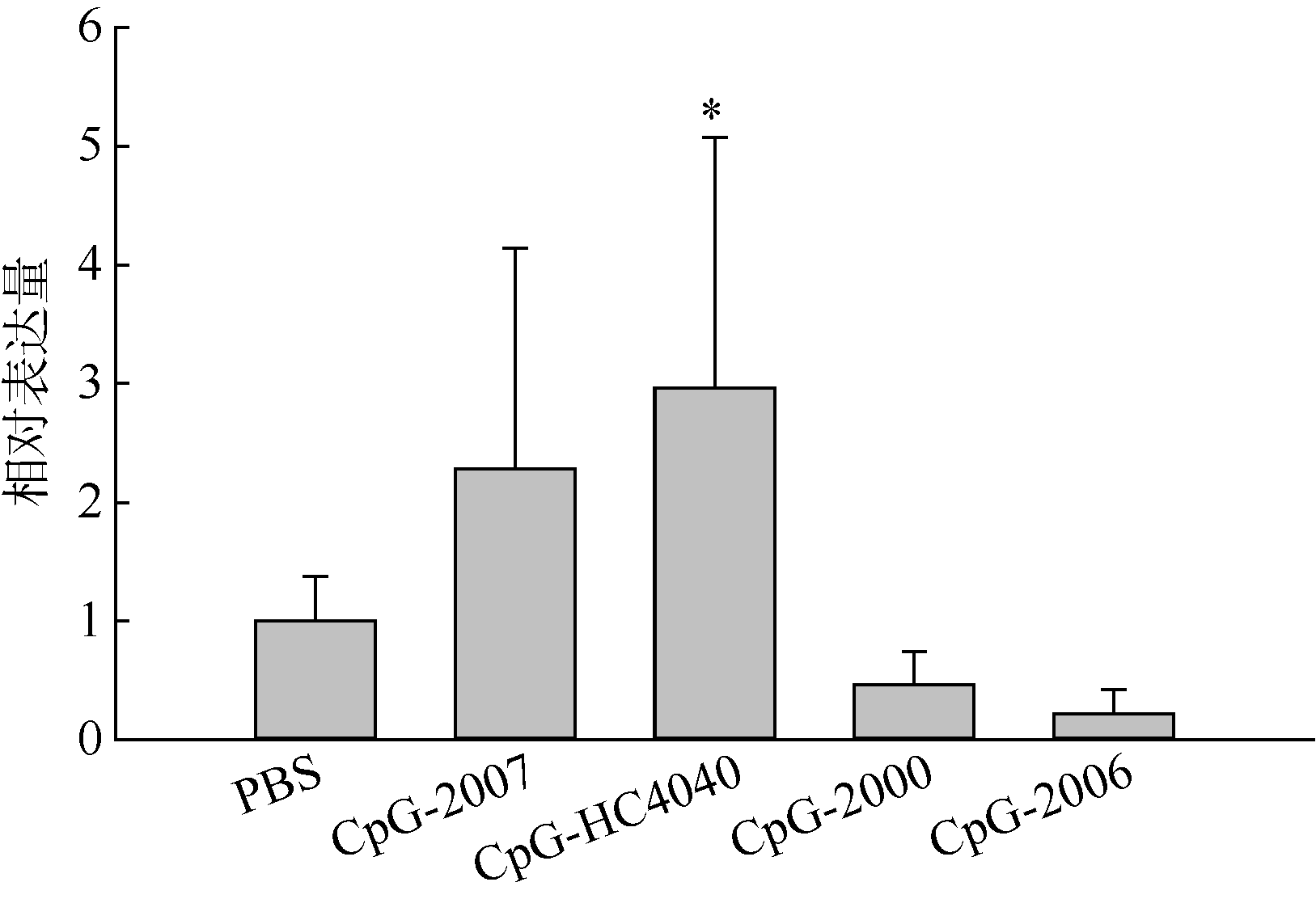

CpG-ODN	序列 (5′-3′)
CpG-2000	TCCATGACGTTCCTGCAGTTCCTGACTGG
CpG-2006	TCGTCGTTTTGTCGTTTTGTCGTT
CpG-2007	TCGTCGTTGTCGTTTTGTCGTT
CpG-HC4040	TGACTGTGAACGTTCGAGATGA
