基于南海波浪要素的波浪滑翔机翼板参数优化设计与仿真

doi:10.11978/2020054

Abstract

Abstract:

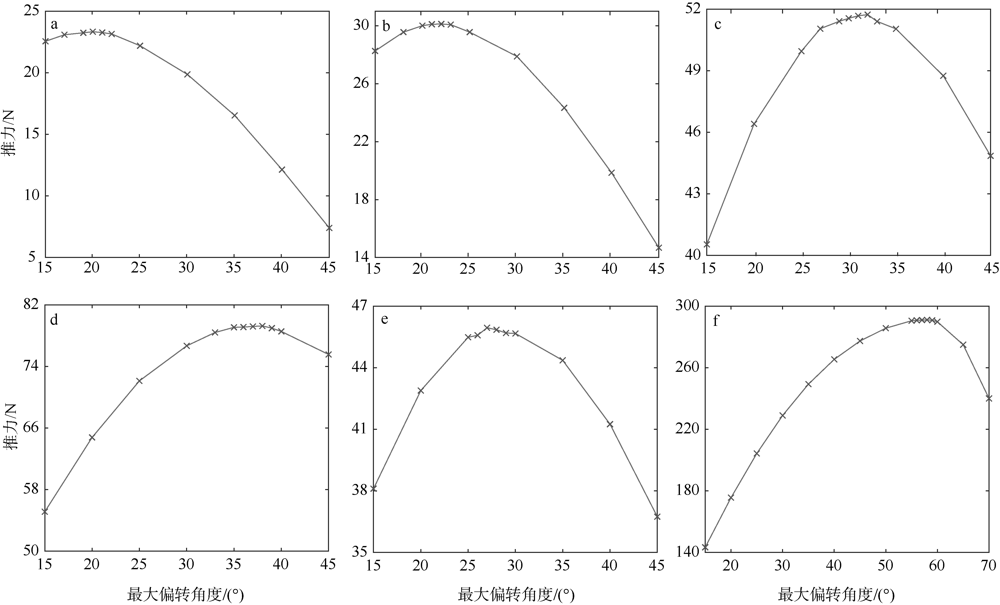

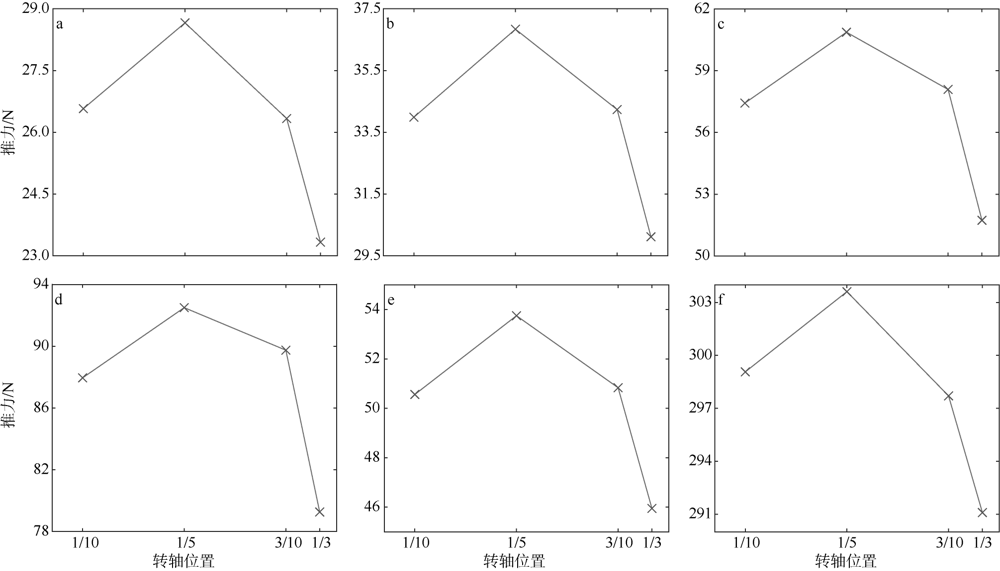

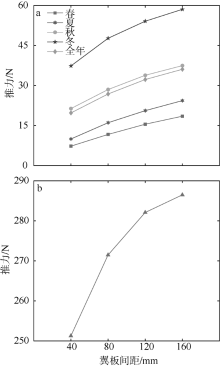

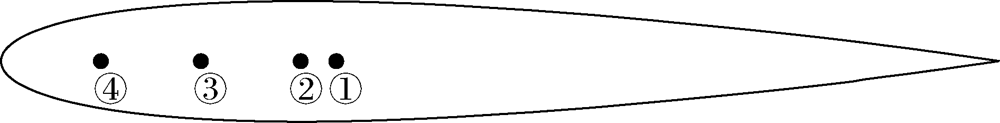

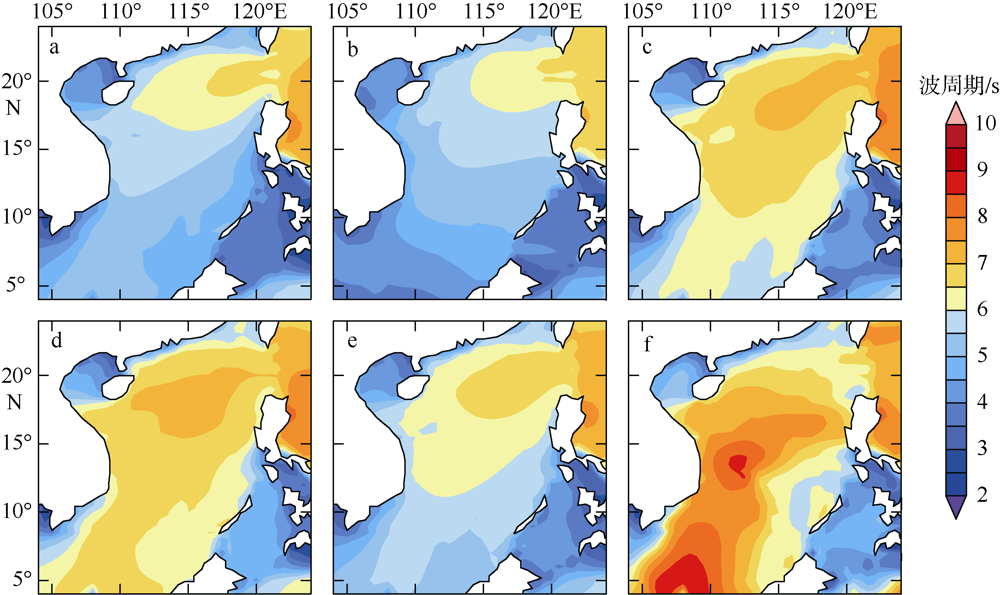

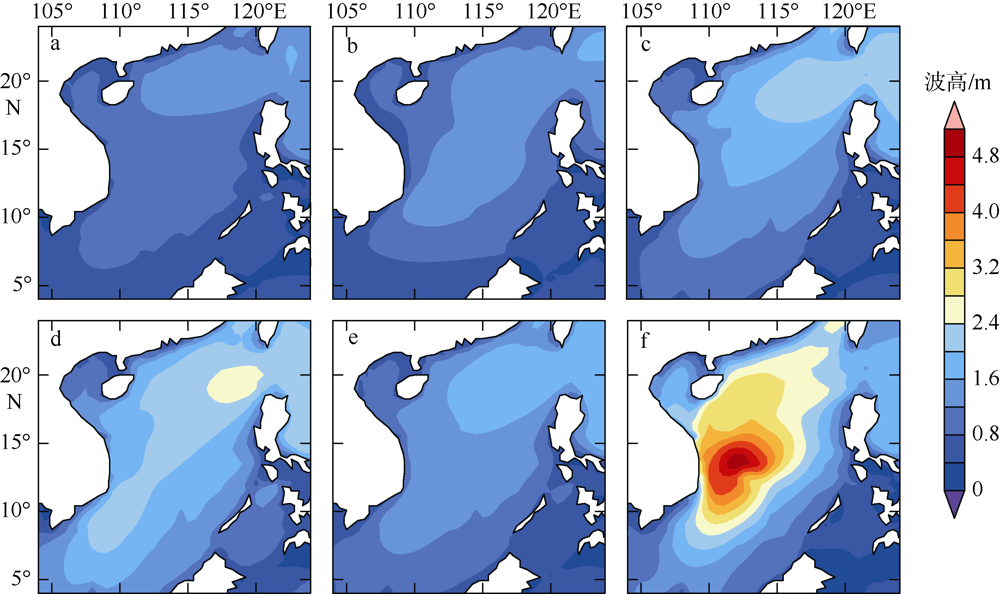

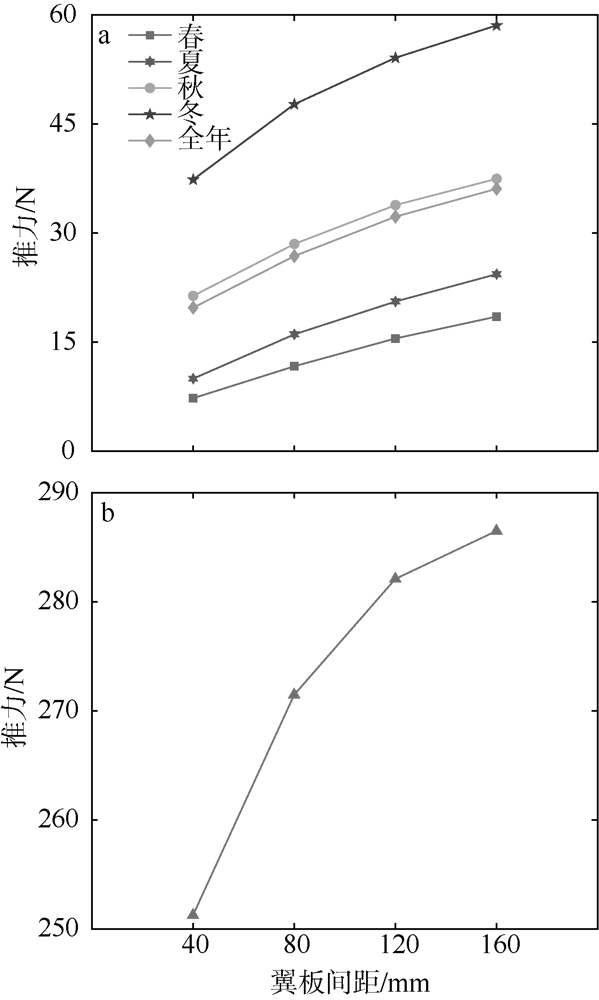

In view of different wave height and period in the South China Sea, the design of Wave Glider wing parameters is studied to obtain greater thrust. Based on the reanalysis data set of ERA5, we provide statistics on the wave height and wave period of different seasons and induced by one typhoon in the South China Sea. In addition, the software FLUENT is used to study the influence of the maximum limit angle, the position of rotating axis and the spacing of the wings. The simulation results show that the larger the wave height, the larger the maximum limit angle should be in order to ensure that the wings can get more thrust. Under the conditions of wave height and period in the South China Sea, it is better to select 1/5 of the front of the wing as the position of rotating axis. Increasing the spacing of the wings properly can improve the thrust. By simulating the flapping wings, the thrust generated by the wings under different parameters is obtained, which provides a reference for the design of the wings.

Key words: Wave Glider, maximum limit angle, position of rotating axis, spacing of the wings

CLC Number:

P716.1

WU Shiqi, HONG Mei, CHEN Xi, MAO Kefeng, LIU Kefeng. Design of Wave Glider optimal wing parameters suitable for the South China Sea[J].Journal of Tropical Oceanography, 2021, 40(2): 112-119.

Figures/Tables 11

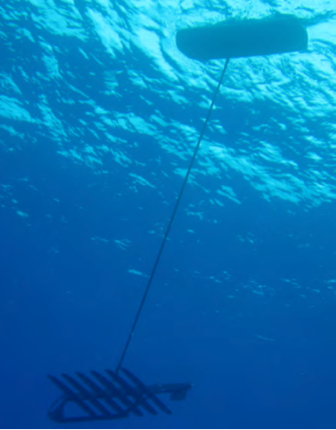

Fig. 1

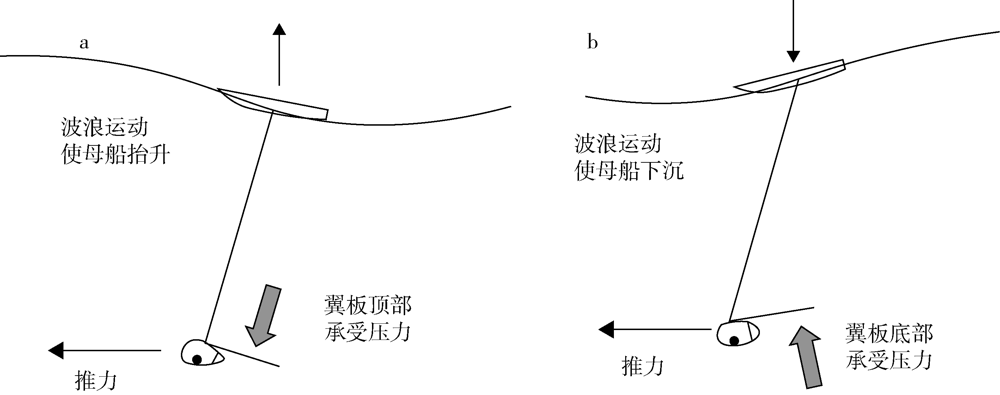

Fig. 2

Fig. 3

Fig. 4

Tab. 1

Fig. 5

Tab. 2

Fig. 6

Fig. 7

Fig. 8

Fig. 9

References 26

[1]	胡合文, 2015. 波浪滑翔机的水动力分析[D]. 哈尔滨: 哈尔滨工程大学.
	HU KEWEN, 2015. Hydrodynamic analysis of Wave Glider[D]. Harbin Harbin Engineering University (in Chinese with English abstract).
[2]	胡滕艳, 孙秀军, 王兵振, 等, 2018. 利用Fluent仿真分析波浪滑翔器的水动力性能[J]. 海洋技术学报, 37(3):8-12.
	HU TENGYAN, SUN XIUJUN, WANG BINGZHEN, et al, 2018. Simulative analysis of the hydrodynamic performances of Wave Gliders using Fluent[J]. Journal of Ocean Technology, 37(3):8-12 (in Chinese with English abstract).
[3]	贾立娟, 2014. 波浪动力滑翔机双体结构工作机理与动力学行为研究[D]. 天津: 国家海洋技术中心.
	JIA LIJUAN, 2014. Study of operation principle of two-part architecture and dynamic behavior of Wave Glider[D]. Tianjin National Ocean Technology Center (in Chinese with English abstract).
[4]	李灿, 2018. 波浪滑翔器动力学分析及性能优化[D]. 天津: 天津工业大学(in Chinese).
[5]	吕元博, 田新亮, 李欣, 等, 2018. NACA 0012摆动水翼水动力特性的二维数值模拟[J]. 中国舰船研究, 13(2):7-15.
	LYU YUANBO, TIAN XINLIANG, LI XIN, et al, 2018. Two-dimensional numerical simulation of NACA 0012 flapping foil hydrodynamics[J]. Chinese Journal of Ship Research, 13(2):7-15 (in Chinese with English abstract).
[6]	桑宏强, 李灿, 孙秀军, 2018. 波浪滑翔器纵向速度与波浪参数定量分析[J]. 水下无人系统学报, 26(1):16-22.
	SANG HONGQIANG, LI CAN, SUN XIUJUN, 2018. Quantitative analysis on longitudinal velocity and wave parameter of Wave Glider[J]. Journal of Unmanned Undersea Systems, 26(1):16-22 (in Chinese with English abstract).
[7]	孙秀军, 王雷, 桑宏强, 2019. “黑珍珠”波浪滑翔器南海台风观测应用[J]. 水下无人系统学报, 27(5):562-569.
	SUN XIUJUN, WANG LEI, SANG HONGQIANG, 2019. Application of Wave Glider “Black Pearl” to typhoon observation in South China Sea[J]. Journal of Unmanned Undersea Systems, 27(5):562-569 (in Chinese with English abstract).
[8]	严日华, 2017. 波浪滑翔器潜体水动力性能分析[D]. 哈尔滨: 哈尔滨工程大学.
	YAN RIHUA, 2017. Hydrodynamic analysis of Wave Glider submerged body part[D]. Harbin Harbin Engineering University (in Chinese with English abstract).
[9]	杨燕, 张森, 史健, 等, 2014. 波浪动力滑翔机海洋环境监测系统[J]. 海洋技术学报, 33(1):109-114.
	YANG YAN, ZHANG SEN, SHI JIAN, et al, 2014. Wave Glider marine environmental monitoring system[J]. Journal of Ocean Technology, 33(1):109-114 (in Chinese with English abstract).
[10]	张森, 史健, 张选明, 等, 2014. 波浪动力滑翔机岸基监控系统[J]. 海洋技术学报, 33(3):119-124.
	ZHANG SEN, SHI JIAN, ZHANG XUANMING, et al, 2014. Design of the shore-based monitoring system for Wave Gliders[J]. Journal of Ocean Technology, 33(3):119-124 (in Chinese with English abstract).
[11]	ANDERSON J M, STREITLIEN K, BARRETT D S, et al. 1998. Oscillating foils of high propulsive efficiency[J]. Journal of Fluid Mechanics, 360: 41-72.
[12]	CARLON R, 2015. Tracking tagged fish using a Wave Glider[C]// OCEANS 2015-MTS/IEEE Washington. Washington, DC, USA: IEEE.
[13]	GOEBEL N L, FROLOV S, EDWARDS C A, 2014. Complementary use of Wave Glider and satellite measurements: description of spatial decorrelation scales in Chl-a fluorescence across the Pacific Basin[J]. Methods in Oceanography, 10: 90-103.
[14]	HINE R, WILLCOX S, HINE G, et al, 2009. The Wave Glider: a wave-powered autonomous marine vehicle[C]// Proceedings of OCEANS 2009. Biloxi, MS, USA: IEEE.
[15]	KRAUS N, BINGHAM B, 2011. Estimation of Wave Glider dynamics for precise positioning[C]// Proceedings of OCEANS’11 MTS/IEEE KONA. Waikoloa, HI, USA: IEEE.
[16]	KRAUS N, 2012. Wave Glider dynamic modeling, parameter identification and simulation[D]. Honolulu: University of Hawaii at Manoa.
[17]	MANLEY J, WILCOX S, WESTWOOD R, 2009. The Wave Glider: an energy harvesting unmanned surface vehicle[J]. Marine Technology Reporter, 5(11):27-31.
[18]	MANLEY J, WILLCOX S, 2010a. The Wave Glider: a new concept for deploying ocean instrumentation[J]. IEEE Instrumentation & Measurement Magazine, 13(6):8-13.
[19]	MANLEY J, WILLCOX S, 2010b. The Wave Glider: a persistent platform for ocean science[C]// Proceedings of OCEANS’10 IEEE Sydney. Sydney, NSW, Australia: IEEE.
[20]	MENTER F R, 1994. Two-equation eddy-viscosity turbulence models for engineering applications[J]. AIAA Journal, 32(8):1598-1605.
[21]	MULLISON J, SYMONDS D, TRENAMAN N, 2011. ADCP data collected from a liquid robotics Wave Glider^®[C]// Proceedings of the IEEE/OES 10th current, waves and turbulence measurements. Monterey, CA, USA: IEEE: 266-272
[22]	O’REILLY T C, KIEFT B, CHAFFEY M, 2015. Communications relay and autonomous tracking applications for Wave Glider[C]// Proceedings of IEEE OCEANS 2015. Genova, Italy: IEEE: 1-6.
[23]	PENNA N T, MAQUEDA M A M, MARTIN I, et al, 2018. Sea surface height measurement using a GNSS wave glider[J]. Geophysical Research Letters, 45(11):5609-5616.
[24]	QI ZHANFENG, LIU WENXIA, JIA LIJUAN, et al, 2013. Dynamic modeling and motion simulation for Wave Glider[J]. Applied Mechanics and Materials, 397- 400: 285-290.
[25]	READ D A, HOVER F S, TRIANTAFYLLOU M S, 2003. Forces on oscillating foils for propulsion and maneuvering[J]. Journal of Fluids and Structures, 17(1):163-183.
[26]	SALARI M R, ANVAR A M, 2015. CFD Modelling and Real-time testing of the Wave Surface Glider (WSG) Robot[C]// 21st international congress on modelling and simulation. Gold Coast, Australia.

	波高/m	波周期/s
春季	0.96	5.39
夏季	1.04	5.21
秋季	1.44	6.32
冬季	1.79	6.50
全年	1.31	5.85
台风风眼附近	5.15	8.61

网格编号	总网格数/个	背景网格数量/个	重叠网格数量/个	平均推力/N
A1	49630	21280	28350	40.3
A2	79053	33400	45653	42.7
A3	114788	48000	66788	43.5
A4	152815	68068	84747	43.5
