基于CNN-LSTM的高频地波雷达海流方向校正方法

doi:10.11978/2024176

Abstract

Abstract:

High-frequency surface wave radars often encounter interference from coastal topography and islands when detecting nearshore areas, leading to significant errors in the synthesized ocean current directions from radar data. Traditional high-frequency surface wave radar inversion algorithms do not account for the impact of these physical factors. To address this issue, leveraging the strengths of convolutional neural networks (CNN) and long short-term memory (LSTM) neural networks, this paper introduces a hybrid CNN-LSTM model. This model incorporates data on sea surface wind, tide, and elevation, allowing for the refinement of ocean current directions obtained from radar measurements. The experimental results show that the CNN-LSTM model, when combined with physical oceanographic factors, can effectively improve the quality of radar-detected ocean current data in areas affected by topography, significantly enhancing the accuracy of the synthesized ocean current direction. After model correction, compared to the original radar data, the directional angle error of the empirical orthogonal function ellipse decreased from 77.10° to 23.06°, the error of the ellipse’s major and minor axes decreased from 0.0896 to 0.0538, and the average flow directional angle error of the ocean currents decreased from 20.82° to 6.21°.

Key words: high-frequency surface wave radar, ocean current direction, convolutional neural network, long short-term memory neural network

CLC Number:

P714

XU Yi, WEI Jun, WEI Chunlei, YANG Fan. An ocean current direction correction method for high-frequency surface wave radars based on CNN-LSTM[J].Journal of Tropical Oceanography, 2025, 44(3): 24-35.

Figures/Tables 11

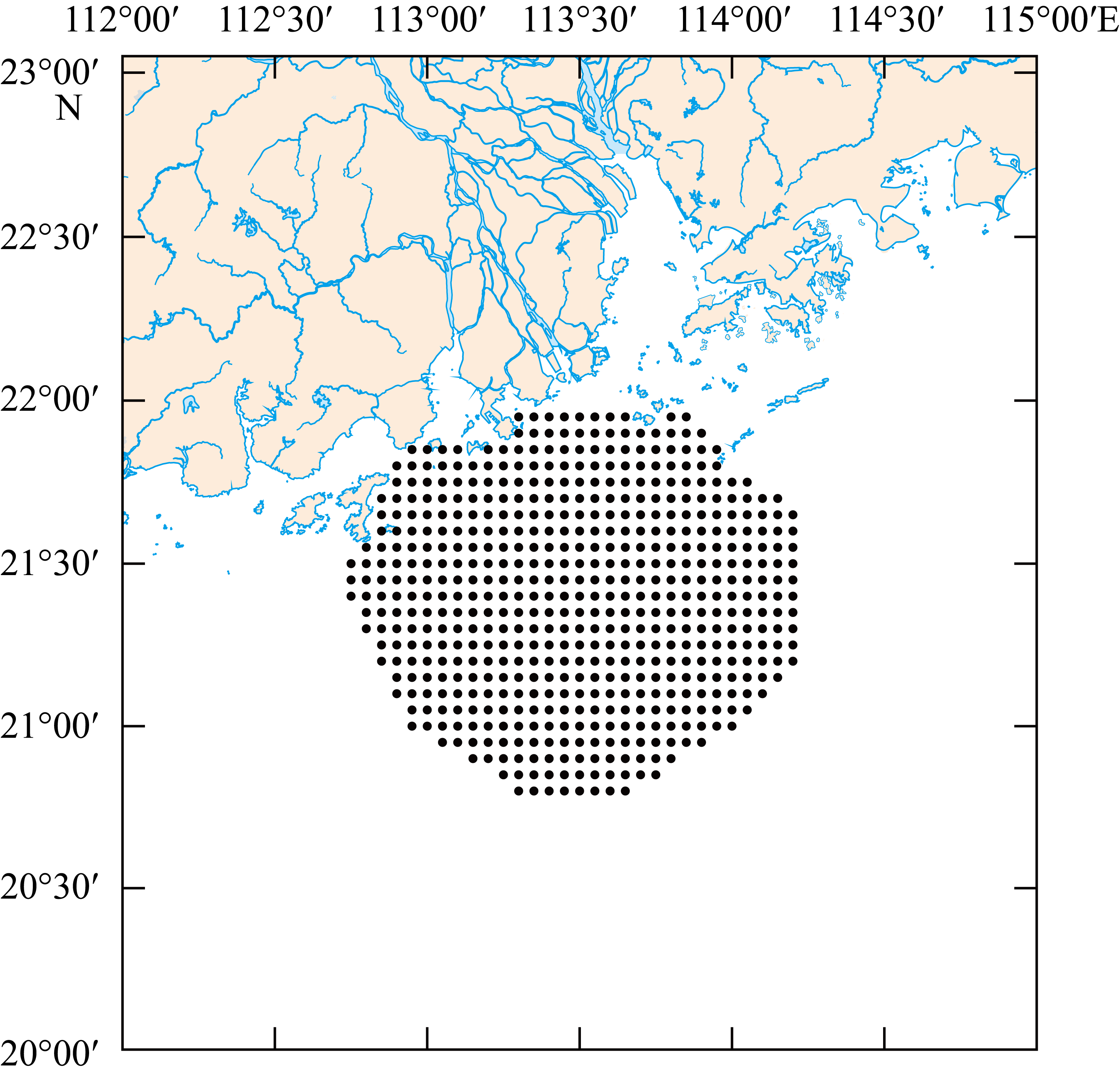

Fig. 1

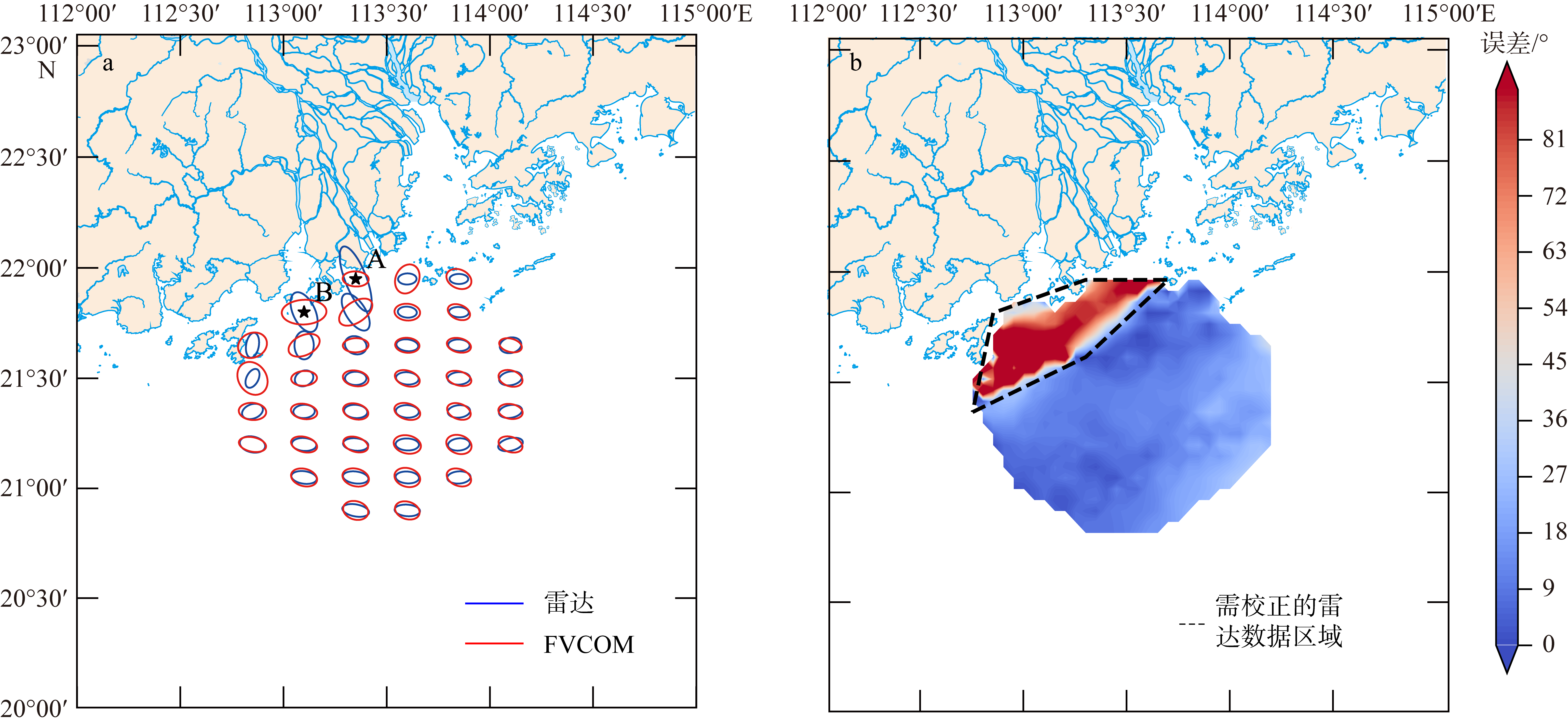

Fig. 2

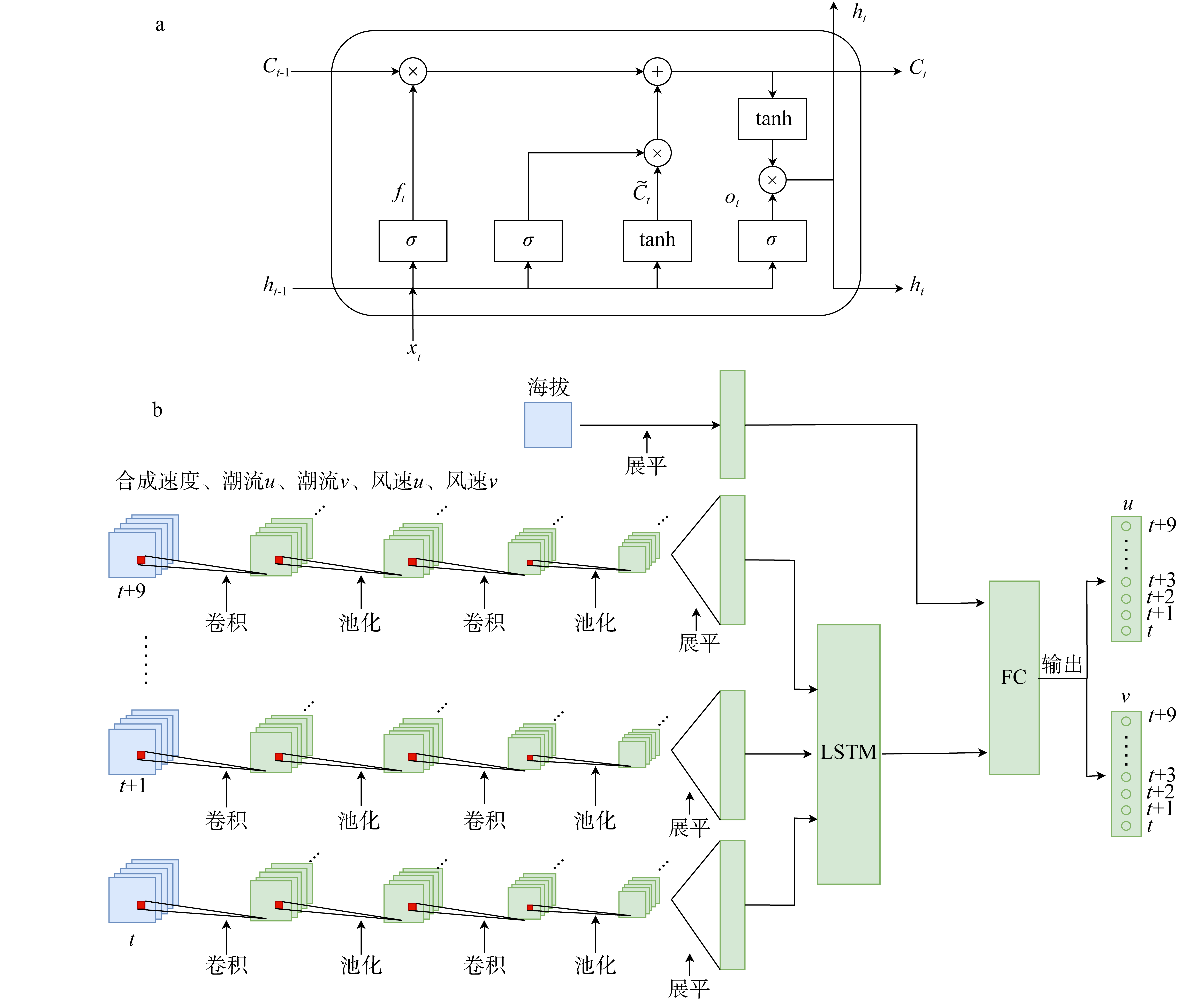

Fig. 3

Fig. 4

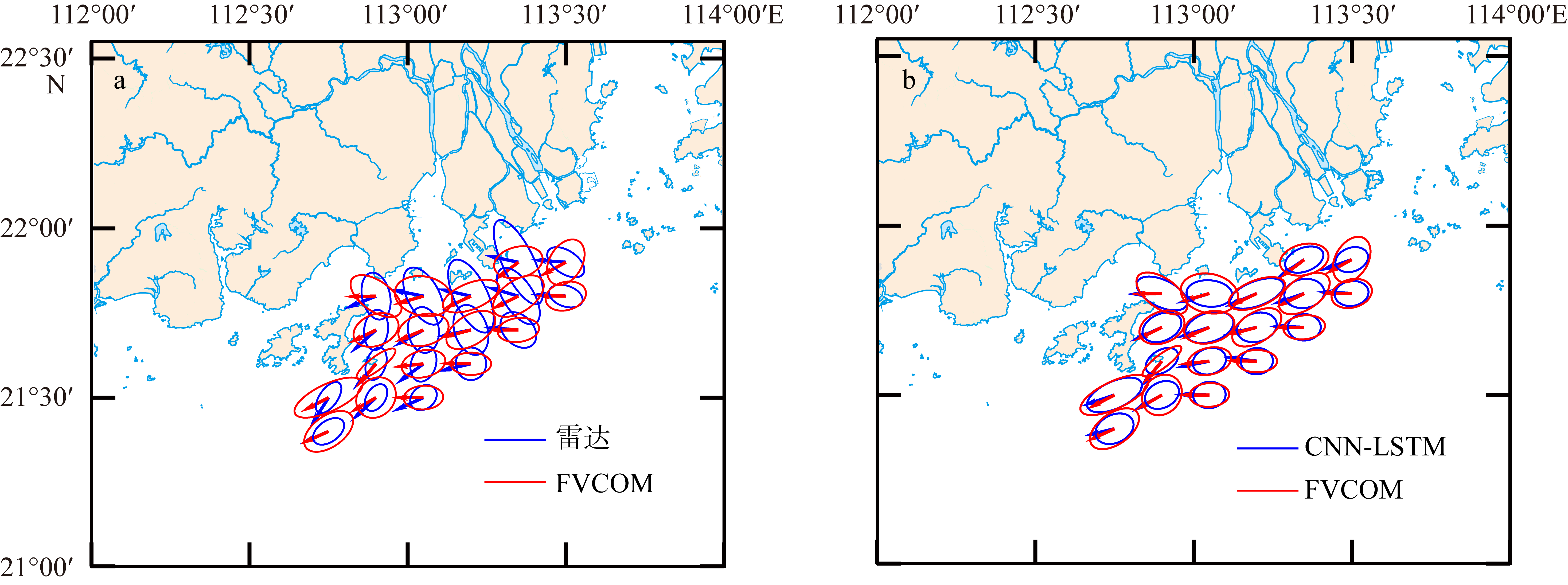

Fig. 5

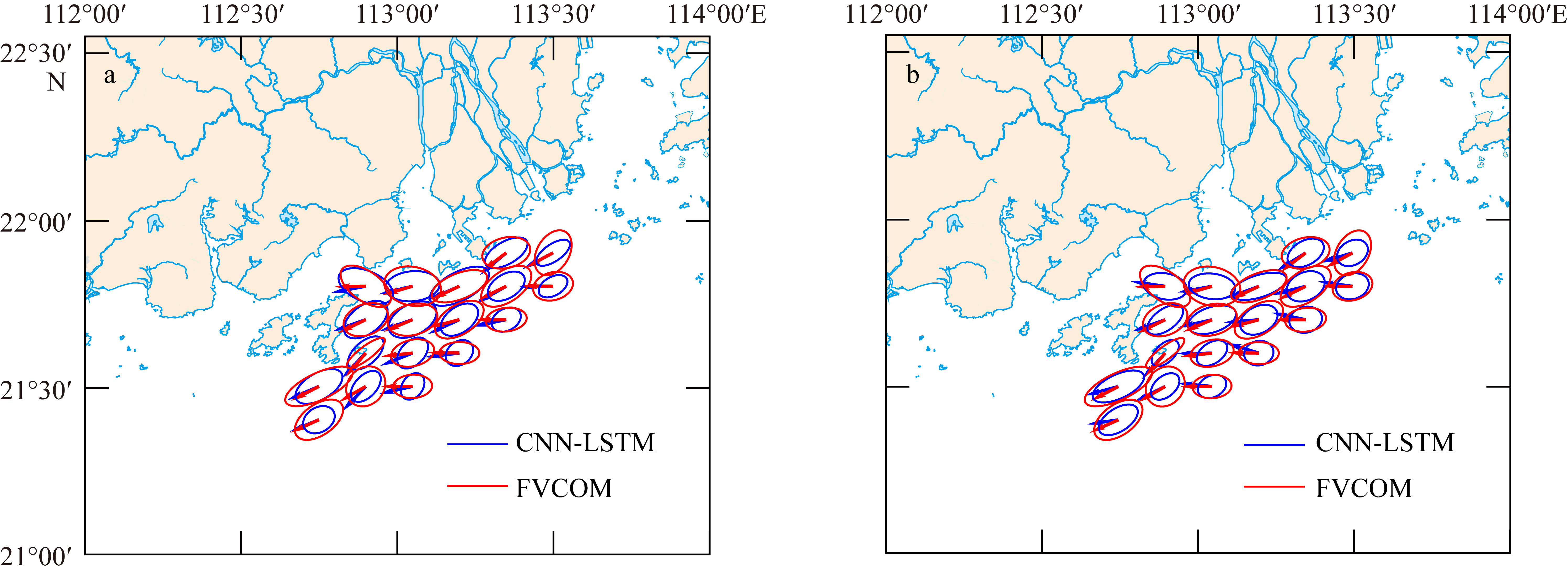

Fig. 6

Fig. 7

Tab. 1

Tab. 2

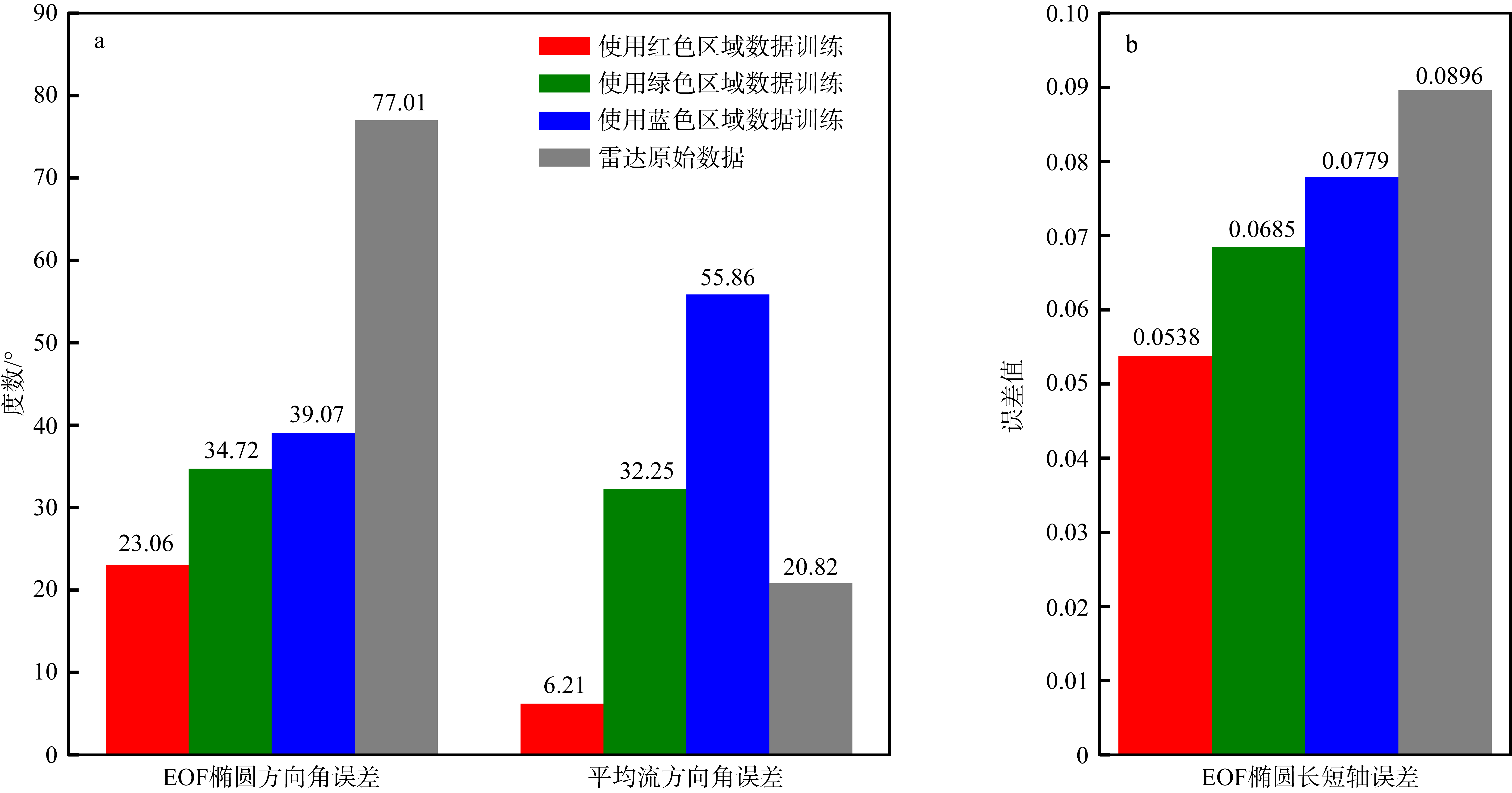

Fig. 8

Tab. 3

References 24
