Analysis on the influencing factors of storm surges near Shenzhen
Copy editor: LIN Qiang
Received date: 2021-09-15
Revised date: 2021-10-30
Online published: 2021-11-03
Supported by
Shenzhen Peacock Plan(KQJSCX20170720174016789)

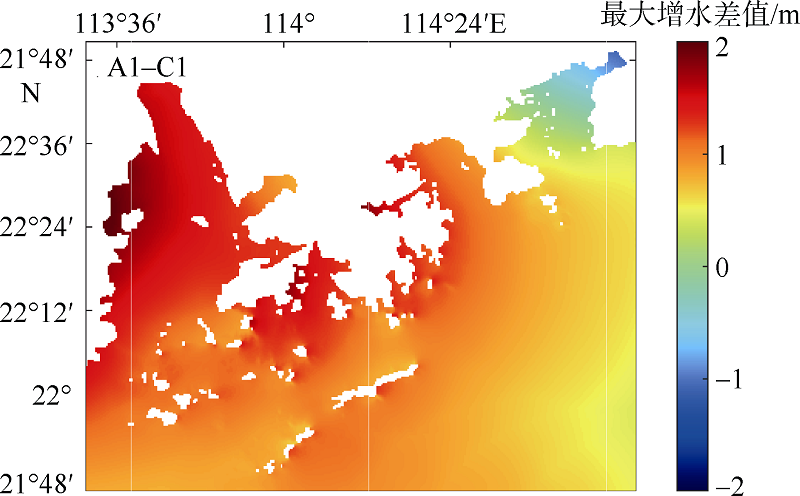

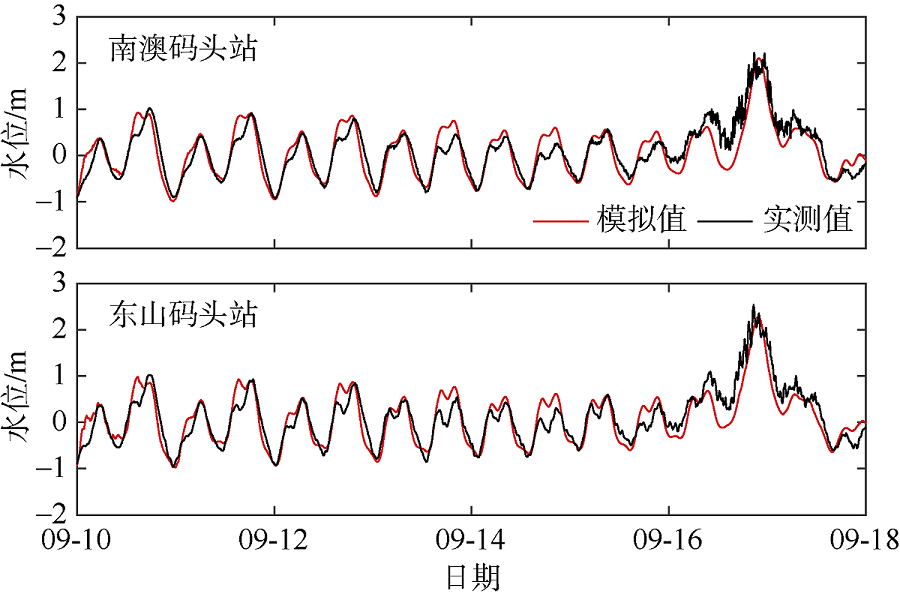

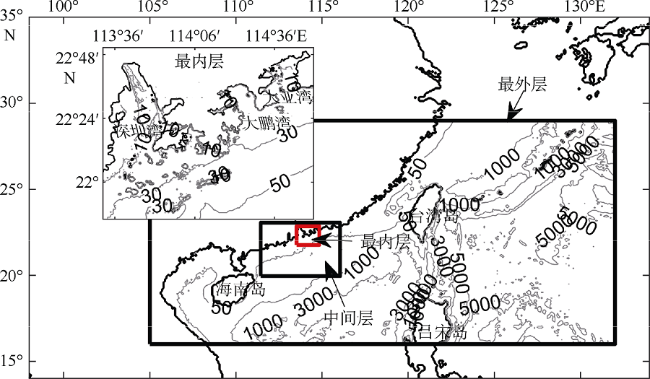

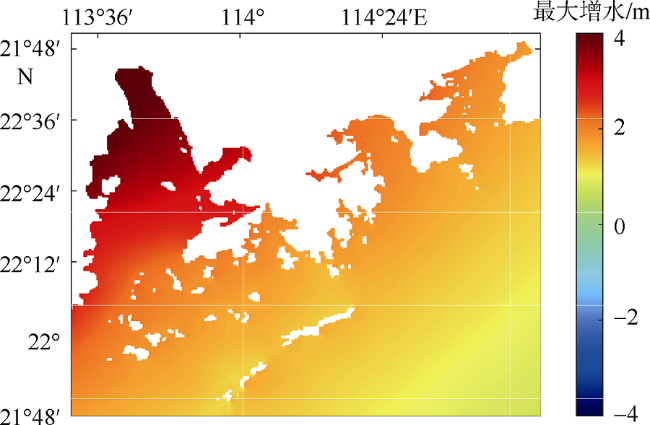

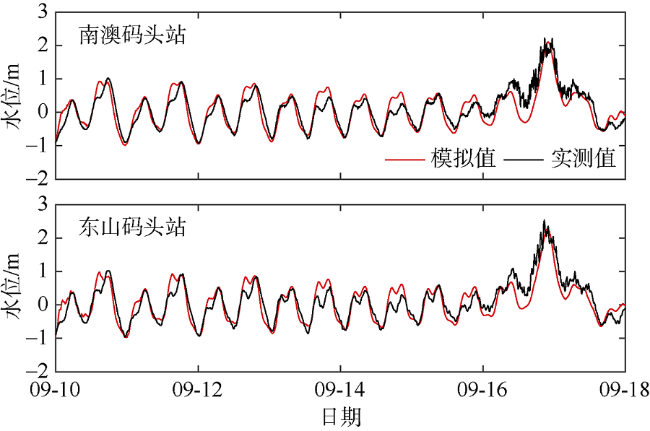

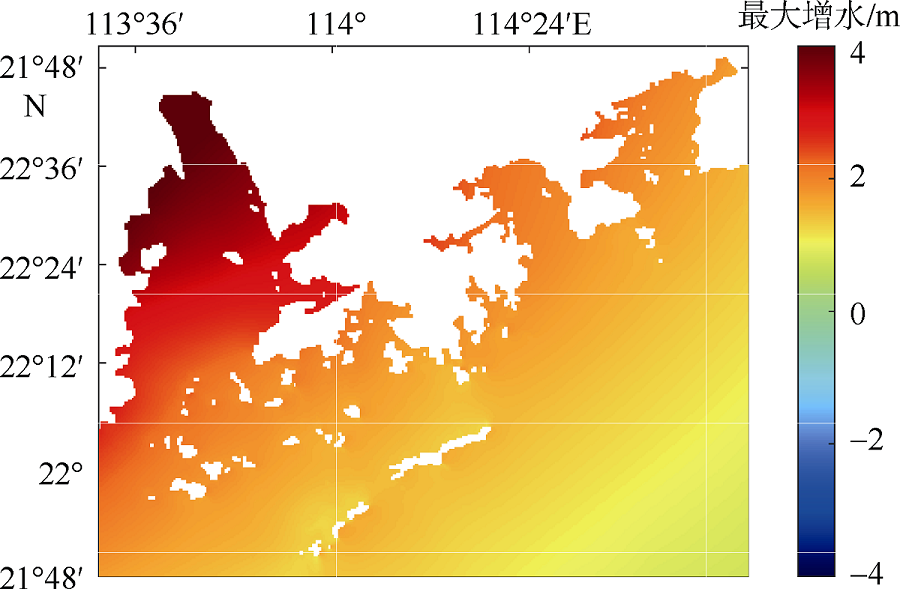

Storm surge can cause huge damages to a coastal city. Shenzhen, as a mega-city in terms of economics and population, is located in the north coast of the South China Sea, where typhoons frequently happen. However, the research on storm surge near Shenzhen is limited. Based on the regional ocean model system (ROMS), a three-layer nested regional ocean model was developed to study influencing factors of storm surges in the coastal region of Shenzhen. First, the storm surge caused by Typhoon Mangkhut in 2018 was simulated and tested, and the simulation results are consistent with observations. Based on the case of Mangkhut, a series of experiments were carried out to study influences of landing location, size, intensity, and moving direction and speed on storm surge. Our results show that, under the same conditions, the maximum storm surge of a typhoon landing on the west of Shenzhen is about 1.5 m higher than that landing on the east of Shenzhen. The storm surge driven by the typhoon passing Shenzhen from east to west is about 1.0 m higher than that moving from south to north. If the radius of maximum wind of a typhoon is enlarged by 15%, the maximum storm surge increases by about 0.2 m. As the intensity of a typhoon goes up by 15%, the maximum storm surge increases by about 0.4 m. On the whole, the translation speed of a typhoon has only weak influence on storm surge, and its influence on storm surges is related to the landing location. If a typhoon makes landfall to the west or east of Shenzhen, and the moving speed of the typhoon increases by 30%, the maximum storm surge in each bay along the Shenzhen coast increases by 0.2 to 0.6 m. If a typhoon passes through each bay of Shenzhen successively, and the moving speed of a typhoon increases by 30%, the maximum storm surge in the Pearl River Estuary decreases by about 0.1 m, and that in Dapeng Bay and Daya Bay increases by about 0.2 m. This is related to the time for the water mass redistribution to return to its a steady state within a bay and the forcing time of the typhoon.
Key words: Shenzhen; storm surge; numerical modelling
DENG Guotong , LIU Mincong , XING Jiuxing , SHENG Jinyu , ZHOU Kai , CHEN Shengli . Analysis on the influencing factors of storm surges near Shenzhen[J]. Journal of Tropical Oceanography, 2022 , 41(3) : 91 -100 . DOI: 10.11978/2021124

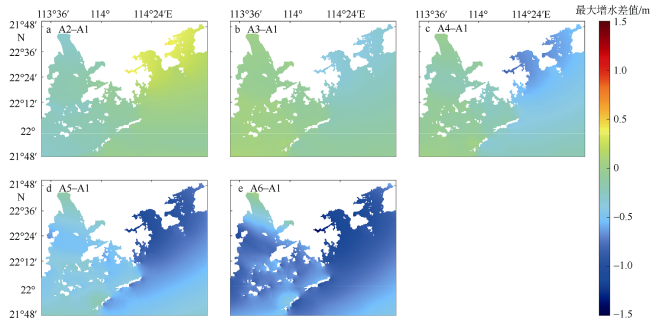

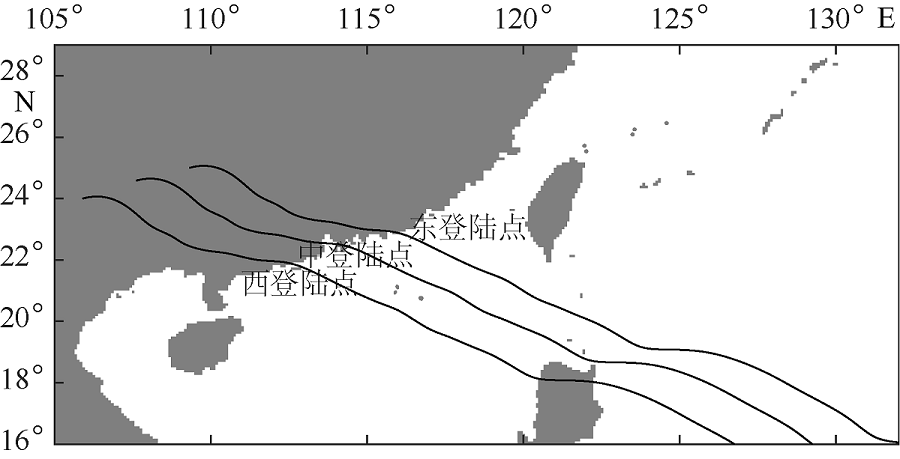

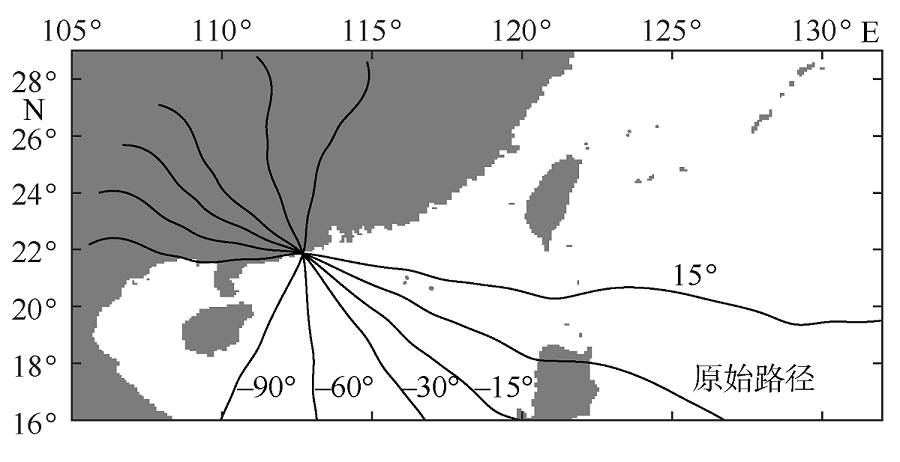

表1 台风登陆角度与登陆点试验编号Tab. 1 Case numbers of different typhoon landing angles and locations |
登陆点 | 登陆角度 | |||||
---|---|---|---|---|---|---|
0° | 15° | -15° | -30° | -60° | -90° | |
西登陆点 | A1 | A2 | A3 | A4 | A5 | A6 |
中登陆点 | B1 | B2 | B3 | B4 | B5 | B6 |
东登陆点 | C1 | C2 | C3 | C4 | C5 | C6 |
表2 深圳沿海各海湾水体重新分布时间Tab. 2 The time of redistribution of water bodies in each bay along the Shenzhen coast |
海湾 | L/km | h/m | Ts/h |
---|---|---|---|
珠江口 | 50 | 8.68 | 3.82 |
大鹏湾 | 25 | 8.49 | 0.98 |
大亚湾 | 25 | 6.32 | 1.31 |
[1] |
陈波, 陈宪云, 董德信, 等, 2015. 登陆北部湾北部台风对广西近岸水位变化的影响分析[J]. 广西科学, 22(3): 245-249, 254.
|
[2] |
冯士筰, 1982. 风暴潮导论[M]. 北京: 科学出版社. (in Chinese)
|
[3] |
毛献忠, 姜茜, 2012. 深圳香港海域可能最高潮位和浪高计算分析[J]. 海洋工程, 30(2): 129-135.
|
[4] |
隋广军, 唐丹玲, 2015. 台风灾害评估与应急管理[M]. 北京: 科学出版社.
|
[5] |
魏巍, 2009. 深圳市台风风场数值模拟与危险性分析[D]. 哈尔滨: 哈尔滨工业大学.
|
[6] |
夏丽花, 邬惠明, 刘铭, 等, 2014. 热带气旋影响福建沿海风暴潮特征分析[J]. 热带海洋学报, 33(3): 40-45.
|
[7] |
张文舟, 胡建宇, 商少平, 等, 2004. 福建沿海风暴潮特征的分析[J]. 海洋通报, 23(3): 12-19.
|
[8] |
赵长进, 葛建忠, 丁平兴, 2015. 长江口及其邻近海区无结构网格风暴潮预报系统的研制与分析[J]. 海洋科学进展, 33(2): 182-194.
|
