Variations in water and sediments of the Nanliu River flowing into the sea under the influence of extreme weather in the past 60 years
Copy editor: YAO Yantao
Received date: 2022-08-13
Revised date: 2022-10-19
Online published: 2022-10-14
Supported by
Guangxi Natural Science Foundation Key Fund(2018JJD150005)
National Natural Science Foundation of China(41866001)
Guangxi First-class Discipline of Marine Science, Beibu Gulf University(DRB006)
Guangxi First-class Discipline of Marine Science, Beibu Gulf University(DTC003)
Innovation and Entrepreneurship Training Program for Undergraduates of Beibu Gulf University(202011607021)
Innovation and Entrepreneurship Training Program for Undergraduates of Beibu Gulf University(S202111607128)
The change of river inflow sediment is an important content in the study of estuarine delta evolution. Against the backdrop of increased frequency and intensity of extreme weather caused by global warming, it is of great practical significance to study the variability of sediment fluxes in rivers entering the sea under the influence of extreme weather for understanding the environmental evolution of estuarine deltas. This paper takes the Nanliu River, a small and medium-sized river flowing into the sea, as an example. Based on the measured data of water, sediment and floods from 1966 to 2020, the variation coefficient of variation and mathematical statistics are used to analyze the variation law of water and sediment under the influence of extreme weather. The research results show that: 1) the multi-year average daily flow during the transit of tropical cyclones is 7.72×102 m3·s-1, which is 4.73 times that of normal weather of 1.63×102 m3·s-1. The multi-year average of the average daily sediment transport of tropical cyclones was 2.55×104 t, which is 13.42 times that of 0.19×104 t in normal weather. During the tropical cyclone, the amount of sediment entering the sea is large, and it has the characteristics of "rich water and sand"; 2) the multi-year average daily flow and sediment load during the flood period were 8.53×102 m3·s-1 and 3.07×104 t, respectively, which were the average daily flow (1.56×102 m3·s-1) and sediment load (0.17×104 t) 5.46 times and 18.18 times. During floods, the greater the amount of incoming sediment, the greater the flux of sediment into the sea, showing the typical feature of “more incoming and more transportation”; 3) extreme weather has an important contribution to the sediment flux of the Nanliu River into the sea. The multi-year average contribution rates of tropical cyclones to runoff and sediment transport were 6.78%and 19.31%, respectively, while the multi-year average contribution rates of floods to runoff and sediment transport were 14.33%and 36.21%, respectively.
Key words: tropical cyclones; flood; changes in water and sediment; contribution rate
YANG Xialing , LI Shushi , XU Shanshan , YU Chongxi , PAN Jie . Variations in water and sediments of the Nanliu River flowing into the sea under the influence of extreme weather in the past 60 years[J]. Journal of Tropical Oceanography, 2023 , 42(4) : 91 -103 . DOI: 10.11978/2022176
表1 1966—2020年南流江热带气旋数据与洪水数据的统计Tab. 1 Statistics of tropical cyclone data and flood data in Nanliu River from 1966 to 2020 |
极端天气类型 | 年份 |
---|---|
热带气旋年 | 1966、1976、1978、1980、1982、1984、2001、2002、2003、2006、2008、2010、 |
2011、2012、2013、2014、2015、2016、2017、2018、2019、2020 | |
洪水年 | 1966、1967、1969、1970、1971、1976、1979、1981、1985、1994、1995、1997、 |
2002、2006、2012、2013、2015、2017、2018、2019、2020 |
表2 1966—2020年影响南流江的热带气旋情况Tab. 2 Tropical cyclones affecting Nanliu River from 1966 to 2020 |
年份 | 编号 | 名称 | 热带气旋等级 | 中心最大风力/级 | 中心附近最大风速/(m·s-1) |
---|---|---|---|---|---|
1966 | 6608 | 婀拉 | 强热带风暴 | 11 | 30 |
1976 | 7619 | 艾瑞丝 | 强热带风暴 | 10 | 25 |
1978 | 7813 | 艾琳 | 强热带风暴 | 10 | 25 |
1978 | 7820 | 罗拉 | 强热带风暴 | 10 | 25 |
1980 | 8008 | 乔伊 | 强热带风暴 | 11 | 30 |
1982 | 8219 | 欧文 | 台风 | 13 | 40 |
1984 | 8402 | 魏恩 | 强热带风暴 | 11 | 30 |
1984 | 8411 | 艾克 | 强热带风暴 | 11 | 30 |
2001 | 0103 | 榴莲 | 强热带风暴 | 10 | 28 |
2002 | 0214 | 黄蜂 | 热带风暴 | 9 | 23 |
2003 | 0308 | 伊布都 | 强热带风暴 | 11 | 30 |
2006 | 0606 | 派比安 | 热带风暴 | 8 | 20 |
2008 | 0809 | 北冕 | 热带风暴 | 8 | 20 |
2008 | 0814 | 黑格比 | 强热带风暴 | 11 | 30 |
2010 | 1003 | 灿都 | 强热带风暴 | 10 | 25 |
2011 | 1117 | 纳沙 | 台风 | 12 | 33 |
2012 | 1223 | 山神 | 热带低压 | 7 | 15 |
2013 | 1311 | 尤特 | 强台风 | 14 | 42 |
2013 | 1330 | 海燕 | 台风 | 12 | 33 |
2014 | 1409 | 威马逊 | 强台风 | 15 | 50 |
2015 | 1522 | 彩虹 | 台风 | 12 | 33 |
2016 | 1621 | 莎莉嘉 | 强热带风暴 | 10 | 25 |
2017 | 1713 | 天鸽 | 强热带风暴 | 10 | 25 |
2018 | 1822 | 山竹 | 台风 | 12 | 33 |
2019 | 1907 | 韦帕 | 热带风暴 | 9 | 23 |
2019 | 1911 | 白鹿 | 热带低压 | 7 | 14 |
2020 | 2002 | 鹦鹉 | 热带低压 | 7 | 16 |
2020 | 2007 | 海高斯 | 热带风暴 | 8 | 20 |

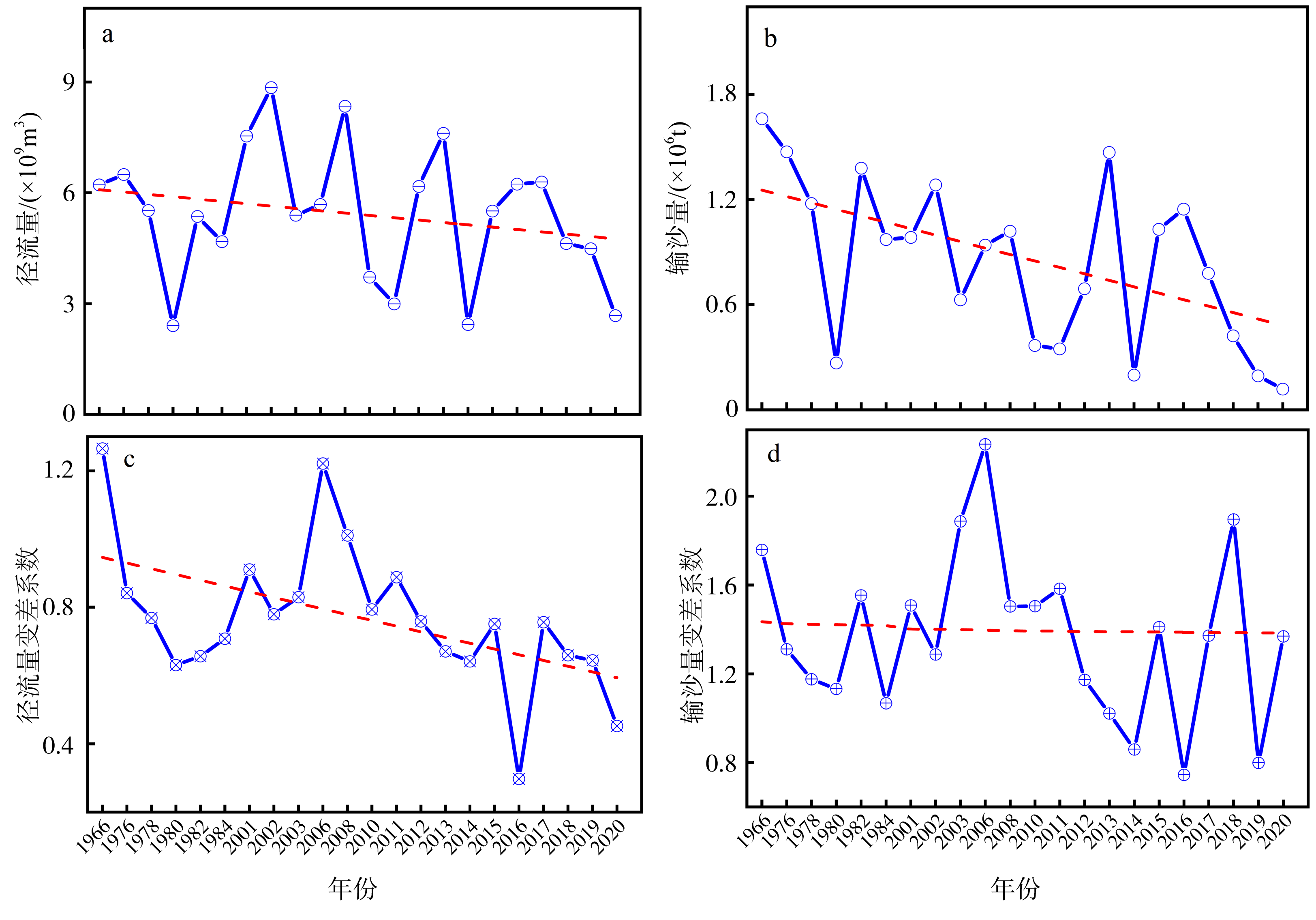

图3 南流江热带气旋年总径流量和输沙量变化情况a. 年径流量; b. 年输沙量; c. 径流量变差系数; d. 输沙量变差系数。图中虚线为线性拟合趋势线 Fig. 3 Variation of annual total runoff and sediment transport of tropical cyclones in the Nanliu River. (a) Annual runoff; (b) annual sediment load; (c) runoff variation coefficient; (d) sediment load variation coefficient |

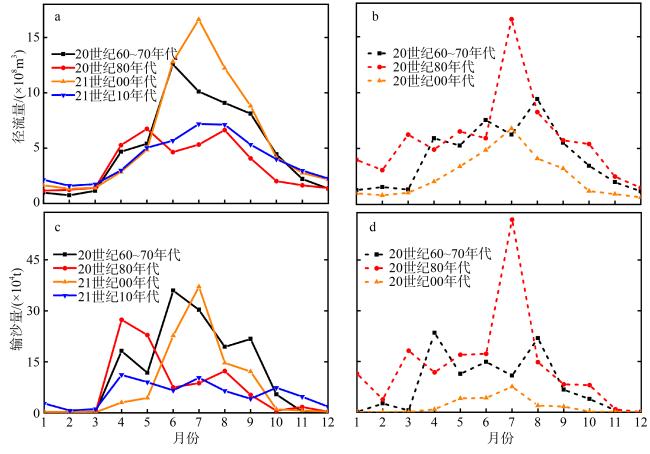

图4 不同年代的月平均径流量和输沙量的变化情况图a Variation of mean monthly runoff and sediment transport in different period. (a) and (c) are runoff and sediment discharge in tropical cyclone years, respectively; (b) and (d) are runoff and sediment transport in non-tropical cyclone years, respectively |
