Journal of Tropical Oceanography ›› 2020, Vol. 39 ›› Issue (3): 66-75.doi: 10.11978/2019074CSTR: 32234.14.2019074
• Marine Biology • Previous Articles Next Articles
Cloning and expression analysis of aquaporin gene AQP4 cDNA from Pinctada fucata martensii
Xiaolan PAN1,2,3, Huiru LIU1,2,3, Meng XU1,2,3, Hanzhi XU1,2,3, Hua ZHANG1,4, Maoxian HE1,4(
)
- 1. CAS Key Laboratory of Tropical Marine Bio-resources and Ecology, South China Sea Institute of Oceanology, Chinese Academy of Sciences, Guangzhou 510301, China
2. Guangdong Provincial Key Laboratory of Applied Marine Biology, Guangzhou 510301, China
3. University of Chinese Academy of Sciences, Beijing 100049, China
4. Institution of South China Sea Ecology and Environmental Engineering, Chinese Academy of Sciences, Guangzhou 510301, China
-
Received:2019-08-19Revised:2019-11-28Online:2020-05-10Published:2020-05-19 -
Contact:Maoxian HE E-mail:hmx2@scsio.ac.cn -
Supported by:The Earmarked Fund for Modern Agro-industry Technology Research System(CARS-49);Marine Ecological Civilization Project(ISEE2018PY03);Science and Technology Planning Project of Guangdong Province, China(2017B0303014052)
Cite this article
Xiaolan PAN, Huiru LIU, Meng XU, Hanzhi XU, Hua ZHANG, Maoxian HE. Cloning and expression analysis of aquaporin gene AQP4 cDNA from Pinctada fucata martensii[J].Journal of Tropical Oceanography, 2020, 39(3): 66-75.
share this article
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks
Tab. 1
Primers used in this study"
| 引物名称 | 引物序列(5′—3′) | 注释 |
|---|---|---|
| GSP5 | CGATAGCCCAAAGGCAAAAGATA | 5′RACE外引物 |
| NGSP5 | GAAGGTGGCAGAGGTACTCTTGAAGG | 5′RACE内引物 |
| GSP3 | GTTCGTCTTTGCTGCTCCTTCC | 3′RACE外引物 |
| NGSP3 | GACCTGAAGAAGGACGAAAACG | 3′RACE内引物 |
| Faqp | CTGTGATGGCGTCAACTGATG | PfAQP4定量引物 |
| Raqp | CGCAATCGTGAGAAGATGACC | |
| F18S | CGTTTCAACAAGACGCCAGTAG | 内参基因18S定量引物 |
| R18S | ACGAAAAAAAGGTTTGAGAGACG |
Tab. 1

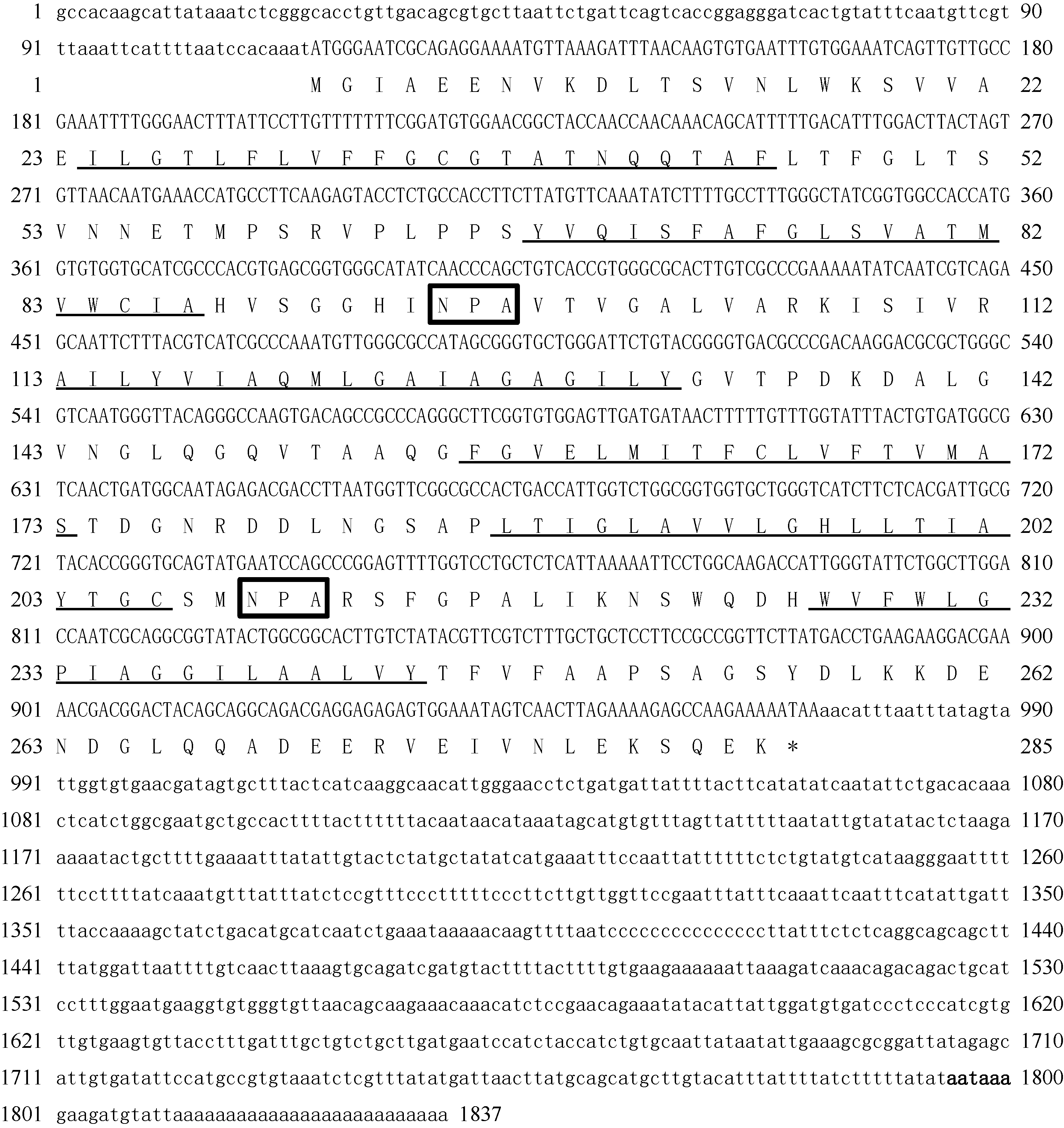

Fig. 1
cDNA sequence and deduced amino acid sequence of PfAQP4. Lower case letters indicate 5'UTR and 3'UTR, upper case letters indicate ORF, shaded areas indicate SMART-predicted MIP domains, boxes indicate NPA sequences, underlined letters indicate six transmembrane regions, and * represents protein translation terminator. aataaa in bold represents polyadenylation tail signal"
Fig. 1

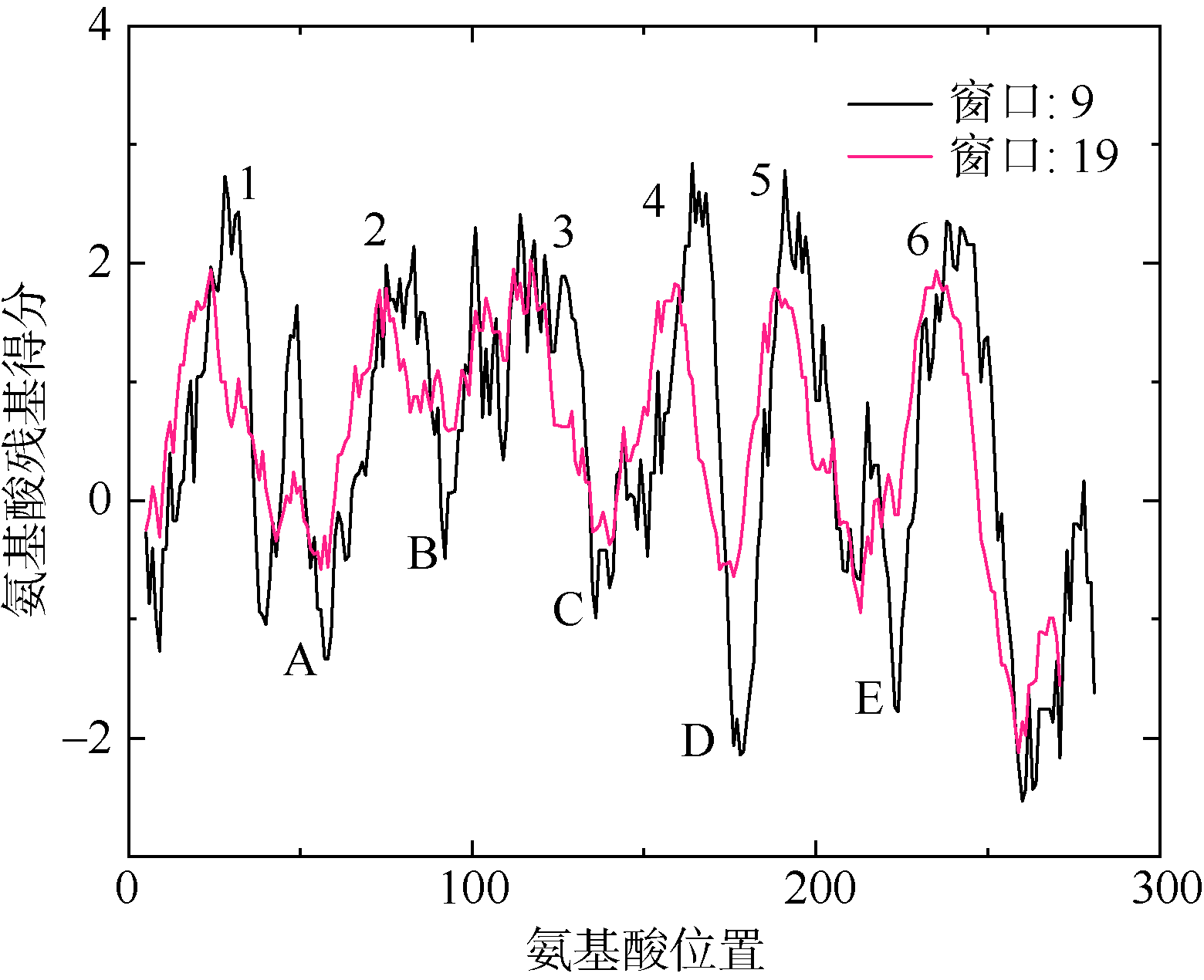

Fig. 2
Hydrophobic plots of PfAQP4. Numbers 1-6 represents six transmembrane regions, A-E represent five loops, and the windows size refers to the interval length used for contour calculation. When calculating the score of a given residue i, the amino acids in the selected length interval centered on residue i are considered"
Fig. 2

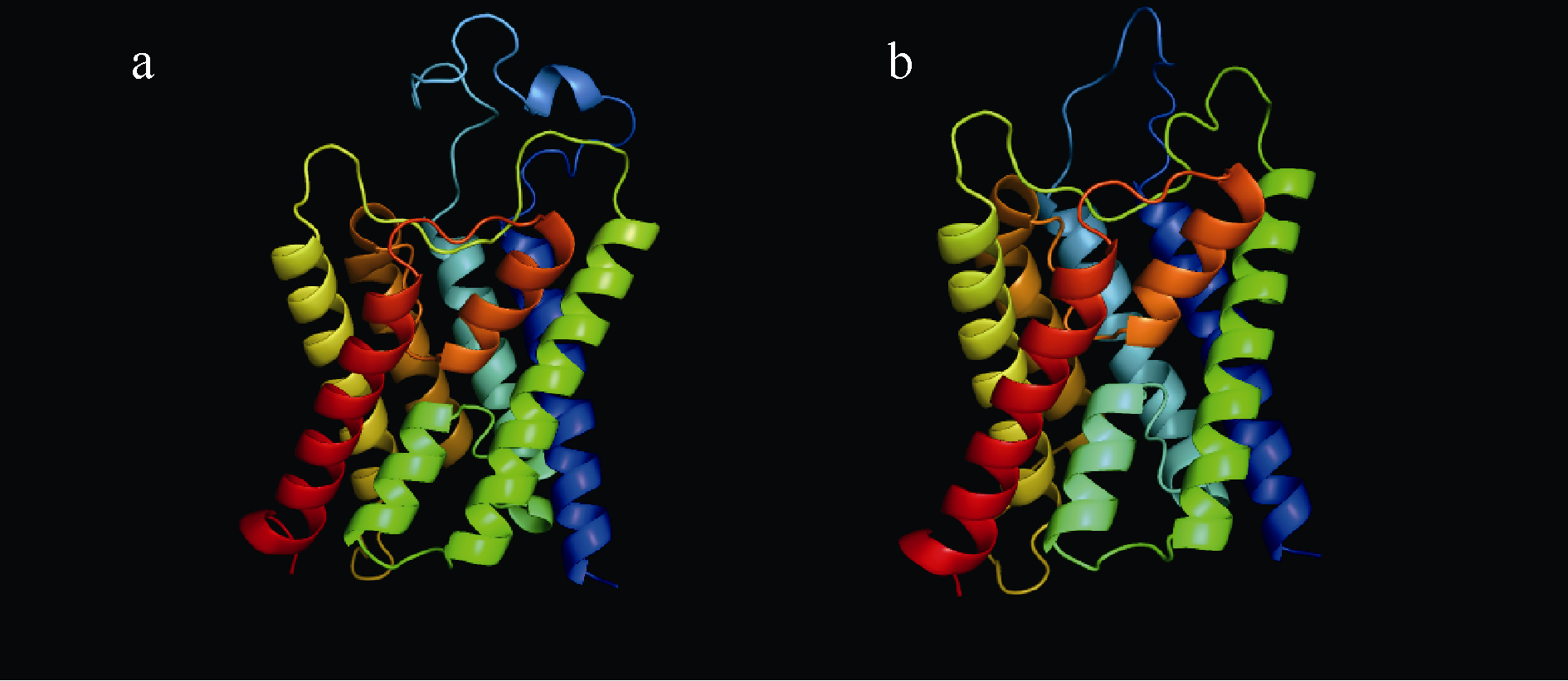

Fig. 3
Predicted 3D structure of PfAQP4 (a) and H. sAQP4 (b)"
Fig. 3
Tab. 2
Amino acid identity comparison of PfAQP4 with other known AQP4 homologues"
| 物种名 | 多序列比对用缩写名 | 登录号 | 一致性/% |
|---|---|---|---|
| 马氏珠母贝(Pinctada fucata martensii) | P.f | MN310685 | 100 |
| 斑马鱼(Danio rerio) | D.r | ACV73794.1 | 39.5 |
| 鱇浪白鱼(Anabarilius grahami) | A.g | ROL42342.1 | 37.9 |
| 斑点叉尾鮰(Ictalurus punctatus) | I.p | AHH42521.1 | 40.9 |
| 暗纹东方鲀(Takifugu obscurus) | T.o | BAL44699.1 | 40.3 |
| 小鼠(Mus musculus) | M.m | AAC53155.1 | 40.4 |
| 大鼠(Rattus norvegicus) | R.n | 2D57 | 41.1 |
| 智人(Homo sapiens) | H.s | 3GD8 | 42.2 |
| 非洲爪蟾(Xenopus tropicalis) | X.t | NP_001304774.1 | 39.9 |
| 长牡蛎(Crassostrea gigas) | C.g | EKC31493.1 | 53.4 |
| 虾夷扇贝(Mizuhopecten yessoensis) | M.y | OWF48037.1 | 52.2 |
| 停乳链球菌(Streptococcus dysgalactiae) | SQB67194.1 | 23.4 | |
| 犬链球菌(Streptococcus canis) | VEE24698.1 | 23.5 |
Tab. 2

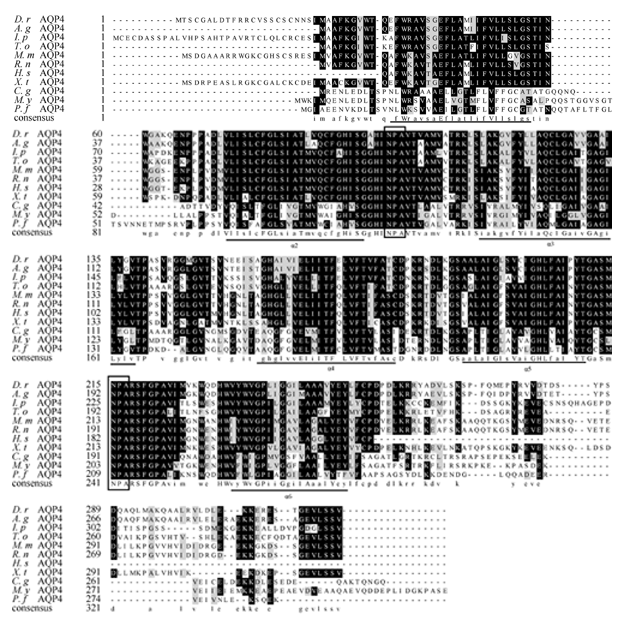

Fig. 4
Multi-sequence alignment of PfAQP4 with other species AQP4. α1-α6 represents six transmembrane regions, the box represents the NPA motif, the white letter with black background indicates the column are conserved (≥50%), the gray shading indicates the columns are similar, and the black letter with white background indicates that the residues are not conserved"
Fig. 4

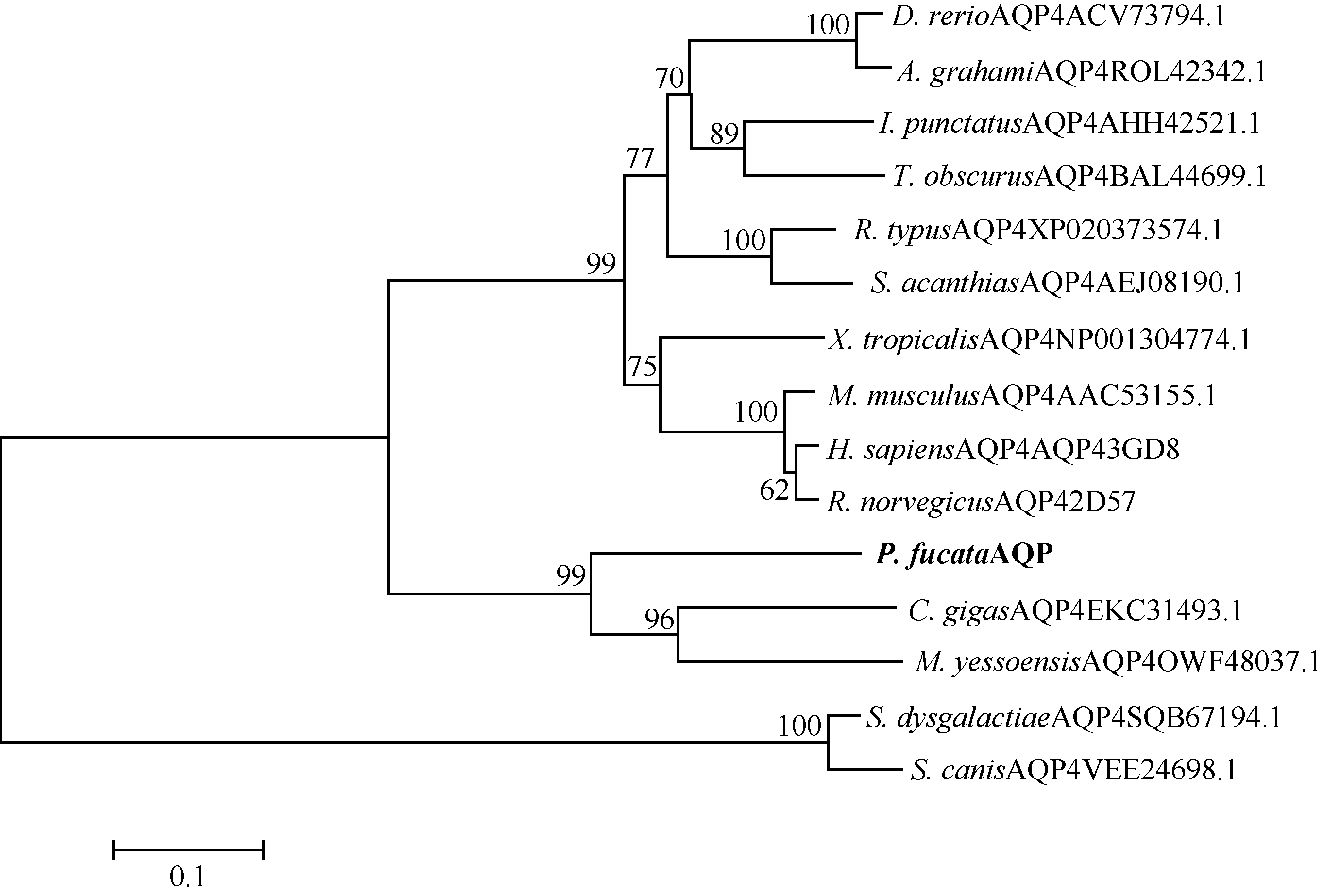

Fig. 5
NJ phylogenetic analysis of PfAQP4 with AQP4 of other species"
Fig. 5

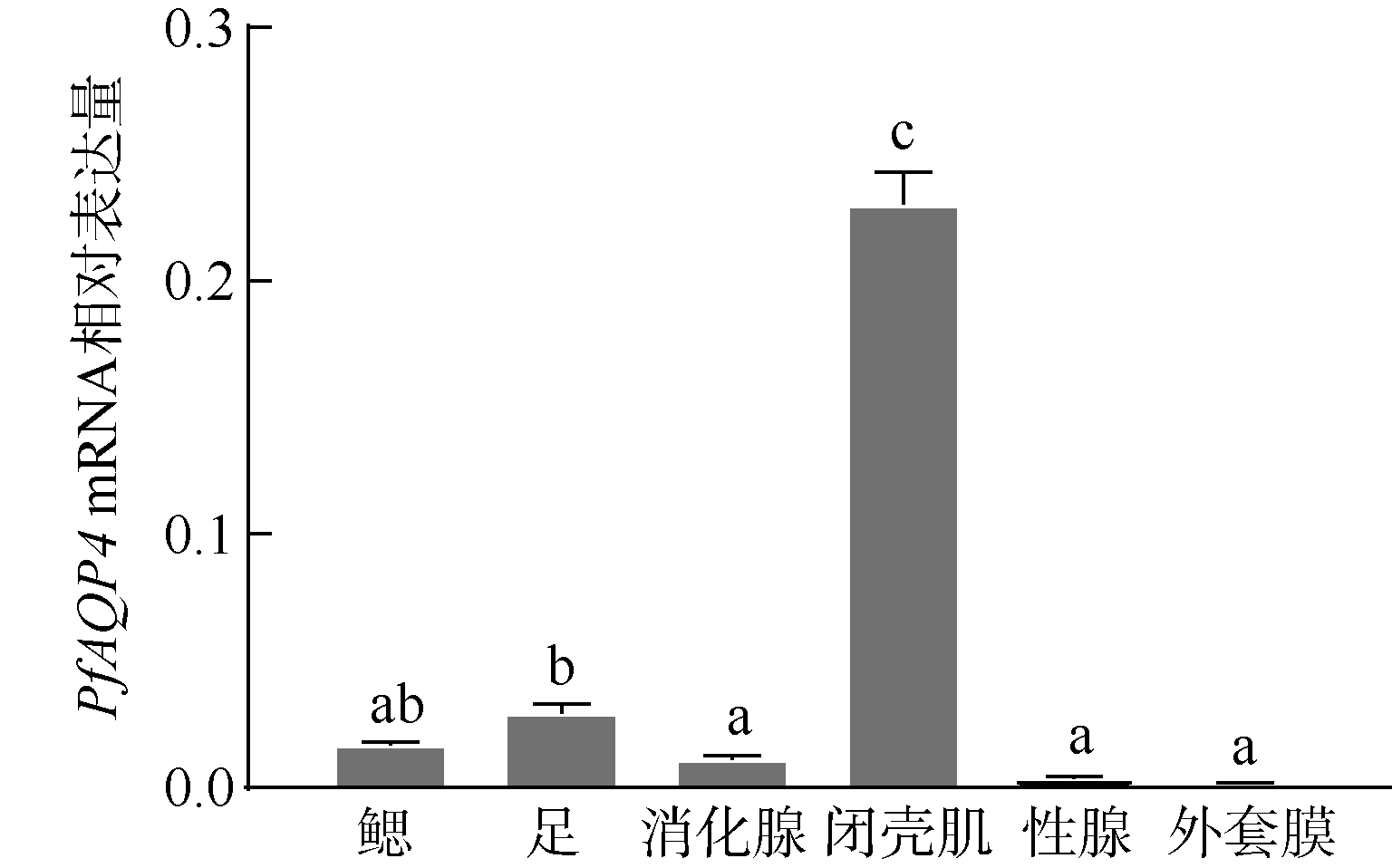

Fig. 6
Relative expressions of PfAQP4 in different tissues. Different letters indicate significant differences between groups (P<0.01)"
Fig. 6

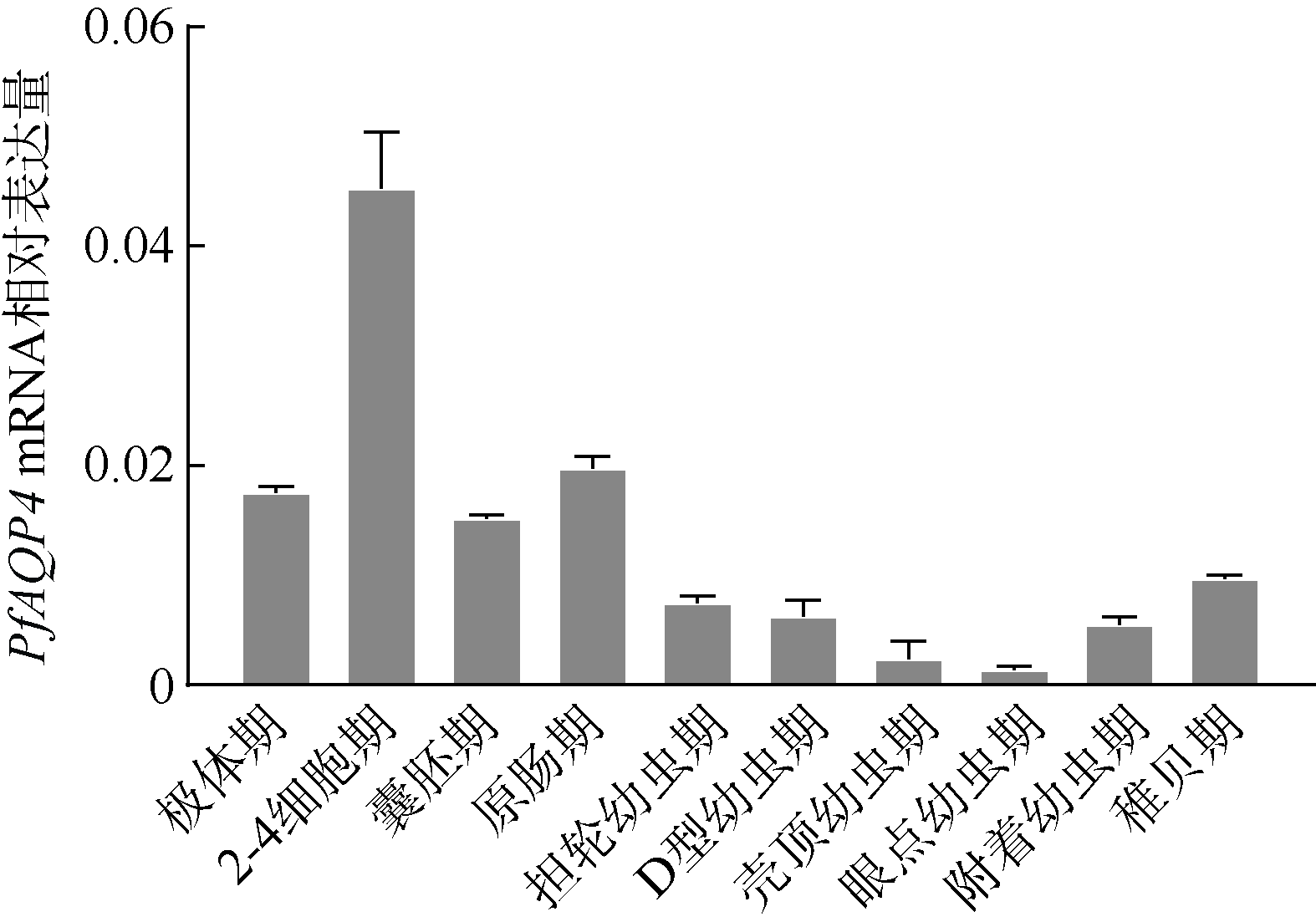

Fig. 7
Relative expressions of PfAQP4 at different developmental stages"
Fig. 7

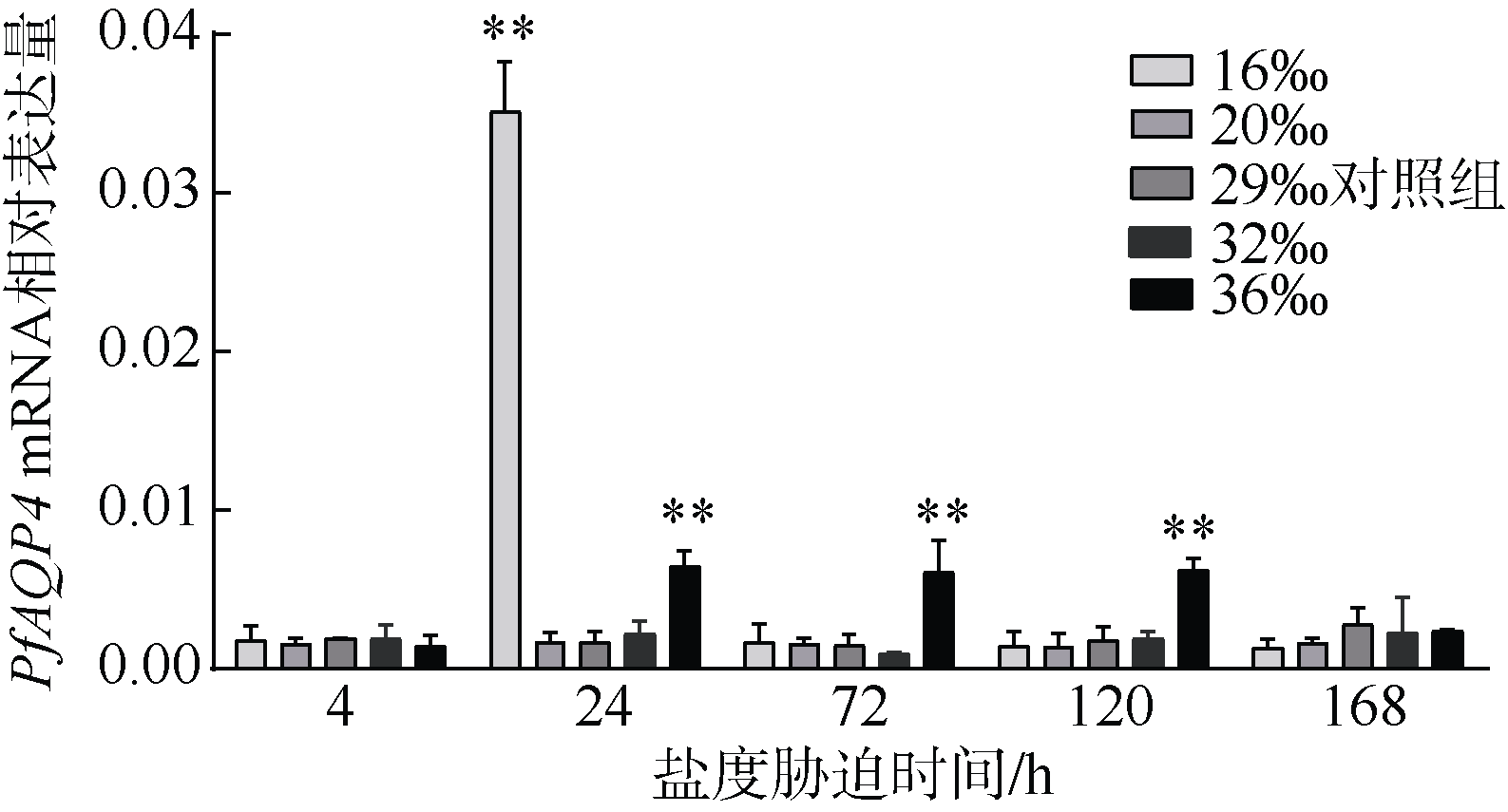

Fig. 8
Relative expressions of PfAQP4 under different salinity stress. ** indicates that the same salinity group is significantly different at different times (P<0.01)"
Fig. 8
| 1 | 安皓 , 2017. 水通道蛋白7、8及精液pH值对大菱鲆(Scophthalmus maximus)精子活力影响研究[D]. 青岛: 中国科学院大学(中国科学院海洋研究所). |
| AN HAO , 2017. The influence of aquaporin 7 aquaporin 8 and semen pH on sperm viability[D]. Qingdao: University of Chinese Academy of Sciences (The Institute of Oceanology, Chinese Academy of Sciences)(in Chinese with English abstract). | |
| 2 | 陈海 , 2005. AQP4、AQP9在大鼠眼组织的定位与功能研究[D]. 重庆: 重庆医科大学. |
| CHEN HAI , 2005. The effect of intraocular pressure alteration on expression of AQP4, AQP9 and their mRNA in the rat eyes[D]. Chongqing: Chongqing Medical University (in Chinese with English abstract). | |
| 3 | 丁颖 , 2014. 高渗钠对体外培养星形胶质瘤U251细胞膜AQP4内化的影响研究[D]. 长沙: 中南大学. |
| DING YING , 2014. The study of hypertonic saline influence the AQP4 internalization in plasma membrane of human astrocytoma U251[D]. Changsha: Central South University (in Chinese with English abstract). | |
| 4 | 高沿 , 2016. 凡纳滨对虾水孔蛋白-4基因克隆、表达及其对盐度胁迫的反应研究[D]. 北京: 中国科学院大学. |
| GAO YAN , 2016. Aquaporin-4 in Litopenaeus vannamei: molecular cloning, gene expression and its response to salinity stress[D]. Beijing: University of Chinese Academy of Sciences (in Chinese with English abstract). | |
| 5 | 何毛贤, 姜卫国, 潘金培 , 2002. CB抑制合浦珠母贝受精卵第一极体释放的染色体分离[J]. 水产学报, 26(1):15-20. |
| HE MAOXIAN, JIANG WEIGUO, PAN JINPEI , 2002. Chromosome segregation in fertilized eggs from pearl oyster Pinctada martensii Dunker following the first polar body inhibition with cytochalasin B[J]. Journal of Fisheries of China, 26(1):15-20 (in Chinese with English abstract). | |
| 6 | 林浩然 , 1999. 鱼类生理学[M]. 广州: 广东高等教育出版社: 193-226. |
| 7 | 沈亦平, 姜海波, 刘汀 , 等. 1993. 合浦珠母贝卵子成熟的细胞学观察[J]. 武汉大学学报(自然科学版), ( 5):109-114. |
| SHEN YIPING, JIANG HAIBO, LIU TING , et al, 1993. Cytology of egg maturation of pearl oyster Pinctada martensii Dunker[J]. Journal of Wuhan University (Natural Science Edition), ( 5):109-114 (in Chinese with English abstract). | |
| 8 | 水柏年 , 2007. 若干环境因子对缢蛏Sinonovacula constricta(Lamarck)快速净化的影响研究[J]. 现代渔业信息, 22(9):6-10. |
| SHUI BONIAN , 2007. A study on effect of several environmental factors on quick purification of Sinonovacula constricta (Lamarck)[J]. Modern Fisheries Information, 22(9):6-10 (in Chinese with English abstract). | |
| 9 | 万茜 , 2014. 香港牡蛎( Crassostrea hongkongensis)水通道蛋白基因家族的克隆与表达分析[D]. 北京: 中国科学院大学. |
| WAN XI , 2014. Cloning and expression analysis of aquaporin gene family from Crassostrea hongkongensis[D]. Beijing: University of Chinese Academy of Sciences (in Chinese with English abstract). | |
| 10 | 王吉桥, 靳翠丽, 姜静颖 , 2001. 不同降盐度方式对海湾扇贝幼贝存活的影响[J]. 中国水产科学, 8(3):35-39. |
| WANG JIQIAO, JIN CUILI, JIANG JINGYING , 2001. Influence of salinity-decreasing regimes on survival of juvenile Argopecten irradians[J]. Journal of Fishery Sciences of China, 8(3):35-39 (in Chinese with English abstract). | |
| 11 | 王如才, 王昭萍, 张建中 , 1993. 海水贝类养殖学[M]. 青岛: 青岛海洋大学出版社: 213. |
| 12 | 王劭雯 , 2012. 皱纹盘鲍幼鲍对海水盐度的耐受性分析[D]. 青岛: 中国科学院研究生院(海洋研究所). |
| WANG SHAOWEN , 2012. Analysis of the toleration to different salinities in Haliotis discus hannai Ino[D]. Qingdao: The Institute of Oceanology, Chinese Academy of Sciences (in Chinese with English abstract). | |
| 13 | 张鑫磊, 陈四清, 刘寿堂 , 等, 2006. 温度、盐度对半滑舌鳎胚胎发育的影响[J]. 海洋科学进展, 24(3):342-348. |
| ZHANG XINLEI, CHEN SIQING, LIU SHOUTANG , et al, 2006. Effects of temperature and salinity on embryonic development of Tongue Sole, Cynoglossus semilaevis Gunther[J]. Advances in Marine Science, 24(3):342-348 (in Chinese with English abstract). | |
| 14 | 赵明, 陈超, 柳学周 , 等, 2011. 盐度对七带石斑鱼胚胎发育和卵黄囊仔鱼生长的影响[J]. 渔业科学进展, 32(2):16-21. |
| ZHAO MING, CHEN CHAO, LIU XUEZHOU , et al, 2011. Effect of salinity on embryonic development and post-embryonic larval growth of Epinephelus septemfasciatus[J]. Marine Fisheries Research, 32(2):16-21 (in Chinese with English abstract). | |
| 15 |
AGRE P, PRESTON G M, SMITH B L , et al, 1993. Aquaporin CHIP: the archetypal molecular water channel[J]. American Journal of Physiology -Renal Physiology, 265(4):F463-F476.
doi: 10.1152/ajprenal.1993.265.4.F463 |
| 16 |
AGRE P, KING L S, YASUI M , et al, 2002. Aquaporin water channels-from atomic structure to clinical medicine[J]. The Journal of Physiology, 542(1):3-16.
doi: 10.1113/jphysiol.2002.020818 pmid: 12096044 |
| 17 |
ARIMA H, YAMAMOTO N, SOBUE K , et al, 2003. Hyperosmolar mannitol stimulates expression of aquaporins 4 and 9 through a p38 mitogen-activated protein kinase-dependent pathway in rat astrocytes[J]. The Journal of Biological Chemistry, 278(45):44525-44534.
doi: 10.1074/jbc.M304368200 pmid: 12944406 |
| 18 |
BEITZ E, WU BINGHUA, HOLM L M , et al, 2006. Point mutations in the aromatic/arginine region in aquaporin 1 allow passage of urea, glycerol, ammonia, and protons[J]. Proceedings of the National Academy of Sciences of the United States of America, 103(2):269-274.
doi: 10.1073/pnas.0507225103 pmid: 16407156 |
| 19 |
CAMPBELL E M, BALL A, HOPPLER S , et al, 2008. Invertebrate aquaporins: a review[J]. Journal of Comparative Physiology B, 178(8):935-955.
doi: 10.1007/s00360-008-0288-2 pmid: 18594835 |
| 20 |
CONNOLLY D L, SHANAHAN C M, WEISSBERG P L , 1998. The aquaporins. A family of water channel proteins[J]. The International Journal of Biochemistry & Cell Biology, 30(2):169-172.
doi: 10.1016/s1357-2725(97)00124-6 pmid: 9608669 |
| 21 |
CUTLER C P, MACIVER B, CRAMB G , et al, 2012. Aquaporin 4 is a ubiquitously expressed isoform in the dogfish (Squalus acanthias) Shark[J]. Frontiers in Physiology, 2:107.
doi: 10.3389/fphys.2011.00107 pmid: 22291652 |
| 22 |
DAVENPORT J , 1979. Is Mytilus edulis a short term osmoregulator?[J]. Comparative Biochemistry and Physiology Part A: Physiology, 64(1):91-95.
doi: 10.1016/0300-9629(79)90436-5 |
| 23 |
DENKER B M, SMITH B L, KUHAJDA F P , et al, 1988. Identification, purification, and partial characterization of a novel Mr 28,000 integral membrane protein from erythrocytes and renal tubules[J]. The Journal of Biological Chemistry, 263(30):15634-15642.
pmid: 3049610 |
| 24 |
HASEGAWA H, MA T, SKACH W , et al, 1994. Molecular cloning of a mercurial-insensitive water channel expressed in selected water-transporting tissues[J]. The Journal of Biological Chemistry, 269(8):5497-5500.
pmid: 7509789 |
| 25 | HO J D, YEH R, SANDSTROM A , et al, 2009. Crystal structure of human aquaporin 4 at 1.8 Å and its mechanism of conductance[J]. Proceedings of the National Academy of Sciences of the United States of America, 106(18):7437-7442. |
| 26 |
HUANG CHUNYI, LAMITINA T, AGRE P , et al, 2007. Functional analysis of the aquaporin gene family in Caenorhabditis elegans[J]. American Journal of Physiology-Cell Physiology, 292(5):C1867-C1873.
doi: 10.1152/ajpcell.00514.2006 pmid: 17229810 |
| 27 |
ISHIBASHI K, HARA S, KONDO S , 2009. Aquaporin water channels in mammals[J]. Clinical and Experimental Nephrology, 13(2):107-117.
doi: 10.1007/s10157-008-0118-6 |
| 28 |
KAMEGAWA A, HIROAKI Y, TANI K , et al, 2016. Two-dimensional crystal structure of aquaporin-4 bound to the inhibitor acetazolamide[J]. Microscopy, 65(2):177-184.
doi: 10.1093/jmicro/dfv368 pmid: 26908838 |
| 29 |
MCNAMARA J C, FARIA S C , 2012. Evolution of osmoregulatory patterns and gill ion transport mechanisms in the decapod Crustacea: A review[J]. Journal of Comparative Physiology B, 182(8):997-1014.
doi: 10.1007/s00360-012-0665-8 pmid: 22534792 |
| 30 |
NAVARRO J M , 1988. The effects of salinity on the physiological ecology of Choromytilus chorus (Molina, 1782) (Bivalvia: Mytilidae)[J]. Journal of Experimental Marine Biology and Ecology, 122(1):19-33.
doi: 10.1016/0022-0981(88)90209-2 |
| 31 |
PARISI M, DORR R A, OZU M , et al, 2007. From membrane pores to aquaporins: 50 years measuring water fluxes[J]. Journal of Biological Physics, 33(5-6):331-343.
doi: 10.1007/s10867-008-9064-5 |
| 32 |
PASANTES-MORALES H, SCHOUSBOE A , 1997. Role of taurine in osmoregulation in brain cells: mechanisms and functional implications[J]. Amino Acids, 12(3-4):281-292.
doi: 10.1007/BF01373008 |
| 33 |
PÉQUEUX A , 1995. Osmotic regulation in crustaceans[J]. Journal of Crustacean Biology, 15(1):1-60.
doi: 10.1163/193724095X00578 |
| 34 |
PRESTON G M, CARROLL T P, GUGGINO W B , et al, 1992. Appearance of water channels in Xenopus oocytes expressing red cell CHIP28 protein[J]. Science, 256(5055):385-387.
doi: 10.1126/science.256.5055.385 pmid: 1373524 |
| 35 |
SOTO G, ALLEVA K, AMODEO G , et al, 2012. New insight into the evolution of aquaporins from flowering plants and vertebrates: orthologous identification and functional transfer is possible[J]. Gene, 503(1):165-176.
doi: 10.1016/j.gene.2012.04.021 |
| 36 | WILDER M N, IKUTA K, ATMOMARSONO M , et al, 1998. Changes in osmotic and ionic concentrations in the hemolymph of Macrobrachium rosenbergii exposed to varying salinities and correlation to ionic and crystalline composition of the cuticle[J]. Comparative Biochemistry and Physiology Part A: Molecular & Integrative Physiology, 119(4):941-950. |
| 37 |
WILLERMAIN F, JANSSENS S, ARSENIJEVIC T , et al, 2014. Osmotic stress decreases aquaporin-4 expression in the human retinal pigment epithelial cell line, ARPE-19[J]. International Journal of Molecular Medicine, 34(2):533-538.
doi: 10.3892/ijmm.2014.1791 |
