珠江“伶仃洋河口湾-虎门-潮汐通道”的潮波传播特征*

doi:10.11978/2020076

Abstract

Abstract:

The Lingdingyang Bay-Humen outlet-tidal channel of the Pearl River is a typical geomorphic structure in the networks-bay system of the Pearl River Estuary. Tidal wave propagation in the channel is significantly influenced by the channel convergence in the estuary, the conversion effect at Humen outlet, the divergence of the tidal channel, and the riverbed friction. Thus, the spatio-temporal variation of the tidal regime is rather complex. Based on the daily high and low tidal levels from gauging stations along thetidal channel from 1990 to 2016, tidal amplitude gradient and wave celerity of different tidal constituents are computed using harmonic constants (i.e., tidal amplitude and phase of different tidal constituents) extracted from a standard harmonic analysis, and tidal wave propagation characteristics are investigated. The results show that the annual increase in amplitude and wave celerity gradients of the diurnal constituents (the amplitude gradients of K₁ and O₁ being 9% and 18%, respectively; both wave celerity being 1.4%) in Lingdingyang Bay were larger than those of the semi-diurnal tides (the amplitude gradients of M₂and S₂ being 3% and 6%, respectively; both the wave celerity being 1%). The tidal waves changed abruptly due to the substantial variation in morphology. The change-points of the tidal wave celerity in Lingdingyang Bay and tidal channel were in 2009 and 2000, respectively. The relationship between wave celerity and tidal amplitude gradient changed considerably after the abrupt change.

Key words: tide-dominated estuar, harmonic analysis, wave celerity, amplitude gradient, abrupt change

CLC Number:

P731.23

XIE Meifang, ZHANG Ping, YANG Hao, FU Linxi, WANG Heng, CAI Huayang, YANG Qingshu. Tidal wave propagation dynamics in Lingdingyang Bay-Humen outlet-tidal channel of the Pearl River[J].Journal of Tropical Oceanography, 2021, 40(4): 1-13.

Figures/Tables 14

Fig. 1

Tab. 1

Fig. 2

Tab. 2

Tab. 3

Fig. 3

Tab. 4

Fig. 4

Fig. 5

Tab. 5

Fig. 6

Tab. 6

Tab. 7

Fig. 7

References 37

[1]	邓俊杰, 包芸, 2009. 近十年伶仃洋地形变化及虎门潮汐潮流特征对比分析[C]// 中国力学学会学术大会'2009论文摘要集. 郑州: 中国力学学会(in Chinese).
[2]	丁芮, 陈学恩, 曲念东, 2016. 珠江口及邻近海域潮汐环流数值模拟Ⅱ——河口水交换和物质输运分析[J]. 中国海洋大学学报, 46(7):1-10.
	DING RUI, CHEN XUEEN, QU NIANDONG, 2016. Three-dimensional high-resolution numerical study of the tide and circulation in the Pearl River Estuary and its adjacent waters part Ⅱ: estuarine mass transport and water exchange[J]. Periodical of Ocean University of China, 46(7):1-10 (in Chinese with English abstract).
[3]	龚文平, 刘欢, 任杰, 等, 2012. 黄茅海河口潮波的传播特征与机理研究[J]. 海洋学报, 34(3):41-54.
	GONG WENPING, LIU HUAN, REN JIE, et al, 2012. The study of tidal propagation the in Huangmaohai Estuary and its underlying mechanisms[J]. Acta Oceanologica Sinica, 34(3):41-54 (in Chinese with English abstract).
[4]	胡德礼, 杨清书, 吴超羽, 等, 2010. 珠江网河水沙分配变化及其对伶仃洋水沙场的影响[J]. 水科学进展, 21(1):69-76.
	HU DELI, YANG QINGSHU, WU CHAOYU, et al, 2010. Changing water and sediment dynamics in the Pearl River network and consequences on water and sediment regimes in the Lingdingyang estuary[J]. Advances In Water Science, 21(1):69-76 (in Chinese with English abstract).
[5]	胡德礼, 吴超羽, 贾良文, 2011. 珠江河口对外海潮波响应的固有频率研究——采用系统控制论方法[J]. 海洋学报, 33(4):29-37.
	HU DELI, WU CHAOYU, JIA LIANGWEN, 2011. The nature frequency response to the tidal propagation in the Zhujiang River Estuary: a system and cybernetics approach[J]. Acta Oceanologica Sinica, 33(4):29-37 (in Chinese with English abstract).
[6]	贾良文, 罗章仁, 杨清书, 等, 2006. 大量采沙对东江下游及东江三角洲河床地形和潮汐动力的影响[J]. 地理学报, 61(9):985-994.
	JIA LIANGWEN, LUO ZHANGREN, YANG QINGSHU, et al, 2006. Impacts of huge amount of sand dredging on riverbed morphology and tidal dynamics of the lower sections of the Dongjiang River and the Dongjiang River Delta[J]. Acta Geographica Sinica, 61(9):985-994 (in Chinese with English abstract).
[7]	李春初, 2004. 中国南方河口过程与演变规律[M]. 北京: 科学出版社 (in chinese).
[8]	李静, 2006. 珠江三角洲网河近20年河床演变特征分析[J]. 水利水电科技进展, 26(3):15-17, 20.
	LI JING, 2006. Characteristic analysis of fluvial process of river network in Pearl River Delta for recent 2 decades[J]. Advances in Science and Technology of Water Resources, 26(3):15-17, 20 (in Chinese with English abstract).
[9]	李孟国, 韩志远, 李文丹, 等, 2019. 伶仃洋滩槽演变与水沙环境研究进展[J]. 海洋湖沼通报, (5):20-33.
	LI MENGGUO, HAN ZHIYUAN, LI WENDAN, et al, 2019. A review on the seabed evolution and hydrodynamic sediment environment in Lingdingyang Bay of the Pearl River estuary[J]. Transactions of Oceanology and Limnology, (5):20-33 (in Chinese with English abstract).
[10]	林祖亨, 梁舜华, 1996. 珠江口水域的潮流分析[J]. 海洋通报, 15(2):11-12.
	LIN ZUHENG, LIANG SHUNHUA, 1996. A study on the tidal currents in the waters of the Pearl River mouth[J]. Marine Science Bulleten, 15(2):11-12 (in Chinese with English abstract).
[11]	刘欢, 吴超羽, 包芸, 2011. 珠江河口的能量传播和能量耗散[J]. 热带海洋学报, 30(3):16-23.
	LIU HUAN, WU CHAOYU, BAO YUN, 2011. Energy flux and dissipation in the Pearl River estuary[J]. Journal of Tropical Oceanography, 30(3):16-23 (in Chinese with English abstract).
[12]	刘伟峰, 孙英兰, 陈时俊, 等, 2008. 胶南东部近岸海域实测海流分析及潮流场数值模拟[J]. 海洋科学, 32(8):9-12.
	LIU WEIFENG, SUN YINGLAN, CHEN SHIJUN, et al, 2008. Analysis of observed tidal current and numerical model of tidal current in the offshore area of eastern Jiaonan[J]. Marine Sciences, 32(8):9-12 (in Chinese with English abstract).
[13]	欧素英, 杨清书, 2004. 珠江三角洲网河区径流潮流相互作用分析[J]. 海洋学报, 26(1):125-131.
	OU SUYING, YANG QINGSHU, 2004. Interaction of fluctuating river flow with a barotropic tide in river network of the Zhujiang Delta[J]. Acta Oceanologica Sinica, 26(1):125-131 (in Chinese with English abstract).
[14]	欧素英, 田枫, 郭晓娟, 等, 2016. 珠江三角洲径潮相互作用下潮能的传播和衰减[J]. 海洋学报, 38(12):1-10.
	OU SUYING, TIAN FENG, GUO XIAOJUAN, et al, 2016. Propagation and damping of tidal energy in the Pearl River Delta[J]. Haiyang Xuebao, 38(12):1-10 (in Chinese with English abstract).
[15]	申其国, 谢凌峰, 王亚妮, 2017. 近年珠江三角洲潮流特征变化分析[J]. 人民珠江, 38(7):13-17.
	SHEN QIGUO, XIE LINGFENG, WANG YANI, 2017. Change analysis of tidal current characteristics in the Pearl River Delta in recent years[J]. Pearl River, 38(7):13-17 (in Chinese with English abstract).
[16]	王世俊, 2019. 伶仃洋水沙变化及对铜鼓航道回淤的影响研究[J]. 人民珠江, 40(4):1-7.
	WANG SHIJUN, 2019. Study on the variation of runoff and sediment in the Lingding and its influence on the Back Silting of the Tonggu Channel[J]. Pearl River, 40(4):1-7 (in Chinese with English abstract).
[17]	姚海元, 扬懿, 查雅平, 等, 2018. 深中通道隧道埋深和口门宽度论证[J]. 公路, 63(12):330-334.
	YAO HAIYUAN, YANG YI, ZHA YAPING, et al, 2018. Demonstration on the buried depth of tunnel and the width of entrance in Shenzhen-Zhongshan Crossing Project[J]. Highway, 63(12):330-334 (in Chinese with English abstract).
[18]	张蔚, 严以新, 诸裕良, 等, 2008. 人工采沙及航道整治对珠江三角洲水流动力条件的影响[J]. 水利学报, 39(9):1098-1104.
	ZHANG WEI, YAN YIXIN, ZHU YULIANG, et al, 2008. Impact of sand excavation and waterway regulation on hydrodynamics of Pearl River networks[J]. Shuili Xuebao, 39(9):1098-1104 (in Chinese with English abstract).
[19]	张蔚, 严以新, 郑金海, 等, 2010. 珠江三角洲年际潮差长期变化趋势[J]. 水科学进展, 21(1):77–83.
	ZHANG WEI, YAN YIXIN, ZHENG JINHAI, et al, 2010. Interannual tidal range trend in Pearl River Delta[J]. Advances in Water Science, 21(1):77–83 (in Chinese with English abstract).
[20]	CAI HUAYANG, SAVENIJE H H G, JIANG CHENJUAN, et al, 2016. Analytical approach for determining the mean water level profile in an estuary with substantial fresh water discharge[J]. Hydrology and Earth System Sciences, 20(3):1177-1195. doi: 10.5194/hess-20-1177-2016
[21]	CAI HUAYANG, SAVENIJE H H G, YANG QINGSHU, et al, 2012. Influence of river discharge and dredging on tidal wave propagation: modaomen estuary case[J]. Journal of Hydraulic Engineering, 138(10):885-896. doi: 10.1061/(ASCE)HY.1943-7900.0000594
[22]	CAI HUAYANG, TOFFOLON M, SAVENIJE H H G, et al, 2018. Frictional interactions between tidal constituents in tide-dominated estuaries[J]. Ocean Science, 14(4):769-782. doi: 10.5194/os-14-769-2018
[23]	CAI HUAYANG, YANG HAO, LIU JUNYONG, et al, 2019. Quantifying the impacts of human interventions on relative mean sea level change in the Pearl River Delta, China[J]. Ocean & Coastal Management, 173:52-64.
[24]	CAO YU, ZHANG WEI, ZHU YULIANG, et al, 2020. Impact of trends in river discharge and ocean tides on water level dynamics in the Pearl River Delta[J]. Coastal Engineering, 157:103634 doi: 10.1016/j.coastaleng.2020.103634
[25]	CHEN JUAN, ZHANG WEI, 2020. Impacts of tidal species on water level variations in Pearl River Delta channel networks[J]. Regional Studies in Marine Science, 35:101110. doi: 10.1016/j.rsma.2020.101110
[26]	DENG JUNJIE, YAO QIANGSHENG, WU JIAXUE, 2020. Estuarine morphology and depositional processes in front of lateral river-dominated outlets in a tide-dominated estuary: a case study of the Lingding Bay, South China Sea[J]. Journal of Asian Earth Sciences, 196:104382. doi: 10.1016/j.jseaes.2020.104382
[27]	KENDALL M G, 1970. Rank correlation methods[M]. London: Griffin.
[28]	LIU FENG, HU SHUAI, GUO XIAOJUAN, et al, 2018. Recent changes in the sediment regime of the Pearl River (South China): causes and implications for the Pearl River Delta[J]. Hydrological Processes, 32(12):1771-1785. doi: 10.1002/hyp.v32.12
[29]	MAO QINGWEN, SHI PING, YIN KEDONG, et al, 2004. Tides and tidal currents in the Pearl River Estuary[J]. Continental Shelf Research, 24(16):1797-1808. doi: 10.1016/j.csr.2004.06.008
[30]	PAWLOWICZ R, BEARDSLEY B, LENTZ S, 2002. Classical tidal harmonic analysis including error estimates in MATLAB using T_TIDE[J]. Computers & Geosciences, 28(8):929-937. doi: 10.1016/S0098-3004(02)00013-4
[31]	SAVENIJE H H G, MARCO T, HAAS J, et al, 2008. Analytical description of tidal dynamics in convergent estuaries[J]. Journal of Geophysical Research: Oceans, 113(C10):C10025.
[32]	SAVENIJE H H G, VELING E J M, 2005. Relation between tidal damping and wave celerity in estuaries[J]. Journal of Geophysical Research: Oceans, 110(C4):C04007.
[33]	SERRANO A, MATEOS V L, GARCIA J A, 1999. Trend analysis of monthly precipitation over the Iberian peninsula for the period 1921-1995[J]. Physics and Chemistry of the Earth, Part B: Hydrology, Oceans and Atmosphere, 24(1-2):85-90. doi: 10.1016/S1464-1909(98)00016-1
[34]	WANG HENG, ZHANG PING, HU SHUAI, et al, 2020. Tidal regime shift in Lingdingyang Bay, the Pearl River Delta: an identification and assessment of driving factors[J]. Hydrological Processes, 34(13):2878-2894. doi: 10.1002/hyp.v34.13
[35]	WU ZIYIN, MILLIMAN J D, ZHAO DINENG, et al, 2014. Recent geomorphic change in LingDing Bay, China, in response to economic and urban growth on the Pearl River Delta, Southern China[J]. Global and Planetary Change, 123:1-12. doi: 10.1016/j.gloplacha.2014.10.009
[36]	WU ZIYIN, SAITO Y, ZHAO DINENG, et al, 2016. Impact of human activities on subaqueous topographic change in Lingding Bay of the Pearl River estuary, China, during 1955-2013[J]. Scientific Reports, 6:37742. doi: 10.1038/srep37742
[37]	ZHANG WEI, XU YANG, HOITINK A J F, et al, 2015. Morphological change in the Pearl River Delta, China[J]. Marine Geology, 363:202-219. doi: 10.1016/j.margeo.2015.02.012

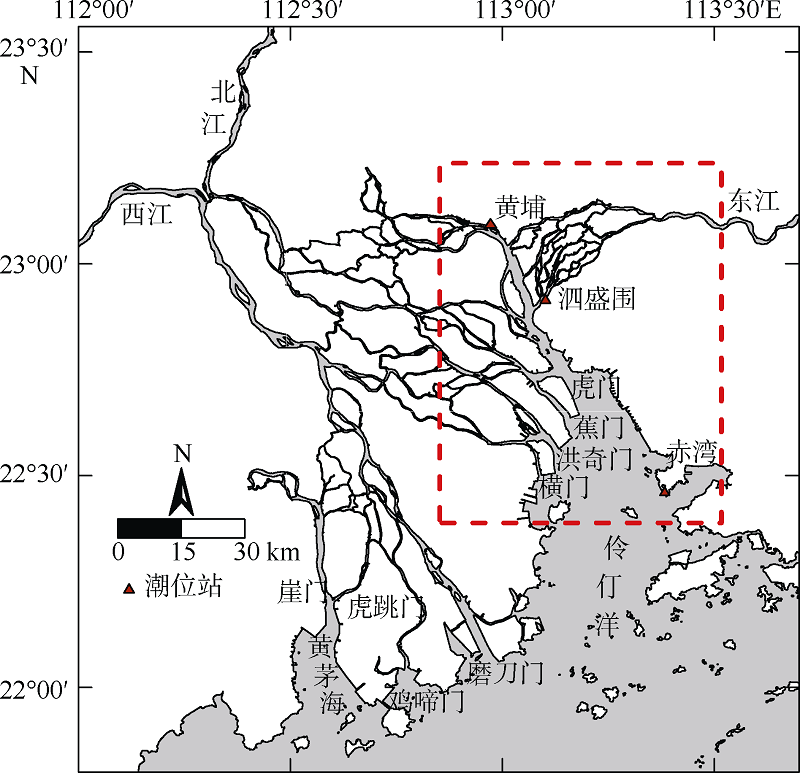

站点名称	简称	潮位/m
站点名称	简称	平均值	标准差	最大值	最小值
赤湾	CW	-0.19	0.80	2.32	-2.04
泗盛围	SSW	-0.02	0.91	2.64	-1.81
黄埔	HP	-0.02	0.92	2.70	-1.83

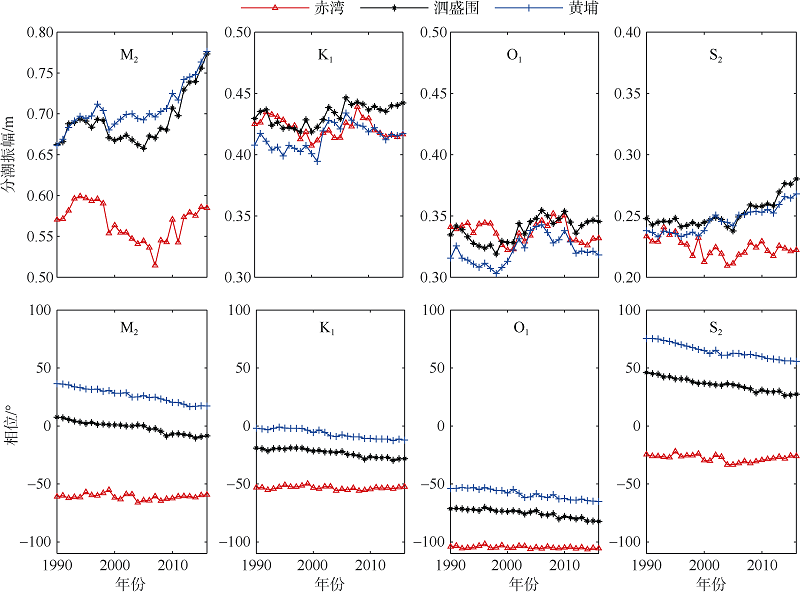

调和常数	分潮	赤湾					泗盛围					黄埔
调和常数	分潮	平均值	标准差	最大值	最小值	极差	平均值	标准差	最大值	最小值	极差	平均值	标准差	最大值	最小值	极差
振幅/m	M₂	0.57	0.02	0.60	0.52	0.08	0.69	0.03	0.77	0.66	0.11	0.71	0.03	0.78	0.66	0.12
	K₁	0.42	0.01	0.44	0.41	0.03	0.43	0.01	0.45	0.42	0.03	0.41	0.01	0.43	0.39	0.04
	O₁	0.34	0.01	0.35	0.32	0.03	0.34	0.01	0.35	0.32	0.03	0.32	0.01	0.34	0.30	0.04
	S₂	0.22	0.01	0.24	0.21	0.03	0.25	0.01	0.28	0.24	0.04	0.25	0.01	0.27	0.23	0.04
相位/°	M₂	-61	2	-55	-66	11	-1	5	8	-10	18	26	6	36	17	19
	K₁	-53	1	-50	-56	6	-23	4	-19	-30	11	-7	4	-1	-13	12
	O₁	-105	1	-102	-106	4	-75	4	-70	-82	12	-59	4	-53	-65	12
	S₂	-28	3	-22	-33	11	36	6	46	26	20	65	6	75	56	19

潮位站	分潮	振幅			相位
潮位站	分潮	年变化量/cm	Z值	p值	年变化量/°	Z值	p值
赤湾	M₂	-0.10	-1.67	0.09	-0.04	-0.42	0.68
	K₁	-0.04	-1.79	0.07	-0.03	-0.88	0.38
	O₁	-0.03	-0.92	0.36	-0.05	-2.25	0.02
	S₂	-0.04	-2.21	0.03	-0.10	-1.50	0.13
泗盛围	M₂	0.21	2.67	<0.01	-0.64	-6.59	<0.01
	K₁	0.07	3.17	<0.01	-0.44	-5.71	<0.01
	O₁	0.08	3.04	<0.01	-0.42	-5.96	<0.01
	S₂	0.11	4.25	<0.01	-0.72	-6.63	<0.01
黄埔	M₂	0.28	5.09	<0.01	-0.78	-6.67	<0.01
	K₁	0.05	1.58	0.11	-0.48	-6.21	<0.01
	O₁	0.05	1.67	0.09	-0.51	-6.00	<0.01
	S₂	0.12	5.38	<0.01	-0.79	-6.71	<0.01

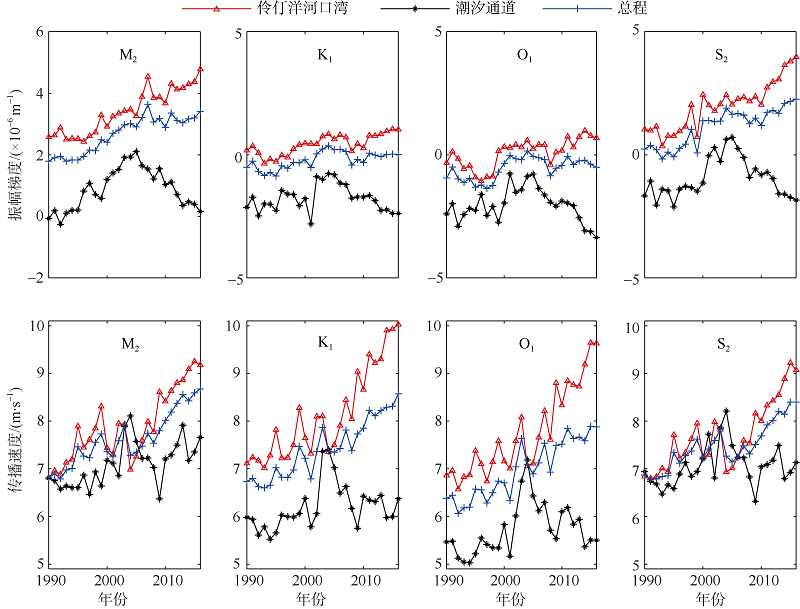

区段	分潮	振幅梯度			传播速度
区段	分潮	年变化量/(×10^-8m^-1)	Z值	p值	年变化量/(m·s^-1)	Z值	p值
伶仃洋河口湾	M₂	8.46	5.59	<0.01	0.09	5.09	<0.01
	K₁	3.94	4.59	<0.01	0.11	5.59	<0.01
	O₁	4.57	3.88	<0.01	0.10	5.46	<0.01
	S₂	11.6	5.21	<0.01	0.08	4.92	<0.01
潮汐通道	M₂	2.92	1.63	0.10	0.03	3.46	<0.01
	K₁	-0.61	-0.38	0.71	0.02	2.29	0.02
	O₁	-0.81	-0.38	0.71	0.02	2.04	0.04
	S₂	2.10	0.63	0.53	0.02	1.63	0.10
总程	M₂	6.83	5.55	<0.01	0.07	5.71	<0.01
	K₁	2.90	3.04	<0.01	0.07	5.71	<0.01
	O₁	2.89	2.08	0.04	0.07	5.50	<0.01
	S₂	8.28	4.96	<0.01	0.06	5.13	<0.01

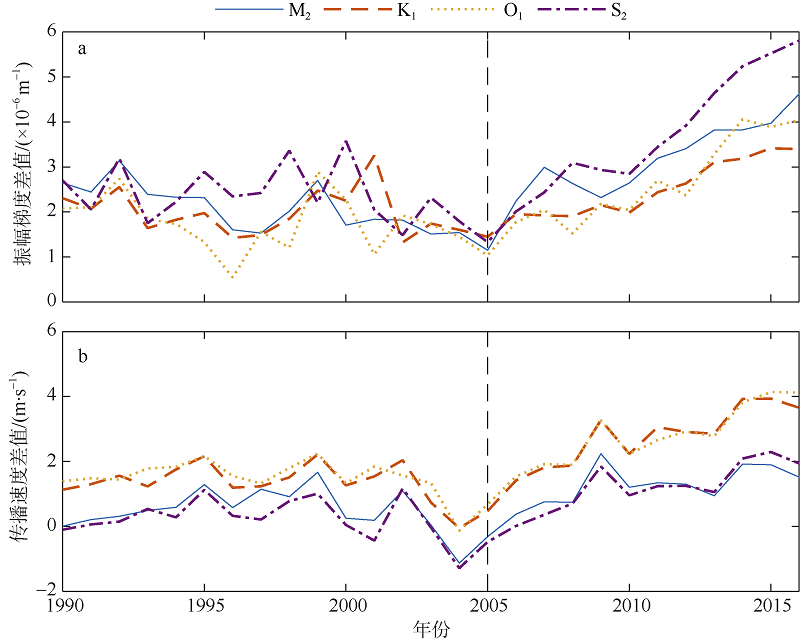

分潮	振幅梯度平均差值/(×10^-6m^-1)		传播速度平均差值/(m·s^-1)
分潮	2005年前	2005年后	2005年前	2005年后
M₂	2.04	3.24	0.46	1.30
K₁	1.95	2.56	1.33	2.82
O₁	1.72	2.72	1.48	2.85
S₂	2.36	3.81	0.21	1.25

Tidal wave propagation dynamics in Lingdingyang Bay-Humen outlet-tidal channel of the Pearl River

RichHTML

PDF (PC)

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 14

References 37

Related Articles 5

Metrics

Comments

Recommended 0

区段	分潮	特征值	平均值		标准差		最大值		最小值
区段	分潮	特征值	突变前	突变后	突变前	突变后	突变前	突变后	突变前	突变后
伶仃洋河口湾	M₂	δ/(×10^-6m^-1)	3.09	4.20	0.58	0.33	4.54	4.79	2.43	3.68
	M₂	c/(m·s^-1)	7.49	8.86	0.43	0.30	8.31	9.25	6.82	8.41
	K₁	δ/(×10^-6m^-1)	0.29	0.77	0.37	0.28	0.84	1.04	-0.35	0.27
	K₁	c/(m·s^-1)	7.59	9.43	0.44	0.48	8.44	10.03	7.01	8.66
	O₁	δ/(×10^-6m^-1)	-0.13	0.56	0.54	0.32	0.58	0.98	-1.06	0.10
	O₁	c/(m·s^-1)	7.24	8.99	0.45	0.46	8.21	9.64	6.57	8.33
	S₂	δ/(×10^-6m^-1)	1.55	3.07	0.69	0.69	2.44	3.98	0.35	2.04
	S₂	c/(m·s^-1)	7.31	8.58	0.39	0.44	7.98	9.22	6.80	8.00
潮汐通道	M₂	δ/(×10^-6m^-1)	0.36	1.19	0.42	0.60	1.08	2.11	-0.26	0.16
	M₂	c/(m·s^-1)	6.69	7.33	0.15	0.42	6.93	8.11	6.46	6.37
	K₁	δ/(×10^-6m^-1)	-1.93	-1.67	0.33	0.62	-1.44	-0.76	-2.48	-2.81
	K₁	c/(m·s^-1)	5.86	6.41	0.20	0.48	6.06	7.41	5.52	5.76
	O₁	δ/(×10^-6m^-1)	-2.30	-1.90	0.37	0.78	-1.60	-0.77	-2.90	-3.35
	O₁	c/(m·s^-1)	5.30	5.97	0.19	0.51	5.55	7.19	5.03	5.17
	S₂	δ/(×10^-6m^-1)	-1.52	-0.61	0.33	0.82	-1.07	0.71	-2.12	-1.83
	S₂	c/(m·s^-1)	6.79	7.21	0.20	0.45	7.13	8.21	6.47	6.32

区段	年份	容积/(×10⁶m³)	表面积/(×10⁶m²)	平均水深/m	最大水深/m	宽深比
伶仃洋河口湾	1996	5434.22	1077.75	5.04	24.19	23.52
伶仃洋河口湾	2016	6100.34	966.82	6.31	24.57	18.71
潮汐通道	1996	1912.85	179.61	10.65	24.35	5.34
潮汐通道	2016	1888.34	174.50	10.82	25.91	5.22
