Journal of Tropical Oceanography ›› 2021, Vol. 40 ›› Issue (5): 111-122.doi: 10.11978/2020131CSTR: 32234.14.2020131
• Marine Geophysics • Previous Articles Next Articles
Preliminary results of the crustal structure along OBS2018-H2 in the northern continental margin of the South China Sea*
SU Xiaokang1,3(
), ZHAO Minghui1,2,3(), LI Zizheng1,3, YUAN Ye1,3, WANG Xingyue1,3, CHENG Jinhui1,3, ZHANG Jiazheng1,2
- 1. CAS Key Laboratory of Ocean and Marginal Sea Geology (South China Sea Institute of Oceanology), Innovation Academy of South China Sea Ecology and Environmental Engineering, Chinese Academy of Sciences, Guangzhou 510301, China
2. Southern Marine Science and Engineering Guangdong Laboratory (Guangzhou), Guangzhou 511458, China
3. University of Chinese Academy of Sciences, Beijing 100049, China
-
Received:2020-11-10Revised:2021-01-04Online:2021-09-10Published:2021-01-08 -
Contact:ZHAO Minghui E-mail:suxiaokang@scsio.ac.cn;mhzhao@scsio.ac.cn -
Supported by:Natural Science Foundation of China(41730532);Natural Science Foundation of China(91958212);Natural Science Foundation of China(42002222);Natural Science Foundation of China(91858212);Key Special Project for Introduced Talents Team of Southern Marine Science and Engineering Guangdong Laboratory(Guangzhou)(GML2019ZD0204);Guangdong Natural Science Foundation research team project(2017A030312002)
CLC Number:
- P712.83
Cite this article
SU Xiaokang, ZHAO Minghui, LI Zizheng, YUAN Ye, WANG Xingyue, CHENG Jinhui, ZHANG Jiazheng. Preliminary results of the crustal structure along OBS2018-H2 in the northern continental margin of the South China Sea*[J].Journal of Tropical Oceanography, 2021, 40(5): 111-122.
share this article
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks
Fig. 1
Location of OBS2018-H2 and the bathymetry map of the northern continental margin of the South China Sea. The black square in Figure a indicates the location of Figure b. The thick solid black line indicates OBS2018-H2. The black arrow indicates the shooting direction. The yellow pentagrams indicate the IODP drilling sites. The red solid circles indicate the OBS sites. Orange solid rectangles, circles and triangles indicate magnetic anomalies C11, C10 and C9, respectively (after Briais et al, 1993). Bathymetric data are from GEBECO_2019 (http://www.geobco.net)"
Fig. 1

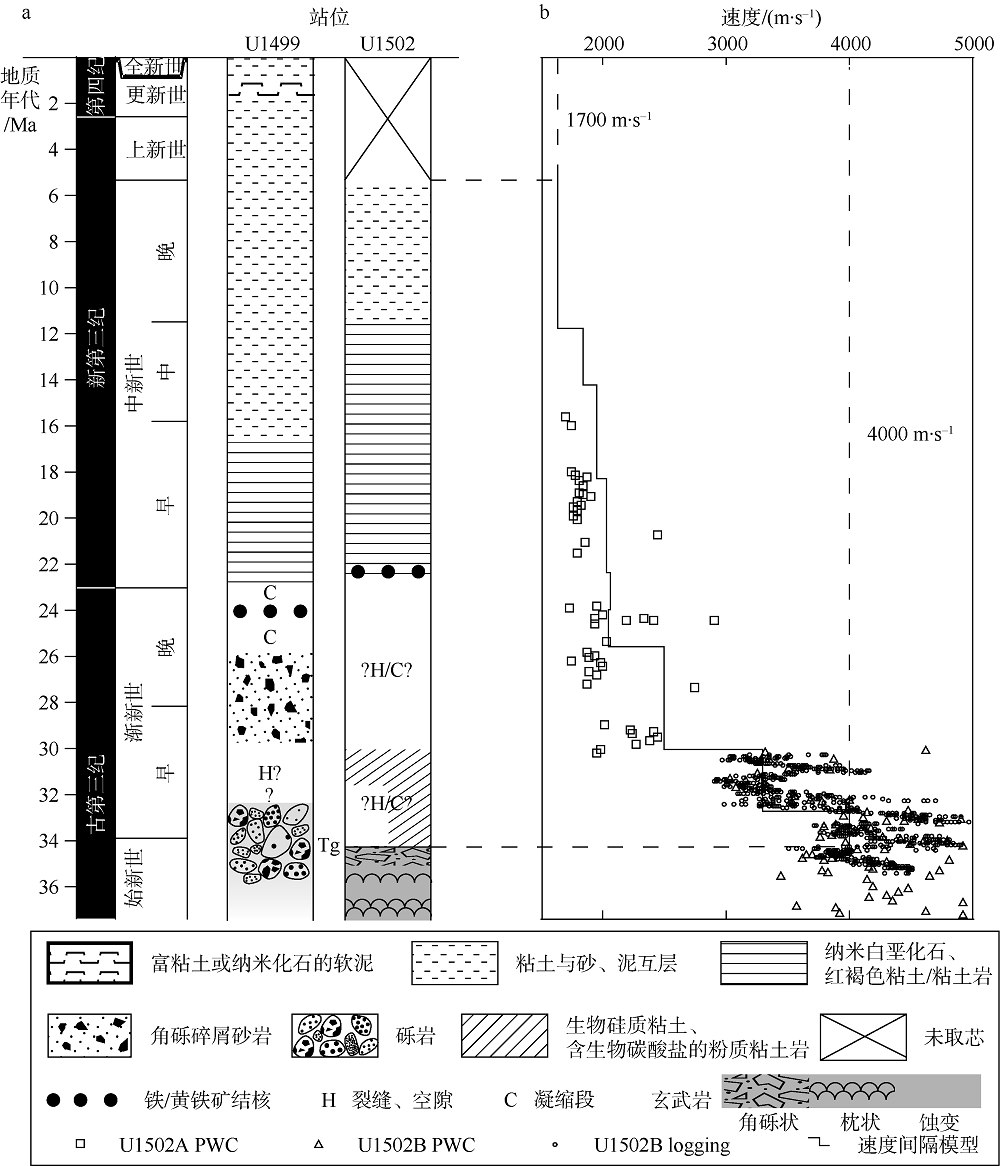

Fig. 2
Drilling results of IODP drilling sites U1499 and U1502. (a) Stratigraphic columns of U1499 and U1502 (modified after Larsen et al, 2018a). (b) The velocity interval model of U1502 (modified after Larsen et al, 2018b). Small squares and triangles indicate PWC (P-wave caliper) data, and small circles indicate logging data"
Fig. 2

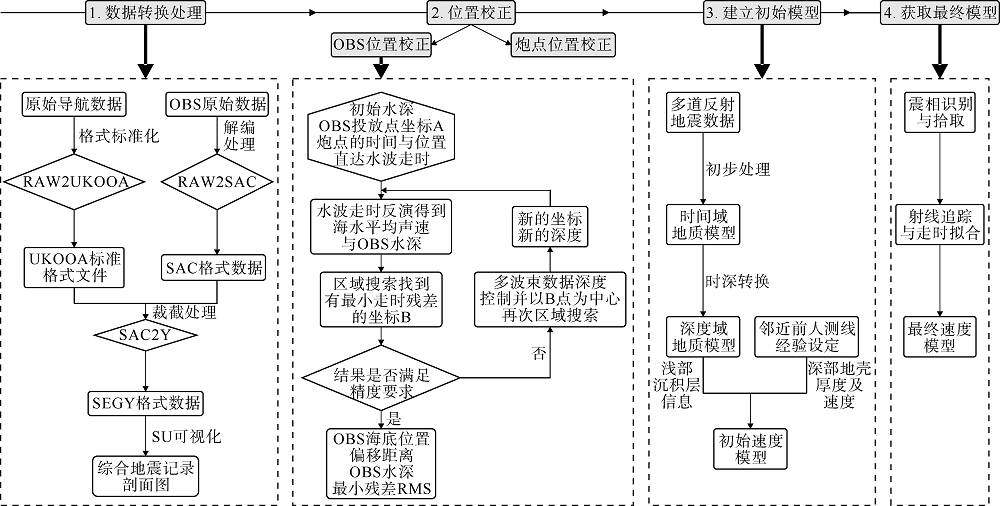

Fig. 3
Flow chart of OBS data processing"
Fig. 3

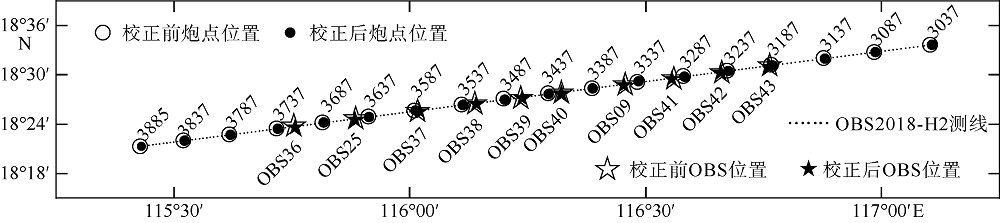

Fig. 4
Shot point locations and OBS locations before and after relocation. The number corresponding to the shot point is its serial number. Highlight every 50 shots. OBS corresponds to its code name. OBS2018-H2 after shot point relocation: y=0.1243x+4.0068"
Fig. 4
Tab. 1
Relocation results of 10 OBS in OBS2018-H2"
| OBS 编号 | 投放位置 | 校正后位置 | 校正后 水深/m | 海水 声速/(m·s-1) | 漂移 距离/m | RMS /ms | |||
|---|---|---|---|---|---|---|---|---|---|
| 东经/(°) | 北纬/(°) | 东经/(°) | 北纬/(°) | ||||||
| 09 | 116.45648 | 18.48332 | 116.45343 | 18.48297 | 3800.2 | 1501.4 | 324.8 | 3.4 | |
| 25 | 115.88451 | 18.41252 | 115.88423 | 18.41135 | 3768.7 | 1501.3 | 131.9 | 4.8 | |
| 36 | 115.75399 | 18.39623 | 115.75665 | 18.39637 | 3766.2 | 1503.1 | 281.8 | 3.5 | |
| 37 | 116.01618 | 18.42904 | 116.01979 | 18.42997 | 3762.6 | 1500.1 | 394.2 | 4.4 | |
| 38 | 116.13817 | 18.44404 | 116.14042 | 18.44650 | 3763.0 | 1501.1 | 361.5 | 3.3 | |
| 39 | 116.23545 | 18.45643 | 116.23679 | 18.45858 | 3772.5 | 1500.2 | 277.6 | 4.7 | |
| 40 | 116.32148 | 18.46648 | 116.32100 | 18.46810 | 3781.6 | 1500.2 | 185.6 | 3.8 | |
| 41 | 116.55881 | 18.49536 | 116.55592 | 18.49517 | 3813.9 | 1498.1 | 305.6 | 4.7 | |
| 42 | 116.66120 | 18.50772 | 116.65918 | 18.50749 | 3837.5 | 1500.3 | 214.6 | 2.1 | |
| 43 | 116.76341 | 18.52016 | 116.76122 | 18.51933 | 3871.1 | 1499.1 | 248.5 | 3.7 | |
Tab. 1

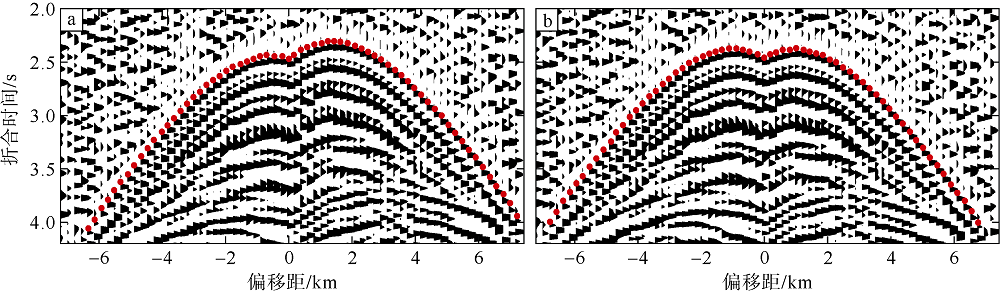

Fig. 5
Contrast of direct water phases (Pw) before and after correction of OBS37. Reduced velocity is 6.0 km·s-1, and reduced travel time = travel time - offset/6"
Fig. 5

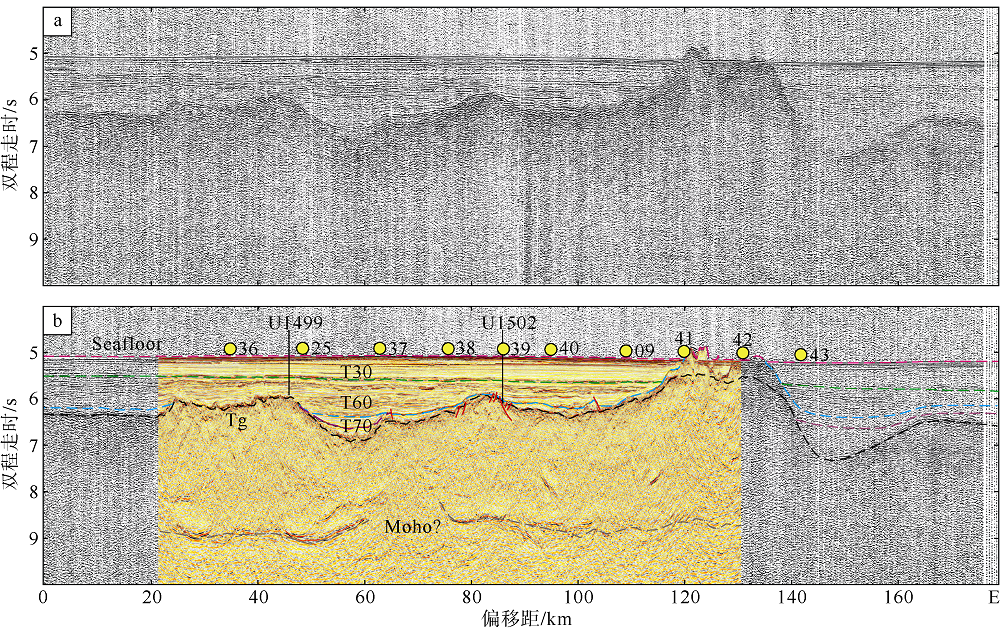

Fig. 6
Multi-channel reflection seismic profile and its horizon interpretation. (a) Original multi-channel reflection seismic profile acquired by Shiyan 2. (b) Horizon interpretation of multi-channel reflection seismic profile. The yellow dots indicate the OBS sites. The black vertical lines indicate the IODP drilling sites of U1499 and U1502. The pink, black and brown dashed lines indicate Seafloor, Tg and Moho, respectively. The green, blue and purple dashed lines indicate unconformity T30, T60 and T70, respectively. The red short lines indicate faults"
Fig. 6

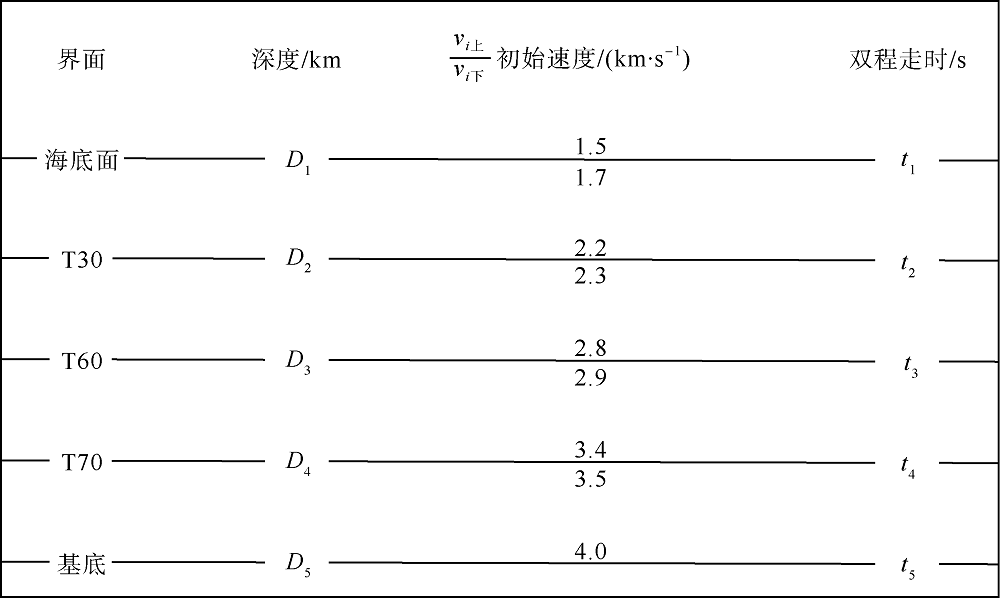

Fig. 7
Corresponding parameters of time-depth conversion calculation"
Fig. 7

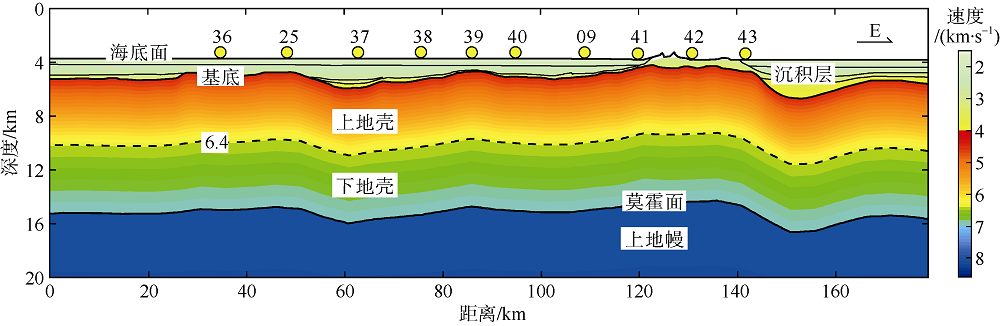

Fig. 8
Initial velocity model of OBS2018-H2. The yellow dots indicate the OBS sites. The curves within the sediment represent the sedimentary interfaces T30, T60, and T70 in Fig. 6. Dashed line indicates 6.4 km·s-1 velocity iso-surface"
Fig. 8

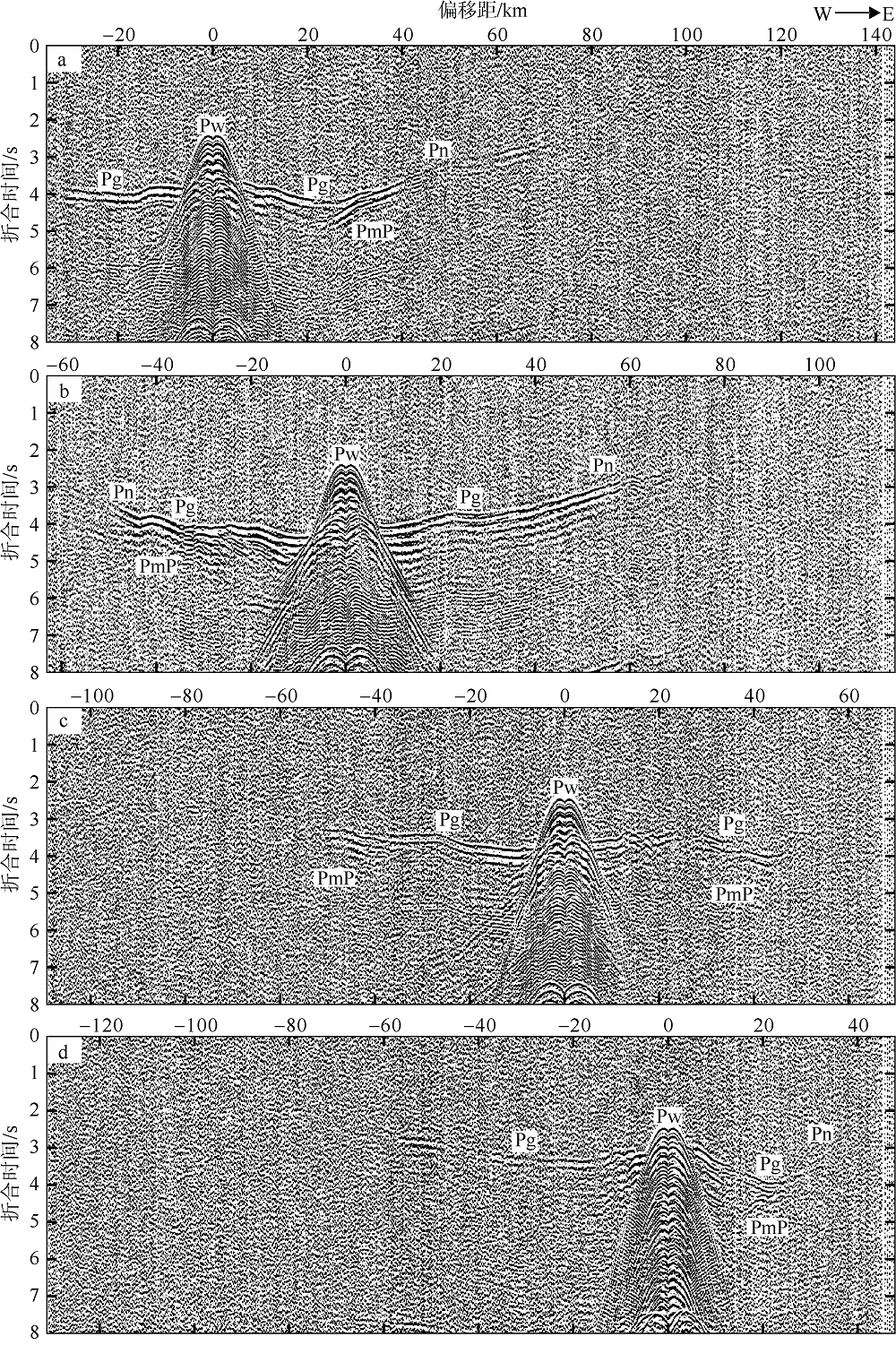

Fig. 9
Comprehensive seismic record profiles of OBS36 (a), OBS37 (b), OBS09 (c) and OBS42 (d). Reduced velocity is 6.0 km·s-1, and reduced travel time = travel time - offset/6. Pw indicates direct water wave phases, Pg indicates crustal refractive phases, PmP indicates reflective phases from Moho, Pn indicates refractive phases from uppermost mantle"
Fig. 9
| [1] | 敖威, 赵明辉, 丘学林, 等, 2010. 西南印度洋中脊三维地震探测中炮点与海底地震仪的位置校正[J]. 地球物理学报, 53(12):2982-2991. |
| AO WEI, ZHAO MINGHUI, QIU XUELIN, et al, 2010. The correction of shot and OBS position in the 3D seismic experiment of the SW India Ocean Ridge[J]. Chinese Journal of Geophysics, 53(12):2982-2991 (in Chinese with English abstract). | |
| [2] | 郭玲莉, 李三忠, 赵淑娟, 等, 2017. 洋-陆转换带类型与成因机制[J]. 地学前缘, 24(4):320-328. |
| GUO LINGLI, LI SANZHONG, ZHAO SHUJUAN, et al, 2017. Formation mechanism and types of ocean-continent transition zones[J]. Earth Science Frontiers, 24(4):320-328 (in Chinese with English abstract). | |
| [3] | 郝天珧, 游庆瑜, 2011. 国产海底地震仪研制现状及其在海底结构探测中的应用[J]. 地球物理学报, 54(12):3352-3361. |
| HAO TIANYAO, YOU QINGYU, 2011. Progress of homemade OBS and its application on ocean bottom structure survey[J]. Chinese Journal of Geophysics, 54(12):3352-3361 (in Chinese with English abstract). | |
| [4] | 李春峰, 汪品先, FRANKE D, 等, 2009. 南海张裂过程及其对晚中生代以来东南亚构造的启示[J]. 地球科学进展, 24(12):1339-1351. |
| LI CHUNFENG, WANG PINXIAN, FRANKE D, et al, 2009. Opening of the South China Sea and its implications for Southeast Asian tectonics since the late Mesozoic[J]. Advances in Earth Science, 24(12):1339-1351 (in Chinese with English abstract). | |
| [5] | 李家彪, 金翔龙, 阮爱国, 等, 2004. 马尼拉海沟增生楔中段的挤入构造[J]. 科学通报, 49(10):1000-1008. |
| LI JIABIAO, JIN XIANGLONG, RUANAIGUO, et al, 2004. Indentation tectonics in the accretionary wedge of middle Manila Trench[J]. Chinese Science Bulletin, 49(12):1279-1288 (in Chinese with English abstract). | |
| [6] | 任金锋, 孙鸣, 朱本铎, 等, 2018. 南海北部IODP U1499站位砾石层的古沉积环境及构造意义[J]. 地球科学, 43(S2):179-191. |
| REN JINFENG, SUN MING, ZHU BENDUO, et al, 2018. Paleo-sedimentary environment and tectonic significance of gravel layers at IODP site U1499 in Northern South China Sea[J]. Earth Science, 43(S2):179-191 (in Chinese with English abstract). | |
| [7] | 汪品先, 2009. 南海——我国深海研究的突破口[J]. 热带海洋学报, 28(3):1-4. |
| WANG PINXIAN, 2009. Toward scientific breakthrough in the South China Sea[J]. Journal of Tropical Oceanography, 28(3):1-4 (in Chinese with English abstract). | |
| [8] | 杨富东, 张佳政, 杜峰, 等, 2020. 三维OBS探测实验中炮点和OBS位置校正新方法[J]. 地球物理学报, 63(2):766-777. |
| YANG FUDONG, ZHANG JIAZHENG, DU FENG, et al, 2020. A new method for shots and OBSs’ relocation applying in three-dimensional seismic survey[J]. Chinese Journal of Geophysics, 63(2):766-777 (in Chinese with English abstract). | |
| [9] | 张佳政, 丘学林, 赵明辉, 等, 2018. 南海巴士海峡三维OBS探测的异常数据恢复[J]. 地球物理学报, 61(4):1529-1538. |
| ZHANG JIAZHENG, QIU XUELIN, ZHAO MINGHUI, et al, 2018. Abnormal data retrieval of three-dimensional OBS survey at the Bashi Channel area of the South China Sea[J]. Chinese Journal of Geophysics, 61(4):1529-1538 (in Chinese with English abstract). | |
| [10] | 张莉, 赵明辉, 王建, 等, 2013. 南海中央次海盆 OBS 位置校正及三维地震探测新进展[J]. 地球科学—中国地质大学学报, 38(1):33-42. |
| ZAHNG LI, ZAHO MINGHUI, WANG JIAN, et al, 2013. Correction of OBS position and recent advances of 3D seismic exploration in the central sub-basin of South China Sea[J]. Earth Science - Journal of China University of Geosciences, 38(1):33-42 (in Chinese with English abstract). | |
| [11] | 赵明辉, 丘学林, 夏戡原, 等, 2004. 南海东北部海陆联测地震数据处理及初步结果[J]. 热带海洋学报, 23(1):58-63. |
| ZHAO MINGHUI, QIU XUELIN, XIA KANYUAN, et al, 2004. Onshore-offshore seismic data processing and preliminary results in NE South China Sea[J]. Journal of Tropical Oceanography, 23(1):58-63 (in Chinese with English abstract). | |
| [12] | 赵明辉, 丘学林, 夏少红, 等, 2008. 大容量气枪震源及其波形特征[J]. 地球物理学报, 51(2):558-565. |
| ZHAO MINGHUI, QIU XUELIN, XIA SHAOHONG, et al, 2008. Large volume air-gun sources and its seismic waveform characters[J]. Chinese Journal of Geophysics, 51(2):558-565 (in Chinese with English abstract). | |
| [13] | BRIAIS A, PATRIAT P, TAPPONNIER P, 1993. Updated interpretation of magnetic anomalies and seafloor spreading stages in the South China Sea: implications for the Tertiary tectonics of Southeast Asia[J]. Journal of Geophysical Research: Solid Earth, 98(B4):6299-6328. |
| [14] | CLIFT P D, LIN JIAN, 2001. Patterns of extension and magmatism along the continent-ocean boundary, South China margin[M] // WILSON R C L, WHITMARSH R B, TAYLOR B, et al, Non-volcanic Rifting of Continental Margins: A Comparison of Evidence from Land and Sea. London: Geological Society, Special Publications, 187:489-510. |
| [15] | DEAN S M, MINSHULL T A, WHITMARSH R B, et al, 2000. Deep structure of the ocean-continent transition in the Southern Iberia Abyssal Plain from seismic refraction profiles: the IAM-9 transect at 40°20′N[J]. Journal of Geophysical Research: Solid Earth, 105(B3):5859-5885. |
| [16] |
DING WEIWEI, SCHNABEL M, FRANKE D, et al, 2012. Crustal structure across the northwestern margin of South China Sea: Evidence for magma-poor rifting from a wide-angle seismic profile[J]. Acta Geologica Sinica, 86(4):854-866.
doi: 10.1111/j.1755-6724.2012.00711.x |
| [17] |
DING WEIWEI, SUN ZHEN, MOHN G, et al, 2020. Lateral evolution of the rift-to-drift transition in the South China Sea: Evidence from multi-channel seismic data and IODP Expeditions 367 & 368 drilling results[J]. Earth and Planetary Science Letters, 531:115932.
doi: 10.1016/j.epsl.2019.115932 |
| [18] |
DU FENG, ZHANG JIAZHENG, YANG FUDONG, et al, 2018. Combination of least square and monte carlo methods for OBS relocation in 3D seismic survey near Bashi channel[J]. Marine Geodesy, 41(5):494-515.
doi: 10.1080/01490419.2018.1479993 |
| [19] |
FRANKE D, BARCKHAUSEN U, BARISTEAS N, et al, 2011. The continent-ocean transition at the southeastern margin of the South China Sea[J]. Marine and Petroleum Geology, 28(6):1187-1204.
doi: 10.1016/j.marpetgeo.2011.01.004 |
| [20] |
GAO JINWEI, WU SHIGUO, MCINTOSH K, et al, 2015. The continent-ocean transition at the mid-northern margin of the South China Sea[J]. Tectonophysics, 654:1-19.
doi: 10.1016/j.tecto.2015.03.003 |
| [21] |
GAO JINWEI, WU SHIGUO, MCINTOSH K, et al, 2016. Crustal structure and extension mode in the northwestern margin of the South China Sea[J]. Geochemistry, Geophysics, Geosystems, 17:2143-2167.
doi: 10.1002/ggge.v17.6 |
| [22] |
GEOFFROY L, 2005. Volcanic passive margins[J]. Comptes Rendus Geoscience, 337(16):1395-1408.
doi: 10.1016/j.crte.2005.10.006 |
| [23] |
GEOFFROY L, BUROV E B, WERNER P, 2015. Volcanic passive margins: another way to break up continents[J]. Scientific Reports, 5:14828.
doi: 10.1038/srep14828 |
| [24] | JIAN ZHIMIN, LARSEN H C, ALVAREZ ZARIKIAN C A, et al, 2018. Expedition 368 Preliminary Report: South China Sea Rifted Margin[M]. Texas: International Ocean Discovery Program. |
| [25] |
LARSEN H C, JIAN ZHIMIN, ALVAREZ ZARIKIAN C A, et al, 2018b. Site U1502[M]// SUN ZHEN, JIAN ZHIMIN, STOCK J M, et al, South China Sea Rifted Margin. Proceedings of the International Ocean Discovery Program, 367/368: College Station, TX (International Ocean Discovery Program), doi: 10.14379/iodp.proc.367368.108.2018.
doi: 10.14379/iodp.proc.367368.108.2018 |
| [26] |
LARSEN H C, MOHN G, NIRRENGARTEN M, et al, 2018a. Rapid transition from continental breakup to igneous oceanic crust in the South China Sea[J]. Nature Geoscience, 11(10):782-789.
doi: 10.1038/s41561-018-0198-1 |
| [27] |
LAVIER L L, MANATSCHAL G, 2006. A mechanism to thin the continental lithosphere at magma-poor margins[J]. Nature, 440(7082):324-328.
doi: 10.1038/nature04608 |
| [28] | LIU SIQING, ZHAO MINGHUI, SIBUET J C, et al, 2018. Geophysical constraints on the lithospheric structure in the northeastern South China Sea and its implications for the South China Sea geodynamics[J]. Tectonophysics, 742- 743:101-119. |
| [29] | LUDWIG W J, KUMAR N, HOUTZ R E, 1979. Profiler- Sonobuoy measurements in the South China Sea Basin[J]. Journal of Geophysical Research: Solid Earth, 84(B7):3505-3518. |
| [30] |
PÉREZ-GUSSINYÉ M, MORGAN J P, RESTON T J, et al, 2006. The rift to drift transition at non-volcanic margins: insights from numerical modelling[J]. Earth and Planetary Science Letters, 244(1-2):458-473.
doi: 10.1016/j.epsl.2006.01.059 |
| [31] |
RESTON T J, 2007. The formation of non-volcanic rifted margins by the progressive extension of the lithosphere: the example of the West Iberian margin[J]. Geological Society, London, Special Publication, 282(1):77-110.
doi: 10.1144/SP282.5 |
| [32] |
RESTON T J, 2009. The structure, evolution and symmetry of the magma-poor rifted margins of the North and Central Atlantic: A synjournal[J]. Tectonophysics, 468(1-4):6-27.
doi: 10.1016/j.tecto.2008.09.002 |
| [33] |
SCHNABEL M, FRANKE D, ENGELS M, et al, 2008. The structure of the lower crust at the Argentine continental margin, South Atlantic at 44°S[J]. Tectonophysics, 454(1-4):14-22.
doi: 10.1016/j.tecto.2008.01.019 |
| [34] |
STOCKWELL J W, 1999. The CWP/SU: Seismic Unix package[J]. Computers & Geosciences, 25(4):415-419.
doi: 10.1016/S0098-3004(98)00145-9 |
| [35] |
SUN QILIANG, ALVES T M, ZHAO MINGHUI, et al, 2020. Post-rift magmatism on the northern South China Sea margin[J]. GSA Bulletin, 132(11-12):2382-2396.
doi: 10.1130/B35471.1 |
| [36] |
SUN ZHEN, LIN JIAN, QIU NING, et al, 2019. The role of magmatism in the thinning and breakup of the South China Sea continental margin: special topic: the south china sea ocean drilling[J]. National Science Review, 6(5):871-876.
doi: 10.1093/nsr/nwz116 |
| [37] |
SUN ZHEN, STOCK J, JIAN ZHIMIN, et al, 2016. Expedition 367/368 Scientific Prospectus: South China Sea Rifted Margin[M]. International Ocean Discovery Program, doi: 10.14379/iodp.sp.367368.2016.
doi: 10.14379/iodp.sp.367368.2016 |
| [38] | TAYLOR B, HAYES D E, 1983. Origin and history of the South China Sea basin[M]// HAYES D E. The Tectonic and Geologic Evolution of Southeast Asian Seas and Islands: Part 2. Washington: Geophysical Monograph Series, 23-56. |
| [39] |
WAN XIAOLI, LI CHUNFENG, ZHAO MINGHUI, et al, 2019. Seismic velocity structure of the magnetic quiet zone and continent-ocean boundary in the northeastern South China Sea[J]. Journal of Geophysical Research: Solid Earth, 124(11):11866-11899.
doi: 10.1029/2019JB017785 |
| [40] |
WANG T K, CHEN M K, LEE C S, et al, 2006. Seismic imaging of the transitional crust across the northeastern margin of the South China Sea[J]. Tectonophysics, 412(3-4):237-254.
doi: 10.1016/j.tecto.2005.10.039 |
| [41] |
WHITMARSH R B, MANATSCHAL G, MINSHULL T A, 2001. Evolution of magma-poor continental margins from rifting to seafloor spreading[J]. Nature, 413(6852):150-154.
doi: 10.1038/35093085 |
| [42] | WILLIAM C T, JOSEPH E T, 1991. SAC-Seismic Analysis Code Users Manual[J]. Livermore. CA: Lawrence Livermore National Laboratory: 1-153. |
| [43] |
YAN PIN, ZHOU DI, LIU ZHAOSHU, 2001. A crustal structure profile across the northern continental margin of the South China Sea[J]. Tectonophysics, 338(1):1-21.
doi: 10.1016/S0040-1951(01)00062-2 |
| [44] |
ZHAO MINGHUI, QIU XUELIN, XIA SHAOHONG, et al, 2010. Seismic structure in the northeastern South China Sea: S-wave velocity and Vp/Vs ratios derived from three-component OBS data[J]. Tectonophysics, 480(1-4):183-197.
doi: 10.1016/j.tecto.2009.10.004 |
| [45] | ZHU JUN JIANG, QIU XUELIN, KOPP H, et al, 2012. Shallow anatomy of a continent-ocean transition zone in the northern South China Sea from multichannel seismic data[J]. Tectonophysics, 554- 557:18-29. |
| [46] |
ZHU JUN JIANG, XU HUILONG, QIU XUELIN, et al, 2018. Crustal structure and rifting of the northern South China Sea margin: Evidence from shoreline-crossing seismic investigations[J]. Geological Journal, 53(5):2065-2083.
doi: 10.1002/gj.v53.5 |
