南海西沙海域冬季海水重金属质量浓度水平及来源分析*

doi:10.11978/2022129

Abstract

Abstract:

In order to investigate the contents and sources of heavy metals in the Xisha waters in the South China Sea, 24 seawater samples at six sites were collected in December of 2021. Vertical profiles of temperature, salinity, turbidity, dissolved oxygen, colored soluble organic matter and chlorophyll were determined by Conductivity-Temperature-Depth instrument. Inductively coupled plasma mass spectrometry was used to measure the contents of heavy metals in seawater samples, and the average Cu, Pb, Zn, Cd, Ni, Cr, As, Fe and Mn contents were 0.22~20.79 µg·L^-1, n.d. (not detected) ~0.25 µg·L^-1, 1.90~15.90 µg·L^-1, 0.13~0.17 µg·L^-1, 0.54~1.31 µg·L^-1, 0.29~0.33 µg·L^-1, 2.93~3.17 µg·L^-1, 0.39~1.23 µg·L^-1 and 0.35~1.14 µg·L^-1, respectively; Hg was not detected. Only Cu or Zn contents in 5m-depth seawater at D2~D4 sites exceeded Class I requirement of National Seawater Quality Standard (GB 3097-1997), and the spatial distribution of heavy metals was influenced by terrestrial inputs, environmental factors and human activities. Principal component analysis indicated that the heavy metals in the Xisha waters are mainly from three sources: ship emission, terrestrial agricultural runoff, as well as terrestrial debris and industrial inputs. The measurements in this study are generally within the range of heavy metal contents previously reported in the South China Sea. However, compared with the background values of the South China Sea in 1998, the contents of Cu, Pb, Zn and Cd in surface seawater have increased by one order of magnitude, reflecting the impact of recent intense human activities in this region.

Key words: heavy metal, ship pollution, Xisha waters, source analysis

DONG Hanying, SU Juan, ZHOU Shengzhen, LIANG Shaoxia, CHEN Guanyu, WANG Fan. Investigating the contents and sources of heavy metals in winter season in the Xisha waters of South China Sea^*[J].Journal of Tropical Oceanography, 2023, 42(2): 169-177.

Figures/Tables 5

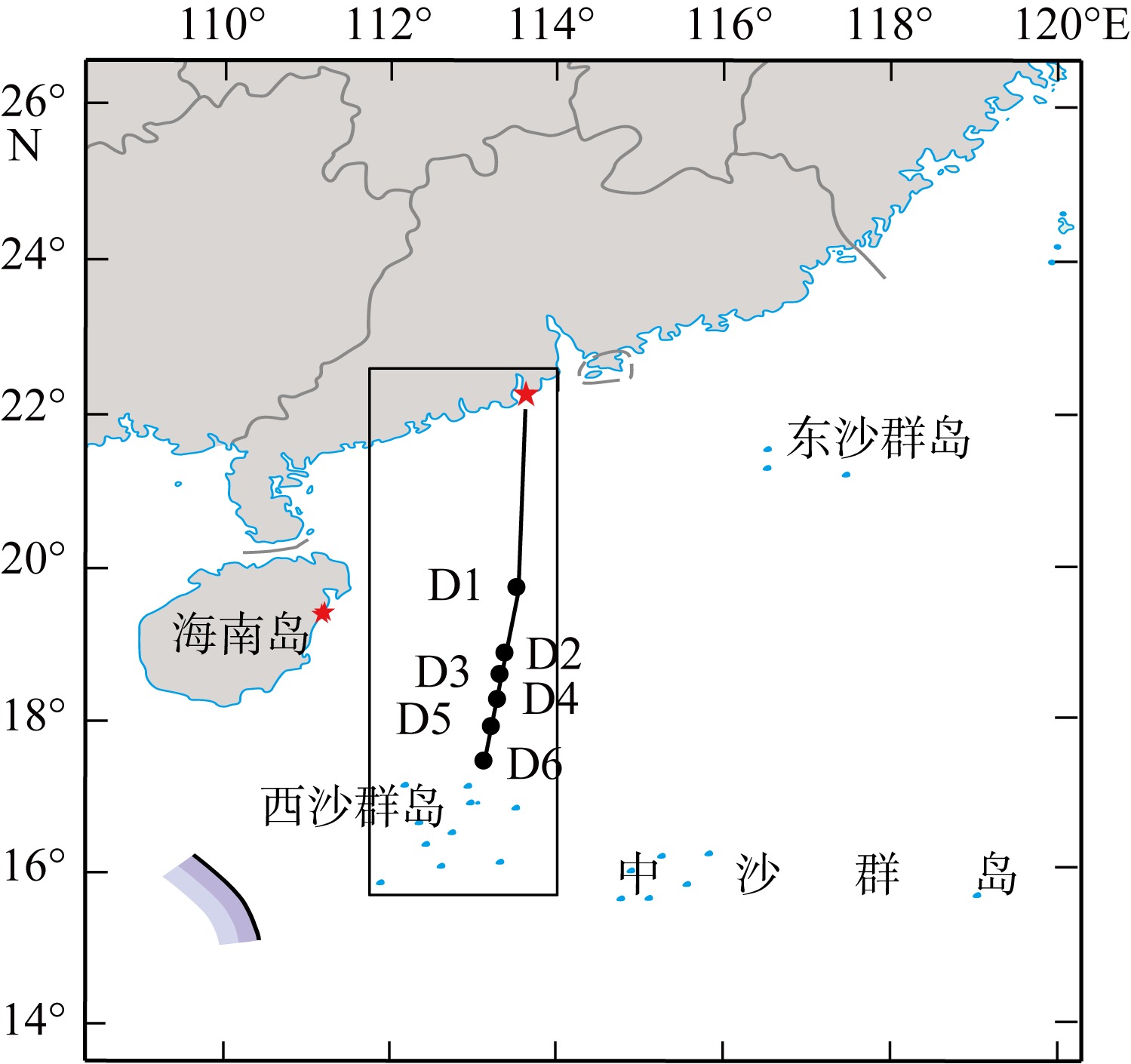

Fig. 1

Tab. 1

Heavy metal contents in the seawater from six sampling sites and National Seawater Quality Standard (GB 3097-1997)"

观测站位	采样深度/m	Cu	Pb	Zn	Cd	Ni	Cr	As	Hg	Fe	Mn
D1	20	0.24	n.d.	0.57	0.15	0.53	0.35	2.97	n.d.	0.63	0.50
	50	0.23	n.d.	4.26	0.12	0.37	0.29	3.10	n.d.	0.94	0.33
	100	0.20	n.d.	1.29	0.14	0.32	0.32	3.11	n.d.	0.32	0.24
	200	0.20	n.d.	4.10	0.21	3.99	0.36	3.50	n.d.	0.55	0.31
	平均值	0.22	n.d.	2.55	0.16	1.31	0.33	3.17	n.d.	0.61	0.35
D2	5	5.32	0.54	9.95	0.08	0.47	0.34	2.81	n.d.	1.53	0.79
	50	0.31	n.d.	2.13	0.13	0.38	0.28	2.84	n.d.	0.38	0.32
	100	0.24	n.d.	1.19	0.14	0.31	0.30	3.07	n.d.	0.29	0.21
	200	0.25	0.03	1.25	0.24	3.28	0.33	3.61	n.d.	0.64	0.40
	平均值	1.53	0.14	3.63	0.15	1.11	0.31	3.08	n.d.	0.71	0.43
D3	5	82.35	0.98	59.61	0.14	2.88	0.34	2.77	n.d.	1.22	1.06
	50	0.32	n.d.	1.69	0.14	0.31	0.27	2.72	n.d.	0.26	0.28
	100	0.23	n.d.	0.85	0.15	0.29	0.27	3.05	n.d.	0.21	0.29
	200	0.25	n.d.	1.45	0.23	1.72	0.27	3.74	n.d.	0.44	0.56
	平均值	20.79	0.25	15.90	0.16	1.30	0.29	3.07	n.d.	0.53	0.55
D4	5	19.49	0.26	28.97	0.14	1.12	0.44	2.67	n.d.	4.19	3.44
	50	0.26	n.d.	0.70	0.16	0.29	0.26	2.71	n.d.	0.10	0.36
	100	0.21	n.d.	0.68	0.13	0.25	0.29	2.89	n.d.	0.21	0.30
	200	0.30	n.d.	1.09	0.24	1.54	0.34	3.47	n.d.	0.42	0.46
	平均值	5.06	0.07	7.86	0.17	0.80	0.33	2.93	n.d.	1.23	1.14
D5	5	3.27	0.09	4.50	0.07	0.33	0.39	2.59	n.d.	0.90	0.49
	50	0.22	n.d.	1.29	0.10	0.28	0.25	2.69	n.d.	0.20	0.36
	100	0.25	n.d.	1.00	0.12	0.37	0.34	3.19	n.d.	0.36	0.34
	200	0.27	n.d.	1.37	0.23	1.20	0.29	3.95	n.d.	0.33	0.34
	平均值	1.01	0.02	2.04	0.13	0.54	0.31	3.11	n.d.	0.45	0.38
D6	5	2.12	0.03	4.22	0.10	2.76	0.34	2.83	n.d.	0.79	0.86
	50	0.27	n.d.	1.00	0.10	0.30	0.25	2.68	n.d.	0.17	0.37
	100	0.22	n.d.	0.96	0.12	0.32	0.32	2.98	n.d.	0.26	0.25
	200	0.21	n.d.	1.40	0.24	0.91	0.30	3.57	n.d.	0.35	0.45
	平均值	0.71	0.01	1.90	0.14	1.07	0.30	3.02	n.d.	0.39	0.48
海水水质标准 (GB 3097-1997)	一类	5	1	20	1	5	50	20	0.05	n.a.	n.a.
	二类	10	5	50	5	10	100	30	0.20	n.a.	n.a.
	三类	50	10	100	10	20	200	50	0.20	n.a.	n.a.
	四类	50	50	500	10	50	500	50	0.50	n.a.	n.a.

Tab. 1

Tab. 2

Tab. 3

Tab. 4

References 30

[1]	陈斌, 尹晓娜, 姜广甲, 等, 2021. 珠江口外陆架海域表层沉积物重金属潜在生态风险评价及来源分析[J]. 应用海洋学学报, 40(3): 520-528.
	CHEN BIN, YIN XIAONA, JIANG GUANGJIA, et al, 2021. Assessment of the potential ecological risk of heavy metals in the sediments of continental shelf and their sources off the Pearl River Estuary[J]. Journal of Applied Oceanography, 40(3): 520-528. (in Chinese with English abstract)
[2]	陈敏, 2009. 化学海洋学[M]. 北京: 海洋出版社. (in Chinese)
[3]	国家环境保护局, 1998. 海水水质标准: GB3097-1997[S]. 北京: 中国标准出版社. (in Chinese)
[4]	国家质量技术监督局, 2007. 海洋监测规范第3部分:样品采集, 贮存与运输 (GB 17378. 2-2007)[S]. 北京: 中国标准出版社. (in Chinese)
[5]	贺仕昌, 陈巧弟, 陈三江, 等, 2021. 永兴岛海域表层海水及沉积物重金属环境质量评估[J]. 海洋技术学报, 40(5): 71-77.
	HE SHICHANG, CHEN QIAODI, CHEN SANJIANG, et al, 2021. Environmental Quality Assessment of Heavy Metals in the Surface Water and Sediments around Yongxing Island[J]. Journal of Ocean Technology, 40(5): 71-77. (in Chinese with English abstract)
[6]	贺仕昌, 蔚广鑫, 王德鸿, 等, 2020. 七连屿海域表层海水及沉积物重金属环境质量评估[J]. 应用海洋学学报, 39(2): 246-252.
	HE SHICHANG, YU GUANGXIN, WANG DEHONG, et al, 2020. Environmental quality assessment of heavy metals in the surface water and sediments around Qilianyu Island[J]. Journal of Applied Oceanography, 39(2): 246-252. (in Chinese with English abstract)
[7]	黄以琛, 李炎, 邵浩, 等, 2008. 北部湾夏冬季海表温度、叶绿素和浊度的分布特征及调控因素[J]. 厦门大学学报(自然科学版), 47(6): 856-863.
	HUANG YICHEN, LI YAN, SHAO HAO, et al, 2008. Seasonal variations of sea surface temperature, chlorophyll-a and turbidity in Beibu Gulf, MODIS imagery study[J]. Journal of Xiamen University, 47(6): 856-863. (in Chinese with English abstract)
[8]	霍文冕, 暨卫东, 许昆灿, 2002. 南海表层水中的溶解态Cu, Pb, Zn, Cd[J]. 海洋学报, 24(4): 44-50.
	HUO WENMIAN, JI WEIDONG, XU KUNCAN, 2002. Dissolved Cu, Pb, Zn and Cd in the South China Sea surface waters[J]. Acta Oceanologica Sinica, 24(4): 44-50. (in Chinese with English abstract)
[9]	暨卫东, 2011. 中国近海海洋环境质量现状与背景值研究[M]. 北京: 海洋出版社. (in Chinese)
[10]	康霖, 2016. 西沙群岛海洋渔业资源调查研究[J]. 海洋与渔业, (2): 64-66. (in Chinese)
[11]	李景喜, 李俊飞, 郑立, 等, 2013. 南海中南部水域海水中重金属的分布特征[J]. 中国环境监测, 29(3): 65-71.
	LI JINGXI, LI JUNFEI, ZHENG LI, et al, 2013. Distribution of Heavy Metals in the Mid-South Part of South China Sea Water[J]. Environmental Monitoring in China, 29(3): 65-71. (in Chinese with English abstract)
[12]	李荣凤, 王文质, 黄企洲, 1994. 南海夏季海流的数值模拟[J]. 大气科学, (3): 257-262.
	LI RONGFENG, WANG WENZHI, HUANG QIZHOU, 1994. Simulated Results of the Current in the South China Sea in Summer[J]. Scientia Atmospherica Sinica, (3): 257-262. (in Chinese with English abstract)
[13]	彭加喜, 刘金铃, 徐向荣, 等, 2014. 西沙永兴岛珊瑚重金属水平及其富集效应[J]. 海洋环境科学, 33(6): 848-853.
	PENG JIAXI, LIU JINLING, XU XIANGRONG, et al, 2014. Heavy metal levels in coral skeletons from Yongxing Island and their enrichment effects[J]. Marine Environmental Science, 33(6): 848-853. (in Chinese with English abstract)
[14]	孙立广, 赵三平, 刘晓东, 等, 2005. 西沙群岛生态环境报告[J]. 自然杂志, 27(2): 79-84.
	SUN LIGUANG, ZHAO SANPING, LIU XIAODONG, et al, 2005. An Eco-Environmental Report on Xisha Archipelago, South China Sea[J]. Chinese Journal of Nature, 27(2): 79-84. (in Chinese with English abstract)
[15]	谭趣孜, 梁文, 2011. 广西涠洲岛附近海域水质现状评价与分析[J]. 广西轻工业, (10): 107-108. (in Chinese)
[16]	王璐, 余克服, 王英辉, 等, 2017. 南海中沙群岛、西沙群岛珊瑚岛礁区海水重金属的分布特征[J]. 热带地理, 37(5): 718-727. doi: 10.13284/j.cnki.rddl.002989
	WANG LU, YU KEFU, WANG YINGHUI, et al, 2017. Distribution Characteristic of Heavy Metals in Coral Reefs Located in the Zhongsha Islands and Xisha Islands of South China Sea[J]. Tropical Geography, 37(5): 718-727. (in Chinese with English abstract) doi: 10.13284/j.cnki.rddl.002989
[17]	杨华, 王少鹏, 余克服, 等, 2017. 南海北部珊瑚生长区海水重金属污染特征[J]. 生态环境学报, 26(2): 253-260. doi: 10.16258/j.cnki.1674-5906.2017.02.010
	YANG HUA, WANG SHAOPENG, YU KEFU, et al, 2017. Pollution characteristics of heavy metals in seawater of coral growing regions in the Northern South China Sea[J]. Ecology and Environmental Sciences, 26(2): 253-260. (in Chinese with English abstract)
[18]	于涛, 2003. 南海海水中溶解态铜、铅、锌、镉环境背景值的初步研究[J]. 台湾海峡, 22(3): 329-333.
	YU TAO, 2003. Study about dissolved heavy metals and their background values in South China Sea[J]. Journal of Oceanography in Taiwan Strait, 22(3): 329-333. (in Chinese with English abstract)
[19]	赵德, 卢先刚, 庞东豪, 等, 2022. 南海海流环境特征及其对深水钻井装置的影响研究[J]. 中国资源综合利用, 40(2): 65-67.
	ZHAO DE, LU XIANGANG, PANG DONGHAO, et al, 2022. Study on environmental characteristics of the South China Sea Current and its influence on deepwater drilling unit[J]. China Resources Comprehensive Utilization, 40(2): 65-67. (in Chinese with English abstract)
[20]	周静, 杨东, 彭子成, 等, 2007. 西沙海域海水中溶解态重金属的含量及其影响因子[J]. 中国科学技术大学学报, (8): 1036-1042.
	ZHOU JING, YANG DONG, PENG ZICHENG, et al, 2007. The concentrations of dissolved heavy metals in Xisha waters and their influential factors[J]. Journal of University of Science and Technology of China, (8): 1036-1042. (in Chinese with English abstract)
[21]	BEHRENFELD M J, KOLBER Z S, 1999. Widespread iron limitation of phytoplankton in the south Pacific Ocean[J]. Science, 283(5403): 840-843. doi: 10.1126/science.283.5403.840
[22]	BRULAND K, 1983. Trace elements in seawater[M]// RILEYJ P, CHESTERR. Chemical oceanography. London: Academic Press: 158-220.
[23]	ESSOKA P A, UBOGU A E, UZU L, 2006. An overview of oil pollution and heavy metal concentration in Warri area, Nigeria[J]. Management of Environmental Quality, 17(2): 209-215. doi: 10.1108/14777830610650519
[24]	HAN QIUYING, HUANG XIAOPING, XING QIANGUO, et al, 2012. A review of environment problems in the coastal sea of South China[J]. Aquatic Ecosystem Health & Management, 15(2): 108-117.
[25]	HAYWARD T L, VENRICK E L, 1982. Relation between surface chlorophyll, integrated chlorophyll and integrated primary production[J]. Marine Biology, 69: 247-252. doi: 10.1007/BF00397490
[26]	JIAN LI, GUO RUI, ZHENG XIAOBO, et al, 2021. Trace elements in green turtle eggshells and coral sand sediments from the Xisha Islands, South China Sea[J]. Marine Pollution Bulletin, 164(1): 112036. doi: 10.1016/j.marpolbul.2021.112036
[27]	LIU YANG, KUANG WEIMING, XU JING, et al, 2022. Distribution, source and risk assessment of heavy metals in the seawater, sediments, and organisms of the Daya Bay, China[J]. Marine Pollution Bulletin, 174: 113297. doi: 10.1016/j.marpolbul.2021.113297
[28]	MATTHIESSEN P, REED J, JOHNSON M, 1999. Sources and potential effects of copper and zinc concentrations in the estuarine waters of Essex and Suffolk, United Kingdom[J]. Marine Pollution Bulletin, 38(10): 908-920. doi: 10.1016/S0025-326X(99)00090-9
[29]	NAGAI T, IMAI A, MATSUSHIGE K, et al, 2004. Voltammetric determination of dissolved iron and its speciation in freshwater[J]. Limnology, 5(2): 87-94.
[30]	TIAN YAJINGJ, CHEN JINGHAO, HUANG JIANXIN, et al, 2017. Research of ship antifouling paint pollutants analysis and treating technique[J]. Chinese Journal of Environmental Engineering, 11(2): 1164-1170.

观测站位	采样深度/m	水温/℃	盐度/‰	浊度/NTU	溶解氧/ (mg·L^-1)	有色可溶性有机质质量浓度/(μg·L^-1)	叶绿素质量浓度/(µg·L^-1)
D1	20	25.72	33.75	0.061	6.47	222.88	0.355
	50	25.72	33.77	0.067	6.46	170.02	0.330
	100	23.58	34.30	0.060	5.62	80.98	0.209
	200	15.76	34.60	0.041	4.69	9.23	0.048
	平均值	22.70	34.11	0.057	5.81	120.78	0.236
D2	5	25.95	33.66	0.067	9.38	161.99	0.295
	50	25.92	33.66	0.067	6.53	74.79	0.331
	100	22.95	34.37	0.054	5.45	9.23	0.197
	200	14.50	34.55	0.048	4.58	9.23	0.053
	平均值	22.33	34.06	0.059	6.49	63.81	0.219
D3	5	25.95	33.86	0.067	6.52	9.23	0.417
	50	25.71	33.86	0.077	6.53	9.23	0.429
	100	22.31	34.40	0.061	5.15	9.22	0.247
	200	15.75	34.59	0.048	4.59	9.23	0.054
	平均值	22.43	34.18	0.063	5.70	9.23	0.286
D4	5m	25.77	33.78	0.067	6.53	191.11	0.208
	50m	25.77	33.80	0.073	6.53	104.82	0.258
	100m	24.11	34.26	0.062	5.85	16.24	0.236
	200m	15.41	34.58	0.054	4.24	9.23	0.052
	平均值	22.76	34.11	0.064	5.79	80.34	0.189
D5	5m	25.31	33.97	0.077	6.66	286.25	0.164
	50m	25.27	33.97	0.072	6.61	186.06	0.367
	100m	25.27	33.98	0.083	6.57	104.54	0.355
	200m	15.65	34.58	0.042	3.94	9.22	0.053
	平均值	22.78	34.12	0.069	5.95	146.52	0.235
D6	5m	26.32	33.59	0.061	4.24	108.22	0.139
	50m	26.01	33.65	0.077	6.39	9.20	0.439
	100m	19.94	34.56	0.060	4.49	9.23	0.184
	200m	14.12	34.53	0.042	4.17	9.23	0.052
	平均值	21.60	34.08	0.060	4.82	33.96	0.204

重金属	成分
重金属	第一主成分(F₁)	第二主成分(F₂)	第三主成分(F₃)
Cu	0.820	0.100	-0.535
Pb	0.843	0.005	-0.451
Zn	0.922	0.083	-0.347
Cd	-0.232	0.906	0.030
Ni	0.333	0.767	-0.098
Cr	0.674	0.176	0.520
As	-0.366	0.869	0.053
Fe	0.811	-0.014	0.540
Mn	0.791	0.004	0.517

研究海域	海水层位	采样时间	Cu	Pb	Zn	Cd	Ni	Cr	As	Hg	Fe	Mn	参考文献
南海海域背景值	表层<10m	1998年6月和 11月	0.014~0.41	0.006~0.27	0.013~0.35	0.001~0.072	n.a.	n.a.	n.a.	n.a.	n.a.	n.a.	于涛(2003)
西沙海域	表层5m	2004年	0.87~4.33	0.79~3.89	0.41~1.44	0.01~1.00	2.09~8.46	0.05~0.23		n.d.~0.02	0.20~1.50	0.67~0.99	周静等(2007)
南海中南部海域	0m、200m、500m	2010年秋季	0.244~2.61	0.026~10.2	1.00~139	0.037~ 0.909	n.a.	0.314~0.908	0.032~3.46	n.a.	n.a.	n.a.	李景喜等(2013)
北部湾和三亚湾珊瑚生长区	表层2~10m	2015年8—10月	0.40~1.52	0.12~3.06	3.25~14.67	n.d.~ 0.55	n.a.	0.58~1.24	0.51~1.93	0.013~0.14	n.a.	n.a.	杨华等(2017)
中沙和西沙岛礁区	表层	2015年夏	n.d.~4.119	n.d.~4.904	0.284~6.976	0.005~0.138	n.a.	n.d.~0.589	0.041~0.553	n.a.	n.a.	n.a.	王璐等(2017)
七连屿海域	表层	2017年8月	0.13~0.66	0.13~3.82	3.3~14.0	0.011~0.399	n.a.	0.7~1.4	n.d.~ 1.7	n.d.~0.029	n.a.	n.a.	贺仕昌等(2020)
永兴岛海域	表层	2020年5月	0.40	0.36	3.1	0.04	n.a.	0.03	1.7	0.014	n.a.	n.a.	贺仕昌等(2021)
西沙海域海水	5m或20m、50m、 100m、200m	2021年12月	0.195~82.34	n.d.~0.98	0.565~59.61	0.065~0.24	0.248~3.99	0.245~0.44	2.593~3.94	n.d.	0.098~4.19	0.21~3.44	本研究
