冬季波浪与人工岛联合作用下日月湾海滩冲淤演变特征

doi:10.11978/2021150

Abstract

Abstract:

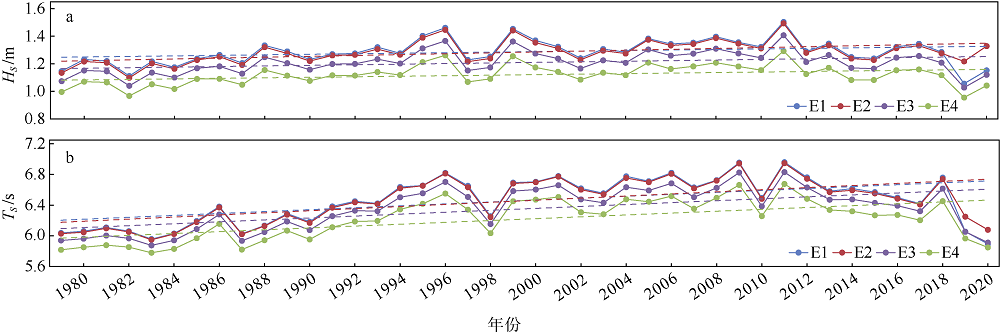

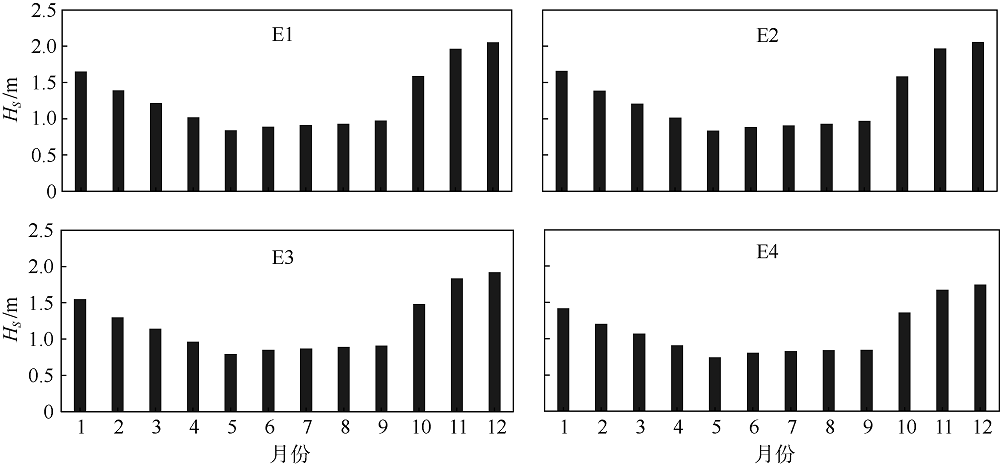

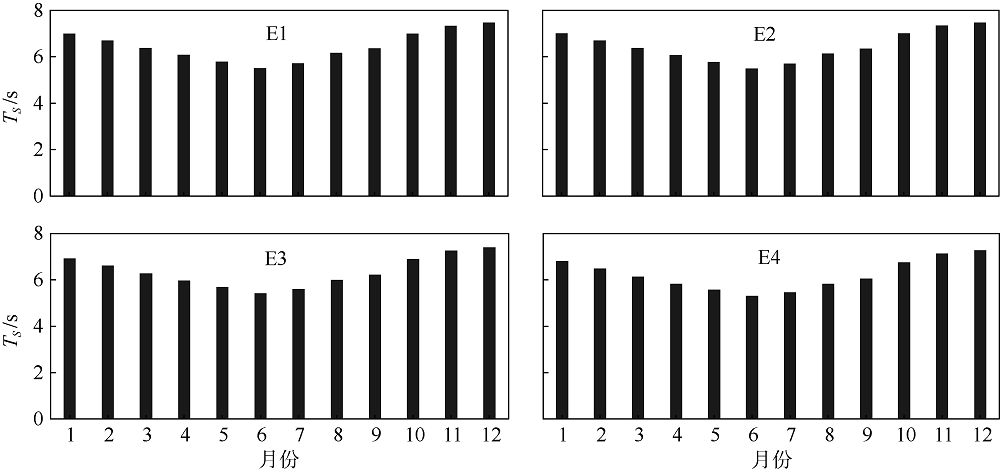

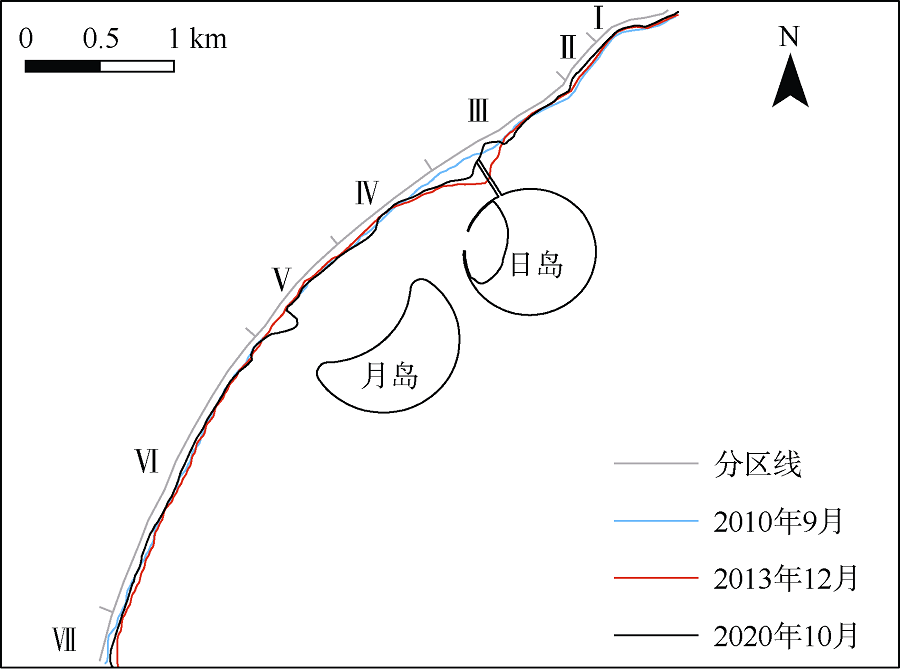

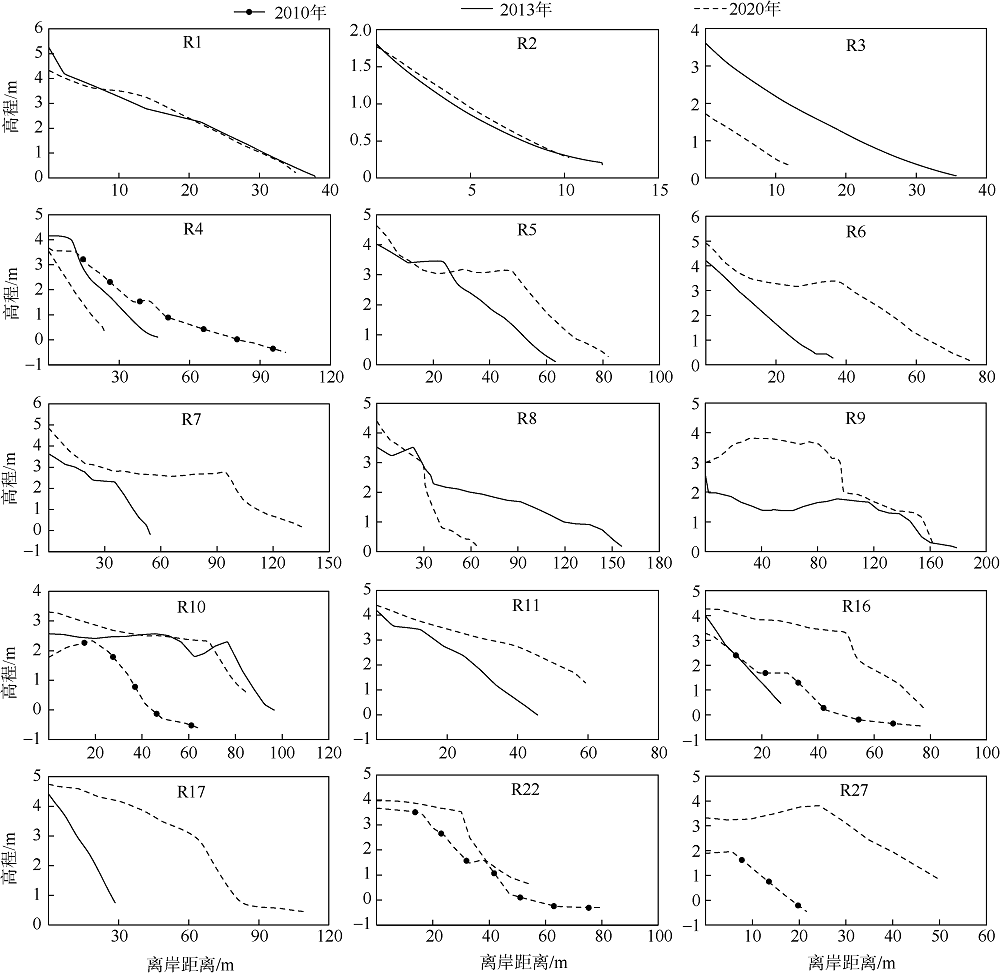

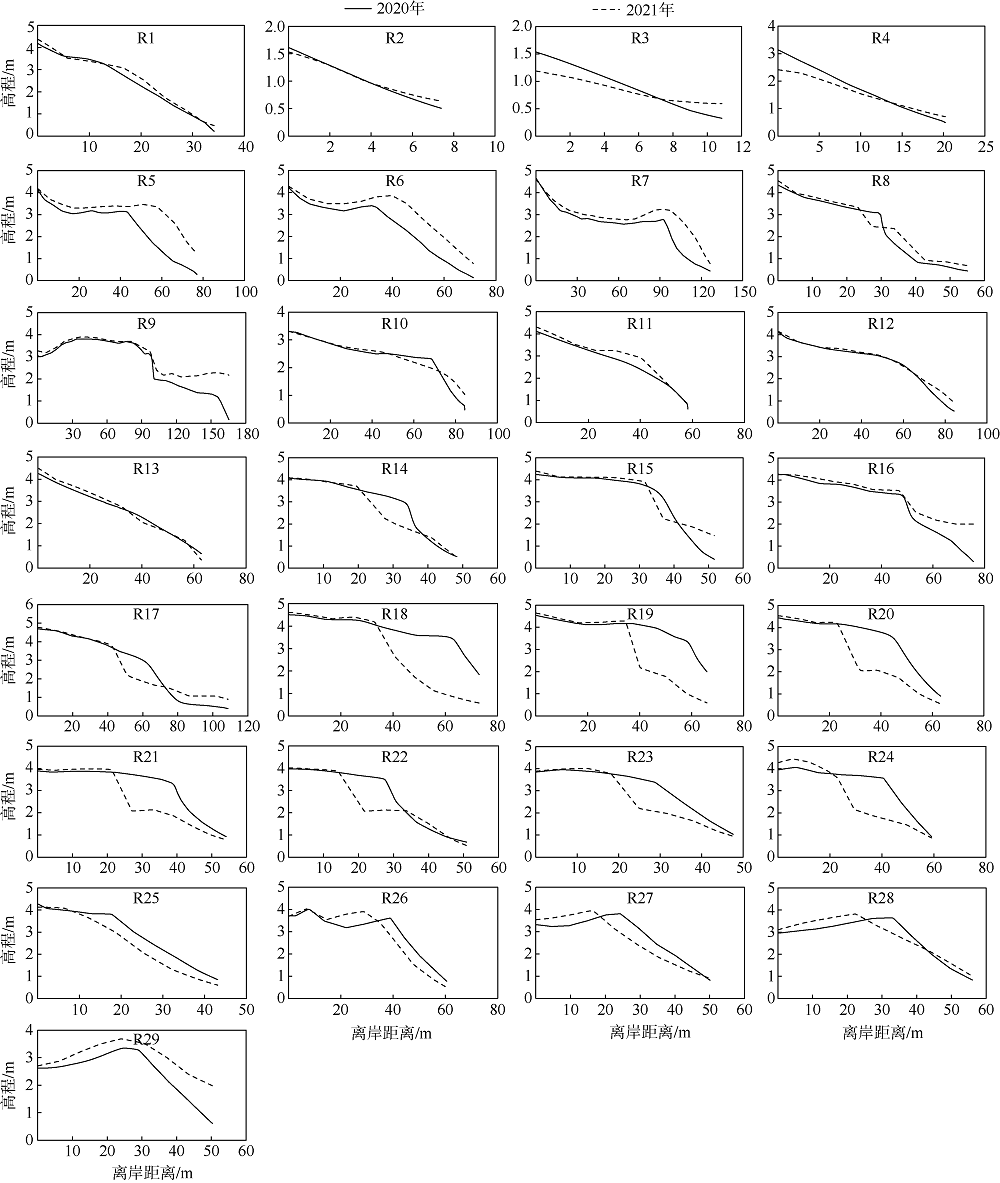

As a new form of coastal engineering, the artificial island has been receiving increasing attentions from community to the beach erosion and accretion due to its construction. Based on the multi-temporal remote sensing images and four field surveys, the influence of winter waves combined with artificial islands on the erosion and accretion of the Riyue Bay beach has been analyzed. Besides, the mechanism of beach erosion and accretion was explored using the wave data in the adjacent sea area. Our new results show that the average significant wave heights and wave periods in the winter were obviously stronger than those in the summer, and the wave force generally shows an increasing trend year by year, but its variation is not significant around the artificial island before and after the construction of islands. The construction of artificial island has a significant impact on the beach topographic profile, showing the obvious characteristics of accretion in the area sheltered by the artificial island and erosion on two sides of the beach. The beach accreted continuously in the island shadow area, and the shoreline in that area moved up to 200 m towards the sea, which may even be linked with the artificial islands to form a tombolo. The beach was eroded and the maximum erosion distance of shoreline to land is about 50 m on both sides behind the artificial island. The Riyue Bay beach is strongly affected by the winter waves and artificial islands. From north to south, the beach was at a state of stability-erosion-accretion, relative stability, slight erosion or accretion-erosion-accretion.

Key words: erosion and accretion evolution, artificial island, the Riyue Bay beach, wave condition

CLC Number:

P737.13

ZHANG Daheng, SHI Lianqiang, GONG Zhaohui, GUO Junli. Evolution characteristics of beach erosion and accretion at the Riyue Bay under the combined impacts of winter waves and artificial island[J].Journal of Tropical Oceanography, 2022, 41(4): 71-81.

Figures/Tables 12

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Tab. 1

Fig. 10

Fig. 11

References 23

[1]	蔡锋, 苏贤泽, 刘建辉, 等, 2008. 全球气候变化背景下我国海岸侵蚀问题及防范对策[J]. 自然科学进展, 18(10): 1093-1103.
	CAI FENG, SU XIANZE, LIU JIANHUI, et al, 2008. Problems and measures of coastal erosion in China under global climate change[J]. Progress in Natural Science, 18(10): 1093-1103. (in Chinese)
[2]	蔡锋, 刘根, 2019. 我国海滩养护修复的发展与技术创新[J]. 应用海洋学学报, 38(4): 452-463.
	CAI FENG, LIU GENG, 2019. Beach nourishment development and technological innovations in China: an overview[J]. Journal of Applied Oceanography, 38(4): 452-463. (in Chinese with English abstract)
[3]	龚文平, 李昌宇, 林国尧, 等, 2012. DELFT 3D在离岸人工岛建设中的应用-以海南岛万宁日月湾人工岛为例[J]. 海洋工程, 30(3): 35-44.
	GONG WENPING, LI CHANGYU, LIN GUOYAO, et al, 2012. Application of DELFT 3D model for plan design of an artificial island—a case study for the artificial island construction in the Riyue Bay, Wanning City, Hainan Island[J]. The Ocean Engineering, 30(3): 35-44. (in Chinese with English abstract)
[4]	胡殿才, 汪生杰, 崔峥, 2012. 某离岸人工岛平面方案论证[J]. 水运工程, (12): 162-167, 199.
	HU DIANCAI, WANG SHENGJIE, CUI ZHENG, 2012. On plane program of offshore artificial island[J]. Port & Waterway Engineering, (12): 162-167, 199. (in Chinese with English abstract)
[5]	季荣耀, 徐群, 莫思平, 等, 2012. 港珠澳大桥人工岛对水沙动力环境的影响[J]. 水科学进展, 23(6): 829-836.
	JI RONGYAO, XU QUN, MO SIPING, et al, 2012. Effects on the hydrodynamics and sediment environment by artificial islands of the Hong Kong-Zhuhai-Macao Bridge[J]. Advances in Water Science, 23(6): 829-836. (in Chinese with English abstract)
[6]	匡翠萍, 俞露露, 顾杰, 等, 2019. 人工岛对金梦海湾水体交换的影响[J]. 中国环境科学, 39(2): 757-767.
	KUANG CUIPING, YU LULU, GU JIE, et al, 2019. Influences of artificial island on water exchange of Jinmeng Bay[J]. China Environmental Science, 39(2): 757-767. (in Chinese with English abstract)
[7]	李珊, 2015. 海南万宁日月湾人工岛冲淤特性研究[D]. 青岛: 中国海洋大学.
	LI SHAN, 2015. Hainan Wannings Riyuewan island sediment characteristics research[D]. Qingdao: Ocean University of China. (in Chinese with English abstract)
[8]	马志泉, 陈钦明, 高德政, 2012. 用中国地区ERA-Interim资料计算ZTD和ZWD的精度分析[J]. 大地测量与地球动力学, 32(2): 100-104.
	MA ZHIQUAN, CHEN QINMING, GAO DEZHENG, 2012. Study on accuracy of ZTD and ZWD calculated from era-interim data over China[J]. Journal of Geodesy and Geodynamics, 32(2): 100-104. (in Chinese with English abstract)
[9]	石萍, 曹玲珑, 莫文渊, 等, 2015. 人工岛建设对海口湾西海岸岸滩稳定性影响[J]. 热带海洋学报, 34(5): 57-63.
	SHI PING, CAO LINGLONG, MO WENYUAN, et al, 2015. Influence of man-made island construction on the stability of the beach in the west coast of Haikou Bay[J]. Journal of Tropical Oceanography, 34(5): 57-63. (in Chinese with English abstract)
[10]	张翠萍, 贾后磊, 郑兆勇, 等, 2016. 离岸人工岛填海造地的正负环境效应分析及对策研究-以海南万宁日月湾人工岛为例[J]. 海洋湖沼通报, (2): 17-23.
	ZHANG CUIPING, JIA HOULEI, ZHENG ZHAOYONG, et al, 2016. Countermeasures and analysis on the positive and negative environmental effect of offshore artificial island reclamation-a case study of artificial island project of Riyue bay Hainan[J]. Transactions of Oceanology and Limnology, (2): 17-23.. (in Chinese with English abstract)
[11]	钟小菁, 2017. 海南岛海滩地貌动态: 常态过程, 极端事件和人工岛建设的影响[D]. 上海: 华东师范大学.
	ZHONG XIAOJING, 2017. Morphodynamics of the beaches around Hainan Island: the normal processes, the influences of extreme events and artificial island construction[D]. Shanghai: East China Normal University. (in Chinese with English abstract)
[12]	BERRISFORD P, DEE D P, POLI P, et al, 2011. The ERA-interim archive version 2.0[R]. Shinfield Park: ECMWF.
[13]	BRUUN P, 1962. Sea-level rise as a cause of shore erosion[J]. Journal of the Waterways and Harbors Division, 88(1): 117-130.
[14]	DALLY W R, POPE J, 1986. Detached breakwaters for shore protection[R]. San Diego: Unknown:51.
[15]	HALLERMEIER R J, 1983. Sand transport limits in coastal structure design[C]// Proceedings of the international conference on coastal structure’83. New York: ASCE: 703-716.
[16]	MULLER J, WÜST R A J, HEARTY P J, 2006. Sediment transport along an artificial shoreline: "The Strand", Townsville, NE-Queensland, Australia[J]. Estuarine, Coastal and Shelf Science, 66(1-2): 204-210. doi: 10.1016/j.ecss.2005.09.002
[17]	NAM P T, LARSON M, HANSON H, et al, 2011. A numerical model of beach morphological evolution due to waves and currents in the vicinity of coastal structures[J]. Coastal Engineering, 58(9): 863-876. doi: 10.1016/j.coastaleng.2011.05.006
[18]	NISHI R, UDA T, SATO M, et al, 1998. Coastal erosion caused by construction of an artificial island and performance of beach nourishment[C]// Proceedings of 26th international conference on coastal engineering. Reston: ASCE: 1679-1692.
[19]	SCHWAB W C, BALDWIN W E, HAPKE C J, et al, 2013. Geologic evidence for onshore sediment transport from the inner continental shelf: Fire Island, New York[J]. Journal of Coastal Research, 29(3): 526-544.
[20]	SHORT A D. 1979. Wave power and beach-stages: a global model[C]// Proceedings of 16th coastal engineering conference. Reston: ASCE:1145-1162.
[21]	VOUSDOUKAS M I, RANASINGHE R, MENTASCHI L, et al. 2020. Sandy coastlines under threat of erosion[J]. Nature Climate Change, 10(3): 260-263. doi: 10.1038/s41558-020-0697-0
[22]	ZHU JUN, CAI FENG, SHI FENGYAN, et al, 2019. Beach response to breakwater layouts of drainage pipe outlets during beach nourishment[J]. Estuarine, Coastal and Shelf Science, 228: 106354. doi: 10.1016/j.ecss.2019.106354
[23]	ZYSERMAN J A, JOHNSON H K, 2002. Modelling morphological processes in the vicinity of shore-parallel breakwaters[J]. Coastal Engineering, 45(3-4): 261-284. doi: 10.1016/S0378-3839(02)00037-6

区段	Ⅰ	Ⅱ	Ⅲ	Ⅳ	Ⅴ	Ⅵ	Ⅶ
剖面	R1、R2	R3、R4	R5—R9	R10—R13	R14—R17	R18—R28	R29
冲淤情况	稳定	侵蚀	淤积	相对稳定	略有侵蚀或淤积	侵蚀	淤积
