北部湾棕囊藻藻华原因种分析

doi:10.11978/2020030

Abstract

Abstract:

In recent years, Phaeocystis has become the main causative species for algal blooms in the Beibu Gulf of China. It has deleterious effects on marine ecosystem and aquaculture, and causes nuclear power plant safety problems in Fangcheng. It is thus urgent to further analyze the causative species of Phaeocystis in the region. In February and March 2017, nine strains of Phaeocystis sp. identified by optical microscope were isolated during algal blooms in Qinzhou Bay and Weizhou Island; their SSU rDNA sequences were then analyzed using Maximum Likelihood (ML) phylogenetic tree. The results showed that all nine strains of Phaeocystis sp. were morphologically consistent with those of Phaeocystis globosa. Their genetic distance varied between 0.0000-0.0073; and in the phylogenetic tree, all clustered in the same branch with those P. globosa from other seawaters. Among them, WZS3-1 strain in the Beibu Gulf had the closest genetic relationship with P. globosa from Gulf of Mexico CCMP627, Surinam CCMP628, Ecuador CCMP1528, South Africa P162, China Sea RCC:K1398 and Santou97, exhibiting a genetic distance of 0.0000. Strains of WZS1, WZS2, WZS4, and WZS5 in the Beibu Gulf had a genetic distance of 0.0000 with Hong Kong SKLMP_T005 and Bohai BOHAI1. The intraspecific genetic distance of P. globosa (0.0000-0.0071) is significantly smaller than the interspecific genetic distance of P. globosa (0.0084-0.0440). As a result, these nine strains from Beibu Gulf all belong to P. globosa. The phylogenetic distance for strains of P. globosa do not reflect their geographical distance. The findings of this study are essential for Phaeocystis culture collection, their further ecophysiological study and understanding of occurrence mechanisms for Phaeocystis blooms in the Beibu Gulf.

Key words: Phaeocystis globosa, phylogenetic tree, genetic distance, harmful algal blooms, Beibu Gulf

CLC Number:

XU Yixiao, HE Xilin, ZHANG Teng, LAN Wenlu. Causative species of Phaeocystis blooms in Beibu Gulf[J].Journal of Tropical Oceanography, 2020, 39(6): 122-130.

Figures/Tables 4

Tab. 1

Tab. 2

Fig. 1

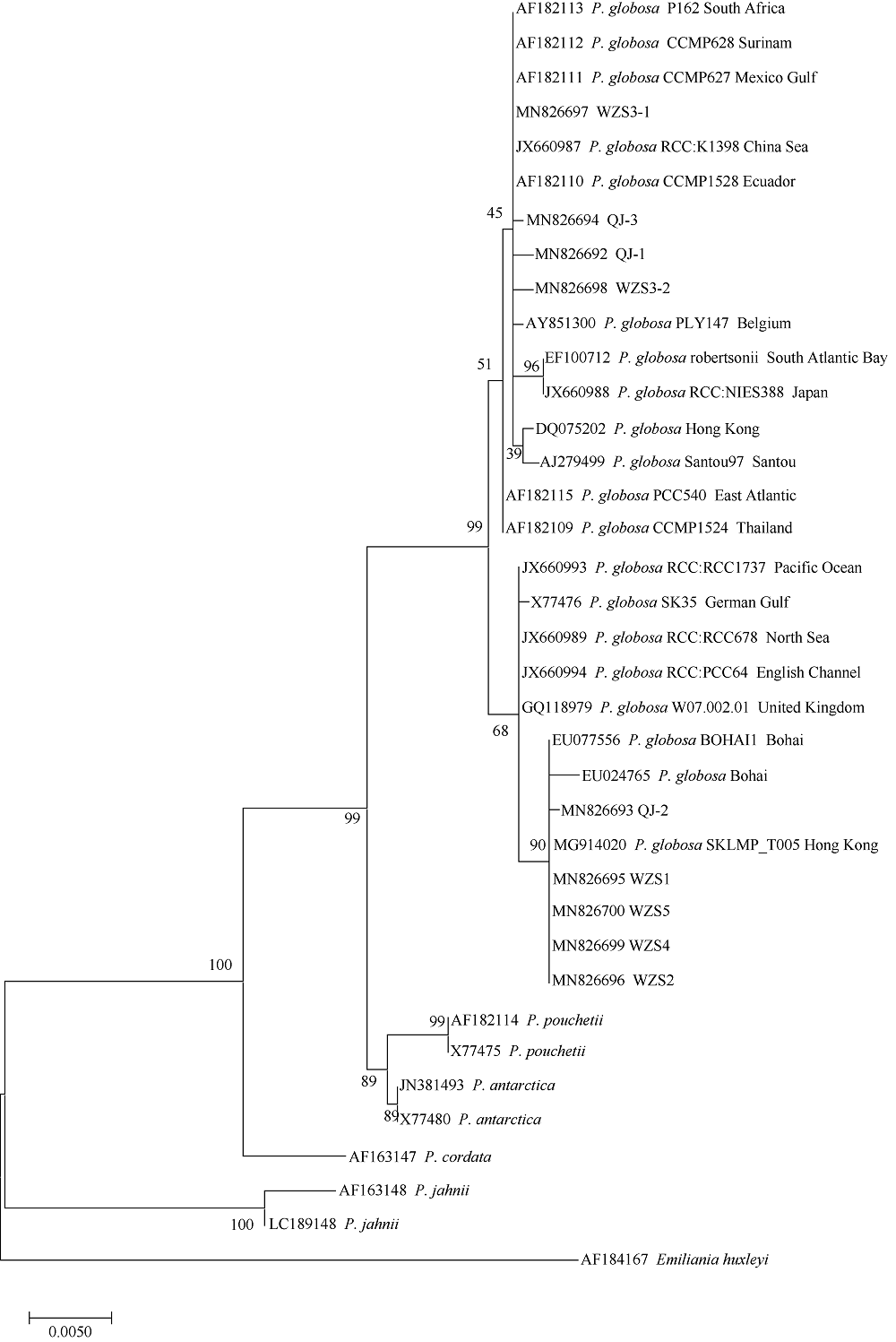

Fig. 2

References 31

[1]	陈菊芳, 徐宁, 江天久, 等, 1999. 中国赤潮新记录种─球形棕囊藻(Phaeocystis globosa)[J]. 暨南大学学报(自然科学版), 20(3):124-129.
	CHEN JUFANG, XU NING, JIANG TIANJIU, et al, 1999. A record of Phaeocystis globosa bloom in coastal water of Southeast China[J]. Journal of Jinan University (Natural Science), 20(3):124-129 (in Chinese with English abstract).
[2]	贺立燕, 宋秀贤, 於凡, 等, 2019. 潜在影响防城港核电冷源系统的藻类暴发特点及其监测防控技术[J]. 海洋与湖沼, 50(3):700-706.
	HE LIYAN, SONG XIUXIAN, YU FAN, et al, 2019. Potential risk and prevention of phytoplankton outbreak to water-cooling system in nuclear power plant in Fangchenggang, Guangxi[J]. Oceanologia et Limnologia Sinica, 50(3):700-706 (in Chinese with English abstract).
[3]	胡晓坤, 张清春, 陈振帆, 等, 2019. 北部湾海域球形棕囊藻遗传多样性分析[J]. 海洋与湖沼, 50(3):601-610.
	HU XIAOKUN, ZHANG QINGCHUN, CHEN ZHENFAN, et al, 2019. Genetic diversity of Phaeocystis globosa strains isolated from the Beibu Gulf, the South China sea[J]. Oceanologia et Limnologia Sinica, 50(3):601-610 (in Chinese with English abstract).
[4]	胡章喜, 邓蕴彦, 唐赢中, 2019. 我国北部湾球形棕囊藻(Phaeocystis globosa)的表面形态和细胞超微结构的电镜观察[J]. 海洋与湖沼, 50(3):621-629.
	HU ZHANGXI, DENG YUNYAN, TANG YINGZHONG, 2019. Scanning and transmission electron microscopy observation on morphology and ultrastructure of Phaeocystis globosa from Beibu Gulf, China[J]. Oceanologia et Limnologia Sinica, 50(3):621-629 (in Chinese with English abstract).
[5]	李亚男, 沈萍萍, 黄良民, 等, 2012. 棕囊藻的分类及系统进化研究进展[J]. 生态学杂志, 31(3):745-754.
	LI YANAN, SHEN PINGPING, HUANG LIANGMIN, et al, 2012. Taxonomy and phylogenetics of the genus Phaeocystis: research progress[J]. Chinese Journal of Ecology, 31(3):745-754 (in Chinese with English abstract).
[6]	刘国强, 史海燕, 魏春雷, 等, 2008. 广西涠洲岛海域浮游植物和赤潮生物种类组成的初步研究[J]. 海洋通报, 27(3):43-48.
	LIU GUOQIANG, SHI HAIYAN, WEI CHUNLEI, et al, 2008. Preliminary studies on phytoplankton and red tide organism composition in the coastal water of the Weizhou Island, Guangxi[J]. Marine Science Bulletin, 27(3):43-48 (in Chinese with English abstract).
[7]	罗金福, 李天深, 蓝文陆, 2016. 北部湾海域赤潮演变趋势及防控思路[J]. 环境保护, 44(20):40-42.
	LUO JINFU, LI TIANSHEN, LAN WENLU, 2016. Evolution trend and prevention strategy of algae bloom in the Beibu Gulf[J]. Environmental Protection, 44(20):40-42 (in Chinese with English abstract).
[8]	覃仙玲, 赖俊翔, 陈波, 等, 2016. 棕囊藻北部湾株的18S rDNA分子鉴定[J]. 热带亚热带植物学报, 24(2):176-181. doi: 10.11926/j.issn.1005-3395.2016.02.008
	QIN XIANLING, LAI JUNXIANG, CHEN BO, et al, 2016. Molecular identification of Phaeocystis from Beibu Gulf based on 18S rDNA sequences[J]. Journal of Tropical and Subtropical Botany, 24(2):176-181 (in Chinese with English abstract). doi: 10.11926/j.issn.1005-3395.2016.02.008
[9]	曲凌云, 吕颂辉, 高春蕾, 等, 2008. 棕囊藻渤海株核糖体18S rDNA和ITS基因结构序列分析[J]. 海洋科学进展, 26(2):200-206.
	QU LINGYUN, LV SONGHUI, GAO CHUNLEI, et al, 2008. Structure and sequence analysis of 18s rDNA and ITS gene of Phaeocystis isolate from the Bohai Sea[J]. Advances in Marine Science, 26(2):200-206 (in Chinese with English abstract).
[10]	沈萍萍, 齐雨藻, 欧林坚, 2018. 中国沿海球形棕囊藻(Phaeocystis globosa)的分类、分布及其藻华[J]. 海洋科学, 42(10):146-162.
	SHEN PINGPING, QI YUZAO, OU LINJIAN, 2018. Phaeocystis globosa in coastal China: taxonomy, distribution, and its blooms[J]. Marine Sciences, 42(10):146-162 (in Chinese with English abstract).
[11]	侍茂崇, 2014. 北部湾环流研究述评[J]. 广西科学, 21(4):313-324.
	SHI MAOCHONG, 2014. Study comments on circulation in Beibu Gulf[J]. Guangxi Sciences, 21(4):313-324 (in Chinese with English abstract).
[12]	王锦秀, 孔凡洲, 陈振帆, 等, 2019. 六株球形棕囊藻的色素组成特征研究[J]. 海洋与湖沼, 50(3):611-620.
	WANG JINXIU, KONG FANZHOU, CHEN ZHENFAN, et al, 2019. Characterization of pigment composition of six strains of Phaeocystis globosa[J]. Oceanologia et Limnologia Sinica, 50(3):611-620 (in Chinese with English abstract).
[13]	杨士瑛, 陈波, 李培良, 2006. 用温盐资料研究夏季南海水通过琼州海峡进入北部湾的特征[J]. 海洋湖沼通报, (1):1-7.
	YANG SHIYING, CHEN BO, LI PEILIANG, 2006. A study of the characteristics of water transport from the South China Sea into Beibu Bay via the Qiongzhou Strait in summer in terms of temperature and salinity data[J]. Transactions of Oceanology and Limnology, (1):1-7 (in Chinese with English abstract).
[14]	CHEN YUEQIN, WANG NING, ZHANG PENG , et al, 2002. Molecular evidence identifies bloom-forming Phaeocystis (Prymnesiophyta) from coastal waters of southeast China as Phaeocystis globosa[J]. Biochemical Systematics and Ecology, 30(1):15-22.
[15]	DEMPSTER A P, LAIRD N M, RUBIN D B , 1977. Maximum likelihood from incomplete data via the EM algorithm[J]. Journal of the Royal Statistical Society: Series B (Methodological), 39(1):1-38.
[16]	DRAKE J M, LODGE D M , 2004. Global hot spots of biological invasions: evaluating options for ballast-water management[J]. Proceedings of the Royal Society B: Biological Sciences, 271(1539):575-580.
[17]	GAO JINGSONG, XUE HUIJIE, CHAI FEI , et al, 2013. Modeling the circulation in the gulf of Tonkin, South China Sea[J]. Ocean Dynamics, 63(8):979-993.
[18]	GUILLARD R R L , 1975. Culture of phytoplankton for feeding marine invertebrates[M] //SMITH W L, CHANLEY M H. Culture of marine invertebrate animals. New York: Plenum Press: 29-60.
[19]	HAI D N, LAM N N, DIPPNER J W , 2010. Development of Phaeocystis globosa blooms in the upwelling waters of the south central coast of Viet Nam[J]. Journal of Marine Systems, 83(3-4):253-261.
[20]	KIMURA M , 1980. A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences[J]. Journal of Molecular Evolution, 16(2):111-120. pmid: 7463489
[21]	KUMAR S, STECHER G, LI M , et al, 2018. MEGA X: molecular evolutionary genetics analysis across computing platforms[J]. Molecular Biology and Evolution, 35(6):1547-1549.
[22]	LONG J D, FRISCHER M E, ROBERTSON C Y , 2007. A Phaeocystis globosa bloom associated with upwelling in the subtropical south Atlantic Bight[J]. Journal of Plankton Research, 29(9):769-774.
[23]	MEDLIN L, ELWOOD H J, STICKEL S , et al, 1988. The characterization of enzymatically amplified eukaryotic 16S-like rRNA-coding regions[J]. Gene, 71(2):491-499.
[24]	MEDLIN L, ZINGONE A , 2007. A taxonomic review of the genus Phaeocystis[J]. Biogeochemistry, 83(1):3-18.
[25]	OCHMAN H, WILSON A C , 1987. Evolution in bacteria: Evidence for a universal substitution rate in cellular genomes[J]. Journal of Molecular Evolution, 26(4):74-86.
[26]	QI YUZAO, CHEN JUFANG, WANG ZHAOHUI , et al, 2004. Some observations on harmful algal bloom (HAB) events along the coast of Guangdong, southern China in 1998[J]. Hydrobiologia, 512(1-3):209-214.
[27]	ROUSSEAU V, LANTOINE F, RODRIGUEZ F , et al, 2013. Characterization of Phaeocystis globosa (Prymnesiophyceae), the blooming species in the Southern North Sea[J]. Journal of Sea Research, 76:105-113.
[28]	SMITH W O JR, LIU XIAO, TANG K W , et al, 2014. Giantism and its role in the harmful algal bloom species Phaeocystis globosa[J]. Deep Sea Research Part II: Topical Studies in Oceanography, 101:95-106.
[29]	WANG XIAODONG, WANG YAN, OU LINJIAN , et al, 2015. Allocation costs associated with induced defense in Phaeocystis globosa (Prymnesiophyceae): the effects of nutrient availability[J]. Scientific Reports, 5(1):10850.
[30]	WHIPPLE S J, PATTEN B C, VERITY P G , 2005. Life cycle of the marine alga Phaeocystis: a conceptual model to summarize literature and guide research[J]. Journal of Marine Systems, 57(1-2):83-110.
[31]	XU YIXIAO, ZHANG TENG, ZHOU JIN , 2019. Historical occurrence of algal blooms in the northern Beibu Gulf of China and implications for future trends[J]. Frontiers in Microbiology, 10:451.

株名	采集地	采集时间
QJ-1	钦州湾(21°41′38″N, 108°35′13″E)	2017-02-22
QJ-2	钦州湾(21°41′38″N, 108°35′13″E)	2017-02-22
QJ-3	钦州湾(21°41′38″N, 108°35′13″E)	2017-02-22
WZS1	涠洲岛(21°03′16″N, 109°08′71″E)	2017-03-21
WZS2	涠洲岛(21°06′44″N, 109°10′36″E)	2017-03-21
WZS3-1	涠洲岛(21°06′48″N, 109°13′43″E)	2017-03-21
WZS3-2	涠洲岛(21°06′48″N, 109°13′43″E)	2017-03-21
WZS4	涠洲岛(21°03′23″N, 109°13′15″E)	2017-03-21
WZS5	涠洲岛(21°02′42″N, 109°11′13″E)	2017-03-21

种	株系	来源地	登录号
P. globosa	QJ-1	中国, 钦州湾	MN826692
P. globosa	QJ-2	中国, 钦州湾	MN826693
P. globosa	QJ-3	中国, 钦州湾	MN826694
P. globosa	WZS1	中国, 涠洲岛	MN826695
P. globosa	WZS2	中国, 涠洲岛	MN826696
P. globosa	WZS3-1	中国, 涠洲岛	MN826697
P. globosa	WZS3-2	中国, 涠洲岛	MN826698
P. globosa	WZS4	中国, 涠洲岛	MN826699
P. globosa	WZS5	中国, 涠洲岛	MN826670
P. globosa	-	中国香港	DQ075202
P. globosa	SKLMP_T005	中国香港	MG914020
P. globosa	BOHAI1	中国, 渤海	EU077556
P. globosa	-	中国, 渤海	EU024765
P. globosa	RCC:K1398	太平洋-中国海域	JX660987
P. globosa	Santou97	中国, 汕头	AJ279499
P. globosa	CCMP628	大西洋, 苏里南	AF182112
P. globosa	W07.002.01	英国	GQ118979
P. globosa	robertsonii	南大西洋湾	EF100712
P. globosa	CCMP627	墨西哥湾	AF182111
P. globosa	SK35	德国湾	X77476
P. globosa	PLY147	比利时	AY851300
种	株系	来源地	登录号
P. globosa	CCMP1528	厄瓜多尔	AF182110
P. globosa	P162	南非	AF182113
P. globosa	CCMP1524	泰国	AF182109
P. globosa	RCC:PCC64	英吉利海峡	JX660994
P. globosa	RCC:RCC678	英国, 北海(大西洋)	JX660989
P. globosa	RCC:NIES388	日本	JX660988
P. globosa	PCC540	东大西洋	AF182115
P. globosa	RCC:RCC1737	太平洋	JX660993
P. pouchetii	P360	挪威, 劳内峡湾	AF182114
P. pouchetii	SK34	格陵兰岛	X77475
P. antarctica	SK22	南大洋威德尔海	X77480
P. antarctica	MM-E1B6	-	JN381493
P. jahnii	NIES-3884	地中海	LC189148
P. jahnii	CCMP2496	地中海	AF163148
P. cordata	-	地中海	AF163147
Emiliania huxleyi	Texel B	-	AF184167
