基于动量自适应BP神经网络的鸢乌贼模式识别

doi:10.11978/2020135

Abstract

Abstract:

In recent years, computer pattern recognition technology has been used in biometric identification for its accurate and rapid recognition capability. In this paper, pattern recognition of beak and mantle length of Sthenoteuthis oualaniensis in the northwestern Indian Ocean, Middle East Pacific and South China Sea was carried out by using momentum adaptive back propagation (BP) neural networks (BPNN) based on MATLAB software. The results showed that the convergence error of the trained neural network was only 4.416×10^-2, and the recognition rate of beak of S. oualaniensis was significantly improved by adding momentum and adaptive learning rate to the BPNN. The correct recognition rates were 100% in the northwestern Indian Ocean, 88.89% in the Middle East Pacific and 94.12% in the South China Sea, with a total success rate of 93.24%, which indicates that the external morphology of beak of S. oualaniensis and mantle length can be used to distinguish different geographical populations. The total recognition rates of other BPNN learning algorithms of gradient descent, single momentum and single adaptive method were 74.32%, 77.03% and 87.84%, respectively. The recognition effect of this study was stable, and the recognition rate of large sample training set was as high as 92.77%, which provides a new method for the identification of cephalopod population.

Key words: back propagation neural network, Sthenoteuthis oualaniensis, beak, population discrimination, pattern recognition

CLC Number:

TP183

YANG Liuqinqing, CHU Moxian, LIU Bilin, KONG Xianghong. Pattern recognition of Sthenoteuthis oualaniensis based on BPNN about momentum and self-adaption[J].Journal of Tropical Oceanography, 2021, 40(6): 102-110.

Figures/Tables 10

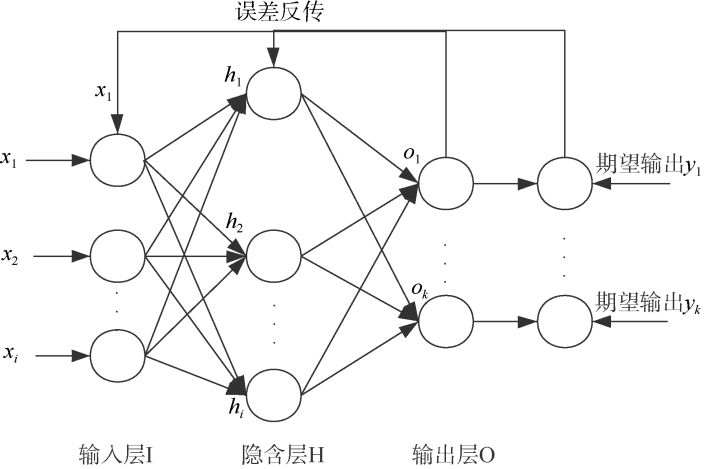

Fig. 1

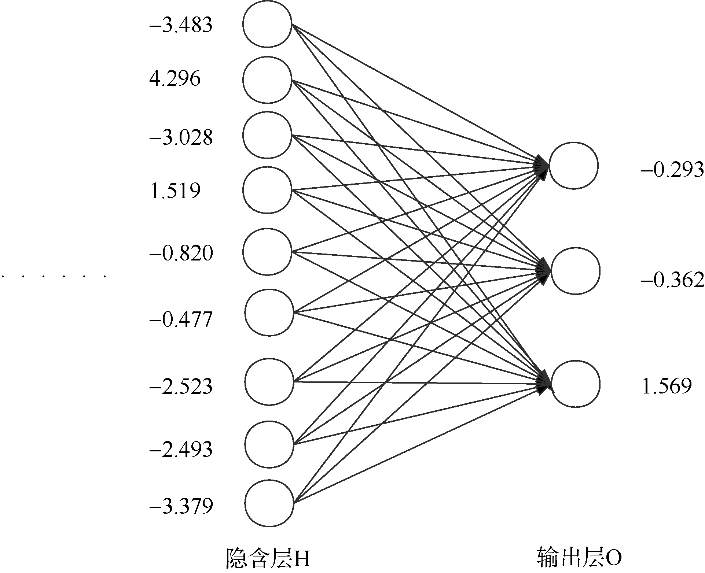

Fig. 2

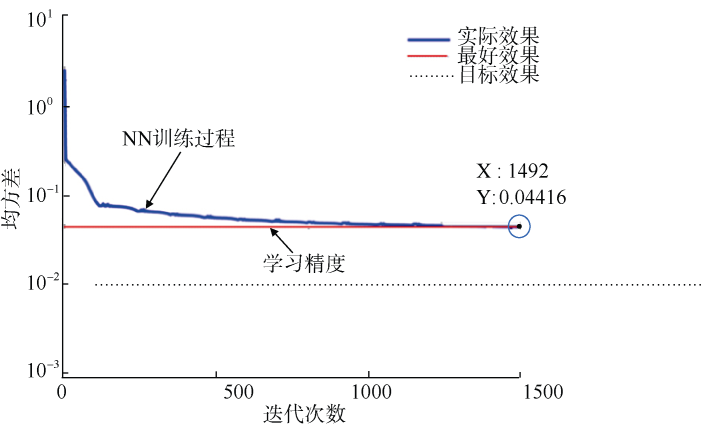

Fig. 3

Tab. 1

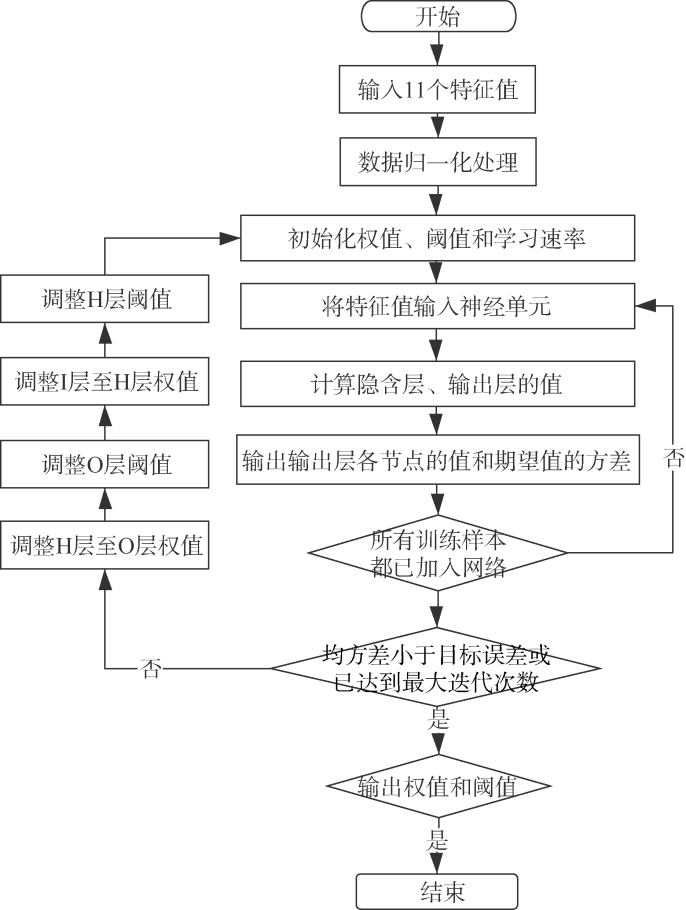

Fig. 4

Tab. 2

Tab. 3

Tab. 4

Tab. 5

Tab. 6

References 24

[1]	陈芃, 方舟, 陈新军, 2015. 基于角质颚外部形态学的柔鱼种群判别[J]. 海洋渔业, 37(1):1-9.
	CHEN PENG, FANG ZHOU, CHEN XINJUN, 2015. Population identification of Ommastrephes bartramii based on beak's external morphological characters[J]. Marine Fisheries, 37(1):1-9 (in Chinese with English abstract).
[2]	陈艳, 2020. 基于BP神经网络的人脸识别方法分析[J]. 信息与电脑, 32(23):158-159.
	CHEN YAN, 2020. Analysis of face recognition method based on BP neural network[J]. China Computer & Communication, 32(23):158-159 (in Chinese with English abstract).
[3]	关小芳, 2014. 动量自适应学习速率梯度下降法神经网络电力负荷预测[J]. 电气开关, 52(5):49-51.
	GUAN XIAOFANG, 2014. BP neural network power load forecasting based on momentum and adaptive learning rate[J]. Electric Switchgear, 52(5):49-51 (in Chinese with English abstract).
[4]	李建华, 陈新军, 陈芃, 等, 2018. 赤道海域茎柔鱼角质颚形态及生长特征分析[J]. 海洋渔业, 40(4):385-393.
	LI JIANHUA, CHEN XINJUN, CHEN PENG, et al, 2018. Morphological and growth characteristics of Dosidicus gigas beak in the equatorial waters[J]. Marine Fisheries, 40(4):385-393 (in Chinese with English abstract).
[5]	李敏, 张鹏, 张俊, 等, 2019. 南海鸢乌贼的遗传差异: 种群分化还是种间分化[J]. 中国水产科学, 26(1):133-140.
	LI MIN, ZHANG PENG, ZHANG JUN, et al, 2019. Genetic differentiation of the purpleback flying squid, Sthenoteuthis oualaniensis, in the South China Sea: population or species divergence[J]. Journal of Fishery Sciences of China, 26(1):133-140 (in Chinese with English abstract).
[6]	刘必林, 陈新军, 2009. 头足类角质颚的研究进展[J]. 水产学报, 33(1):157-164.
	LIU BILIN, CHEN XINJUN, 2009. Review on the research development of beaks in Cephalopoda[J]. Journal of Fisheries of China, 33(1):157-164 (in Chinese with English abstract).
[7]	毛振宇, 李方利, 叶玉明, 等, 2019. 基于BP神经网络算法的电缆局部放电类型模式识别[J]. 机电信息, (27):20-22.
[8]	邱靖, 刘继荣, 曹志勇, 等, 2019. 基于卷积神经网络的水稻病害图像识别研究[J]. 云南农业大学学报(自然科学), 34(5):884-888.
	QIU JING, LIU JIRONG, CAO ZHIYONG, et al, 2019. Rice disease image recognition research based on convolutional neural network[J]. Journal of Yunnan Agricultural University (Natural Science), 34(5):884-888 (in Chinese with English abstract).
[9]	王莉, 张紫烨, 郭晓东, 等, 2019. 基于粒子群优化BP神经网络的心电信号分类方法[J]. 自动化与仪表, 34(9):84-87.
	WANG LI, ZHANG ZIYE, GUO XIAODONG, et al, 2019. Electrocardiographic signal classification method based on particle swarm optimization BP neural network[J]. Automation & Instrumentation, 34(9):84-87 (in Chinese with English abstract).
[10]	王莉莉, 刘洪波, 陈德运, 等, 2018. 自适应与附加动量BP神经网络的ECT流型辨识[J]. 哈尔滨理工大学学报, 23(1):105-110.
	WANG LILI, LIU HONGBO, CHEN DEYUN, et al. 2018. Identification of flow Regimes based on adaptive learning and additional momentum BP neural network for electrical capacitance tomography[J]. Journal of Harbin University of Science and Technology, 23(1):105-110 (in Chinese with English abstract).
[11]	王振华, 曲念毅, 钟元芾, 等, 2020. 一种改进深度卷积神经网络的海岛识别方法[J]. 上海海洋大学学报, 29(3):474-480.
	WANG ZHENGHUA, QU NIANYI, ZHONG YUANFU, et al, 2020. A method for identification of island by improving deep convolutional neural network[J]. Journal of Shanghai Ocean University, 29(3):474-480 (in Chinese with English abstract).
[12]	徐杰, 刘尊雷, 李圣法, 等, 2016. 东海剑尖枪乌贼角质颚的外部形态及生长特性[J]. 海洋渔业, 38(3):245-253.
	XU JIE, LIU ZUNLEI, LI SHENGFA, et al, 2016. Morphology and growth characteristics of Uroteuthis edulis beak in the East China Sea[J]. Marine Fisheries, 38(3):245-253 (in Chinese with English abstract).
[13]	许嘉锦, 2003. Octopus与Cistpous属章鱼口器地标点之几何形态学研究[D]. 台北, 中国: 国立中山大学海洋生物研究所: 1-72.
	HSU C C. 2003. Geomorphometric study of Octopus and Cistopus (Cephalopoda: Octopodidae) based on landmarks of beaks[D]. Taipei, China: Institute of Marine biology, National Sun Yat sen University: 1-72 (in Chinese).
[14]	叶斌, 雷燕, 2004. 关于BP网中隐含层层数及其节点数选取方法浅析[J]. 商丘职业技术学院学报, 3(6):52-53, 60.
	YE BIN, LEI YAN, 2004. Analysis of choosing the number of the hiddenlayers and its nodes number in back propagation network[J]. Journal of Shangqiu Vocational and Technical College, 3(6):52-53, 60 (in Chinese with English abstract).
[15]	袁曾任, 1999. 人工神经元网络及其应用[M]. 北京: 清华大学出版社.
[16]	张德丰, 2018. MATLAB R2017a人工智能算法[M]. 北京: 电子工业出版社. ZHANG DEFENG, 2018.
[17]	郑小东, 王如才, 刘维青, 2002. 华南沿海曼氏无针乌贼 Sepiella maindroni表型变异研究[J]. 青岛海洋大学学报, 32(5):713-719.
	ZHENG XIAODONG, WANG RUCAI, LIU WEIQING, 2002. Study on the phenotypic variation in the common Chinese cuttlefish Sepiella maindroni in south China coastal waters[J]. Journal of Ocean University of Qingdao, 32(5):713-719 (in Chinese with English abstract).
[18]	周开利, 康耀红, 2005. 神经网络模型及其matlab仿真程序设计[M]. 北京: 清华大学出版社.
[19]	CLARKE M R, 1962. The identification of cephalopod “beaks” and the relationship between beak size and total body weight[J]. Bulletin of the British Museum (Natural History) Zoology, 8:419-480.
[20]	CYBENKO G, 1989. Approximation by superpositions of a sigmoidal function[J]. Mathematics of Control, Signals and Systems, 2(4):303-314. doi: 10.1007/BF02551274
[21]	KUBODERA T, FURUHASHI M, 1987. A manual for identification of Myctophid fishes and squids in the stomach contents[R]. Tokyo, Japanese: Japanese Fisheries Agency: 1-65 (in Japanese).
[22]	LIU BILIN, CHEN XINJUN, YI QIAN, 2013. A comparison of fishery biology of jumbo flying squid, Dosidicus gigas outside three Exclusive Economic Zones in the Eastern Pacific Ocean[J]. Chinese Journal of Oceanology and Limnology, 31(3):523-533. doi: 10.1007/s00343-013-2182-3
[23]	LIU BILIN, FANG ZHOU, CHEN XINJUN, et al, 2015. Spatial variations in beak structure to identify potentially geographic populations of Dosidicus gigas in the Eastern Pacific Ocean[J]. Fisheries Research, 164:185-192. doi: 10.1016/j.fishres.2014.12.001
[24]	LIU BILIN, CHEN XINJUN, WANG XUEHUI, et al, 2018. Geographic, intraspecific and sexual variation in beak morphology of purpleback flying squid (Sthenoteuthis oualaniensis) throughout its distribution range[J]. Marine and Freshwater Research, 70(3):417-425. doi: 10.1071/MF18078

形态参数	极大值				极小值
形态参数	原始极大值	标准化极大绝对值	样本编号	海域	原始极小值	标准化极小绝对值	样本编号	海域
胴长(ML)	525	1	42	3	80	0.011236	144	1
上头盖长(UHL)	39.56	1	42	3	5.44	0.001758	464	1
上脊突长(UCL)	50.77	1	162	1	4.44	0.002806	146	1
上喙长(URL)	12.92	1	30	3	1.77	0.000897	464	1
上侧壁长(ULWL)	45.33	1	42	3	5.68	0.01488	154	1
上翼长(UWL)	12.64	1	186	3	1.67	0.004558	144	1
下头盖长(LHL)	11.63	1	200	3	1.66	0.003009	298	1
下脊突长(LCL)	24.1	1	26	3	2.64	0.002796	184	1
下喙长(LRL)	12.86	1	303	1	1.47	0.00439	464	1
下侧壁长(LLWL)	35.67	1	42	3	4.62	0.00161	23	1
下翼长(LWL)	22.1	1	42	3	2.25	0.012594	327	1

I层	H层
I层	H₁	H₂	H₃	H₄	H₅	H₆	H₇	H₈	H₉
ML	0.51787	1.76012	1.17685	0.96851	-0.62503	-0.39972	-2.30729	-2.41620	-1.21233
UHL	1.02004	-0.11701	0.78299	0.97829	0.58829	1.06385	-1.69839	-0.67041	1.38657
UCL	0.20084	2.43943	-0.47049	-1.96293	-0.06245	-1.57966	-0.29600	0.53659	0.31492
URL	-0.04119	0.14562	-0.99725	-1.18086	-1.72815	-0.48685	1.37671	-1.35249	-1.31960
ULWL	1.04319	-1.37696	-2.54213	2.98592	-1.81316	1.65405	-1.53345	-0.57482	0.30500
UWL	-0.02106	1.29860	0.10095	-1.31129	-1.31384	0.01470	-0.91160	0.56923	1.04699
LHL	-1.62204	0.94419	-1.77699	1.38963	0.65958	-1.69024	0.19457	1.55272	-0.54919
LCL	0.74875	0.65564	0.55693	0.92801	-1.63957	-1.29223	0.28282	-0.22000	1.34480
LRL	0.61926	-0.12646	-1.45393	0.27165	0.40933	-0.14337	0.97641	-1.35238	1.06185
LLWL	-1.90206	1.97220	0.89296	0.47994	-1.69910	-1.48343	0.13988	0.69561	-1.31014
LWL	0.60720	-0.28580	-1.70620	1.63012	-1.03251	-0.77968	1.41782	0.98721	-0.59789

H层	O层
H层	西北印度洋	中东太平洋	南海
H1	0.16992	-0.24264	-0.10120
H2	-0.55120	2.30283	-1.69967
H3	-0.30025	2.32027	-2.03169
H4	1.84776	-1.90292	0.03078
H5	-0.15796	0.22273	-0.12153
H6	1.05078	-1.17558	0.15734
H7	-0.47428	-1.20609	1.73593
H8	-0.28751	-1.01167	1.41477
H9	0.44897	0.21886	0.99420

海区	样本总数	识别样本数			识别率
海区	样本总数	西北印度洋	中东太平洋	南海	识别率
西北印度洋	90	80	8	2	88.89%
中东太平洋	189	2	170	17	89.95%
南海	219	0	7	212	96.80%

学习方法	各海区识别率			总识别率
学习方法	西北印度洋	中东太平洋	南海	总识别率
梯度下降法	46.15%	70.37%	88.24%	74.32%
单一动量法	53.85%	70.37%	91.12%	77.03%
单一自适应法	84.62%	81.48%	94.12%	87.84%
动量自适应法	100%	88.89%	94.12%	93.24%
