琼东水体后向散射系数与浮游植物生物量的关系模型*

doi:10.11978/2021123

Abstract

Abstract:

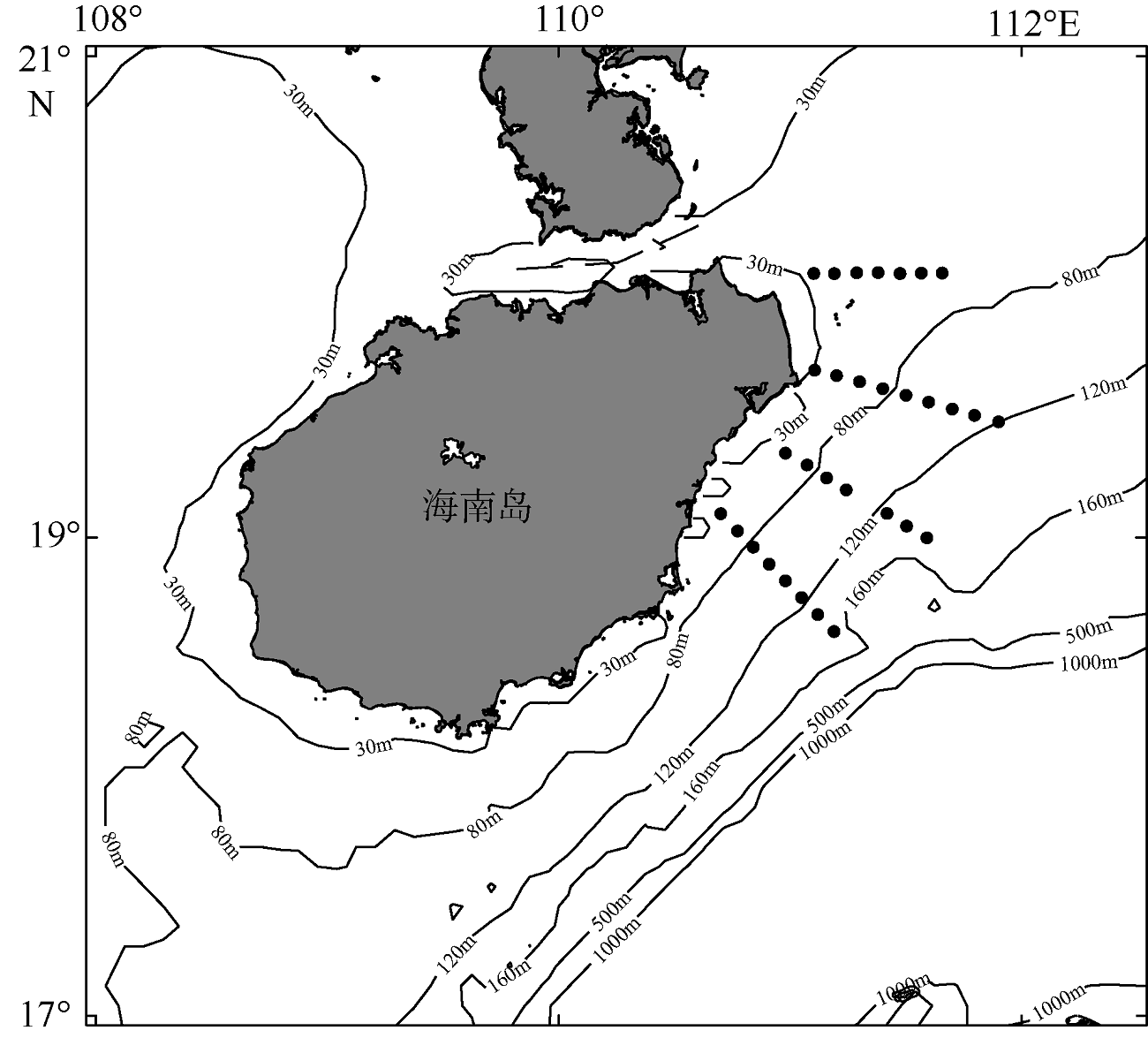

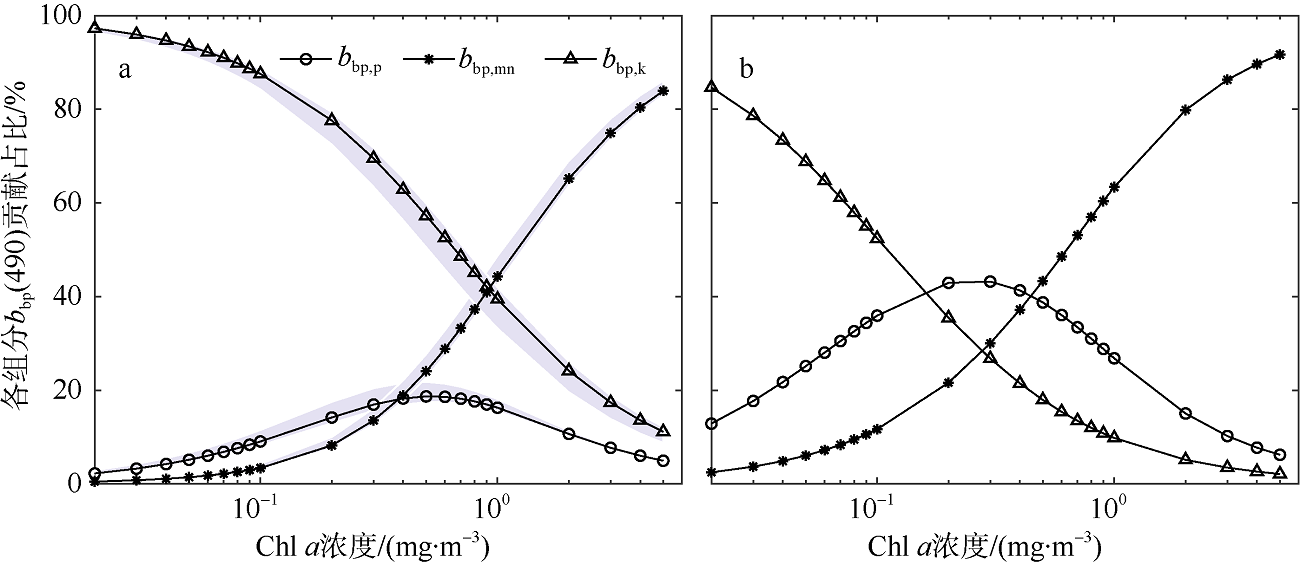

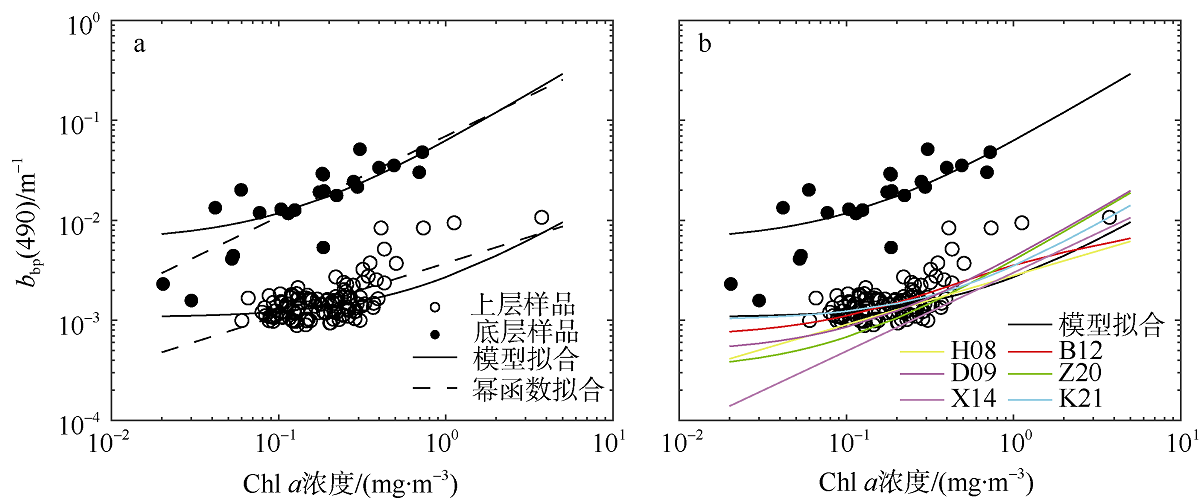

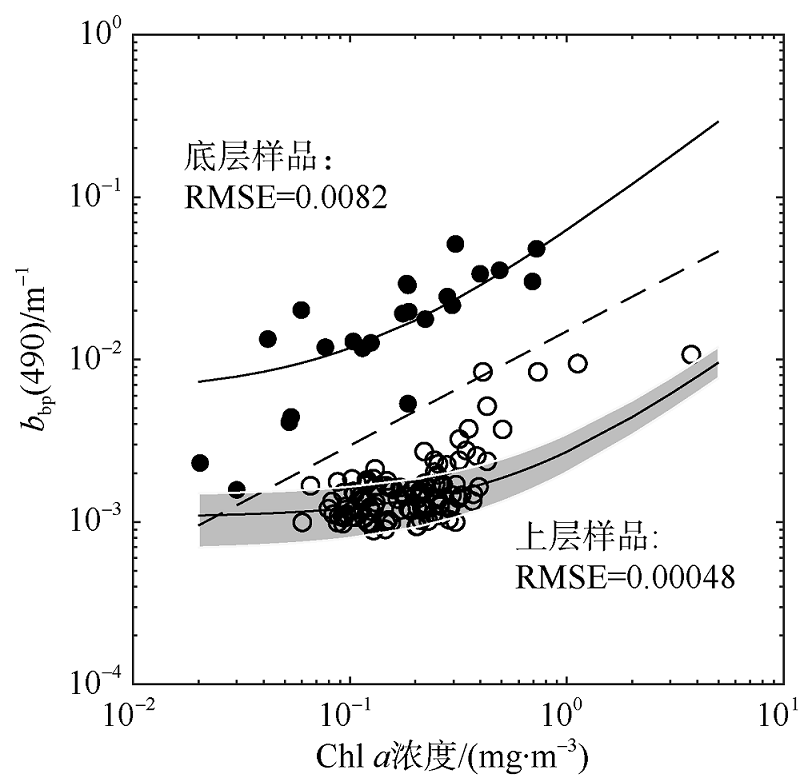

Variability of light backscattering coefficient in the ocean can be used to quantify the biomass of phytoplankton, which can be applied in remote sensing and optical profile observation platforms to obtain the characteristics of phytoplankton biomass spanning various spatio-temporal scales and vertical profiles in the ocean. Significant variabilities of the bio-optical properties exist off the eastern Hainan coast, being influenced by upwelling. Based on the in-situ data collected off this area in 2013, we established a regional algorithm between the backscattering coefficient of particle [b_bp] and chlorophyll a concentration [Chl a]. The algorithm is based on the assumption that the particle backscattering coefficient is determined by the constant background backscattering value independent of Chl a and two components by pico (< 2 μm) and large(>2 μm)phytoplankton. Results show that the modelled b_bp values agree well with measurements, especially for low Chl a concentration. The relationships between b_bp and Chl a vary in different water layers. For example, the constant background backscattering values at the bottom layer are significantly higher than those in the upper layer, indicating that driven by upwelling, the increasing concentration of submicron particles not covariant with Chl a might produce an increasing backscattering coefficient. At the chlorophyll maximum layer, the background backscattering values are significantly lower than those in the upper water, and the contribution percentage of background backscattering value is about 21%~35%. With the increase of Chl a concentration, the contribution of large phytoplankton to b_bp increases significantly, accounting for 50% or higher, while the contribution of pico phytoplankton remains stable around 40%. Understanding the regional relationship of b_bp and Chl a off the eastern Hainan coast can improve our understanding of marine biogeochemical processes in the region.

Key words: Backscattering coefficient of particulate, chlorophyll a concentration, phytoplankton size class, Qiongdong offshore water

CLC Number:

Q948.8

ZHOU Wen, WEI Panpan, LI Cai, WANG Guifen, ZHENG Wendi, DENG Lin, ZHAO Hongwuyi, YU Linghui, CAO Wenxi. Particle backscattering as a function of chlorophyll a concentration off the eastern Hainan coast in the South China Sea^*[J].Journal of Tropical Oceanography, 2022, 41(3): 29-37.

Figures/Tables 6

Fig. 1

Fig. 2

Tab. 1

Fig. 3

Fig. 4

Fig. 5

References 30

[1]	许东禹, 刘锡清, 张训华, 等, 1997. 中国近海地质[M]. 北京: 地质出版社.
	XU DONGYU, LIU XIQING, ZHANG XUNHUA, et al, 1997. China offshore geology[M]. Beijing: Geological Publishing House. (in Chinese)
[2]	王桂芬, 周雯, 林俊芳, 等, 2014. 南海北部海区浮游植物粒级结构生物光学反演模型的验证与评价[J]. 激光生物学报, 22(6): 502-515.
	WANG GUIFEN, ZHOU WEN, LIN JUNFANG, et al, 2014. Validation and assessment on the bio-optical models for retrieving phytoplankton size structure in the Northern South China Sea[J]. Acta Laser Biology Sinica, 22(6): 502-515. (in Chinese with English abstract)
[3]	汪彧, 经志友, 齐义泉, 2016. 2013年夏季琼东海域上升流观测研究[J]. 热带海洋学报, 35(2): 40-49.
	WANG YU, JING ZHIYOU, QI YIQUAN, 2016. Coastal upwelling off eastern Hainan Island observed in the summer of 2013[J]. Journal of Tropical Oceanography, 35(2): 40-49. (in Chinese with English abstract)
[4]	谢玲玲, 张书文, 赵辉, 2012. 琼东上升流研究概述[J]. 热带海洋学报, 31(4): 35-41.
	XIE LINGLING, ZHANG SHUWEN, ZHAO HUI, 2012. Overview of studies on Qiongdong upwelling[J]. Journal of Tropical Oceanography, 31(4): 35-41. (in Chinese with English abstract)
[5]	ANTOINE D, SIEGEL D A, KOSTADINOV T, et al, 2011. Variability in optical particle backscattering in contrasting bio-optical oceanic regimes[J]. Limnology and Oceanography, 56(3): 955-973. doi: 10.4319/lo.2011.56.3.0955
[6]	BELLACICCO M, CORNEC M, ORGANELLI E, et al, 2019. Global variability of optical backscattering by non-algal particles from a Biogeochemical-Argo data set[J]. Geophysical Research Letters, 46(16): 9767-9776, doi: 10.1029/2019GL084078. doi: 10.1029/2019GL084078
[7]	BREWIN R J W, SATHYENDRANATH S, HIRATA T, et al, 2010. A three-component model of phytoplankton size class for the Atlantic Ocean[J]. Ecological Modelling, 221(11): 1472-1483, doi: 10.1016/j.ecolmodel.2010.02.014 doi: 10.1016/j.ecolmodel.2010.02.014
[8]	BREWIN R J W, DALL'OLMO G, SATHYENDRANATH S, et al, 2012. Particle backscattering as a function of chlorophyll and phytoplankton size structure in the open-ocean[J]. Optics Express, 20(16): 17632-17652, doi: 10.1364/OE.20.017632. doi: 10.1364/OE.20.017632
[9]	BREWIN R J W, RAITSOS D E, DALL'OLMO G, et al, 2015. Regional ocean-colour chlorophyll algorithms for the Red Sea[J]. Remote Sensing of Environment, 165: 64-85, doi: 10.1016/j.rse.2015.04.024. doi: 10.1016/j.rse.2015.04.024
[10]	BREWIN R J W, SATHYENDRANATH S, PLATT T, et al, 2021. Sensing the ocean biological carbon pump from space: a review of capabilities, concepts, research gaps and future developments[J]. Earth-Science Reviews, 217: 103604, doi: 10.1016/j.earscirev.2021.103604. doi: 10.1016/j.earscirev.2021.103604
[11]	DALL'OLMO G, WESTBERRY T K, BEHRENFELD M J, et al, 2009. Significant contribution of large particles to optical backscattering in the open ocean[J]. Biogeosciences, 6(6): 947-967. doi: 10.5194/bg-6-947-2009
[12]	HUANG DEKUN, DU JINZHOU, DENG BING, et al, 2013. Distribution patterns of particle-reactive radionuclides in sediments off eastern Hainan Island, China: implications for source and transport pathways[J]. Continental Shelf Research, 57: 10-17. doi: 10.1016/j.csr.2012.04.019
[13]	HUOT Y, MOREL A, TWARDOWSKI M S, et al, 2008. Particle optical backscattering along a chlorophyll gradient in the upper layer of the eastern South Pacific Ocean[J]. Biogeosciences, 5(2): 495-507. doi: 10.5194/bg-5-495-2008
[14]	JING ZHIYOU, QI YIQUAN, DU YAN, et al, 2015. Summer upwelling and thermal fronts in the northwestern South China Sea: observational analysis of two mesoscale mapping surveys[J]. Journal of Geophysical Research: Oceans, 120(3): 1993-2006. doi: 10.1002/2014JC010601
[15]	KHEIREDDINE M, BREWIN R J W, OUHSSAIN M, et al, 2021. Particulate scattering and backscattering in relation to the nature of particles in the Red Sea[J]. Journal of Geophysical Research: Oceans, 126(4): e2020JC016610, doi: 10.1029/2020JC016610. doi: 10.1029/2020JC016610
[16]	LEE Z P, CARDER K L, ARNONE R A, 2002. Deriving inherent optical properties from water color: a multiband quasi-analytical algorithm for optically deep waters[J]. Applied Optics, 41(27): 5755-5772. doi: 10.1364/AO.41.005755
[17]	LI RUIHUAN, LIU SUMEI, LI YAN WEI, et al, 2014. Nutrient dynamics in tropical rivers, lagoons, and coastal ecosystems of eastern Hainan Island, South China Sea[J]. Biogeosciences, 11(2): 481-506. doi: 10.5194/bg-11-481-2014
[18]	LI XIUBAO, WANG DAORU, HUANG HUI, et al, 2015. Linking benthic community structure to terrestrial runoff and upwelling in the coral reefs of northeastern Hainan Island[J]. Estuarine, Coastal and Shelf Science, 156: 92-102. doi: 10.1016/j.ecss.2014.09.021
[19]	MAFFIONE R A, DANA D R, 1997. Instruments and methods for measuring the backward-scattering coefficient of ocean waters[J]. Applied Optics, 36(24): 6057-6067. doi: 10.1364/AO.36.006057
[20]	OISHI T, 1990. Significant relationship between the backward scattering coefficient of sea water and the scatterance at 120°[J]. Applied Optics, 29(31): 4658-4665. doi: 10.1364/AO.29.004658
[21]	PARSONS T R, MAITA Y, LALLI C M, 1984. A manual of chemical and biological methods for seawater analysis[M]. Oxford: Pergamon Press.
[22]	SATHYENDRANATH S, AIKEN J, ALVAIN S, 2014. Phytoplankton functional types from space[M]// International Ocean-Colour Coordinating Group. Reports and Monographs of the International Ocean-Colour Coordinating Group. International Ocean-Colour Coordinating Group Report 15: 163. Dartmouth, Canada, doi: 10.25607/OBP-106.
[23]	SATHYENDRANATH S, STUART V. COTA G, et al, 2001. Remote sensing of phytoplankton pigments: A comparison of empirical and theoretical approaches[J]. International Journal of Remote Sensing, 22: 249-273, doi: 10.1080/014311601449925 doi: 10.1080/014311601449925
[24]	SIEBURTH J M, SMETACEK V, LENZ J, 1978. Pelagic ecosystem structure: Heterotrophic compartments of the plankton and their relationship to plankton size fractions[J]. Limnology and Oceanography, 23(6): 1256-1263, doi: 10.4319/lo.1978.23.6.1256. doi: 10.4319/lo.1978.23.6.1256
[25]	STRAMSKI D, BOSS E, BOGUCKI D, et al, 2004. The role of seawater constituents in light backscattering in the ocean[J]. Progress in Oceanography, 61(1): 27-56. doi: 10.1016/j.pocean.2004.07.001
[26]	TWARDOWSKI M S, BOSS E, MACDONALD J B, et al, 2001. A model for estimating bulk refractive index from the optical backscattering ratio and the implications for understanding particle composition in case I and case Ⅱ waters[J]. Journal of Geophysical Research: Ocean, 106(C7): 14129-14142. doi: 10.1029/2000JC000404
[27]	WERDELL P J, FRANZ B A, BAILEY S W, et al, 2013. Generalized ocean color inversion model for retrieving marine inherent optical properties[J]. Applied Optics, 52(10): 2019-2037. doi: 10.1364/AO.52.002019
[28]	XING XIAOGANG, CLAUSTRE H, UITZ J, et al, 2014. Seasonal variations of bio-optical properties and their interrelationships observed by Bio-Argo floats in the subpolar North Atlantic[J]. Journal of Geophysical Research: Ocean, 119(10): 7372-7388. doi: 10.1002/2014JC010189
[29]	ZHANG XIAODONG, HU LIANBO, XIONG YUANHENG, et al, 2020. Experimental estimates of optical backscattering associated with submicron particles in clear oceanic waters[J]. Geophysical Research Letters, 47(4): e2020GL087100, doi: 10.1029/2020GL087100. doi: 10.1029/2020GL087100
[30]	ZHANG XIAODONG, HU LIANBO, HE MINGXIA, 2009. Scattering by pure seawater: Effect of salinity[J]. Optics Express, 17(7):5698-5710, doi: 10.1364/OE.17.005698. doi: 10.1364/OE.17.005698

水层	拟合参数
水层	b_bp,p*(490)/(m²·mg^-1)	b_bp,mn*(490) /(m²·mg^-1)	b_bp,k(490) /(m^-1)
上层水体	0.0015	0.00179	0.001161
表层水体	0.0052	0.00560	0.000894
中层水体	0.0051	0.00543	0.000626
叶绿素最大层	0.0025	0.00288	0.000571
底层水体	0.0563	0.05660	0.006719
