OBN转换横波分裂分析刻画东海西湖凹陷裂缝分布*

doi:10.11978/2024056

Abstract

Abstract:

The orientation and intensity of fracture are important information for studying anisotropy, but they are difficult to identify through the conventional compression wave (P) of seismic data. In contrast, the shear wave splitting (SWS) caused by azimuth anisotropy in the converted seismic wave (PS) is helpful to characterize the strength and azimuth of fractures. In order to study the distribution characteristics of fractures in the Xihu Sag of East China Sea, the converted shear wave information recorded in four-component submarine nodes (ocean bottom nodes, OBN) was used to conduct SWS analysis. First, the principle of SWS and the layer-stripped method were introduced in detail. Then, the SWS analysis with the seismic data in the study area was carried out. The results show that in the shallow layer (0~3000 ms), the time delay of fast and slow shear waves is 3~5 ms, the average fracture direction is about 111°-117°, and the fracture similarity is as high as 80%~90%, which indicates that the fracture orientation is relatively concentrated. However, in the deep layer, the distribution of fracture is rather complex, for which the time delay is about 6~8 ms and the main azimuth is concentrated at 119°, but the fracture similarity is low (less than 50%) and the fracture direction is about 20°−40°, which indicates that the azimuth is not concentrated. The results show that NW-trending fractures are mainly developed in the shallow layer of the study area, and NW- and NE-trending fractures are mainly developed in the deep layer, which is consistent with the fault development directions obtained from the P results in the study area. The time delay gradually increases from the shallow to the deep part, indicating that the deeper the layer, the more intense the fracture develops. The time delay in the south of the study area is significantly higher than that in the north, indicating that the intensity of fracture in the south is higher than that in the north.

Key words: East China Sea, shear wave splitting, OBN converted shear wave, anisotropy, fracture characterization

CLC Number:

P315

LI Yaqing, LIU Miao, ZHAO Xiulian, CHEN Maogen, ZHU Baoheng, CHEN Linzhi, LI Zhenwei. OBN converted shear wave splitting analysis depicts the fracture distribution in the Xihu Sag in the East China Sea*[J].Journal of Tropical Oceanography, 2025, 44(1): 189-199.

Figures/Tables 13

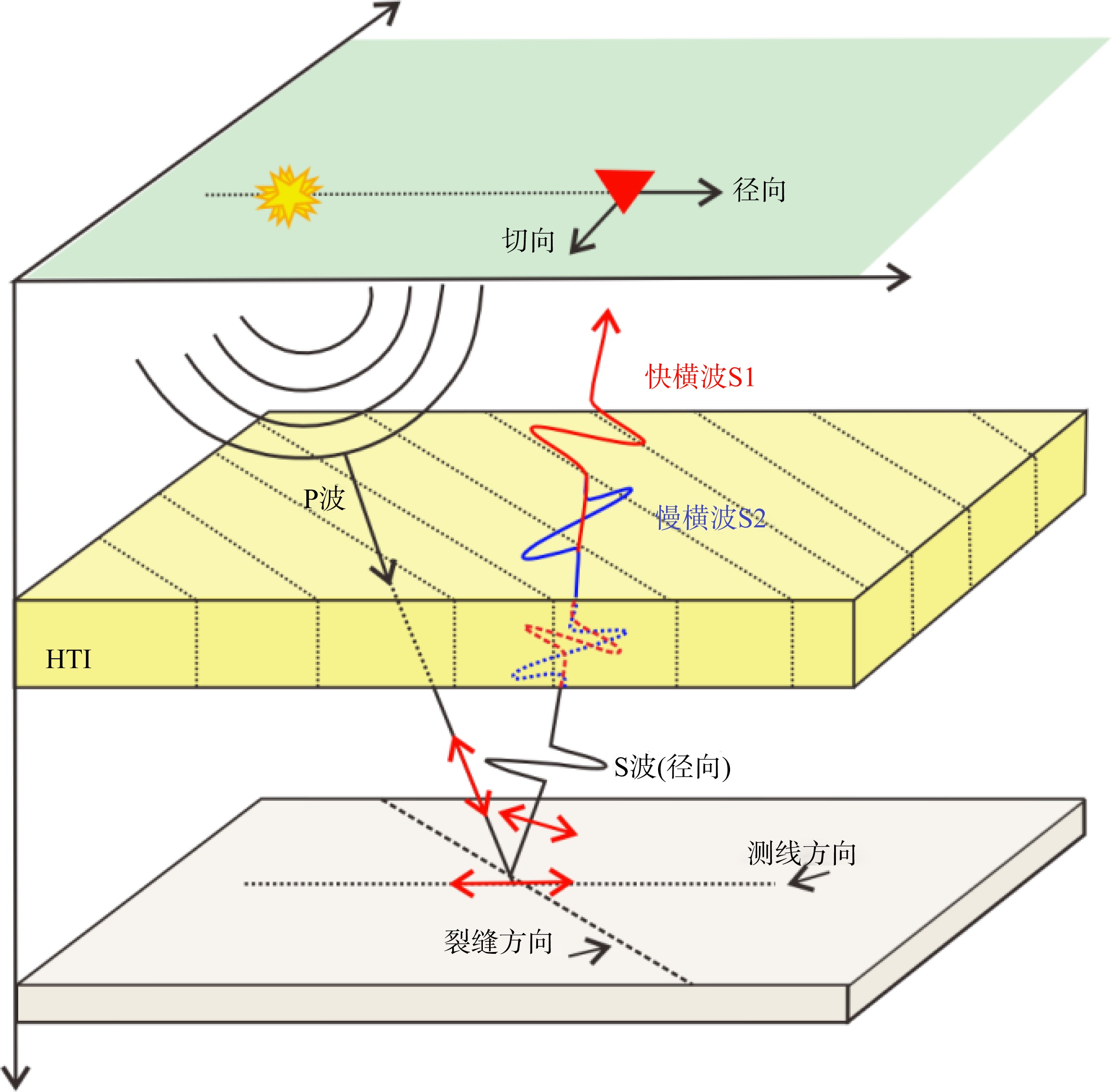

Fig. 1

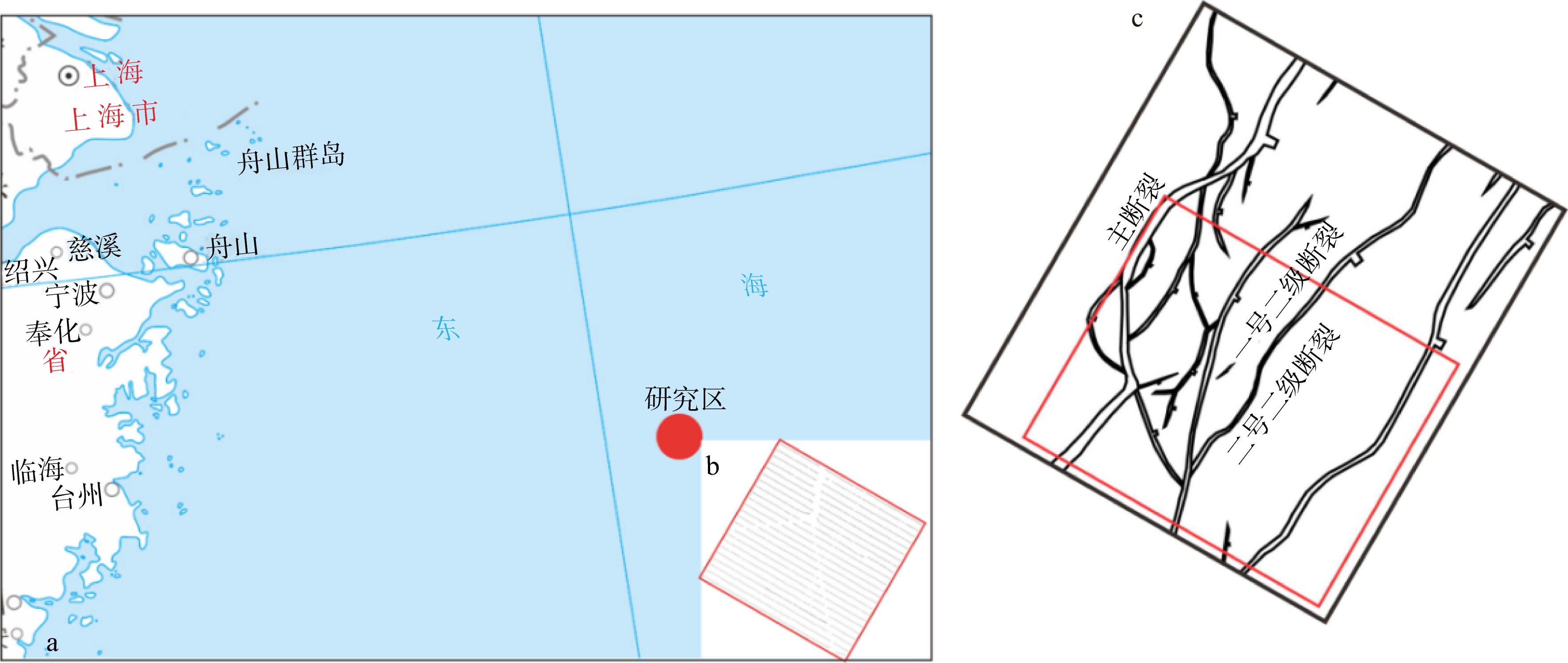

Fig. 2

Tab. 1

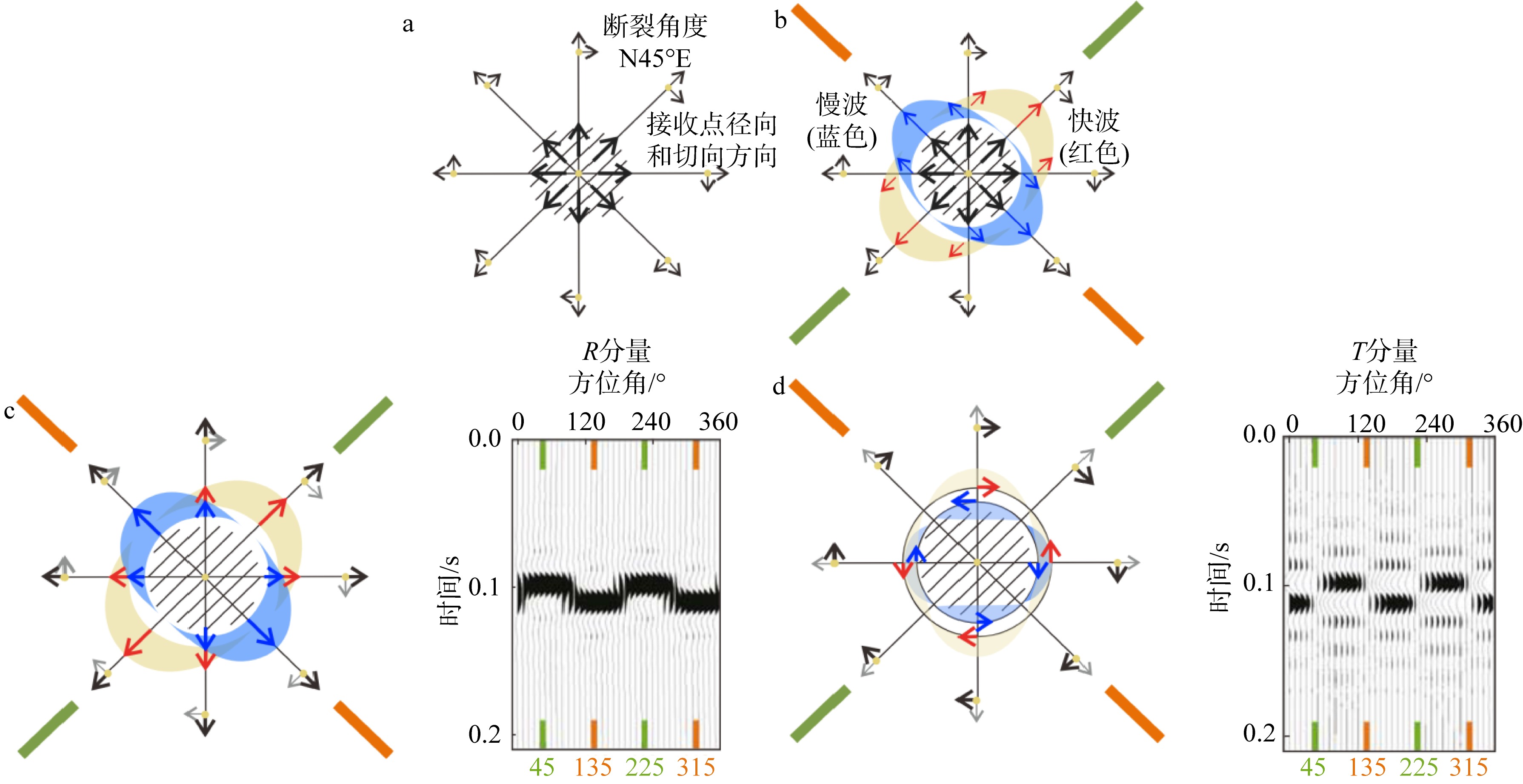

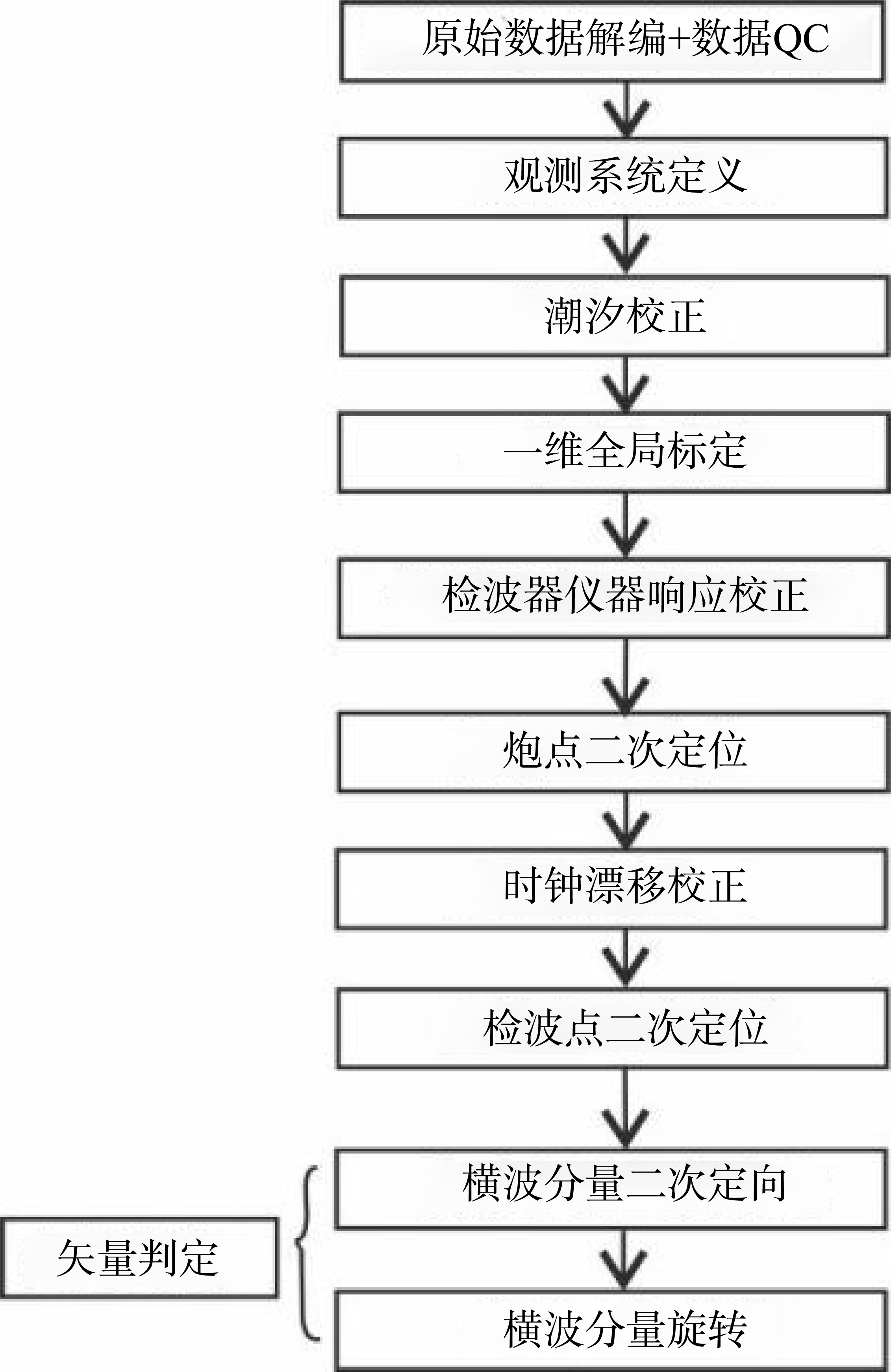

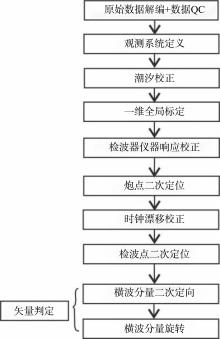

Fig. 3

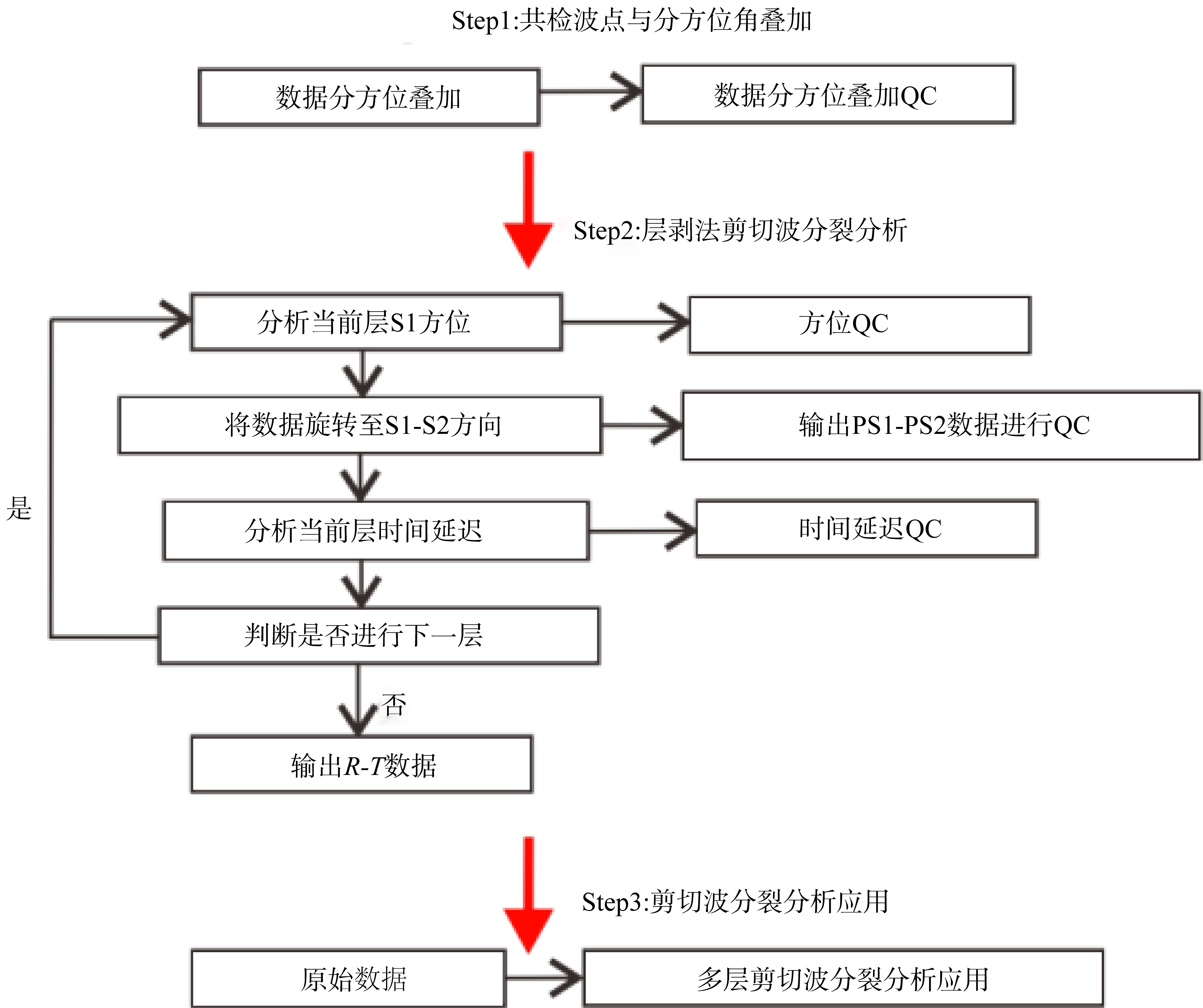

Fig. 4

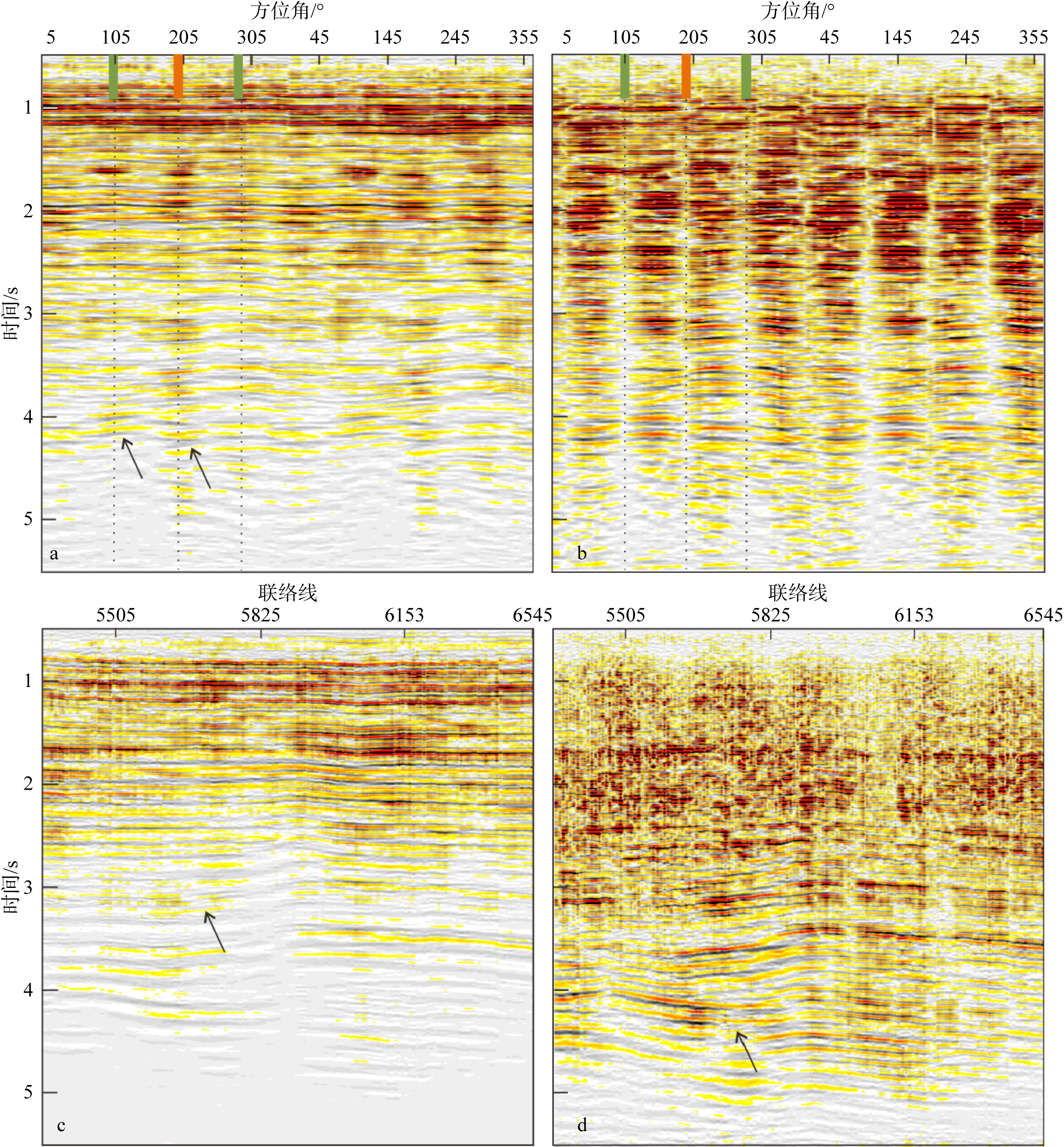

Fig. 5

Fig. 6

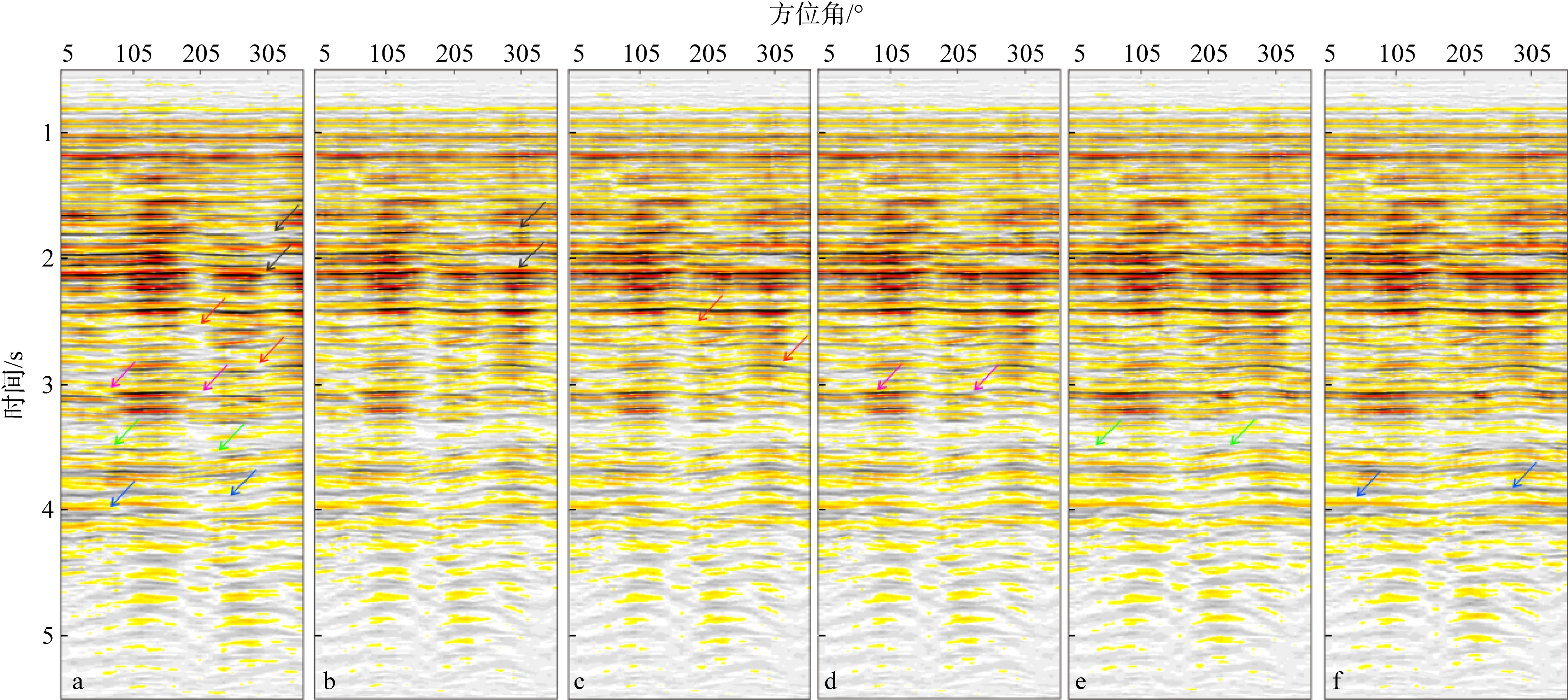

Fig. 7

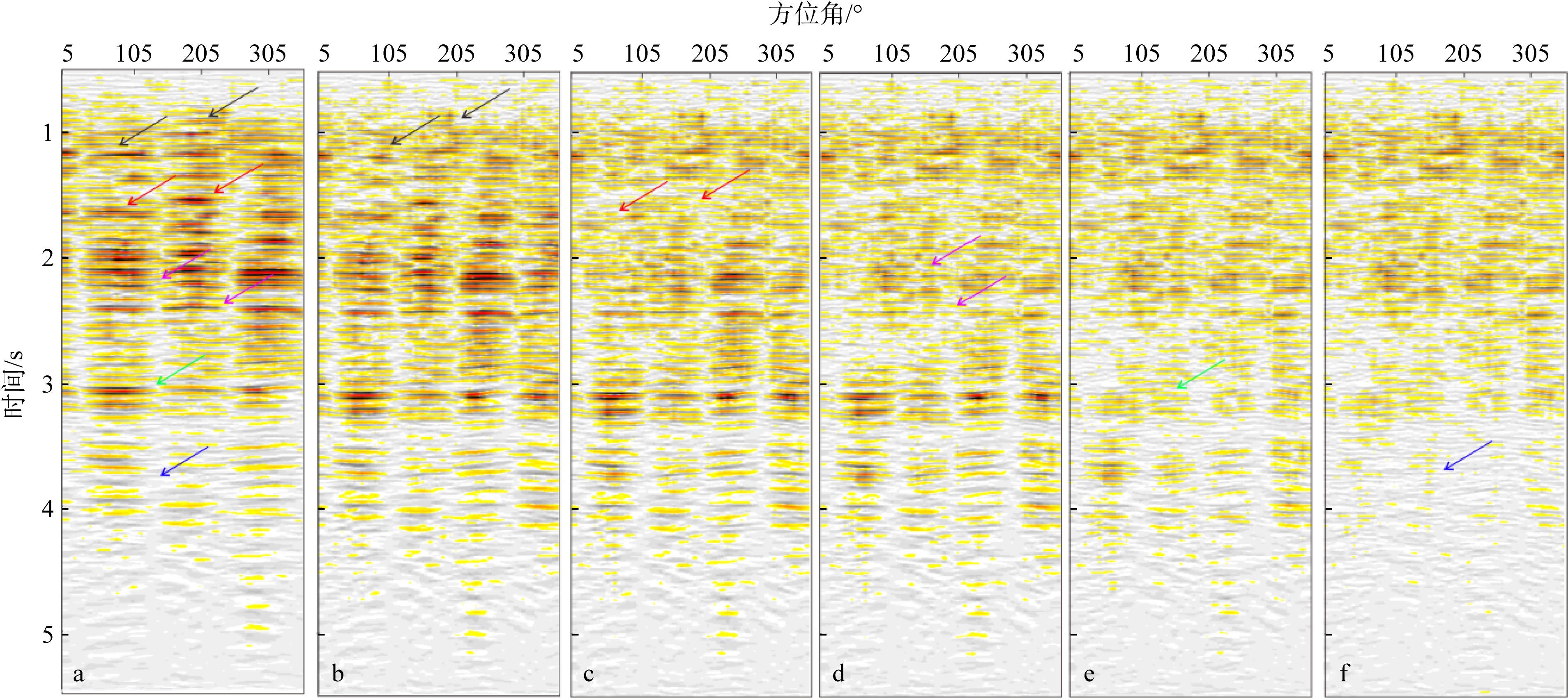

Fig. 8

Fig. 9

Fig. 10

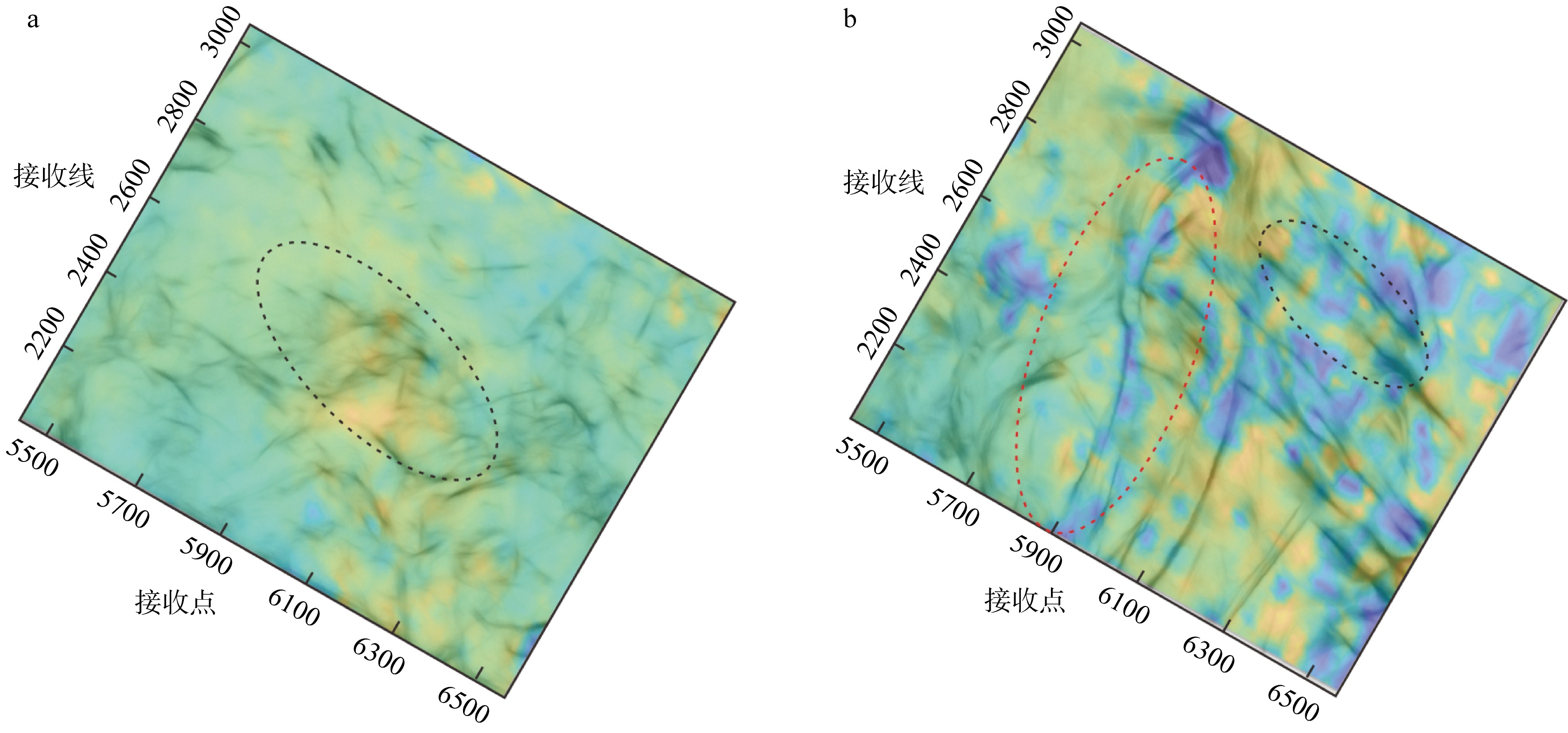

Fig. 11

Fig. 12

References 18

[1]	肖维德, 徐天吉, 丁蔚楠, 2013. 利用转换横波层剥离分析技术检测裂缝[J]. 石油地球物理勘探, 48(6): 966-971.
	XIAO WEIDE, XU TIANJI, DING WEINAN, 2013. Fracture detection with layer-stripping of PS-wave splitting[J]. Oil Geophysical Prospecting, 48(6): 966-971 (in Chinese with English abstract).
[2]	ALFORD R M, 1986. Shear data in the presence of azimuthal anisotropy: Dilley, Texas[C]// SEG Technical Program Expanded Abstracts 1986. Houston:Society of Exploration Geophysicists: 476-479.
[3]	BALE R, GRATACOS B, MATTOCKS B, et al, 2009. Shear wave splitting applications for fracture analysis and improved imaging: some onshore examples[J]. First Break, 27(9): 73-83.
[4]	BOIERO D, BAGAINI C, 2016. Horizon-based splitting intensity analysis and inversion for anisotropic characterization[C]// 78th EAGE Conference and Exhibition. Houten: European Association of Geoscientists and Engineers: 1-5.
[5]	BOIERO D, BAGAINI C, 2017. Shear-wave splitting intensity for tilted orthorhombic media[C]// 79th EAGE Conference and Exhibition. Houten: European Association of Geoscientists and Engineers: 1-5.
[6]	CHEVROT S, 2000. Multichannel analysis of shear wave splitting[J]. Journal of Geophysical Research: Solid Earth, 105(B9): 21579-21590.
[7]	CRAMPIN S, 1981. A review of wave motion in anisotropic and cracked elastic-media[J]. Wave Motion, 3(4): 343-391.
[8]	DONATI M, PIAZZA J L, ROLLET A, et al, 2016. 3D-3C multicomponent seismic-A successful fracture characterization case study in Algeria[J]. First Break, 34(1): 31-43.
[9]	FARFOUR M, YOON W J, 2016. A review on multicomponent seismology: A potential seismic application for reservoir characterization[J]. Journal of Advanced Research, 7(3): 515-524.
[10]	GAISER J E, 1999. Applications for vector coordinate systems of 3-D converted-wave data[J]. The Leading Edge, 18(11): 1290-1300.
[11]	GHOLAMI R, MORADZADEH A, RASOULI V, et al, 2016. Shear wave splitting analysis to estimate fracture orientation and frequency dependent anisotropy[J]. Acta Geophysica, 64(1): 76-100.
[12]	HAACKE R R, 2013. High-precision estimation of split PS-wave time delays and polarization directions[J]. Geophysics, 78(2): V63-V77.
[13]	JOHNS T, 2018. Horizon-focused birefringence analysis of 3C PS seismic data:Permian Basin-Case study, NE Midland[C]// SEG Technical Program Expanded Abstracts 2018. Tulsa: Society of Exploration Geophysicists: 2387-2391.
[14]	LIU XIAOMIN, ZHANG ZHENBO, XU LEYI, et al, 2023. Buried-hill multiscale fracture prediction using wide-azimuth OBN seismic data in the South China Sea[C]// Third International Meeting for Applied Geoscience & Energy Expanded Abstracts. Tulsa: Society of Exploration Geophysicists: 1229-1233.
[15]	PRAJAPATI S, GHOSH D, 2015. Analysis of shear-wave splitting using multicomponent seismic data[C]// SEG Technical Program Expanded Abstracts. Tulsa: Society of Exploration Geophysicists: 377-382.
[16]	WANG XIANGCHUN, BAI W, ZHENG YANPENG, 2020. Research on the anisotropy of gas hydrate reservoirs in South China Sea[J]. Marine Geophysical Research, 41: 16.
[17]	WINTERSTEIN D F, MEADOWS M A, 1991a. Changes in shear-wave polarization azimuth with depth in Cymric and Railroad Gap oil fields[J]. Geophysics, 56(9): 1349-1364.
[18]	WINTERSTEIN D F, MEADOWS M A, 1991b. Shear-wave polarizations and subsurface stress directions at Lost Hills field[J]. Geophysics, 56(9): 1331-1348.

内容	参数
记录道数/道	133
最小炮检距/m	25.67
最大炮检距/m	6482.12
面元尺寸/(m×m)	12.5×25
覆盖次数	8横×80纵=640次
道距/m	50
横向炮间距/m	50
纵向炮间距/m	37.5
横向滚动距/m	300
接收线方位角	120°
