红树林对规则波作用下岸滩剖面变化影响实验研究

doi:10.11978/2016013

Abstract

Abstract:

Mangroves are widely distributed in the coastal areas of South China, which can effectively reduce the damage by waves to the beach; therefore, it is significant to study the effect of the changes on the beach profile under the influence of regular waves. Based on the wave flume experiment, the PVC tubes are generally chosen to simulate mangroves, and cohesionless sand is selected to generate the beach whose combination slope is 1/10~1/20. The results of the experiment show that when there are mangroves, it has a large influence on the beach slope change under the action of regular waves; and the steepness of regular waves, as well as the distribution density and the arrangement of mangroves, are analyzed. Based on the experimental data, the relationships among the beach erosion scale, deposition scale, the maximum scour depth, the maximum deposition height, and the steepness of regular waves, the distribution density, the arrangement of the mangroves are established, whose relationship is an exponential function. The function reveals the relationship between the variation of beach profile and the hydrodynamic characteristics of regular waves, mangroves, the sediment particles, and the beach slope. With the introduction of the comprehensive coefficient of the plants, the characteristic value of beach erosion and deposition under a given regular wave is predicted, which provides a scientific basis for the construction of coastal protection engineering.

Key words: regular wave, mangrove, plant distribution density, plant coefficient of arrangement, variation of beach profile

Changbo JIANG, Zhe GUAN, Jie CHEN, Yu XIAO, Qingyang GAO, Yiqiu CUI, Cheng CAO. Experimental study on changes of cross-shore beach profile by regular waves under the influence of mangroves[J].Journal of Tropical Oceanography, 2017, 36(1): 95-105.

Figures/Tables 12

Fig. 1

Fig. 2

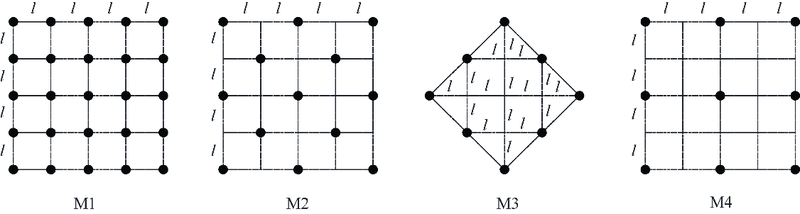

Tab. 1

Description of models"

模型	植物排列方式	a、b取值(l=2.5cm)	植物平均间距 $i ?$ /cm	植物分布密度φ	植物排列系数 $ψ$
M1	矩形排列方式	(a=b=l)	2.50	0.1243	60.80
M2	矩形排列方式	(a=2l, b=l)	3.54	0.0621	15.16
M3	菱形排列方式	(a= $2$ l, b=l)	2.97	0.0475	16.44
M4	矩形排列方式	(a=b=2l)	5.00	0.0311	3.80

Tab. 1

Tab. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Tab. 3

Fig. 9

References 32

[1]	陈杰, 管喆, 蒋昌波, 2016. 海啸波作用下泥沙运动——Ⅴ.红树林影响下的岸滩变化[J]. 水科学进展, 27(2): 206-213.
	CHEN JIE, GUAN ZHE, JIANG CHANGBO, 2016. Study of sediment transport by tsunami waves: Ⅴ: influence of mangrove[J]. Advances in Water Science, 27(2): 206-213 (in Chinese with English abstract).
[2]	范航清, 2005. 保护和发展我国红树林——海啸和台风暴潮的启示[J]. 南方国土资源, (10): 16-18.
[3]	韩淑梅, 吕春艳, 罗文杰, 等, 2009. 我国红树林群落生态学研究进展[J]. 海南大学学报自然科学版, 27(1): 91-95.
	HAN SHUMEI, LÜ CHUNYAN, LUO WENJIE, et al, 2009. A review on mangrove community ecology in China[J]. Natural Science Journal of Hainan University, 27(1): 91-95 (in Chinese with English abstract).
[4]	胡嵋, 白玉川, 杨建民, 2007. 利用植被消浪护岸的模型实验研究[J]. 实验室研究与探索, 26(12): 37-39, 46.
	HU MEI, BAI YVCHUAN, YANG JIANMIN, 2007. Model test research of the shore protection with vegetation for wave reduction[J]. Research and Exploration in Laboratory, 26(12): 37-39, 46 (in Chinese with English abstract).
[5]	吉红香, 黄本胜, 邱秀云, 等, 2008. 滩地植物对波浪变形及消浪效果影响试验研究[J]. 广东水利水电, (8): 14-18.
	JI HONGXIANG, HUANG BENSHENG, QIU XIUYUN, et al, 2008. Experimental study of the influence of vegetation planting on waves deformation and wave absorbing effect[J]. Guangdong Water Resources and Hydropower, (8): 14-18 (in Chinese with English abstract).
[6]	蒋昌波, 陈杰, 程永舟, 等, 2012. 海啸波作用下泥沙运动——Ⅰ.岸滩剖面变化分析[J]. 水科学进展, 23(5): 665-672.
	JIANG CHANGBO, CHEN JIE, CHENG YONGZHOU, et al, 2012. Study of sediment transport by tsunami waves: Ⅰ: beach profile evolution[J]. Advances in Water Science, 23(5): 665-672 (in Chinese with English abstract).
[7]	蒋昌波, 邓涯, 陈杰, 等, 2014a. 孤立波作用下岸滩剖面变化成因的水动力数值分析[J]. 水动力学研究与进展, 29(6): 713-722.
	JIANG CHANGBO, DENG YA, CHEN JIE, et al, 2014a. Hydrodynamic numerical study on the reasons of beach profile change under solitary wave[J]. Chinese Journal of Hydrodynamics, 29(6): 713-722 (in Chinese with English abstract).
[8]	蒋昌波, 伍志元, 陈杰, 等, 2014b. 风暴潮作用下泥沙运动和岸滩演变研究综述[J]. 长沙理工大学学报(自然科学版), 11(1): 1-9.
	JIANG CHANGBO, WU ZHIYUAN, CHEN JIE, et al, 2014b. Review of sediment transport and beach profile changes under storm surge[J]. Journal of Changsha University of Science & Technology (Natural Science), 11(1): 1-9 (in Chinese with English abstract).
[9]	蒋昌波, 伍志元, 陈杰, 等, 2015. 波浪动力因素变化对沙质岸滩演变的影响[J]. 海洋学报, 37(3): 106-113.
	JIANG CHANGBO, WU ZHIYUAN, CHEN JIE, et al, 2015. Effects of wave dynamic factors on the evolution of sandy beach[J] Haiyang Xuebao, 37(3): 106-113 (in Chinese with English abstract).
[10]	蒋昌波, 伍志元, 陈杰, 等, 2016. 分形理论在海滩剖面演化规律研究中的应用初探[J]. 泥沙研究, (1): 52-57.
	JIANG CHANGBO, WU ZHIYUAN, CHEN JIE, et al, 2016. Application of the fractal theory in the study of beach profile evolution[J] Journal of Sediment Research, (1): 52-57 (in Chinese with English abstract).
[11]	李志强, 陈子燊, 2008. 常浪条件下海滩滩角地形变化研究[J]. 海洋通报, 27(1): 60-67.
	LI ZHIQIANG, CHEN ZISHEN, 2008. A study on the morphological evolution of beach cusps under the normal wave conditions[J]. Marine Science Bulletin, 27(1): 60-67 (in Chinese with English abstract).
[12]	王瑞雪, 2012. 非淹没刚性植物对波浪传播变形影响实验研究[D]. 长沙: 长沙理工大学.
	WANG RUIXUE, 2012. Laboratory investigation on wave transformation through the emergent, rigid vegetation[D]. Changsha: Changsha University of Science and Technology (in Chinese with English abstract).
[13]	王旭, 杨怀, 郭胜群, 等, 2012. 海桑-无瓣海桑红树林生态系统的防浪效应[J]. 林业科学, 48(8): 39-45.
	WANG XU, YANG HUAI, GUO SHENGQUN, et al, 2012. Wave-prevention effects of Sonneratia caseolaris-S. apetala mangrove ecosystem[J]. Scientia Silvae Sinicae, 48(8): 39-45 (in Chinese with English abstract).
[14]	杨建民, 2008. 海岸带边坡防浪林消浪理论与实验研究[J]. 海洋通报, 27(2): 16-21.
	YANG JIANMIN, 2008. Analytical solution and physical model test of wave protection forest on coastal zones[J]. Marine Science Bulletin, 27(2): 16-21 (in Chinese with English abstract).
[15]	杨忠年, 2011. 风暴潮对黄河三角洲蚀积演变的控制研究[D]. 青岛: 中国海洋大学.
	YANG ZHONGNIAN, 2011. Storm’s dominant role on the deposition and erosion evolution in the Yellow River Delta[D]. Qingdao: Ocean University of China (in Chinese with English abstract).
[16]	张乔民, 1993. 红树林防浪护岸机理与效益评价[C]//中国海洋学会中国海洋湖沼学会. 第七届全国海岸工程学术讨论会论文集. 北京,: 海洋出版社: 853-861
[17]	张乔民, 温孝胜, 宋朝景, 等, 1996. 红树林潮滩沉积速率测量与研究[J]. 热带海洋, 15(4): 57-62.
	ZHANG QIAOMIN, WEN XIAOSHENG, SONG CHAOJING, et al, 1996. Tide measurement and study on sedimentation rates in mangrove tidal flats[J]. Tropic Oceanology, 15(4): 57-62 (in Chinese with English abstract).
[18]	张乔民, 张叶春, 1997a. 华南红树林海岸生物地貌过程研究[J]. 第四纪研究, (4): 344-353.
	ZHANG QIAOMIN, ZHANG YECHUN, 1997a. Study on biogeomorphologic process of mangrove coasts in South China[J]. Quaternary Sciences, (4): 344-353 (in Chinese with English abstract).
[19]	张乔民, 于红兵, 陈欣树, 等, 1997b. 红树林生长带与潮汐水位关系的研究[J]. 生态学报, 17(3): 258-265.
	ZHANG QIAOMIN, YU HONGBING, CHEN XINSHU, et al, 1997b. The relationship between mangrove zone on tidal flats and tidal levels[J]. Acta Ecologica Sinica, 17(3): 258-265 (in Chinese with English abstract).
[20]	张乔民, 张叶春, 隋淑珍, 1999. 我国红树林防浪护岸效益研究进展评述[C]//中国海洋学会, 中国海洋湖沼学会. 南京, 第九届全国海岸工程学术讨论会论文集. 南京: 中国海洋学会, 中国海洋湖沼学会.
[21]	BAO T Q, 2011. Effect of mangrove forest structures on wave attenuation in coastal Vietnam[J]. Oceanologia, 53(3): 807-818.
[22]	DANIELSEN F, SØRENSEN M K, OLWIG M F, et al, 2005. The Asian tsunami: a protective role for coastal vegetation[J]. Science, 310(5748): 643.
[23]	GRATIOT N, ANTHONY E J, 2016. Role of flocculation and settling processes in development of the mangrove-colonized, Amazon-influenced mud-bank coast of South America[J]. Marine Geology, 373: 1-10.
[24]	HASHIM A M, CATHERINE S M P, 2013. A laboratory study on wave reduction by mangrove forests[J]. APCBEE Procedia, 5: 27-32.
[25]	HAYDEN H L, GRANEK E F, 2015. Coastal sediment elevation change following anthropogenic mangrove clearing[J]. Estuarine Coastal & Shelf Science, 165: 70-74.
[26]	HORSTMAN E M, DOHMEN-JANSSEN C M, BOUMA T J, et al, 2015. Tidal-scale flow routing and sedimentation in mangrove forests: Combining field data and numerical modelling[J]. Geomorphology, 228: 244-262.
[27]	HORSTMAN E M, DOHMEN-JANSSEN C M, NARRA P M F, et al, 2014. Wave attenuation in mangroves: a quantitative approach to field observations[J]. Coastal Engineering, 94: 47-62.
[28]	JIANG CHANGBO, CHEN JIE, YAO YU, et al, 2015. Study on threshold motion of sediment and bedload transport by tsunami waves[J]. Ocean Engineering, 100: 97-106.
[29]	SARI S P, ROSALINA D, 2016. Mapping and monitoring of mangrove density changes on tin mining area[J]. Procedia Environmental Sciences, 33: 436-442.
[30]	STOKES D J, HARRIS R J, 2015. Sediment properties and surface erodibility following a large-scale mangrove (Avicennia marina) removal[J]. Continental Shelf Research, 107: 1-10.
[31]	TÜRKER U, YAGCI O, KABDAŞLI M S, 2006. Analysis of coastal damage of a beach profile under the protection of emergent vegetation[J]. Ocean Engineering, 33(5-6): 810-828.
[32]	UMROH, ADI W, SARI S P, 2016. Detection of Mangrove Distribution in Pongok Island[J]. Procedia Environmental Sciences, 33: 253-257.

组次	岸滩冲刷坑尺度A_e/H²				岸滩淤积沙坝尺度A_d/H²				最大冲刷深度d_{e max/H}				最大淤积高度d_{d max/H}
组次	实测值	拟合值		绝对误差	实测值	拟合值		绝对误差	实测值	拟合值		绝对误差	实测值	拟合值		绝对误差
4	1.976	2.005		0.030	1.913	2.030		0.117	0.380	0.294		0.086	0.475	0.415		0.060
5	1.163	0.885		0.278	0.564	0.990		0.426	0.162	0.171		0.009	0.239	0.284		0.045
6	0.237	0.495		0.258	0.488	0.595		0.107	0.100	0.116		0.016	0.094	0.217		0.122
7	1.788	1.942		0.154	3.181	2.331		0.850	0.310	0.271		0.039	0.545	0.452		0.093
8	0.924	0.857		0.067	0.761	1.137		0.377	0.130	0.158		0.028	0.280	0.309		0.029
9	0.722	0.480		0.242	0.580	0.684		0.103	0.180	0.107		0.073	0.196	0.236		0.040
10	3.033	2.947		0.086	1.641	1.744		0.103	0.300	0.275		0.025	0.330	0.410		0.080
11	0.947	1.300		0.353	0.787	0.851		0.064	0.139	0.160		0.021	0.326	0.280		0.046
12	0.995	0.728		0.267	0.986	0.511		0.474	0.238	0.109		0.129	0.300	0.214		0.086
13	2.079	1.882		0.197	2.225	2.676		0.451	0.322	0.251		0.071	0.427	0.492		0.065
14	0.190	0.830		0.641	1.417	1.306		0.111	0.086	0.146		0.060	0.314	0.336		0.022
15	0.930	0.465		0.465	1.224	0.785		0.439	0.170	0.099		0.071	0.354	0.257		0.097
误差统计	A_e/H²				A_d/H²				d_{e max/H}				d_{d max/H}
	误差平方和		均方根误差		误差平方和		均方根误差		误差平方和		均方根误差		误差平方和		均方根误差
	1.101		0.303		1.730		0.380		0.047		0.063		0.062		0.072

Experimental study on changes of cross-shore beach profile by regular waves under the influence of mangroves

RichHTML

PDF (PC)

Like

Knowledge

Cited

Abstract

Cite this article

share this article

Figures/Tables 12

References 32

Related Articles 15

Metrics

Comments

Recommended 0

组次	模型	波高/m	波陡H/L	密度φ	排列系数ψ
1	无	0.06	0.0421	—	—
2	无	0.09	0.0632	—	—
3	无	0.12	0.0843	—	—
4	M1	0.06	0.0421	0.1243	60.80
5	M1	0.09	0.0632	0.1243	60.80
6	M1	0.12	0.0843	0.1243	60.80
7	M2	0.06	0.0421	0.0621	15.16
8	M2	0.09	0.0632	0.0621	15.16
9	M2	0.12	0.0843	0.0621	15.16
10	M3	0.06	0.0421	0.0475	16.44
11	M3	0.09	0.0632	0.0475	16.44
12	M3	0.12	0.0843	0.0475	16.44
13	M4	0.06	0.0421	0.0311	3.80
14	M4	0.09	0.0632	0.0311	3.80
15	M4	0.12	0.0843	0.0311	3.80
