洋山港海域一次冷锋型温带风暴潮特征及各影响因子贡献的对比分析

doi:10.11978/2021152

Abstract

Abstract:

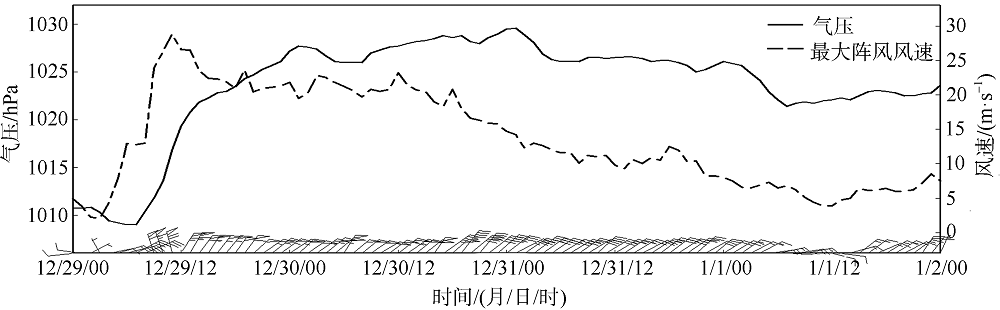

In this paper, an extra-tropical storm surge in the Yangshan Port (YSP) and its coastal area caused by a strong cold front on 29th December, 2020 was investigated. Meteorological observation data was analyzed to study the development of the weather system. FVCOM-SWAVE model characterized by a high-resolution unstructured-grid with 10 m was used to simulate the storm surge. The observed tide data, wave data and current data were introduced to verify the result of simulation, and the result was proved to be accurate and credible. Maximum storm surge, maximum negative storm surge, current, total water level and wave were studied to describe the character of the extra-tropical storm surge of YSP and its coastal area. Finally, sensitive experiments were carried out to compare the contributions of mean sea level pressure (SLP), wind and wave to the maximum storm surge. The main conclusions can be summarized as follows: 1) affected by the topography of the channel, the main component of the tidal current was southeast or northwest, which was approximately parallel to the shoreline, the current velocity in the deep water channel of YSP was the highest with a value between 2.6~2.8 m·s^-1; 2) due to the influence of long term northerly gale and high SLP, the storm surge behave as a characteristics of short-term positive storm surge and long-term negative storm surge; 3) during the peak period of storm surge, the contribution of wind field to storm surge was ~ 90%, and the contribution of sea-level pressure field was approximately 5%; while during the peak period of negative storm surge, the contribution of sea-level pressure field was about 55%, the contribution of wind field was ~ 40%, In addition, the contribution of wave to both was less than 10%.

Key words: FVCOM-SWAVE, extra-tropical storm surge, Yangshan Port adjacent area

CLC Number:

P731.23

XU Jie, GUO Jibing, CHEN Zhiqiang, ZHU Zhihui, WANG Qin, TANG Yanling. Comparative study on the contribution of various influential factors and characteristics analysis of an extra-tropical storm surge caused by cold front in the Yangshan Port and its adjacent area[J].Journal of Tropical Oceanography, 2022, 41(4): 126-135.

Figures/Tables 13

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Tab. 1

Tab. 2

Fig. 5

Tab. 3

Tab. 4

Fig. 6

Fig. 7

Fig. 8

Fig. 9

References 20

[1]	陈长胜, 2003. 海洋生态系统动力学与模型[M]. 北京: 高等教育出版社: 1-10.
	CHEN CHANGSHENG, 2003. Maring ecosystem dynamics and modeling[M]. Beijing: Higher Education Press: 1-10. (in Chinese)
[2]	丁平兴, 葛建忠, 2013. 长江口横沙浅滩及邻近海域灾害性天气分析[J]. 华东师范大学学报(自然科学版), (4): 72-78.
	DING PINGXING, GE JIANZHONG, 2013. Analysis of disastrous weather in the Hengsha Shoal and adjacent waters of the Yangtze Estuary[J]. Journal of East China Normal University (Natural Science), (4): 72-78. (in Chinese with English abstract)
[3]	付元冲, 2016. 长江口沿海地区温带风暴潮预报模式的建立及应用[D]. 上海: 华东师范大学: 2-20.
	FU YUANCHONG, 2016. Development and application of a forecasting model for extratropical storm surges around the Changjiang estuary[D]. Shanghai: East China Normal University: 2-20. (in Chinese with English abstract)
[4]	黄静, 2012. 沿海重要港口风暴潮灾害危险性研究——以上海洋山深水港为例[D]. 上海: 华东师范大学: 30-60.
	HUANG JING, 2012. The storm surge hazard analysis of seaports in China - take Shanghai Yang Shan deep-water port as a case[D]. Shanghai: East China Normal University: 30-60. (in Chinese with English abstract)
[5]	林小刚, 罗荣真, 张娟, 等, 2020. 浪流耦合对汕尾港台风风暴潮模拟的影响[J]. 海洋预报, 37(4): 30-37.
	LIN XIAOGANG, LUO RONGZHEN, ZHANG JUAN, et al, 2020. Effects of wave-current interaction on storm surge simulation in Shanwei Port[J]. Marine Forecasts, 37(4): 30-37. (in Chinese with English abstract)
[6]	罗志发, 黄本胜, 谭超, 等, 2021. 珠江河口波浪-风暴潮耦合数值模拟[J]. 广东水利水电, (7): 1-6, 17.
	LUO ZHIFA, HUANG BENSHENG, TAN CHAO, et al, 2021. Coupled numerical simulation on wave and storm surge around peral river estuary[J]. Guangdong Water Resources and Hydropower, (7): 1-6, 17. (in Chinese with English abstract)
[7]	宋德海, 鲍献文, 朱学明, 2009. 基于FVCOM的钦州湾三维潮流数值模拟[J]. 热带海洋学报, 28(2): 7-14.
	SONG DEHAI, BAO XIANWEN, ZHU XUEMING, 2009. Three-dimensional numerical simulation of tidal current in Qinzhou bay[J]. Journal of Tropical Oceanography, 28(2): 7-14. (in Chinese with English abstract)
[8]	宋德海, 鲍献文, 张少峰, 等, 2012. 基于FVCOM的廉州湾及周边海域三维潮汐潮流数值模拟[J]. 海洋通报, 31(2): 136-145.
	SONG DEHAI, BAO XIANWEN, ZHANG SHAOFENG, et al, 2012. Three-dimensional numerical simulation of tides and tidal currents in the Lianzhou Bay and adjacent areas on the basis of FVCOM[J]. Marine Science Bulletin, 31(2): 136-145. (in Chinese with English abstract)
[9]	唐燕玲, 徐卢笛, 贺治国, 等, 2019. 洋山海域三维潮流和余流特征的数值模拟[J]. 浙江大学学报(工学版), 53(2): 315-324.
	TANG YANLING, XU LUDI, HE ZHIGUO, et al, 2019. Numerical simulation of three-dimensional characteristics of tidal current and residual current in Yangshan harbor[J]. Journal of Zhejiang University (Engineering Science), 53(2): 315-324. (in Chinese with English abstract)
[10]	王喜年, 2005. 关于温带风暴潮[J]. 海洋预报, 22(S1): 17-23.
	WANG XINIAN, 2005. On extratropical storm surges[J]. Marine Forecasts, 22(S1): 17-23. (in Chinese with English abstract)
[11]	吴修广, 刘光生, 程文龙, 2011. 基于FVCOM的杭州湾三维泥沙数值模拟[J]. 水利水运工程学报, (4): 86-96.
	WU XIUGUANG, LIU GUANGSHENG, CHENG WENLONG, 2011. 3D Numerical Simulation of Sediment in the Hangzhou Bay based on FVCOM[J]. Hydro-Science and Engineering, (4): 86-96. (in Chinese with English abstract)
[12]	徐秀芳, 戴建华, 尹红萍, 2009. 近20年影响上海的寒潮特点[J]. 大气科学研究与应用, (1): 73-80.
	XU XIUFANG, DAI JIANHUA, YIN HONGPING, 2009. The characteristics of cold wave in Shanghai during recent 20 years[J]. Atmospheric Science Research and Application, (1): 73-80. (in Chinese with English abstract)
[13]	张光宇, 2017. 渤海风暴潮特征及增水影响因素数值模拟研究[D]. 天津: 天津大学: 20-88.
	ZHANG GUANGYU, 2017. Study on characteristics and effect factors of storm surges in Bohai Sea[D]. Tianjin: Tianjin University: 20-88. (in Chinese with English abstract)
[14]	郑立松, 2010. 风暴潮-天文潮-波浪耦合模型及其在杭州湾的应用[D]. 北京: 清华大学: 30-99.
	ZHENG LISONG, 2010. Development and application of a numerical model coupling storm surge, tide and wind wave[D]. Beijing: Tsinghua University: 30-99. (in Chinese with English abstract)
[15]	朱婧, 叶龙彬, 陈德花, 等, 2020. 1614号台风“莫兰蒂”在厦门湾及其周边海域引发风暴潮的数值模拟[J]. 海洋预报, 37(6): 20-30.
	ZHU JING, YE LONGBIN, CHEN DEHUA, et al, 2020. Numerical simulation of storm surge in Xiamen Bay and its adjacent seas caused by typhoon "Moranti" (1614)[J]. Marine Forecasts, 37(6): 20-30. (in Chinese with English abstract)
[16]	CHEN CHANGSHENG, BEARDSLEY R C, COWLES G, et al, 2011. An unstructured grid, finite-volume costal ocean model FVCOM user manual[R]. Cambridge: Massachusetts Institute of Technology.
[17]	ROBERTS K J, COLLE B A, GEORGAS N, et al, 2015. A regression-based approach for cool-season storm surge predictions along the New York-new jersey coast[J]. Journal of Applied Meteorology and Climatology, 54(8): 1773-1791. doi: 10.1175/JAMC-D-14-0314.1
[18]	WEAVER R J, 2004. Effect of wave forces on storm surge[D]. Florida: University of Florida: 6-44.
[19]	WILLMOTT C J, 1981. On the validation of models[J]. Physical Geography, 2(2): 184-194. doi: 10.1080/02723646.1981.10642213
[20]	ZHANG FAN, LI MING, ROSS A C, et al, 2017. Sensitivity analysis of hurricane Arthur (2014) storm surge forecasts to WRF physics parameterizations and model configurations[J]. Weather and Forecasting, 32(5): 1745-1764. doi: 10.1175/WAF-D-16-0218.1

模型参数	参数配置
网格范围	120°—123°18′E, 29°12′— 32°12′N
分辨率	最大网格9km, 最小网格10m
节点/单元	节点148375个, 三角形单元286204个
垂向分层	10层
积分时间	2020年12月24日0000UTC—2021年1月2日0000UTC
FVCOM时间步长	内模2s, 外模0.2s, 时间分裂模比10
SWAVE时间步长	2s
谱方向分辨率	10°
边界海浪谱型	JONSWAP
边界径流	大通、富春江水文站径流量
边界水位	TPXO模型模拟输出的M2、S2、K1、O1、N2、P1、Q1、K2
初始条件	冷启动(温度10℃; 盐度30‰)
风场	WARMS2.1数据集10m风场的U、V分量(水平分辨率9km)
气压场	WARMS2.1海平面气压数据

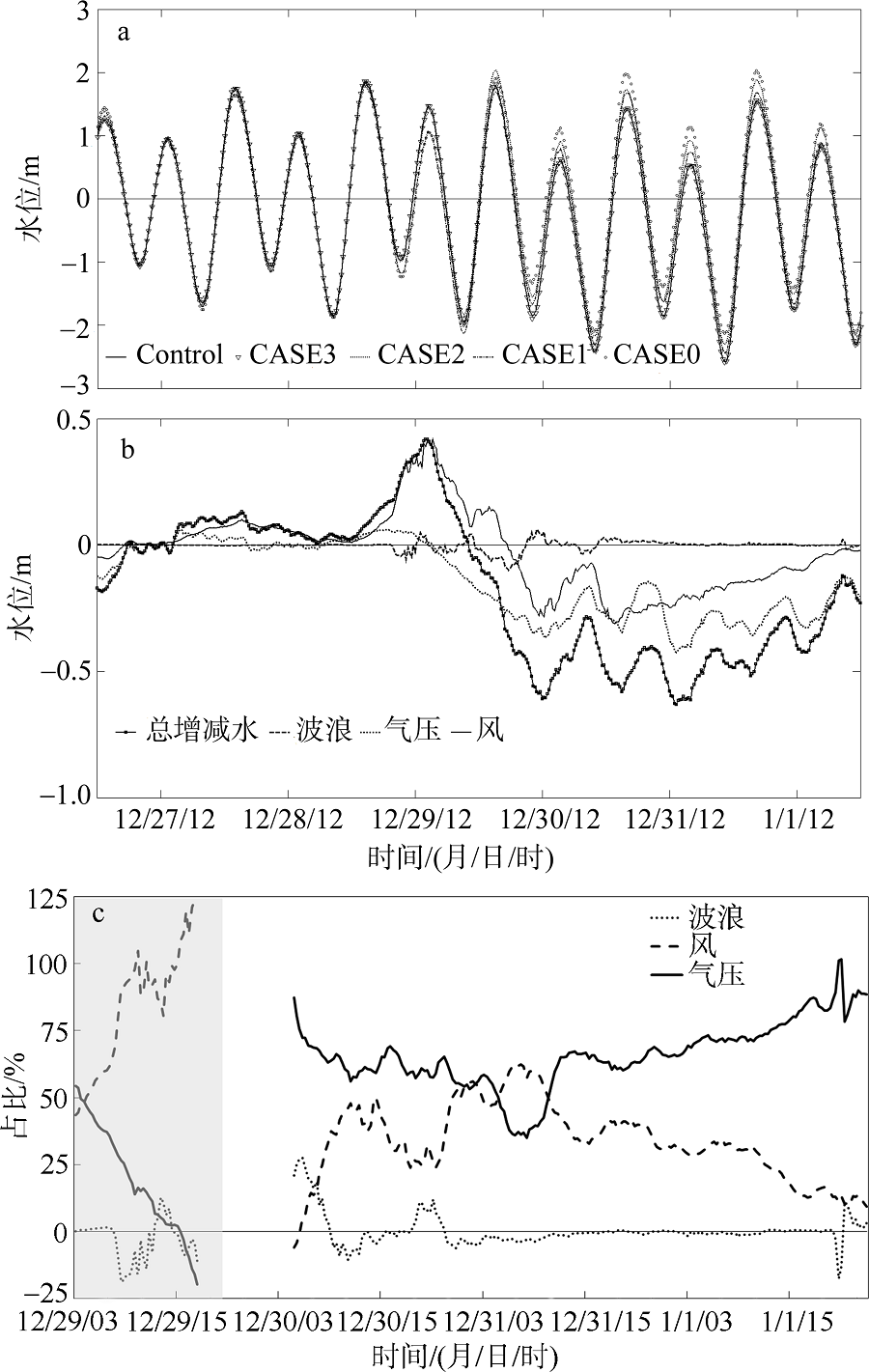

要素	CASE0	CASE1	CASE2	CASE3	Control
潮位	√	√	√	√	√
海平面气压场		√		√	√
风场			√	√	√
波浪					√

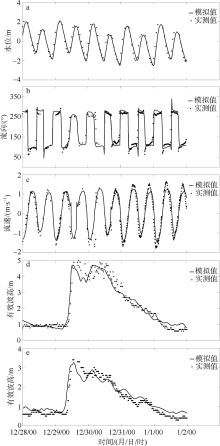

站点 (要素)	长江口灯船 (有效波高)	海礁浮标 (有效波高)	南港验潮站 (水位)	东海大桥北浮标 (流向)	东海大桥北浮标 (流速)
平均绝对误差	0.19m	0.21m	0.28m	12.57°	0.24m•s^-1
均方根误差	0.23m	0.25m	0.34m	17.18°	0.30m•s^-1
