基于高精度海洋动力模型的珠江口羽状流季节和年际变化规律研究

doi:10.11978/2018098

Abstract

Abstract:

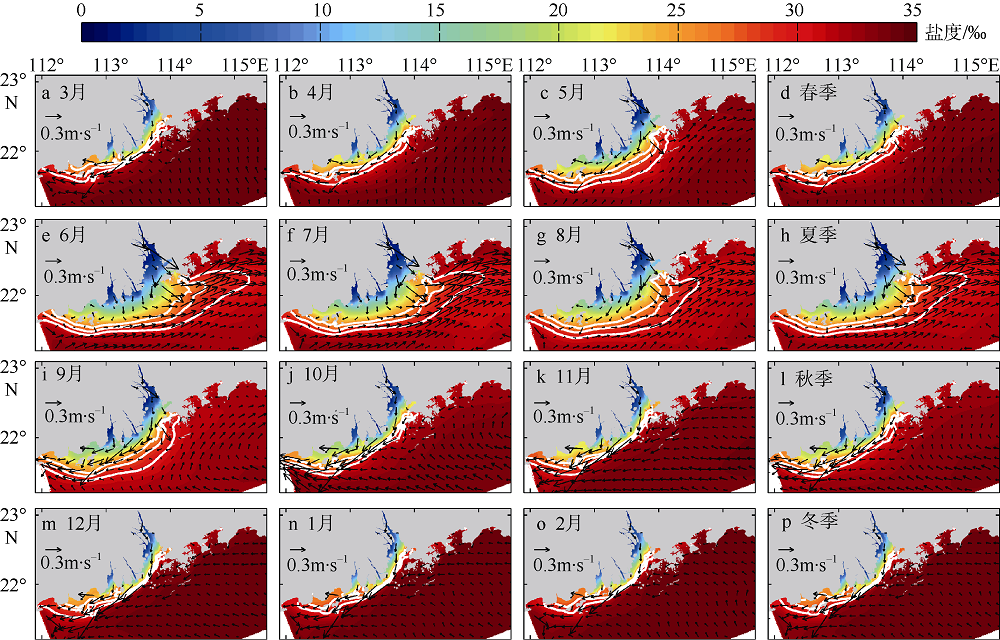

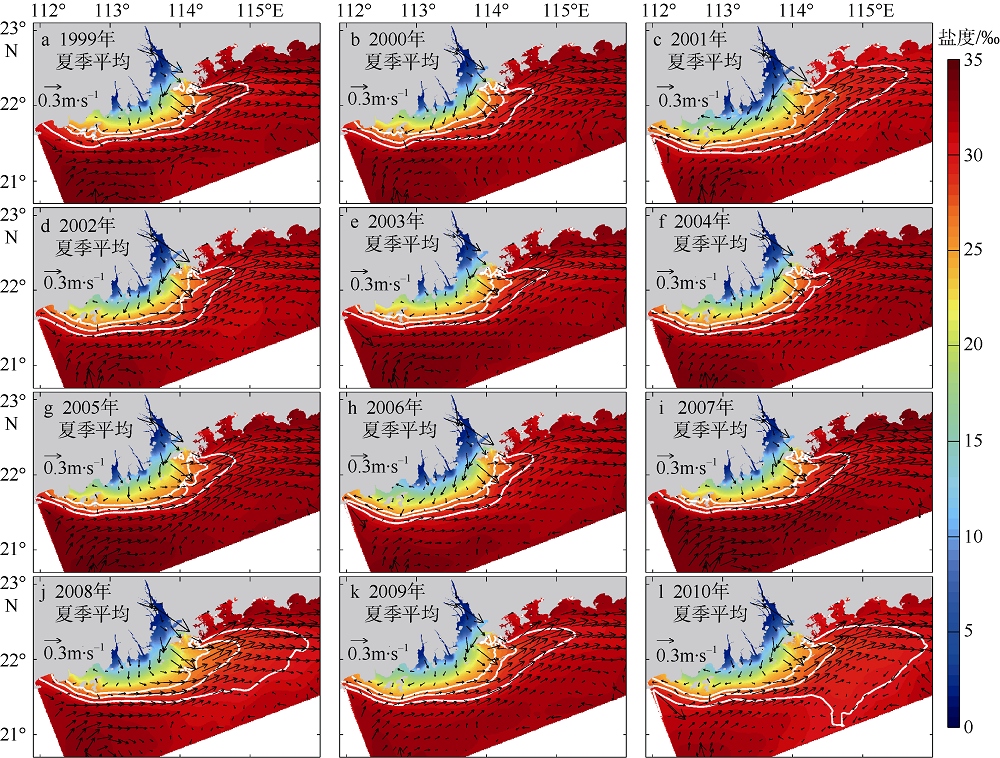

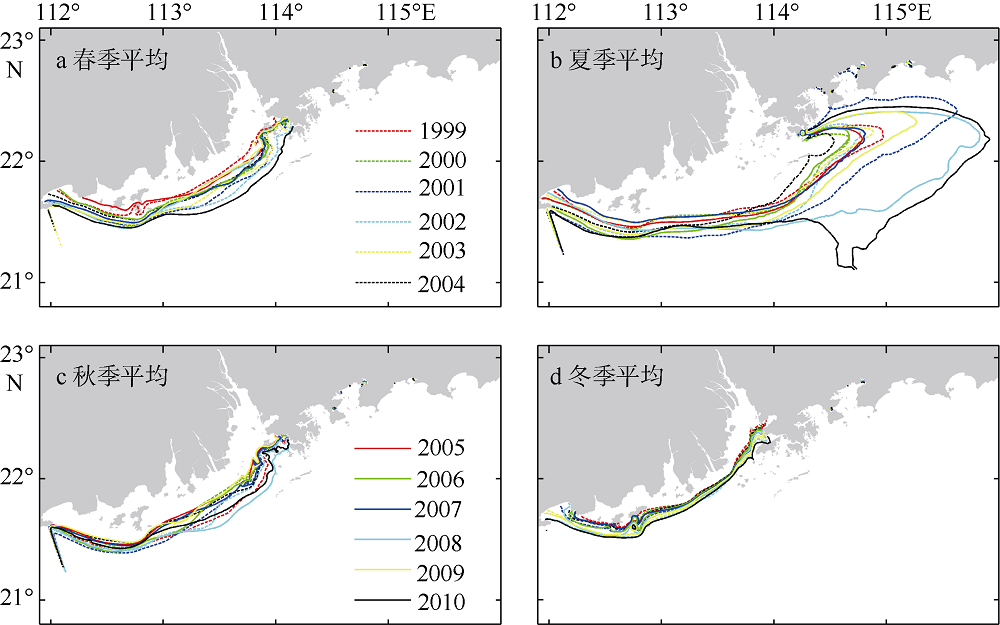

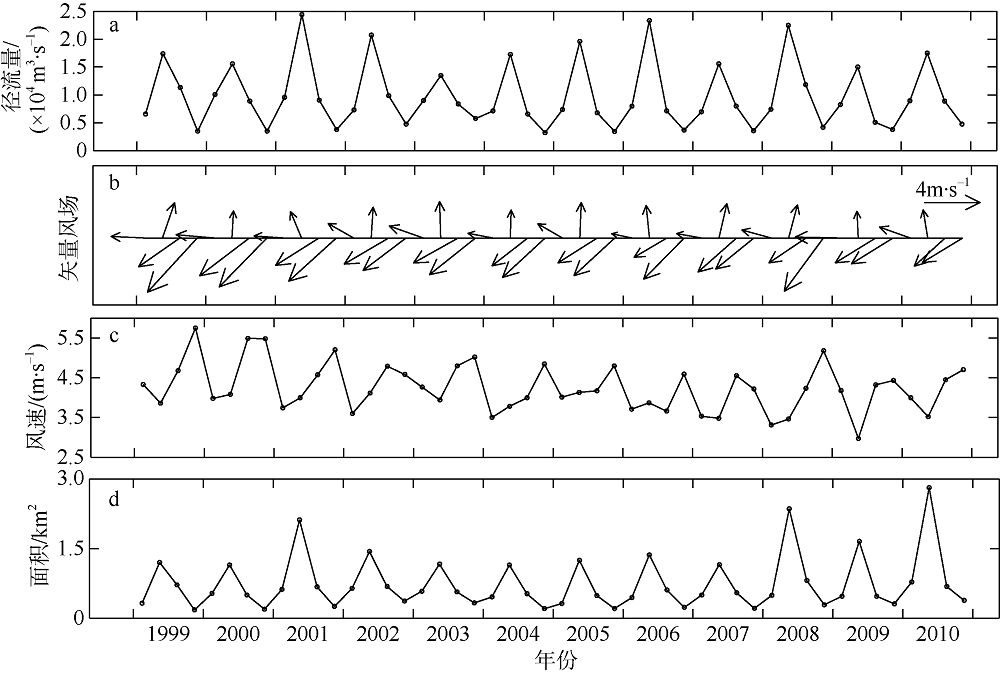

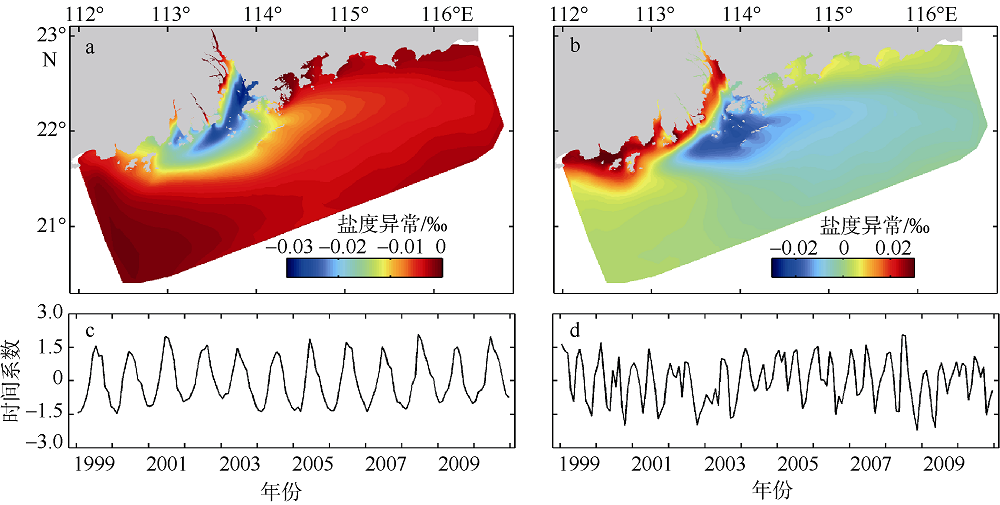

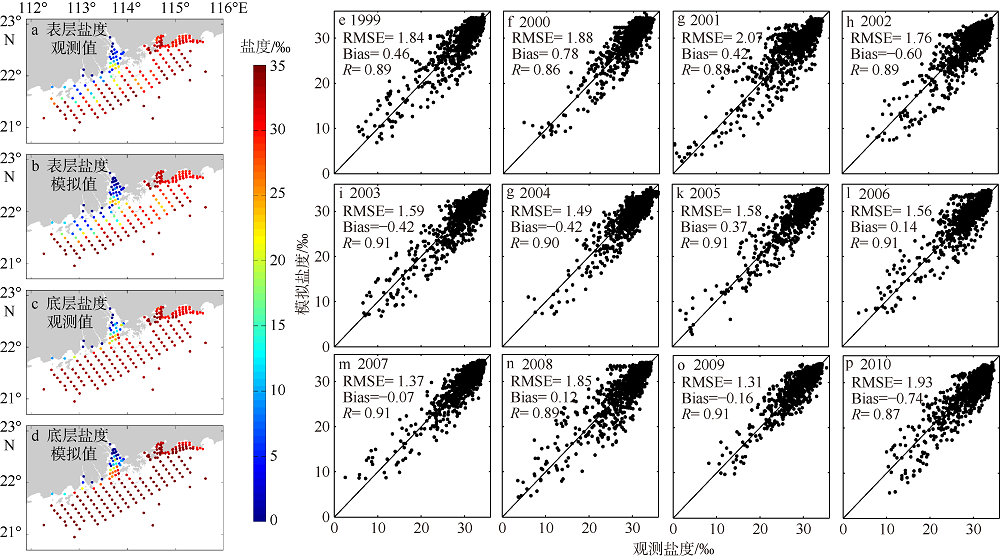

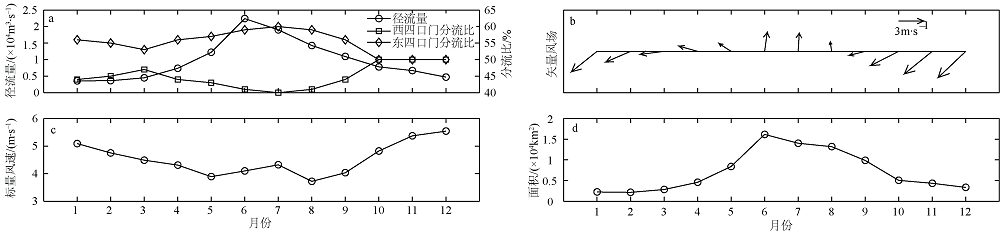

Based on the sea surface salinity data from 1999 to 2010 simulated by the high-resolution Finite-Volume Community Ocean Model (FVCOM), the seasonal and interannual variability of river plume in the Pearl River Estuary was analyzed and the main dynamic factors related to the variability were also discussed in combination with Empirical Orthogonal Function (EOF) analysis in this study. The field observation data during the simulation period were used to verify the simulation results for the 12 years, and the verification results showed that the model had higher accuracy and simulated the extension and variability of the plume fairly well. The simulated results showed that the plume exhibited significant seasonal variability. Affected by the high river discharge and southwesterly wind, the summertime plume exhibited a bidirectional structure with the plume extending westward attaching to the coast and eastward detaching from the coast. The extension area of the summertime plume was the largest. In winter, the river discharge attenuated to a minimum and the wind field changed into strong northeasterly wind. Consequently, the plume was squeezed to the western coast tightly to form a narrow band with the smallest extension area. The spring and autumn periods were transitional seasons, and the plume in these two seasons exhibited westward alongshore spreading. The summertime plume exhibited significant interannual variability with three main patterns, namely, the eastward extension dominated, approximately symmetric extension and westward extension dominated. In spring, the interannual variability of the plume was followed by that in summer and the variability mostly occurred in the western region and river estuary. The interannual variability in autumn and winter was not significant, especially in winter. The first EOF mode could explain 91.2% of the total variance, corresponding to the change in river discharge. The second EOF mode could explain 4.1% of the total variance, corresponding to the change in prevailing wind.

Key words: plume, seasonal variability, interannual variability, EOF analysis, numerical model, Pearl River Estuary

CLC Number:

P731.21

Chuang XU,Yongji XU,Jiatang HU,Shiyu LI,Jintao LIU. Study on the seasonal and interannual variability of river plume in the Pearl River Estuary based on a high-resolution ocean dynamic model[J].Journal of Tropical Oceanography, 2019, 38(3): 43-52.

Figures/Tables 8

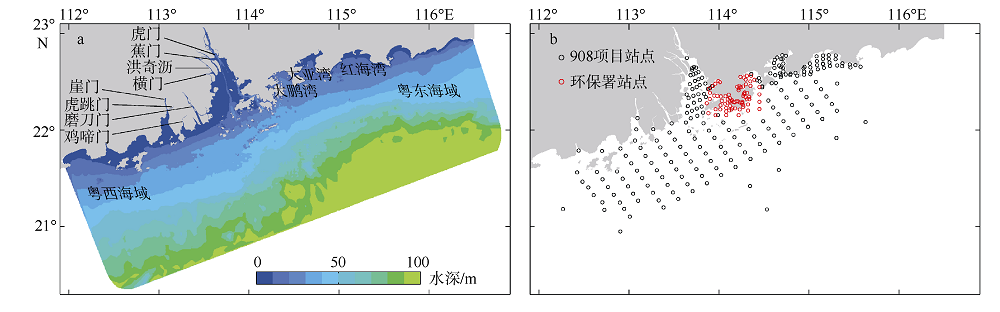

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

References 22

[1]	胡嘉镗, 李适宇 , 2008. 珠江三角洲一维盐度与三维斜压耦合模型[J]. 水利学报, 39(11):1174-1182.
	HU JIATANG, LI SHIYU , 2008. One-dimensional salinity and three-dimensional baroclinic coupled model for simulating the flow in Pearl River delta[J]. Journal of Hydraulic Engineering, 39(11):1174-1182 (in Chinese with English abstract).
[2]	庞海龙 , 2006. 珠江冲淡水扩散路径分析[D]. 青岛: 中国海洋大学.
	PANG HAILONG , 2006. Analysis of diffuse route of the Zhujiang River diluted water[D]. Qingdao:Ocean University of China (in Chinese with English abstract).
[3]	杨阳, 孟强, 夏华永 , 等, 2010. 2006年夏季珠江冲淡水扩展及生态响应[J]. 热带海洋学报, 29(6):15-21.
	YANG YANG, MENG QIANG, XIA HUAYONG et al, 2010. Expansion of the Pearl River diluted water in 2006 and its ecological response[J]. Journal of Tropical Oceanography, 29(6):15-21 (in Chinese with English abstract).
[4]	BAI YAN, HE XIANQIANG, PAN DELU , et al, 2014. Summertime Changjiang River plume variation during 1998-2010[J]. Journal of Geophysical Research: Oceans, 119(9):6238-6257. doi: 10.1002/2014JC009866
[5]	CHEN CHANGSHENG, LIU HEDONG, BEARDSLEY R C , 2003. An unstructured grid, finite-volume, three-dimensional, primitive equations ocean model: application to coastal ocean and estuaries[J]. Journal of Atmospheric and Oceanic Technology, 20(1):159-186. doi: 10.1175/1520-0426(2003)020<0159:AUGFVT>2.0.CO;2
[6]	CHEN CHANGSHENG, BEARDSLEY R C, COWLES G , 2006 a. An unstructured grid, finite-volume coastal ocean model (FVCOM) system[J]. Oceanography, 19(1):78-89. doi: 10.5670/oceanog
[7]	CHEN CHANGSHENG, BEARDSLEY R C, COWLES G , 2006b. An unstructured grid, finite-volume coastal ocean model: FVCOM user manual[M]. 2nd ed. New Bedford, Mass: University of Marseille Dartmouth.
[8]	CHEN ZHAOYUN, GONG WENPING, CAI HUAYANG , et al, 2017. Dispersal of the Pearl River plume over continental shelf in summer[J]. Estuarine, Coastal and Shelf Science, 194:252-262. doi: 10.1016/j.ecss.2017.06.025
[9]	DING YANG, BAO XIANWEN, YAO ZHIGANG , et al, 2017. A modeling study of the characteristics and mechanism of the westward coastal current during summer in the northwestern South China Sea[J]. Ocean Science Journal, 52(4):11-30. doi: 10.1007/s12601-017-0011-x
[10]	FALCIERI F M, BENETAZZO A, SCLAVO M , et al, 2014. Po River plume pattern variability investigated from model data[J]. Continental Shelf Research, 87:84-95. doi: 10.1016/j.csr.2013.11.001
[11]	GAN JIANPING, LI LI, WANG DONGXIAO , et al, 2009. Interaction of a river plume with coastal upwelling in the northeastern South China Sea[J]. Continental Shelf Research, 29(4):728-740. doi: 10.1016/j.csr.2008.12.002
[12]	JIANG LONG, XIA MENG , 2016. Dynamics of the Chesapeake Bay outflow plume: realistic plume simulation and its seasonal and interannual variability[J]. Journal of Geophysical Research: Oceans, 121(2):1424-1445. doi: 10.1002/2015JC011191
[13]	KIM H C, YAMAGUCHI H, YOO S , et al, 2009. Distribution of Changjiang Diluted Water detected by satellite chlorophyll-a and its interannual variation during 1998-2007[J]. Journal of Oceanography, 65(1):129-135.
[14]	LAI ZHIGANG, MA RONGHUA, GAO GUANGYIN , et al, 2015. Impact of multichannel river network on the plume dynamics in the Pearl River estuary[J]. Journal of Geophysical Research: Oceans, 120(8):5766-5789. doi: 10.1002/2014JC010490
[15]	LAI ZHIGANG, MA RONGHUA, HUANG MINGFEN , et al, 2016. Downwelling wind, tides, and estuarine plume dynamics[J]. Journal of Geophysical Research: Oceans, 120(6):4245-4263.
[16]	MELLOR G L, YAMADA T , 1982. Development of a turbulence closure model for geophysical fluid problems[J]. Reviews of Geophysics, 20(4):851-875. doi: 10.1029/rg020i004p00851
[17]	OU SUYING, ZHANG HONG, WANG DONGXIAO , 2009. Dynamics of the buoyant plume off the Pearl River Estuary in summer[J]. Environmental Fluid Mechanics, 9(5):471-492. doi: 10.1007/s10652-009-9146-3
[18]	PAN JIAYI, GU YANZHEN, WANG DONGXIAO , 2014. Observations and numerical modeling of the Pearl River plume in summer season[J]. Journal of Geophysical Research: Oceans, 119(4):2480-2500. doi: 10.1002/2013JC009042
[19]	PAWLOWICZ R, BEARDSLEY B, LENTZ S , 2002. Classical tidal harmonic analysis including error estimates in MATLAB using T_TIDE[J]. Computers & Geosciences, 28(8):929-937. doi: 10.1016/S0098-3004(02)00013-4
[20]	SCHILLER R V, KOURAFALOU V H, HOGAN P , et al, 2011. The dynamics of the Mississippi River plume: impact of topography, wind and offshore forcing on the fate of plume waters[J]. Journal of Geophysical Research: Oceans, 116(C6):C06029. doi: 10.1029/2010JC006883
[21]	SMAGORINSKY J , 1963. General circulation experiments with the primitive equations[J]. Monthly Weather Review, 91(3):99-164. doi: 10.1175/1520-0493(1963)091<0099:GCEWTP>2.3.CO;2
[22]	ZENG XIANGMING, HE RUOYING, ZONG HAIBAO , 2017. Variability of Changjiang diluted water revealed by a 45-year long-term ocean hindcast and self-organizing maps analysis[J]. Continental Shelf Research, 146:37-46. doi: 10.1016/j.csr.2017.08.010
