伶仃洋夏季叶绿素a时间变化特征及分析

doi:10.11978/2021043

Abstract

Abstract:

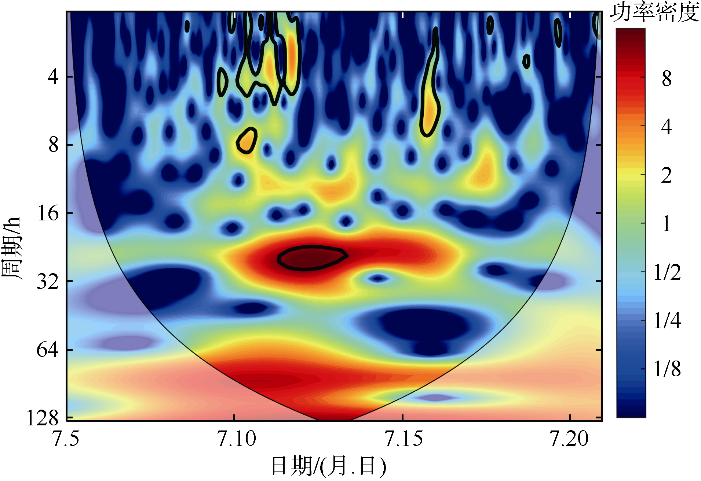

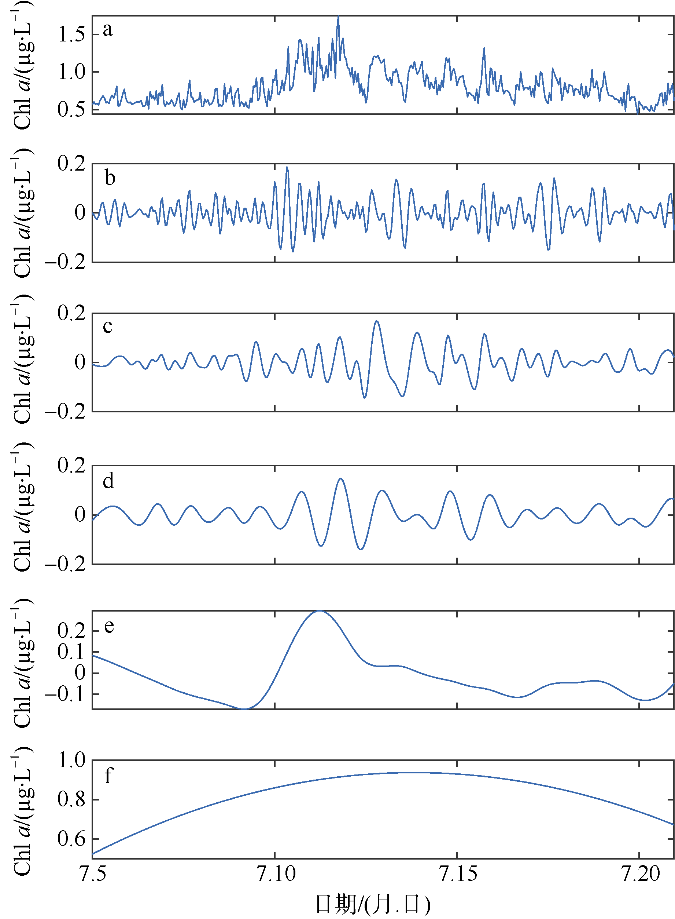

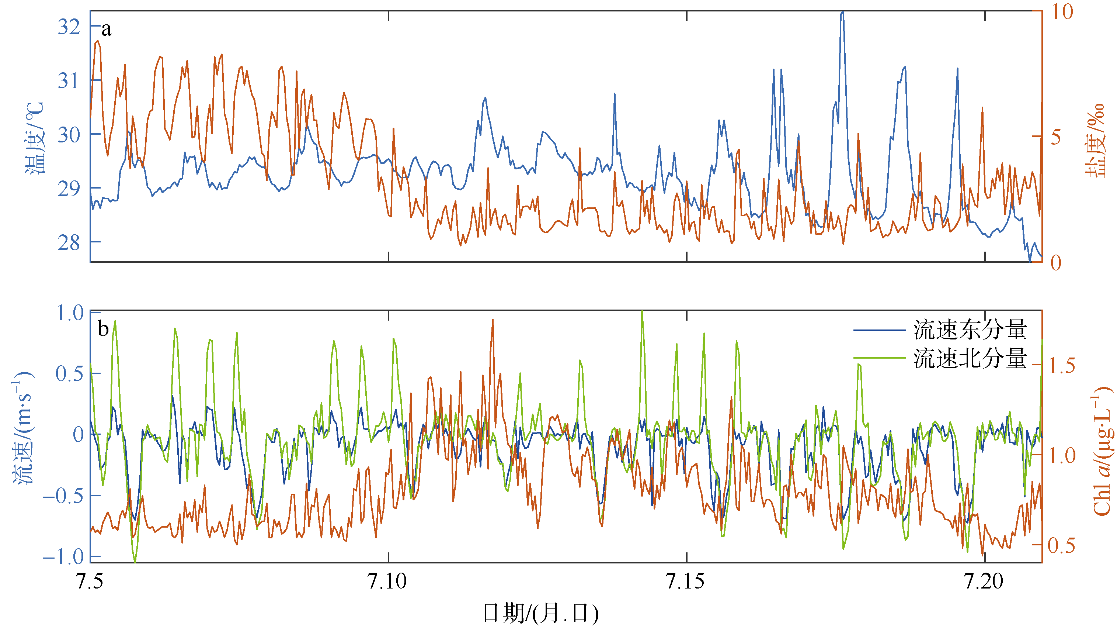

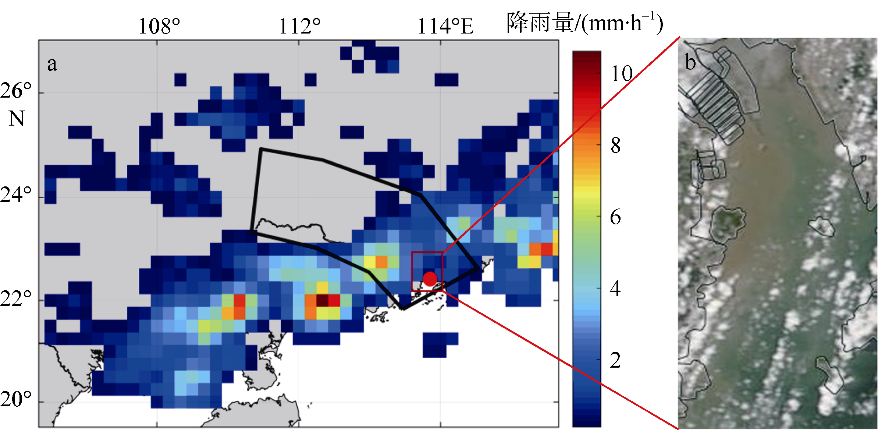

We used the continuous in-situ air pressure, temperature, sea-surface wind, sea-surface temperature, salinity, chlorophyll a, current observation data, satellite rainfall data, and moderate resolution imaging spectroradiometer (MODIS) visible band images to analyze the characteristics of sea-surface chlorophyll a in Lingding Bay of the Pearl River Estuary, during the study period of July 5 - 20, 2019. The methods of wavelet analysis and ensemble empirical mode decomposition (EEMD) are used. The results showed that the concentration of chlorophyll a during the observation period varied from 0.44 to 1.75 µg·L^-1, with an average value of 0.80 µg·L^-1. The periods of the signals in the time series of chlorophyll a were 6, 12 and 24 h. It is obvious that there was a phase relationship between chlorophyll a and tidal current, which would be changed by the rainfall over the Pearl River basin. In the study period, chlorophyll a was in an inverse phase relationship with the tidal current, which means that the chlorophyll a concentration reached maximum (minimum) with the maximum flow in the ebb (rising) tide. The difference of chlorophyll a concentration in the ebb and rising tides was about 0.3 µg·L^-1. When rainfall occurred in the Pearl River Basin from July 8 to 13, chlorophyll a concentration increased from 0.02 ~ 0.09 µg·L^-1 to about 0.15 µg·L^-1 at the periods of 6, 12 and 24 h. Furthermore, the chlorophyll a concentration in the Pearl River Estuary increased by about 0.3 µg·L^-1 for 80 h after the rainfall. After the rainfall, the time series of tidal current lagged behind chlorophyll a for about 6 h from July 13 to 20. The concentration of chlorophyll a reached minimum (maximum) with high (low) tide. The results present that rainfall not only increased the chlorophyll a in the estuary, but also induced the transformation of the phase relationship between chlorophyll a and tidal current.

Key words: Pearl River Estuary, Lingding Bay, chlorophyll a, tidal cycle, rainfall

CLC Number:

P735.12

ZENG Dianting, LI Junyi, XIE Lingling, YE Xiaomin, ZHOU Da. Analysis of temporal characteristics of chlorophyll a in Lingding Bay during summer[J].Journal of Tropical Oceanography, 2022, 41(2): 16-25.

Figures/Tables 9

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

References 22

[1]	曹振锐, 黄邦钦, 刘媛, 等, 2005. 厦门海域分粒级叶绿素a含量的分布特征[J]. 台湾海峡, 24(4): 493-501.
	CAO ZHENRUI, HUANG BANGQIN, LIU YUAN, et al, 2005. Distribution Characteristics of size-fractionated chlorophyll a in Xiamen Waters[J]. Journal of Oceanography in Taiwan Strait, 24(4): 493-501. (in Chinese with English abstract)
[2]	车志伟, 李刚, 王德鸿, 等, 2007. 一个潮汐周期内三亚河口定点的水体环境变化[J]. 广西科学, 14(4): 419-422.
	CHE ZHIWEI, LI GANG, WANG DEHONG, et al, 2007. Pointing aquatic environmental variability of Sanya River Estuary within a tide cycle[J]. Guangxi Sciences, 14(4): 419-422. (in Chinese with English abstract)
[3]	车志伟, 史云峰, 曲江勇, 等, 2014. 三亚河口叶绿素a含量及其与环境因子的关系[J]. 琼州学院学报, 21(2): 88-92.
	CHE ZHIWEI, SHI YUNFENG, QU JIANGYONG, et al, 2014. The content of chlorophyll-a and its relationship with the environmental factors in the Sanya Estuary[J]. Journal of Qiongzhou University, 21(2): 88-92. (in Chinese with English abstract)
[4]	车志伟, 史云峰, 2015. 三亚河口海域叶绿素a与海洋环境因子的关系研究[J]. 环境污染与防治, 37(4): 53-57, 61.
	CHE ZHIWEI, SHI YUNFENG, 2015. Correlation analysis between chlorophyll-a concentration and marine environmental factors in Sanya River Estuary[J]. Environmental Pollution & Control, 37(4): 53-57, 61. (in Chinese with English abstract)
[5]	陈冰, 2009. 珠江口伶仃洋水文特征和综合治理[C]// 中国土木工程学会港口工程分会技术交流文集. 北京: 人民交通出版社: 46-52. (in Chinese)
[6]	丁芮, 2015. 珠江口及邻近海域环流潮汐高分辨率数值模拟研究[D]. 青岛: 中国海洋大学: 23-24.
	DING RUI, 2015. Three-dimensional high-resolution numerical study of the tide and circulation in the Pearl River Estuary and its adjacent waters[D]. Qingdao: Ocean University of China: 23-24. (in Chinese with English abstract)
[7]	黄云峰, 江涛, 冯佳和, 等, 2012. 珠江口广州海域叶绿素a分布特征及环境调控因素[J]. 海洋环境科学, 31(3): 379-384, 404.
	HUANG YUNFENG, JIANG TAO, FENG JIAHE, et al, 2012. Distribution and environmental regulation of chlorophyll-a in Guangzhou sea area, Pearl River Estuary[J]. Marine Environmental Science, 31(3): 379-384, 404. (in Chinese with English abstract)
[8]	柯志新, 黄良民, 谭烨辉, 等, 2013. 2008年夏末南海北部叶绿素a的空间分布特征及其影响因素[J]. 热带海洋学报, 32(4): 51-57.
	KE ZHIXIN, HUANG LIANGMIN, TAN YEHUI, et al, 2013. Spatial distribution of chlorophyll a and its relationships with environmental factors in northern South China Sea in late summer 2008[J]. Journal of Tropical Oceanography, 32(4): 51-57. (in Chinese with English abstract)
[9]	李孟国, 韩志远, 李文丹, 等, 2019. 伶仃洋滩槽演变与水沙环境研究进展[J]. 海洋湖沼通报, (5): 20-33.
	LI MENGGUO, HAN ZHIYUAN, LI WENDAN, et al, 2019. A review on the seabed evolution and hydrodynamic sediment environment in Lingdingyang Bay of the Pearl River Estuary[J]. Transactions of Oceanology and Limnology, (5): 20-33. (in Chinese with English abstract)
[10]	李荣欣, 王雨, 康建华, 等, 2011. 九龙江河口水体叶绿素a含量和初级生产力的时空变化[J]. 台湾海峡, 30(4): 551-558.
	LI RONGXIN, WANG YU, KANG JIANHUA, et al, 2011. Temporal and spatial variations of chlorophyll a concentration and primary production in Jiulongjiang Estuary waters[J]. Journal of Oceanography in Taiwan Strait, 30(4): 551-558. (in Chinese with English abstract)
[11]	刘华健, 黄良民, 谭烨辉, 等, 2017. 珠江口浮游植物叶绿素a和初级生产力的季节变化及其影响因素[J]. 热带海洋学报, 36(1): 81-91.
	LIU HUAJIAN, HUANG LIANGMIN, TAN YEHUI, et al, 2017. Seasonal variations of chlorophyll a and primary production and their influencing factors in the Pearl River Estuary[J]. Journal of Tropical Oceanography, 36(1): 81-91. (in Chinese with English abstract)
[12]	马方方, 王刚, 毕玉明, 等, 2019. 2018年秦皇岛风暴潮前后岸基站及浮标主要水质参数变化分析[J]. 海洋技术学报, 38(6): 68-74.
	MA FANGFANG, WANG GANG, BI YUMING, et al, 2019. Analysis on the variation of main water quality parameters of estuary stations and buoys during a storm surge in Qinhuangdao in 2018[J]. Journal of Ocean Technology, 38(6): 68-74. (in Chinese with English abstract)
[13]	沙慧敏, 李小恕, 杨文波, 等, 2009. 用MODIS遥感数据反演东海海表温度、叶绿素a浓度年际变化的研究[J]. 大连水产学院学报, 24(2): 151-156.
	SHA HUIMIN, LI XIAOSHU, YANG WENBO, et al, 2009. Annual variation in sea surface temperature and chlorophyll-a concentration retrieved by MODIS in East China Sea[J]. Journal of Dalian Fisheries University, 24(2): 151-156. (in Chinese with English abstract)
[14]	沈新强, 蒋玫, 袁骐, 1999. 长江河口区叶绿素a分布的研究[J]. 中国水产科学, 6(5): 1-5.
	SHEN XINQIANG, JIANG MEI, YUAN QI, 1999. Study on distribution of chlorophyll a in the Changjiang Estuary[J]. Journal of Fishery Sciences of China, 6(5): 1-5. (in Chinese with English abstract)
[15]	孙越峰, 秦艳杰, 李洪波, 等, 2020. 辽河口海域叶绿素a的时空分布特征及其影响因素[J]. 环境保护科学, 46(2): 44-48.
	SUN YUEFENG, QIN YANJIE, LI HONGBO, et al, 2020. Spatial and temporal distribution characteristics and influencing factors of chlorophyll a in the Liaohe Estuary[J]. Environmental Protection Science, 46(2): 44-48. (in Chinese with English abstract)
[16]	王彪, 朱建荣, 2012. 基于FVCOM模型的珠江河口及其邻近海域的潮汐模拟[J]. 热带海洋学报, 31(4): 17-27
	[ WANG BIAO, ZHU JIANRONG, 2012. Numerical simulation of tides in the Pearl River Estuary and its adjacent sea based on FVCOM[J]. Journal of Tropical Oceanography, 31(4): 17-27(in Chinese with English abstract).
[17]	朱建荣, 2004. 长江口外海区叶绿素a浓度分布及其动力成因分析[J]. 中国科学 (D辑: 地球科学), 34(8): 757-762.
	ZHU JIANRONG, 2004. The concentration distribution of chlorophyll-a of sea on Changjiang port and its causation analysis[J]. Science in China Series D: Earth Sciences, 34(8): 757-762. (in Chinese with English abstract)
[18]	CORREIA C, TORRES A F, ROSA A, et al, 2020. Export of dissolved and suspended matter from the main estuaries in South Portugal during winter conditions[J]. Marine Chemistry, 224: 103827. doi: 10.1016/j.marchem.2020.103827
[19]	GRINSTED A, MOORE J C, JEVREJEVA S, 2004. Application of the cross wavelet transform and wavelet coherence to geophysical time series[J]. Nonlinear Processes in Geophysics, 11(5-6): 561-566. doi: 10.5194/npg-11-561-2004
[20]	SOUTHWELL M W, KIEBER R J, MEAD R N, et al, 2010. Effects of sunlight on the production of dissolved organic and inorganic nutrients from resuspended sediments[J]. Biogeochemistry, 98(1-3): 115-126. doi: 10.1007/s10533-009-9380-2
[21]	TORRENCE C, COMPO G P, 1998. A practical guide to wavelet analysis[J]. Bulletin of the American Meteorological Society, 79(1): 61-78. doi: 10.1175/1520-0477(1998)079<0061:APGTWA>2.0.CO;2
[22]	WU ZHAOHUA, HUANG N E, 2009. Ensemble empirical mode decomposition: a noise-assisted data analysis method[J]. Advances in Adaptive Data Analysis, 1(1): 1-41. doi: 10.1142/S1793536909000047
