Journal of Tropical Oceanography ›› 2020, Vol. 39 ›› Issue (6): 77-92.doi: 10.11978/2019090CSTR: 32234.14.2019090
• Marine Geology • Previous Articles Next Articles
LIU Lei1,3(), XU Lanfang1, GUAN Hongxiang1(), SUN Zhilei2, WANG Libo2, MAO Shengyi1, LIU Lihua1, WU Nengyou2
Received:
2019-09-18
Revised:
2020-03-10
Online:
2020-10-10
Published:
2020-04-16
Contact:
GUAN Hongxiang
E-mail:sc170130@mail.ustc.edu.cn;guanhx@ms.giec.ac.cn
Supported by:
CLC Number:
LIU Lei, XU Lanfang, GUAN Hongxiang, SUN Zhilei, WANG Libo, MAO Shengyi, LIU Lihua, WU Nengyou. The source of glycerol dibiphytanyl glycerol tetraethers and temperature reconstruction since 8.2 ka in the central Okinawa Trough[J].Journal of Tropical Oceanography, 2020, 39(6): 77-92.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

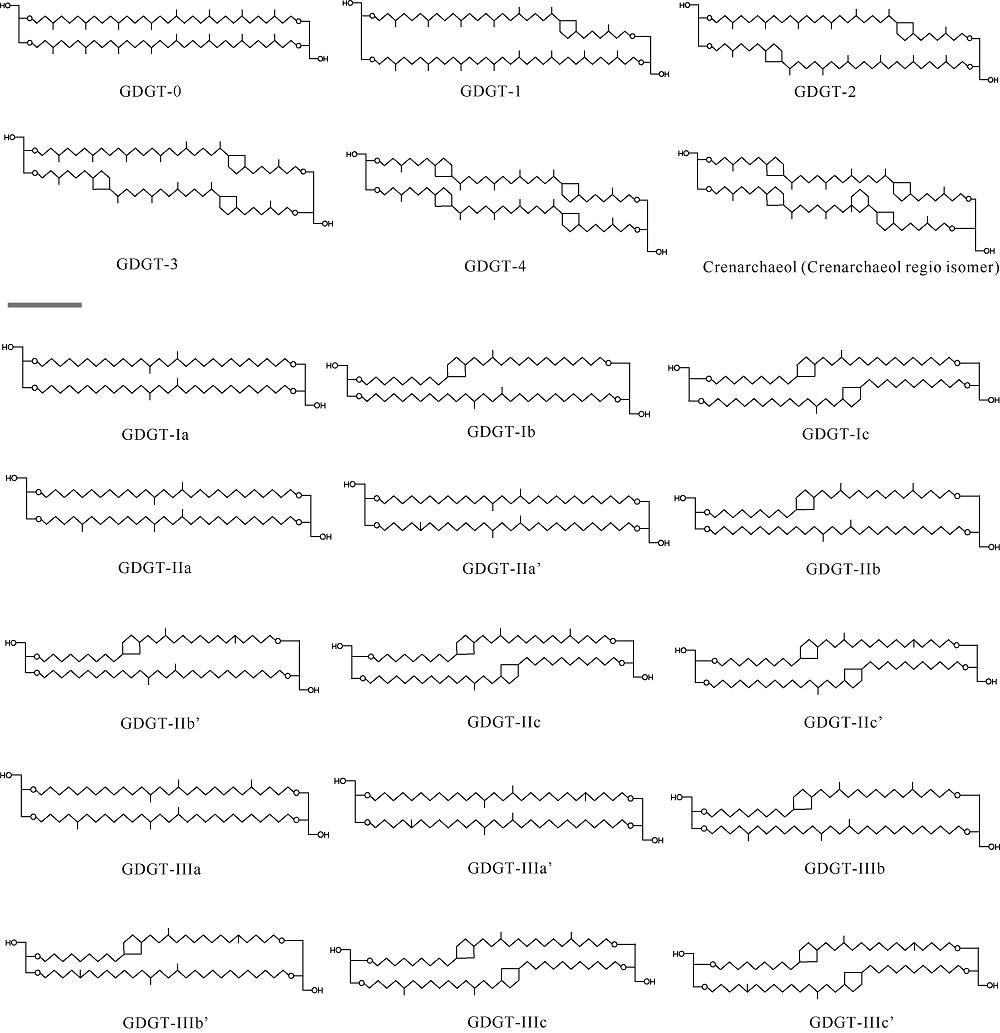

Fig. 1
Structures of isoprenoid glycerol dibiphytanyl glycerol tetraethers (isoGDGTs) and branched GDGTs (brGDGTs) observed in this study, revised after Schouten et al (2013) and Yang et al (2015). GDGT-0, -1, -2, -3, -4, and Crenarchaeol (Crenarchaeol regio isomer) belong to isoGDGTs and mainly come from the archaea; the rest are brGDGTs (and their regio isomers) and mainly sourced from the bacteria"
Tab. 1
Definitions of various proxies used in this article"
指标定义* | 合理范围 | 来源 | |
---|---|---|---|
$\text{TE}{{\text{X}}_{86}}=\frac{\text{( }\!\![\!\!\text{ GDGT-2 }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-3 }\!\!]\!\!\text{ + }\!\![\!\!\text{ Crenarchaeol regio isomer }\!\!]\!\!\text{ )}}{\text{( }\!\![\!\!\text{ GDGT-1 }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-2 }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-3 }\!\!]\!\!\text{ + }\!\![\!\!\text{ Crenarchaeol regio isomer }\!\!]\!\!\text{ )}}$ | |||
$\text{TEX}_{\text{86}}^{\text{H}}=\log (\text{TE}{{\text{X}}_{86}})$ | >15℃ | ||
$\text{TEX}_{\text{86}}^{\text{L}}=\log \left( \frac{\text{ }\!\![\!\!\text{ GDGT-2 }\!\!]\!\!\text{ }}{\text{ }\!\![\!\!\text{ GDGT-1 }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-2 }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-3 }\!\!]\!\!\text{ }} \right)$ | <15℃ | ||
$\text{BIT}=\frac{\text{ }\!\![\!\!\text{ GDGT-Ia }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-IIa }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-IIIa }\!\!]\!\!\text{ }}{\text{ }\!\![\!\!\text{ GDGT-Ia }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-IIa }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-IIIa }\!\!]\!\!\text{ + }\!\![\!\!\text{ Crenarchaeol }\!\!]\!\!\text{ }}$ | <0.4 | ||
$\text{MI}=\frac{\text{ }\!\![\!\!\text{ GDGT-1 }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-2 }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-3 }\!\!]\!\!\text{ }}{\text{ }\!\![\!\!\text{ GDGT-1 }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-2 }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-3 }\!\!]\!\!\text{ + }\!\![\!\!\text{ Crenarchaeol }\!\!]\!\!\text{ + }\!\![\!\!\text{ Crenarchaeol regio isomer }\!\!]\!\!\text{ }}$ | <0.3 | ||
$\text{ }\!\!%\!\!\text{ GDGT-2}=\frac{\text{GDGT-2}}{\text{ }\!\![\!\!\text{ GDGT-1 }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-2 }\!\!]\!\!\text{ + }\!\![\!\!\text{ GDGT-3 }\!\!]\!\!\text{ + }\!\![\!\!\text{ Crenarchaeol regio isomer }\!\!]\!\!\text{ }}$ | <45 | ||
[GDGT-0] / [Crenarchaeol] | <2 | ||
[GDGT-2] / [Crenarchaeol] | <0.4 |

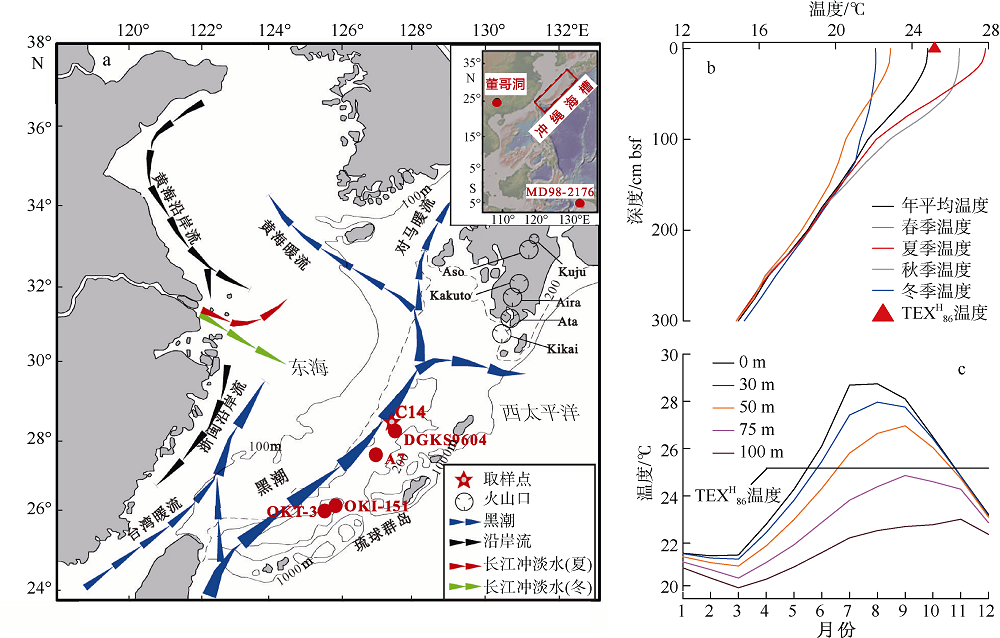

Fig. 2
Location of the core C14 and its current variations. a) Location of the core C14 (red star) in the OT, and collected paleoenvironmental data from Dongge Cave in southern China (Dykoski et al, 2005), core MD98-2176 in the western tropical Pacific (Stott et al, 2004), cores A7 (Sun et al, 2005), and DGKS9604 in the central OT (Yu et al, 2009), and cores OKT-3 (Zhao et al, 2015) and OKI-151 (Xu et al, 2018) in the southern OT (red dots). Seasonal (b) and monthly (c) mean water temperatures at different depths at the study site. Core-top TEXH86 temperature was used in Figs. 2b and 2c. Unit cm bsf represents the depth in centimeters below the seabed. Data of (b) and (c) are from https://odv.awi.de/data/ocean/world-ocean- atlas -2013/"
Tab. 2
14C-AMS ages from core C14 in the central Okinawa Trough"
Beta实验室编号 | 深度/(cm bsf) | 平均深度/(cm bsf ) | 有孔虫种类 | 传统14C年龄/(a BP) | 2σ校正年龄/(a BP) | 平均校正年龄/(a BP) |
---|---|---|---|---|---|---|
498910 | 35~37.5b | 36.25 | G.ruber, G.sacculifer | 1100±30 a | 616—730 | 673 |
498912 | 155~157.5b | 156.25 | G.ruber, G.sacculifer | 2330±30 | 1858—2045 | 1951.5 |
498914 | 365~367.5b | 366.25 | G.ruber,,G.sacculifer | 4790±30 | 4943—5227 | 5085 |
498915 | 455~457.5c | 456.25 | G.ruber, G.sacculifer | 6280±30 | 6831—6646 | 6738.5 |
498916 | 545~547.5c | 546.25 | G.ruber, G.sacculifer | 6940±30 | 7520—7385 | 7452.5 |
498917 | 575~577.5c | 576.25 | G.ruber, G.sacculifer | 7780±30 | 8170—8327 | 8248.5 |

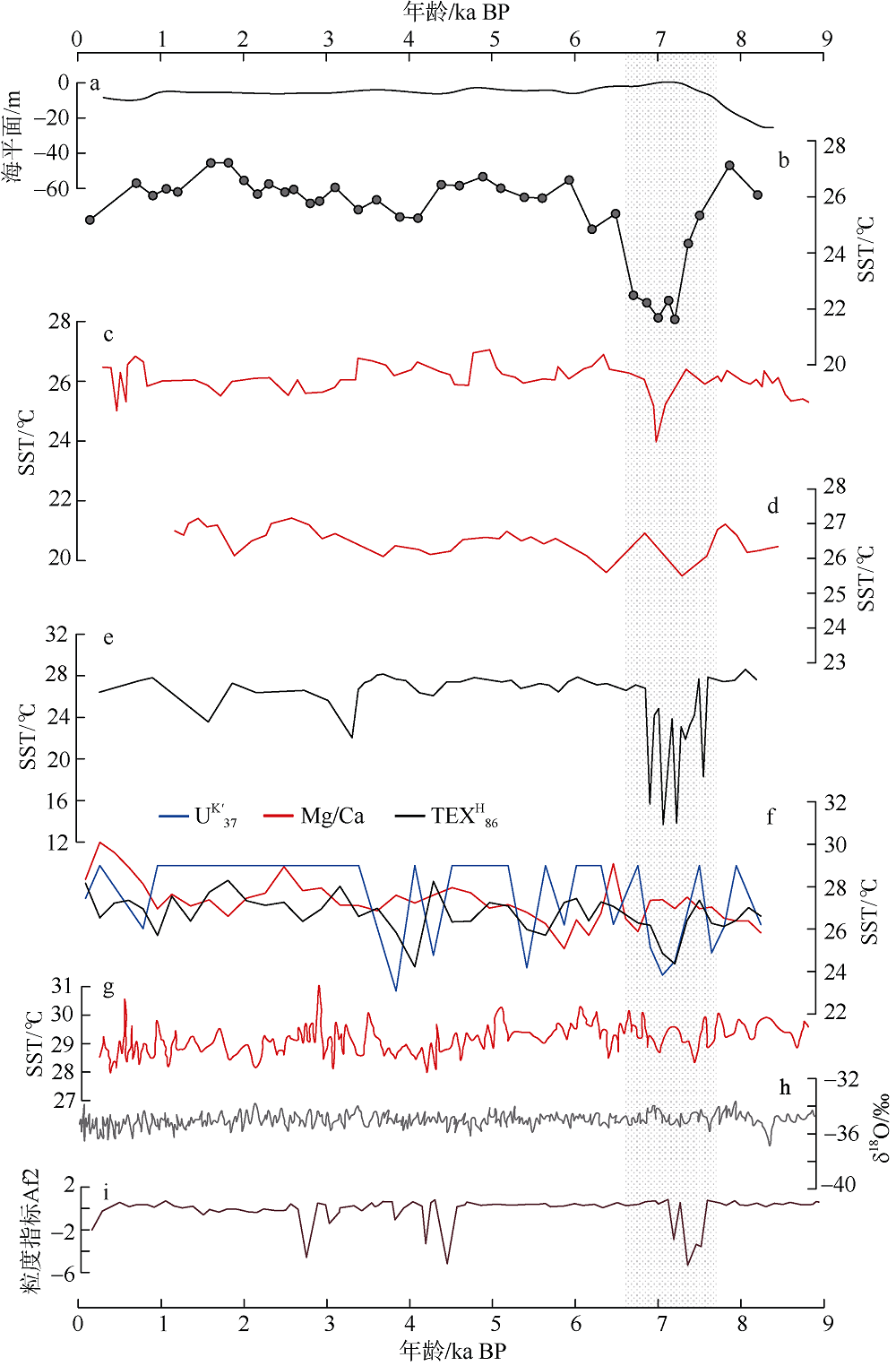

Fig. 5
Collected paleo-temperature records. a) Postglacial sea-level changes in the western Pacific (Liu et al, 2004); b) TEXH86 SST in this study; c) Mg/Ca SST at site MD98-2195 (Kubota et al, 2010); d) Mg/Ca SST at site A7 (Sun et al, 2005); e) TEXH86 SST at site OKI-151(Xu et al, 2018); f) Mg/Ca (red line), UK’37 (blue line) and TEXH86 (black line) SSTs at site OKT-3 (Zhao et al, 2015); g) MD98-2176 Mg/Ca SST in the western tropical Pacific (Stott et al,2004); h) δ18O record from GISP2 ice core (Stuiver et al, 2000); i) sediment particle size index AF2 at site A7 (Zheng et al, 2016)"

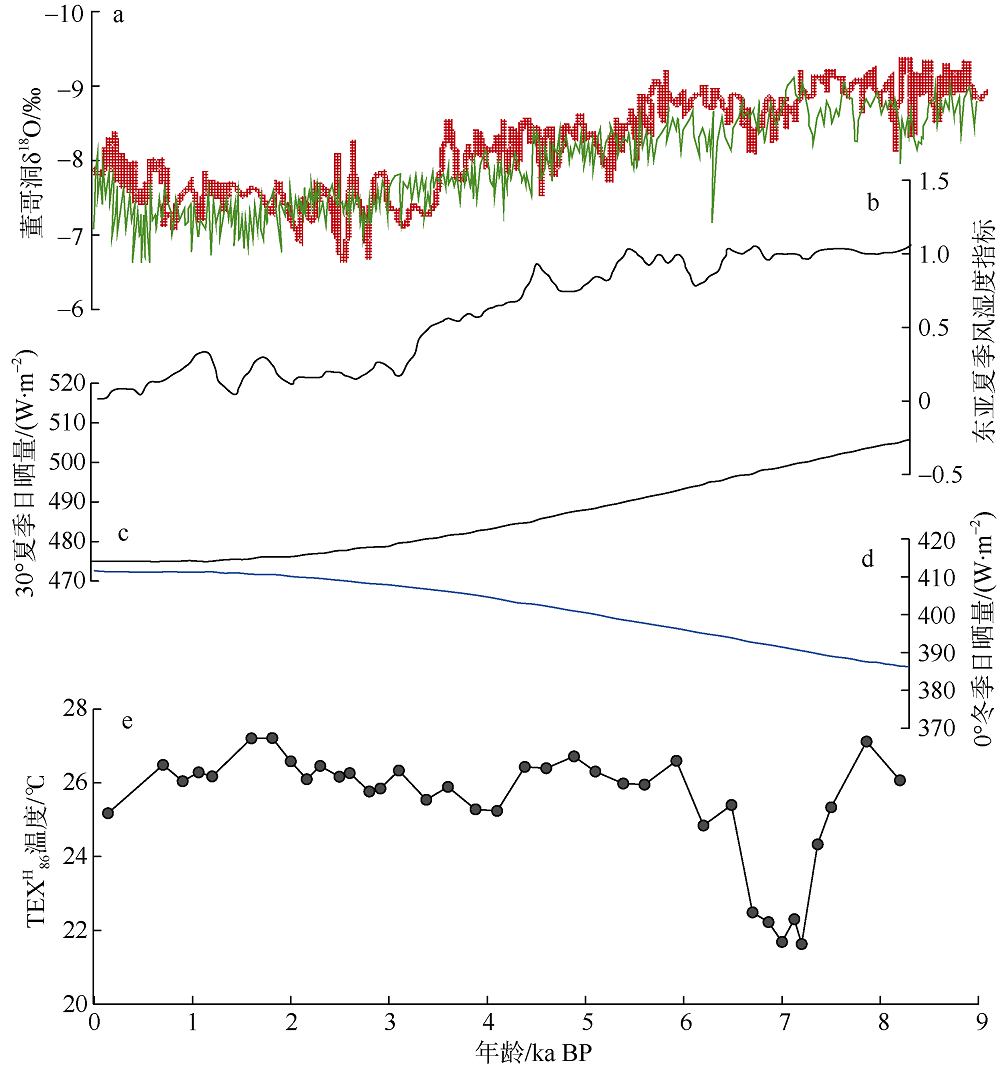

Fig. 6
Comparison of mean annual SST variation from core C14 with other paleoclimate data. a) δ18O records from the Dongge Cave stalagmites, China (green: Wang et al, 2005; red: Dykoski et al, 2005); b) the synthesized East Asian summer monsoon (EASM) moisture indexes (Wang et al, 2010); c) summer (June) insolation at 30°N (Berger et al, 1991); d) winter (December) insolation at 0° (equator) (Berger et al, 1991); e) TEXH86 SST of site C14"
[1] | 窦衍光, 陈晓辉, 李军, 等, 2018. 东海外陆架-陆坡-冲绳海槽不同沉积单元底质沉积物成因及物源分析[J]. 海洋地质与第四纪地质, 38(4):21-31. |
DOU YANGUANG, CHEN XIAOHUI, LI JUN , et al, 2018. Origin and provenance of the surficial sediments in the subenvironments of the East China Sea[J]. Marine Geology & Quaternary Geology, 38(4):21-31 (in Chinese with English abstract). | |
[2] | 葛黄敏, 张传伦, VERSTEEGH G J M , 等, 2016. 中国东海过去1.4万年以来的沉积演化: 基于脂类标记物的古环境重建[J]. 中国科学: 地球科学, 46(2):127-140. |
GE HUANGMIN, ZHANG CHUANLUN, VERSTEEGH G J M , et al, 2016. Evolution of the East China Sea sedimentary environment in the past 14 kyr: Insights from tetraethers-based proxies[J]. Science China Earth Sciences, 59(5):927-938. | |
[3] | 徐烨, 常凤鸣, 李铁刚, 等, 2019. 中全新世冲绳海槽北部的水文气候变化: 浮游有孔虫群落证据[J]. 海洋地质与第四纪地质, 39(1):113-123. |
XU YE, CHANG FENGMING, LI TIEGANG , et al, 2019. The hydroclimate changes in the northern Okinawa Trough during middle Holocene: evidence from planktonic foraminiferal assemblages[J]. Marine Geology & Quaternary Geology, 39(1):113-123 (in Chinese with English abstract). | |
[4] | 赵京涛, 李军, 窦衍光, 等, 2016. 海洋古温标研究新进展及其在冲绳海槽区的应用[J]. 海洋地质与第四纪地质, 36(1):123-132. |
ZHAO JINGTAO, LI JUN, DOU YANGUANG , et al, 2016. Progress of marine paleo-temperature proxies and their application in the Okinawa Trough[J]. Marine Geology & Quaternary Geology, 36(1):123-132 (in Chinese with English abstract). | |
[5] | BERGER A, LOUTRE M F, 1991. Insolation values for the climate of the last 10 million years[J]. Quaternary Science Reviews, 10(4):297-317. |
[6] | BLAGA C I, REICHART G J, HEIRI O, et al, 2009. Tetraether membrane lipid distributions in water-column particulate matter and sediments: a study of 47 European lakes along a north-south transect[J]. Journal of Paleolimnology, 41(3):523-540. |
[7] | BOND G, SHOWERS W, CHESEBY M, et al, 1997. A pervasive millennial-scale cycle in North Atlantic Holocene and glacial climates[J]. Science, 278(5341):1257-1266. |
[8] | DAVTIAN N, BARD E, MÉNOT G, et al, 2018. The importance of mass accuracy in selected ion monitoring analysis of branched and isoprenoid tetraethers[J]. Organic Geochemistry, 118:58-62. |
[9] | DIEKMANN B, HOFMANN J, HENRICH R, et al, 2008. Detrital sediment supply in the southern Okinawa Trough and its relation to sea-level and Kuroshio dynamics during the late Quaternary[J]. Marine Geology, 255(1-2):83-95. |
[10] | DOU YANGUANG, YANG SHOUYE, LIU ZHENXIA, et al, 2010. Clay mineral evolution in the central Okinawa Trough since 28 ka: Implications for sediment provenance and paleoenvironmental change[J]. Palaeogeography, Palaeoclimatology, Palaeoecology, 288(1-4):108-117. |
[11] | DYKOSKI C A, EDWARDS R L, CHENG HAI, et al, 2005. A high-resolution, absolute-dated Holocene and deglacial Asian monsoon record from Dongge Cave, China[J]. Earth and Planetary Science Letters, 233(1-2):71-86. |
[12] | GLIOZZI A, PAOLI G, DE ROSA M, et al, 1983. Effect of isoprenoid cyclization on the transition temperature of lipids in thermophilic archaebacteria[J]. Biochimica et Biophysica Acta (BBA) - Biomembranes, 735(2):234-242. |
[13] | HERTZBERG J E, SCHMIDT M W, BIANCHI T S, et al, 2016. Comparison of eastern tropical Pacific TEX86 and Globigerinoides ruber Mg/Ca derived sea surface temperatures: insights from the Holocene and Last Glacial Maximum[J]. Earth and Planetary Science Letters, 434:320-332. |
[14] | HOPMANS E C, SCHOUTEN S, SINNINGHE DAMSTÉ J S, 2016. The effect of improved chromatography on GDGT-based palaeoproxies[J]. Organic Geochemistry, 93:1-6. |
[15] | HOPMANS E C, WEIJERS J W H, SCHEFUSß E, et al, 2004. A novel proxy for terrestrial organic matter in sediments based on branched and isoprenoid tetraether lipids[J]. Earth and Planetary Science Letters, 224(1-4):107-116. |
[16] | HU DUNXIN, WU LIXIN, CAI WENJU, et al, 2015. Pacific western boundary currents and their roles in climate[J]. Nature, 522(7556):299-308. |
[17] | JIAN ZHIMIN, WANG PINXIAN, SAITO Y, et al, 2000. Holocene variability of the Kuroshio Current in the Okinawa Trough, northwestern Pacific Ocean[J]. Earth and Planetary Science Letters, 184(1):305-319. |
[18] | KARNER M B, DELONG E F, KARL D M, 2001. Archaeal dominance in the mesopelagic zone of the Pacific Ocean[J]. Nature, 409(6819):507-510. |
[19] | KIM J-H, VAN DER MEER J, SCHOUTEN S, et al, 2010. New indices and calibrations derived from the distribution of crenarchaeal isoprenoid tetraether lipids: implications for past sea surface temperature reconstructions[J]. Geochimica et Cosmochimica Acta, 74(16):4639-4654. |
[20] | KITAGAWA H, FUKUZAWA H, NAKAMURA T, et al, 1995. AMS14C Dating of Varved sediments from Lake Suigetsu, Central Japan and Atmospheric14C change during the Late Pleistocene [J]. Radiocarbon, 37(2):371-378. |
[21] | KUBOTA Y, KIMOTO K, TADA R, et al, 2010. Variations of East Asian summer monsoon since the last deglaciation based on Mg/Ca and oxygen isotope of planktic foraminifera in the northern East China Sea[J]. Paleoceanography and Paleoclimatology, 25(4): PA4205, doi: 10.1029/2009PA0018 91. |
[22] | LI TIEGANG, LIU ZHENXIA, HALL M A, et al, 2001. Heinrich event imprints in the Okinawa Trough: Evidence from oxygen isotope and planktonic foraminifera[J]. Palaeogeography, Palaeoclimatology, Palaeoecology, 176(1-4):133-146. |
[23] | LIEW P M, LEE C Y, KUO C M, 2006. Holocene thermal optimal and climate variability of East Asian monsoon inferred from forest reconstruction of a subalpine pollen sequence, Taiwan[J]. Earth and Planetary Science Letters, 250(3-4):596-605. |
[24] | LIU J P, MILLIMAN J D, GAO SHU, et al, 2004. Holocene development of the Yellow River's subaqueous delta, North Yellow Sea[J]. Marine Geology, 209(1-4):45-67. |
[25] | LORENZ S J, KIM J-H, RIMBU N, et al, 2006. Orbitally driven insolation forcing on Holocene climate trends: Evidence from alkenone data and climate modeling[J]. Paleoceanography and Paleoclimatology, 21(1): PA1002, doi: 10.1029/2005PA001152. |
[26] | MACGREGOR B J, MOSER D P, ALM E W, et al, 1997. Crenarchaeota in Lake Michigan sediment[J]. Applied and Environmental Microbiology, 63(3):1178-1181. |
[27] | MACHIDA H, 1999. The stratigraphy, chronology and distribution of distal marker-tephras in and around Japan[J]. Global and Planetary Change, 21(1-3):71-94. |
[28] | MASSANA R, MURRAY A E, PRESTON C M, et al, 1997. Vertical distribution and phylogenetic characterization of marine planktonic Archaea in the Santa Barbara Channel[J]. Applied and Environmental Microbiology, 63(1):50-56. |
[29] | MURRAY A E, PRESTON C M, MASSANA R, et al, 1998. Seasonal and spatial variability of bacterial and archaeal assemblages in the coastal waters near Anvers Island, Antarctica[J]. Applied and Environmental Microbiology, 64(7):2585-2595. |
[30] | NAKANISHI T, YAMAMOTO M, IRINO T, et al, 2012. Distribution of glycerol dialkyl glycerol tetraethers, alkenones and polyunsaturated fatty acids in suspended particulate organic matter in the East China Sea[J]. Journal of Oceanography, 68(6):959-970. |
[31] | OPPENHEIMER C, 2002. Limited global change due to the largest known Quaternary eruption, Toba ≈74 kyr BP?[J]. Quaternary Science Reviews, 21(14-15):1593-1609. |
[32] | PARK J, LIM H S, LIM J, et al, 2014. High-resolution multi-proxy evidence for millennial- and centennial-scale climate oscillations during the last deglaciation in Jeju Island, South Korea[J]. Quaternary Science Reviews, 105:112-125. |
[33] | PETERSE F, PRINS M A, BEETS C J, et al, 2011. Decoupled warming and monsoon precipitation in East Asia over the last deglaciation[J]. Earth and Planetary Science Letters, 301(1-2):256-264. |
[34] | PITCHER A, HOPMANS E C, MOSIER A C, et al, 2011. Core and intact polar glycerol dibiphytanyl glycerol tetraether lipids of ammonia-oxidizing archaea enriched from marine and estuarine sediments[J]. Applied and Environmental Microbiology, 77(10):3468-3477. |
[35] | RAMPINO M R, SELF S, 1992. Volcanic winter and accelerated glaciation following the Toba super-eruption. Nature, 359(6390):50-52. |
[36] | REIMER P J, BARD E, BAYLISS A, et al, 2013. Intcal13 and marine13 radiocarbon age calibration curves 0-50,000 years cal BP[J]. Radiocarbon, 55(4):1869-1887. |
[37] | RUAN JIAPING, XU YUNPING, DING SU, et al, 2015. A high resolution record of sea surface temperature in southern Okinawa Trough for the past 15,000 years[J]. Palaeogeography, Palaeoclimatology, Palaeoecology, 426:209-215. |
[38] | SCHOUTEN S, HOPMANS E C, DAMSTÉ J S S, 2013. The organic geochemistry of glycerol dialkyl glycerol tetraether lipids: a review[J]. Organic Geochemistry, 54:19-61. |
[39] | SCHOUTEN S, HOPMANS E C, SCHEFUSß E, et al, 2002. Distributional variations in marine crenarchaeotal membrane lipids: a new tool for reconstructing ancient sea water temperatures?[J]. Earth and Planetary Science Letters, 204(1-2):265-274. |
[40] | SIBUET J-C, DEFFONTAINES B, HSU S-K, et al, 1998. Okinawa trough backarc basin: early tectonic and magmatic evolution[J]. Journal of Geophysical Research: Solid Earth, 103(B12):30245-30267. |
[41] | SINNINGHE DAMSTÉ J S, OSSEBAAR J, SCHOUTEN S, et al, 2012. Distribution of tetraether lipids in the 25-ka sedimentary record of Lake Challa: extracting reliable TEX86 and MBT/CBT palaeotemperatures from an equatorial African lake[J]. Quaternary Science Reviews, 50:43-54. |
[42] | STOTT L, CANNARIATO K, THUNELL R, et al, 2004. Decline of surface temperature and salinity in the western tropical Pacific Ocean in the Holocene epoch[J]. Nature, 431(7004):56-59. |
[43] | STUIVER M, GROOTES P M, 2000. GISP2 oxygen isotope ratios[J]. Quaternary Research, 53(3):277-284. |
[44] | SUN YOUBIN, OPPO D W, XIANG RONG, et al, 2005. Last deglaciation in the Okinawa Trough: Subtropical northwest Pacific link to northern Hemisphere and tropical climate[J]. Paleoceanography and Paleoclimatology, 20(4): PA4005. |
[45] | UDA I, SUGAI A, ITOH Y H, et al, 2001. Variation in molecular species of polar lipids from Thermoplasma acidophilum depends on growth temperature[J]. Lipids, 36(1):103-105. |
[46] | WAKEHAM S G, LEWIS C M, HOPMANS E C, et al, 2003. Archaea mediate anaerobic oxidation of methane in deep euxinic waters of the Black Sea[J]. Geochimica et Cosmochimica Acta, 67(7):1359-1374. |
[47] | WANG YONGBO, LIU XINGQI, HERZSCHUH U, 2010. Asynchronous evolution of the Indian and East Asian Summer Monsoon indicated by Holocene moisture patterns in monsoonal central Asia[J]. Earth-Science Reviews, 103(3-4):135-153. |
[48] | WANG YONGJIN, CHENG HAI, EDWARDS R L, et al, 2005. The Holocene Asian monsoon: links to solar changes and North Atlantic climate[J]. Science, 308(5723):854-857. |
[49] | WEIJERS J W H, LIM K L H, AQUILINA A, et al, 2011. Biogeochemical controls on glycerol dialkyl glycerol tetraether lipid distributions in sediments characterized by diffusive methane flux[J]. Geochemistry, Geophysics, Geosystems, 12(10):Q10010, doi: 10.1029/2011GC003724. |
[50] | XU DEKE, LU HOUYUAN, WU NAIQIN, et al, 2013. Asynchronous marine-terrestrial signals of the last deglacial warming in East Asia associated with low- and high-latitude climate changes[J]. Proceedings of the National Academy of Sciences of the United States of America, 110(24):9657-9662. |
[51] |
XU Fangjian, DOU Yanguang, LI Jun, et al, 2018. Low-latitude climate control on sea-surface temperatures recorded in the southern Okinawa Trough during the last 13.3 kyr[J]. Palaeogeography, Palaeoclimatology, Palaeoecology, 490:210-217.
doi: 10.1016/j.palaeo.2017.10.034 |
[52] |
YAMAMOTO M, KISHIZAKI M, OBA T, et al, 2013. Intense winter cooling of the surface water in the northern Okinawa Trough during the last glacial period[J]. Journal of Asian Earth Sciences, 69:86-92.
doi: 10.1016/j.jseaes.2012.06.011 |
[53] |
YAMAMOTO M, SHIMAMOTO A, FUKUHARA T, et al, 2012. Glycerol dialkyl glycerol tetraethers and TEX86 index in sinking particles in the western North Pacific[J]. Organic Geochemistry, 53:52-62.
doi: 10.1016/j.orggeochem.2012.04.010 |
[54] | YANG HUAN, LÜ XIAOXIA, DING WEIHUA, et al, 2015. The 6-methyl branched tetraethers significantly affect the performance of the methylation index (MBT′) in soils from an altitudinal transect at Mount Shennongjia[J]. Organic Geochemistry, 82:42-53. |
[55] | YU HUA, LIU ZHENXIA, BERNÉ S, et al, 2009. Variations in temperature and salinity of the surface water above the middle Okinawa Trough during the past 37 kyr[J]. Palaeogeography, Palaeoclimatology, Palaeoecology, 281(1-2):154-164. |
[56] | ZHANG YIGE, ZHANG C L, LIU XIAOLEI, et al, 2011. Methane Index: A tetraether archaeal lipid biomarker indicator for detecting the instability of marine gas hydrates[J]. Earth and Planetary Science Letters, 307(3-4):525-534. |
[57] | ZHAO JINGTAO, LI JUN, CAI FENG, et al, 2015. Sea surface temperature variation during the last deglaciation in the southern Okinawa Trough: modulation of high latitude teleconnections and the Kuroshio Current[J]. Progress in Oceanography, 138:238-248. |
[58] | ZHENG XUFENG, LI ANCHUN, KAO S, et al, 2016. Synchronicity of Kuroshio Current and climate system variability since the last Glacial Maximum[J]. Earth and Planetary Science Letters, 452:247-257. |
[59] | ZHENG XUFENG, LI ANCHUN, WAN SHIMING, et al, 2014. ITCZ and ENSO pacing on East Asian winter monsoon variation during the Holocene: sedimentological evidence from the Okinawa Trough[J]. Journal of Geophysical Research: Oceans, 119(7):4410-4429. |
|
