Journal of Tropical Oceanography ›› 2023, Vol. 42 ›› Issue (3): 96-115.doi: 10.11978/2022133CSTR: 32234.14.2022133
• Marine Geology • Previous Articles Next Articles
ZHAO Zhongxian1,2,3(), SUN Zhen1,3(
), MAO Yunhua4, ZHANG Huodai2
Received:
2022-06-10
Revised:
2022-08-15
Online:
2023-05-10
Published:
2022-09-07
Supported by:
ZHAO Zhongxian, SUN Zhen, MAO Yunhua, ZHANG Huodai. Heterogeneous extension and pulsed tectonic subsidence in the northern South China Sea margin*[J].Journal of Tropical Oceanography, 2023, 42(3): 96-115.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

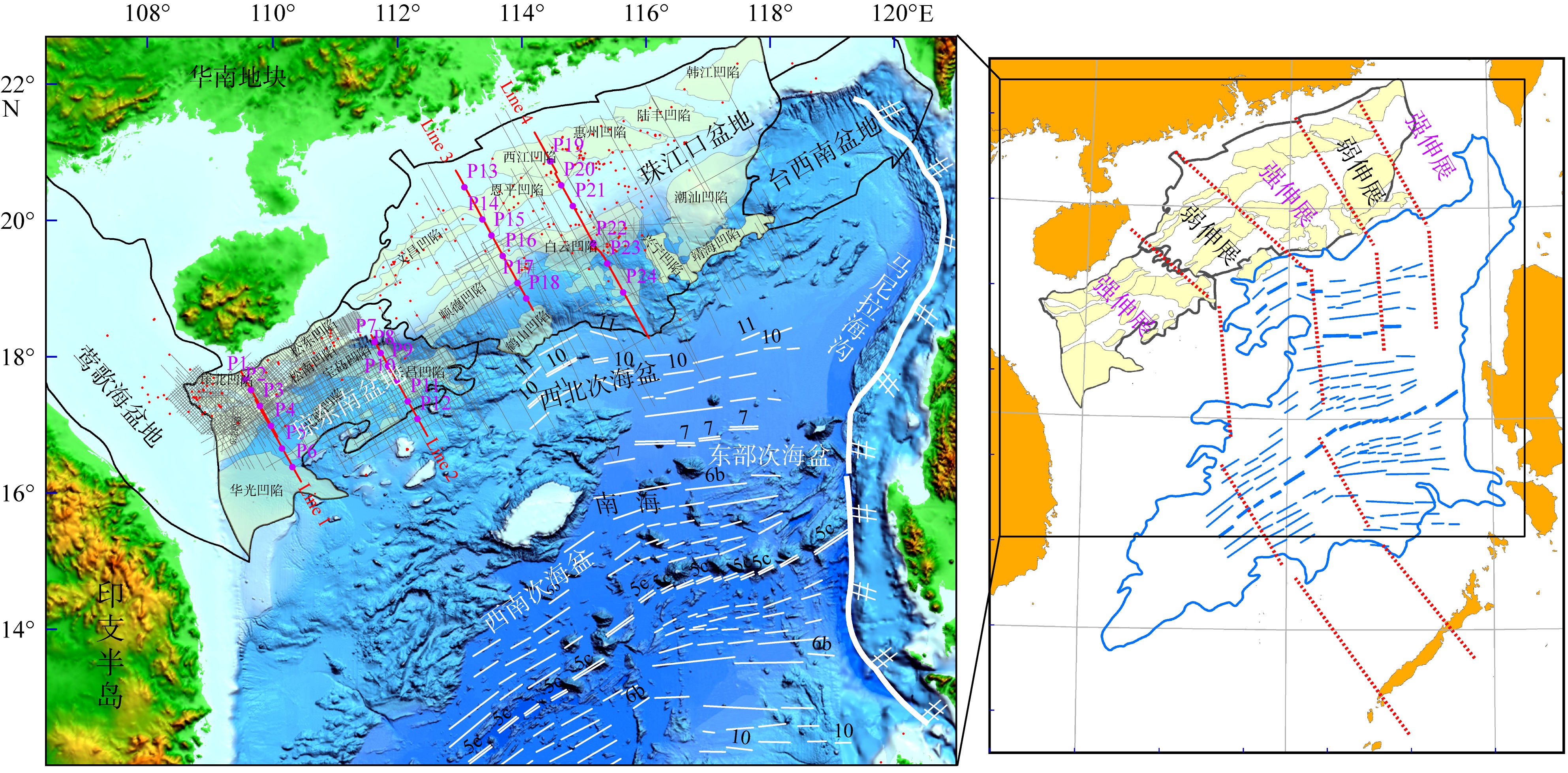

Fig. 1
Regional structural map (a) and topography and data distribution of the South China Sea (b). The South China Sea Basin is composed of the eastern sub-basin, the northwestern sub-basin and the south-western sub-basin. The white short lines are the seafloor magnetic anomalies (Briais et al, 1993). In the northern continental margin of the South China Sea, there are the Yinggehai, Qiongdongnan, Pearl River Mouth and Taixinan Basins from west to east. The gray straight lines are multi-channel seismic survey lines, and the red dots mark the oil and gas wells and IODP drilling cites. The bold red lines 1-4 stand for four reflection seismic lines used here, and points P1-24 are selected to perform the detailed tectonic subsidence analysis."
Tab. 1
Fault growth rates along line 1"
断层 | 活动速率/(m·Myr-1) | ||||
---|---|---|---|---|---|
45—33.9Ma | 33.9—28.4Ma | 28.4—25.5Ma | 25.5—23Ma | 23—0Ma | |
F1 | 120.8 | 283.5 | 236.2 | 232.0 | - |
F4 | 9.8 | 16.2 | 58.0 | 29.6 | - |
F5 | 70.7 | 82.4 | 57.7 | 46.2 | - |
F6 | 125.9 | 85.5 | 201.2 | 26.7 | - |
F7 | 43.1 | 62.0 | 271.5 | - | - |
F8 | 35.9 | 83.6 | 88.7 | - | - |
F9 | 122.1 | 99.5 | 205.4 | - | - |
F10 | 178.3 | 339.8 | 370.4 | 200.5 | - |
F14 | - | 121.7 | 109.9 | 181.0 | - |
F15 | - | 60.4 | 26.4 | 55.1 | - |
F16 | - | - | - | 78.3 | - |
F17 | - | - | - | 54.9 | - |
F18 | - | 43.6 | 67.6 | 317.6 | - |
F19 | 31.5 | 55.5 | - | 231.5 | - |
F20 | 22.2 | 29.2 | - | 140.6 | - |
平均 | 71.1 | 90.0 | 145.7 | 123.8 | 0 |
Tab. 2
Fault growth rates along line 2"
断层 | 活动速率/(m·Myr-1) | ||||
---|---|---|---|---|---|
45—33.9Ma | 33.9—28.4Ma | 28.4—25.5Ma | 25.5—23Ma | 23—0Ma | |
F1 | - | 45.9 | 135.0 | 370.4 | - |
F2 | - | 74.3 | - | 41.9 | - |
F3 | 57.3 | 178.6 | - | - | - |
F4 | 116.4 | 20.3 | - | - | - |
F5 | 39.3 | 106.5 | 150.9 | - | - |
F6 | 35.8 | 267.1 | 107.5 | - | - |
F7 | 122.6 | 107.9 | 102.4 | 80.8 | - |
F8 | 41 | 196.8 | - | 131.8 | - |
F9 | 32.7 | 84.9 | - | 127.1 | - |
平均 | 63.6 | 120.3 | 124.0 | 150.4 | 0 |
Tab. 3
Fault growth rates along line 3"
断层 | 活动速率/(m·Myr-1) | ||||
---|---|---|---|---|---|
56—38Ma | 38—33.9Ma | 33.9—23Ma | 23—16Ma | 16—0Ma | |
F1 | 23.7 | 56.5 | - | - | - |
F2 | 10.8 | 98.5 | 16.4 | 37.7 | - |
F3 | - | 45.8 | - | - | - |
F4 | 10.6 | 47.9 | - | - | - |
F5 | 16.9 | 32.7 | 17 | - | - |
F6 | 14.8 | 99.4 | - | - | - |
F7 | - | 38.1 | - | - | - |
F8 | 45 | 62 | 13.2 | - | - |
F9 | 197 | 88.9 | - | - | - |
F10 | - | - | - | 18.9 | - |
F11 | 49.3 | 33 | 11.5 | 10.9 | - |
F12 | 14.9 | - | - | 12.7 | - |
F13 | 13.2 | - | - | - | - |
F14 | 13.6 | - | 10.3 | - | - |
F15 | - | 11 | - | - | - |
平均 | 37.3 | 55.8 | 13.7 | 20 | 0 |
Tab. 4
Fault growth rates along line 4"
断层 | 活动速率/(m·Myr-1) | |||||
---|---|---|---|---|---|---|
56—38Ma | 38—33.9Ma | 33.9—23Ma | 23—16Ma | 16—10Ma | 10—0Ma | |
F1 | - | 111.4 | 68.4 | 66.7 | 21.8 | - |
F2 | 44 | 179.4 | 77.6 | - | 11.7 | - |
F3 | - | 45.9 | - | - | 4.9 | - |
F4 | 70 | 144.9 | 25.9 | 14 | 59.6 | - |
F5 | 157.1 | 363.8 | 19.6 | - | 38.7 | - |
F6 | 84.6 | 86.6 | 7.6 | - | - | - |
F7 | 66.5 | 221 | 12.8 | - | - | - |
F8 | 29.9 | 327.8 | - | - | - | - |
F9 | 21.2 | 613.8 | - | - | - | - |
平均 | 67.6 | 232.7 | 30.3 | 40.4 | 27.3 | 0 |
[1] |
陈汉宗, 吴湘杰, 周蒂, et al, 2005. 珠江口盆地中新生代主要断裂特征和动力背景分析[J]. 热带海洋学报, 24(2): 52-61.
|
|
|
[2] |
陈梅, 施小斌, 刘凯, 等, 2017. 南海北缘珠三坳陷新生代构造沉降特征[J]. 海洋地质与第四纪地质, 37(6): 47-56.
|
|
|
[3] |
崔涛, 解习农, 任建业, 等, 2008. 莺歌海盆地异常裂后沉降的动力学机制[J]. 地球科学, 33(3): 349-356.
|
|
|
[4] |
郝天珧, 徐亚, 孙福利, 等, 2011. 南海共轭大陆边缘构造属性的综合地球物理研究[J]. 地球物理学报, 54(12): 3098-3116.
|
|
|
[5] |
焦养泉, 李思田, 解习农, 等, 1997. 多幕裂陷作用的表现形式——以珠江口盆地西部及其外围地区为例[J]. 石油实验地质, 19(3): 222-227.
|
|
|
[6] |
雷超, 任建业, 佟殿君, 2013. 南海北部洋陆转换带盆地发育动力学机制[J]. 地球物理学报, 56(4): 1287-1299.
|
|
|
[7] |
李昌年, 王方正, 钟称生, 2005. 广西北海涠洲岛(含斜阳岛)第四纪玄武质火山岩的地球化学性质及其源区特征[J]. 岩石矿物学杂志, 24(1): 1-11.
|
|
|
[8] |
李三忠, 索艳慧, 李玺瑶, 等, 2018. 西太平洋中生代板块俯冲过程与东亚洋陆过渡带构造-岩浆响应[J]. 科学通报, 63(16): 1550-1593.
|
|
|
[9] |
林畅松, 张燕梅, 1999. 盆地的形成和充填过程模拟——以拉伸盆地为例[J]. 地学前缘, 6(B05): 139-146.
|
|
|
[10] |
刘明辉, 梅廉夫, 杨亚娟, 等, 2015. 珠江口盆地惠州凹陷北部裂陷期与拗陷期沉降作用时空差异及主控因素[J]. 地球科学与环境学报, 37(2): 31-43.
|
|
|
[11] |
刘少峰, 2009. 大陆边缘动力沉降及其深部构造作用控制[J]. 地质科学, 44(4): 1199-1212.
|
|
|
[12] |
马明, 漆家福, 张远泽, 等, 2019. 珠江口盆地新生代沉降特征及其影响因素分析[J]. 中国地质, 46(2): 269-289.
|
|
|
[13] |
毛云华, 赵中贤, 孙珍, 2020. 珠江口盆地西部陆缘伸展-减薄机制[J]. 地球科学, 45(5): 1622-1635.
|
|
|
[14] |
庞雄, 任建业, 郑金云, 等, 2018. 陆缘地壳强烈拆离薄化作用下的油气地质特征——以南海北部陆缘深水区白云凹陷为例[J]. 石油勘探与开发, 45(1): 27-39.
doi: 10.11698/PED.2018.01.03 |
|
|
[15] |
任建业, 雷超, 2011. 莺歌海-琼东南盆地构造-地层格架及南海动力变形分区[J]. 地球物理学报, 54(12): 3303-3314.
|
|
|
[16] |
任建业, 庞雄, 于鹏, 等, 2018. 南海北部陆缘深水-超深水盆地成因机制分析[J]. 地球物理学报, 61(12): 4901-4920.
|
|
|
[17] |
佟殿君, 任建业, 雷超, 等, 2009. 琼东南盆地深水区岩石圈伸展模式及其对裂后期沉降的控制[J]. 地球科学, 34(6): 963-974.
|
|
|
[18] |
王贤觉, 吴明清, 梁德华, 等, 1984. 南海玄武岩的某些地球化学特征[J]. 地球化学, (4): 42-50.
|
|
|
[19] |
卫小冬, 阮爱国, 赵明辉, 2011. 穿越东沙隆起和潮汕坳陷的OBS广角地震剖面[J]. 地球物理学报, 54(12): 3325-3335.
|
|
|
[20] |
吴能友, 曾维军, 宋海斌, 等, 2003. 南海区域构造沉降特征[J]. 海洋地质与第四纪地质, 23(1): 55-65.
|
|
|
[21] |
吴时国, 孙启良, 吴拓宇, 等, 2009. 琼东南盆地深水区多边形断层的发现及其油气意义[J]. 石油学报, 30(1): 22-32.
doi: 10.7623/syxb200901005 |
doi: 10.7623/syxb200901005 |
|
[22] |
徐义刚, 魏静娴, 邱华宁, 等, 2012. 用火山岩制约南海的形成演化:初步认识与研究设想[J]. 科学通报, 57(20): 1863-1878.
|
|
|
[23] |
鄢全树, 石学法, 2007. 海南地幔柱与南海形成演化[J]. 高校地质学报, 13(2): 311-322.
|
|
|
[24] |
鄢全树, 石学法, 王昆山, 等, 2008. 南海新生代碱性玄武岩主量、微量元素及Sr-Nd-Pb同位素研究[J]. 中国科学:地球科学, 38(1): 56-71.
|
|
|
[25] |
杨军, 施小斌, 王振峰, 等, 2015. 琼东南盆地张裂期沉降亏损与裂后期快速沉降成因[J]. 海洋地质与第四纪地质, 35(1): 81-90.
|
|
|
[26] |
易海, 张莉, 林珍, 2012. 南海北部中生代构造格局与盆地发育特征[J]. 石油实验地质, 34(4): 388-394.
|
|
|
[27] |
袁玉松, 杨树春, 胡圣标, 等, 2008. 琼东南盆地构造沉降史及其主控因素[J]. 地球物理学报, 51(2): 376-383.
|
|
|
[28] |
张云帆, 孙珍, 周蒂, 等, 2007. 南海北部陆缘新生代地壳减薄特征及其动力学意义[J]. 中国科学, 37(12): 1609-1616.
|
|
|
[29] |
赵中贤, 孙珍, 谢辉, 等, 2011. 白云深水区新生代沉降及岩石圈伸展变形[J]. 地球物理学报, 54(12): 3336-3343.
|
|
|
[30] |
赵中贤, 周蒂, 廖杰, 2009. 珠江口盆地第三纪古地理及沉积演化[J]. 热带海洋学报, 28(6): 52-60.
doi: 10.11978/j.issn.1009-5470.2009.06.052 |
|
|
[31] |
赵中贤, 周蒂, 廖杰, 等, 2010. 珠江口盆地陆架区岩石圈伸展模拟及裂后沉降分析[J]. 地质学报, 84(8): 1135-1145.
|
|
|
[32] |
邹和平, 李平鲁, 饶春涛, 1995. 珠江口盆地新生代火山岩地球化学特征及其动力学意义[J]. 地球化学, 24: 33-45.
|
|
|
[33] |
|
[34] |
doi: 10.1038/nature18319 |
[35] |
doi: 10.1038/313775a0 |
[36] |
doi: 10.1016/0012-821X(86)90146-9 |
[37] |
doi: 10.1016/j.epsl.2015.03.032 |
[38] |
doi: 10.1144/gsjgs.147.3.0495 |
[39] |
|
[40] |
doi: 10.1016/j.epsl.2019.115932 |
[41] |
doi: 10.1029/97JB03295 |
[42] |
doi: 10.1016/j.marpetgeo.2006.11.003 |
[43] |
doi: 10.1016/j.marpetgeo.2012.11.003 |
[44] |
doi: 10.1016/j.marpetgeo.2013.11.020 |
[45] |
doi: 10.1002/ggge.v17.6 |
[46] |
doi: 10.1016/j.crte.2005.10.006 |
[47] |
doi: 10.1016/j.epsl.2005.06.017 |
[48] |
doi: 10.1016/j.jseaes.2017.07.024 |
[49] |
doi: 10.1093/petroj/39.3.369 |
[50] |
doi: 10.1038/nature09988 |
[51] |
doi: 10.1016/0012-821X(80)90168-5 |
[52] |
doi: 10.1093/nsr/nwz084 |
[53] |
|
[54] |
doi: 10.1016/0264-8172(86)90053-X |
[55] |
doi: 10.1038/s41561-018-0198-1 |
[56] |
|
[57] |
doi: 10.1016/j.marpetgeo.2016.07.022 |
[58] |
doi: 10.1002/jgrb.v119.3 |
[59] |
|
[60] |
|
[61] |
doi: 10.1007/s11434-012-5063-9 |
[62] |
doi: 10.1016/j.earscirev.2021.103647 |
[63] |
doi: 10.1007/s11434-012-5329-2 |
[64] |
|
[65] |
doi: 10.1046/j.1365-2117.2003.00215.x |
[66] |
doi: 10.1130/0091-7613(1997)025<0735:CSAUOC>2.3.CO;2 |
[67] |
doi: 10.1038/26212 |
[68] |
doi: 10.1016/0012-821X(78)90071-7 |
[69] |
doi: 10.1016/S0012-821X(97)00035-6 |
[70] |
|
[71] |
doi: 10.1016/S1876-3804(18)30003-X |
[72] |
doi: 10.1130/0091-7613(1996)024<1079:IITNOT>2.3.CO;2 |
[73] |
doi: 10.1016/j.marpetgeo.2005.03.014 |
[74] |
doi: 10.1016/S0040-1951(01)00222-0 |
[75] |
doi: 10.1029/JB085iB07p03711 |
[76] |
doi: 10.1080/00206814.2012.677136 |
[77] |
doi: 10.1016/j.tecto.2005.07.004 |
[78] |
doi: 10.1111/bre.2017.29.issue-3 |
[79] |
|
[80] |
doi: 10.1007/s11430-014-4835-2 |
[81] |
|
[82] |
doi: 10.1093/nsr/nwz116 |
[83] |
doi: 10.1016/j.jseaes.2014.02.018 |
[84] |
doi: 10.1016/j.jseaes.2008.09.002 |
[85] |
|
[86] |
|
[87] |
|
[88] |
|
[89] |
doi: 10.1093/petrology/egr061 |
[90] |
doi: 10.1130/0091-7613(2000)28<963:QFDTOF>2.0.CO;2 |
[91] |
|
[92] |
|
[93] |
doi: 10.1016/j.marpetgeo.2021.105140 |
[94] |
doi: 10.1016/j.marpetgeo.2006.03.004 |
[95] |
doi: 10.1016/j.margeo.2007.08.005 |
[96] |
doi: 10.1007/s11001-019-09378-6 |
[97] |
doi: 10.1016/S0040-1951(01)00062-2 |
[98] |
|
[99] |
doi: 10.1016/j.earscirev.2018.09.013 |
[100] |
|
[101] |
doi: 10.1007/s12583-011-0180-y |
[102] |
doi: 10.1080/00206814.2019.1577189 |
[103] |
doi: 10.1007/s12583-016-0708-2 |
[104] |
doi: 10.1016/j.gsf.2021.101246 |
[105] |
doi: 10.1080/00206814.2018.1531357 |
[106] |
doi: 10.1016/j.epsl.2018.08.048 |
[107] |
|
[108] |
doi: 10.1111/bre.2018.30.issue-S1 |
[109] |
doi: 10.1007/s11001-013-9188-2 |
[110] |
doi: 10.1007/s11001-014-9238-4 |
[111] |
doi: 10.1016/j.margeo.2015.01.002 |
[112] |
doi: 10.1016/j.tecto.2018.02.002 |
