南海九章环礁中牛轭礁和西门礁新生沙洲沉积特征与动态

doi:10.11978/2019041

Abstract

Abstract:

Coral reefs over the Nansha Islands have characteristic geomorphological patterns; they exist in the form of atolls. The Niu’e (also known as Mckennan) and Ximen (Whitsum) reefs of the Jiuzhang Giant Atoll are two secondary atolls with newly-formed debris deposits, which may represent an important stage of landform evolution from a submerged atoll towards a reef island. Grain-size analysis of the surficial sediment samples collected from the two reefs shows that gravel-sized coral debris is the main component of the deposit. Medium grain sizes of the samples (measured by the long axis) range from 14 to 45 mm. Sorting coefficients range from 4.5 (being poorly sorted) to 31 with a sphericity value of 0.52 to 0.68 (far from a sphere shape). Medium grain sizes show a trend of increasing away from the shoreline. Medium grain sizes of the sediment samples are positively correlated with sorting coefficients, whereas they are more or less negatively correlated with sphericity values. Based on an analysis of historical records and satellite images, these beach ridge- or sand bar-like deposits represent modern accumulation landforms; their formations are related to storm waves and to some extent to the winter monsoon waves. The sand bar on the Niu’e reef had been extending towards the southeast and at the same time moving towards the north. The sand bar on the Ximen reef had an overall migration towards the southeast, with recurved sand spits on both sides. The mechanisms for the formulation of these features, in terms of changes in coral material supply and storm wave pattern, need further investigations.

Key words: newly-formed reef top deposits, grain size, coral debris, storm wave, Jiuzhang Atoll, South China Sea

CLC Number:

P737.11

Mouying XU, Shu GAO, Chendong GE, Mei HUANG. Characteristics and morphodynamics of newly-formed coral debris deposits on the Niu’e and Ximen Reefs, Jiuzhang Atoll, South China Sea[J].Journal of Tropical Oceanography, 2020, 39(2): 44-53.

Figures/Tables 9

Fig. 1

Tab. 1

Fig. 2

Tab. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

References 28

1	李文波, 赵军 , 2010. 南沙海区波浪的季节变化特征[J]. 广东气象, 32(2):24-26.
	LI WENBO, ZHAO JUN, 2010. Seasonal variations of wave in Nansha marine area[J]. Guangdong Meteorology, 32(2):24-26 (in Chinese with English abstract).
2	林锡贵 , 1990. 影响南沙及其邻近海区的越赤道气流[J]. 海洋与湖沼, 21(4):328-336.
	LIN XIGUI, 1990. The cross-equator air stream influence on Nansha Islands and its vicinity[J]. Oceanologia Et Limnologia Sinica, 21(4):328-336 (in Chinese with English abstract).
3	吕炳全, 王国忠, 全松青 , 1987. 西沙群岛灰砂岛的沉积特征和发育规律[J]. 海洋地质与第四纪地质, 7(2):59-69.
	LV BINGQUAN, WANG GUOZHONG, QUAN SONGQING, 1987. Sedimentary characteristics and evolutionary pattern of the sand cays in the Xisha Islands[J]. Marine Geology & Quaternary Geology, 7(2):59-69 (in Chinese with English abstract).
4	潘春梅, 丁谦, 曹文玉 , 2002. 南沙群岛岛礁地形地貌TM影像特征分析[J]. 国土资源遥感, 14(2):34-37, 60.
	PAN CHUNMEI, DING QIAN, CAO WENYU, 2002. TM image analysis of island reef topography of the Nansha Islands[J]. Remote Sensing for Land & Resources, 14(2):34-37, 60 (in Chinese with English abstract).
5	王国忠 , 2001. 南海珊瑚礁区沉积学[M]. 北京: 海洋出版社 (in Chinese).
6	文日凤, 张祥玉 , 1999. 南沙及其邻近海区热带气旋的基本特征分析[J]. 海洋科学, (1):68-70.
	WEN RIFENG, ZHANG XIANGYU, 1999. Some characteristics of tropical cyclone originate from Nansha Islands and its vicinity[J]. Marine Sciences, (1):68-70 (in Chinese with English abstract).
7	杨娟, 苏奋振, 石伟 , 等, 2014. 南海珊瑚环礁开放程度模型构建研究[J]. 热带海洋学报, 33(3):52-56 .
	YANG JUAN, SU FENZHEN, SHI WEI, et al, 2014. Research on building a model of the open type for coral atolls in the South China Sea[J]. Journal of Tropical Oceanography, 33(3):52-56 (in Chinese with English abstract).
8	俞慕耕 , 1984. 从船舶报看南海波浪的分布特点[J]. 海洋通报, 3(4):1-8 .
	YU MUGENG, 1984. Analysing the characteristics of wave distribution in the South China Sea on the basis of ship reports[J]. Marine Science Bulletin, 3(4):1-8 (in Chinese with English abstract).
9	曾昭璇, 丘世钧 , 1985. 西沙群岛环礁沙岛发育规律初探——以晋卿岛、琛航岛为例[J]. 海洋学报, 7(4):472-483 (in Chinese).
10	曾昭璇 , 1997. 中国珊瑚礁地貌研究[M]. 广州: 广东人民出版社(in Chinese).
11	赵焕庭, 宋朝景, 朱袁智 , 1992. 南沙群岛“危险地带”腹地珊瑚礁的地貌与现代沉积特征[J]. 第四纪研究, 12(4):368-377.
	ZHAO HUANTING, SONG CHAOJING, ZHU YUANZHI, 1992. Geomorphic and modern sedimentary features of coral reefs in the hinterland of “Dangerous Ground”, Nansha Islands[J]. Quaternary Sciences, 12(4):368-377 (in Chinese with English abstract).
12	赵焕庭 , 1996. 南沙群岛自然地理[M]. 北京: 科学出版社(in Chinese).
13	赵焕庭, 宋朝景, 孙宗勋 , 等, 1997. 南海诸岛全新世珊瑚礁演化的特征[J]. 第四纪研究, 17(4):301-309.
	ZHAO HUANTING, SONG CHAOJING, SUN ZONGXUN, et al, 1997. The evolutionary characteristics of the Holocene coral reefs of the South China Sea islands [J]. Quaternary Sciences, 17(4):301-309 (in Chinese with English abstract).
14	钟晋樑, 黄金森 , 1979. 我国西沙群岛松散堆积物的粒度和组成的初步分析[J]. 海洋与湖沼, 10(2):125-135.
	ZHONG JINLIANG, HUANG JINSEN, 1979. A preliminary analysis of the grain size and composition of the loose sediments in the Xisha Islands, Guangdong Province, China[J]. Oceanologia Et Limnologia Sinica, 10(2):125-135 (in Chinese with English abstract).
15	朱良生, 陈秀华, 邱章 , 2005. 永暑礁海区潮汐海流特征分析[J]. 海洋通报, 24(4):1-7 .
	ZHU LIANGSHENG, CHEN XIUHUA, QIU ZHANG, 2005. Characteristics analysis of tide and current at Yongshu reef[J]. Marine Science Bulletin, 24(4):1-7 (in Chinese with English abstract).
16	BARRETT P J , 1980. The shape of rock particles, a critical review[J]. Sedimentology, 27(3):291-303.
17	BARRY S J, COWELL P J, WOODROFFE C D , 2007. A morphodynamic model of reef-island development on atolls[J]. Sedimentary Geology, 197(1-2):47-63.
18	DUAN YUEWEI, LIU YONGXUE, LI MANCHUN , et al, 2016. Survey of reefs based on Landsat 8 operational land imager (OLI) images in the Nansha Islands, South China Sea[J]. Acta Oceanologica Sinica, 35(10):11-19.
19	FAGERSTROM J A , 1987. The evolution of reef communities[M]. London: Wiley.
20	GAN JIANPING, LI H, CURCHITSER E N , et al, 2006. Modeling South China Sea circulation: Response to seasonal forcing regimes[J]. Journal of Geophysical Research: Oceans, 111(C6):C06034.
21	KENCH P S, CHAN J, OWEN S D , et al, 2014. The geomorphology, development and temporal dynamics of Tepuka Island, Funafuti atoll, Tuvalu[J]. Geomorphology, 222:46-58.
22	KING C A M , 1972. Beaches and coasts[M]. 2nd ed. London: Edward Arnold
23	MANZELLO D P, KLEYPAS J A, BUDD D A , et al, 2008. Poorly cemented coral reefs of the eastern tropical Pacific: Possible insights into reef development in a high-CO₂ world[J]. Proceedings of the National Academy of Sciences of the United States of America, 105(30):10450-10455.
24	MORGAN K M, KENCH P S , 2014. A detrital sediment budget of a Maldivian reef platform[J]. Geomorphology, 222:122-131.
25	SNEED E D, FOLK R L , 1958. Pebbles in the lower Colorado River, Texas a study in particle morphogenesis[J]. Journal of Geology, 66(2):114-150.
26	STODDART D R , 1969. Ecology and morphology of recent coral reefs[J]. Biological Reviews, 44(4):433-498.
27	WOODROFFE C D, MCLEAN R F, SMITHERS S G , et al, 1999. Atoll reef-island formation and response to sea-level change: West Island, Cocos (Keeling) Islands[J]. Marine Geology, 160(1-2):85-104.
28	WOODROFFE C D , 2008. Reef-island topography and the vulnerability of atolls to sea-level rise[J]. Global & Planetary Change, 62(1-2):77-96.

编号	名称	日期/(年.月.日)	中心气压/hpa	中心风力/级	最大风速/(m·s^-1)	移动速度/(km·h^-1)	中心移动方向
1224	宝霞(Bopha)	2012.12.06	970	12	35	10	北西北
1330	海燕(Haiyan)	2013.11.09	950	14	45	35	西北西
1331	杨柳(Podul)	2013.11.14	1002	7	15	25	西
1421	森拉克(Sinlaku)	2014.11.28	993	8	20	23~28	西北西
1723	达维(Damrey)	2017.11.02-03	985	10~11	25~30	15~18	西/西南西
1726	启德(Kai-Tak)	2017.12.19-20	995	8	18~20	18~20	西南西/南西
1727	天秤(Tembin)	2017.12.24	970~975	12	33~35	23~25	西
1801	布拉万(Bolaven)	2018.01.03	1000	8	18	22	西/西北西

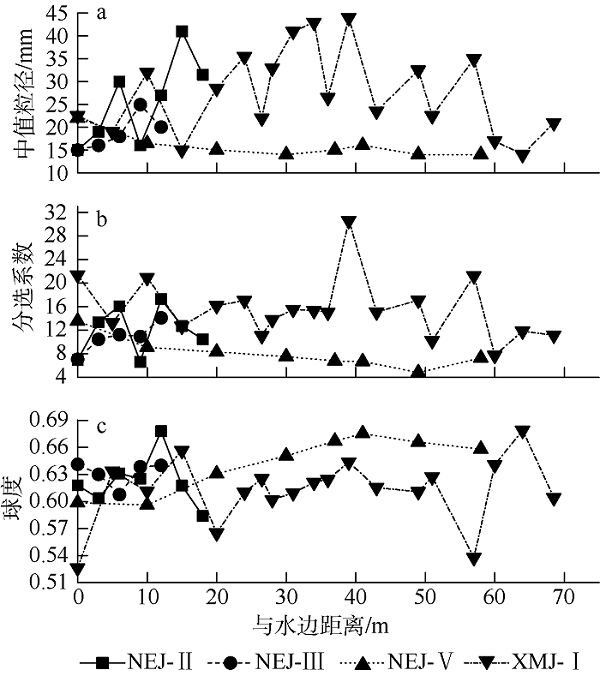

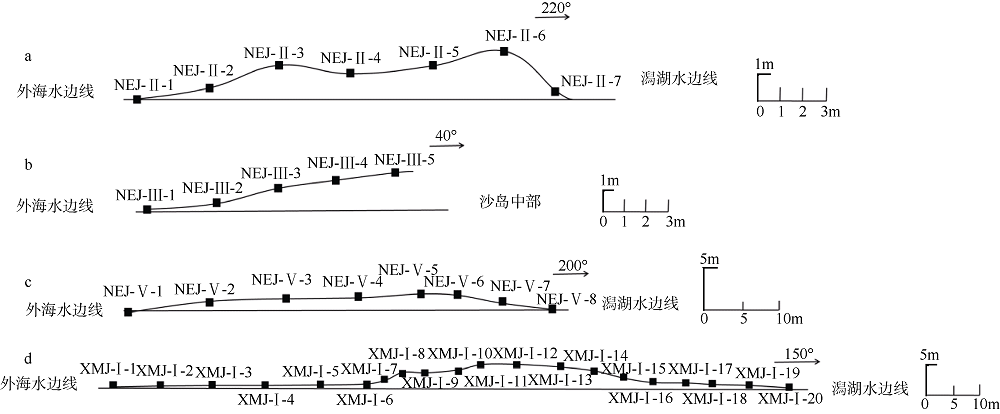

采样时间	岛礁名称	断面长度/m	采样点编号	到水边线距离/m	中值粒径/mm	分选系数	球度
2016 11.28 10:00	牛轭礁	18.9	NEJ-Ⅱ-1	0	15.0	6.97	0.618
			NEJ-Ⅱ-2	3	19.0	13.30	0.603
			NEJ-Ⅱ-3	6	30.0	16.10	0.631
			NEJ-Ⅱ-4	9	16.0	6.63	0.625
			NEJ-Ⅱ-5	12	27.0	17.30	0.678
			NEJ-Ⅱ-6	15	41.0	12.70	0.618
			NEJ-Ⅱ-7	18	31.5	10.50	0.584
		14	NEJ-Ⅲ-1	0	15.0	7.07	0.641
			NEJ-Ⅲ-2	3	16.0	10.50	0.630
			NEJ-Ⅲ-3	6	18.0	11.30	0.608
			NEJ-Ⅲ-4	9	25.0	11.00	0.639
			NEJ-Ⅲ-5	12	20.0	14.10	0.640
		58	NEJ-Ⅴ-1	0	22.0	13.60	0.599
			NEJ-Ⅴ-2	10	16.5	9.12	0.596
			NEJ-Ⅴ-3	20	15.0	8.31	0.631
			NEJ-Ⅴ-4	30	14.0	7.52	0.651
			NEJ-Ⅴ-5	37	15.0	6.81	0.667
			NEJ-Ⅴ-6	41	16.0	6.69	0.676
			NEJ-Ⅴ-7	49	14.0	4.86	0.666
			NEJ-Ⅴ-8	58	14.0	7.31	0.658
2016 11.29 12:43	西门礁	68.5	XMJ-Ⅰ-1	0	22.5	21.40	0.526
			XMJ-Ⅰ-2	5	19.0	13.30	0.634
			XMJ-Ⅰ-3	10	32.0	20.90	0.612
			XMJ-Ⅰ-4	15	15.0	12.70	0.657
			XMJ-Ⅰ-5	20	28.5	16.20	0.565
			XMJ-Ⅰ-6	24	35.5	17.10	0.610
			XMJ-Ⅰ-8	26.5	22.0	11.10	0.625
			XMJ-Ⅰ-9	28	33.0	13.80	0.602
			XMJ-Ⅰ-10	31	41.0	15.50	0.610
			XMJ-Ⅰ-11	34	43.0	15.30	0.621
			XMJ-Ⅰ-12	36	26.5	15.10	0.625
			XMJ-Ⅰ-13	39	44.0	30.60	0.644
			XMJ-Ⅰ-14	43	23.5	15.10	0.616
			XMJ-Ⅰ-15	49	32.5	17.10	0.611
			XMJ-Ⅰ-16	51	22.5	10.20	0.623
			XMJ-Ⅰ-17	57	35.0	21.20	0.538
			XMJ-Ⅰ-18	60	17.0	7.71	0.641
			XMJ-Ⅰ-19	64	14.0	11.90	0.679
			XMJ-Ⅰ-20	68.5	21.0	11.20	0.604
